In alkaline water electrolysis, electrochemical energy storage, and fuel cell systems, the current collector and electrode substrate play a critical role in determining ohmic loss, interfacial polarization, gas evolution behavior, and long-term operational stability.
To address different operating conditions and performance requirements, Youveim® offers two closely related but functionally distinct woven nickel mesh products:
Youveim® Nickel Mesh (Woven)
Youveim® Hydrophilic Nickel Mesh (Woven)
Both are based on high-purity nickel and precision weaving, while differing in surface wettability and electrochemical interface behavior.
| Product | Structure | Design Focus |
|---|---|---|
| Nickel Mesh (Woven) | Regular woven nickel wire mesh | General-purpose current collector |
| Hydrophilic Nickel Mesh (Woven) | Surface-modified woven nickel mesh | Interface-optimized current collector |
The two products share the same base material and geometric structure.
The key difference lies in surface treatment, which directly affects electrolyte wetting, gas bubble detachment, and polarization behavior.
| Parameter | Nickel Mesh (Woven) | Hydrophilic Nickel Mesh (Woven) |
|---|---|---|
| Material | High-purity nickel (Ni ≥ 99.5%) | High-purity nickel (Ni ≥ 99.5%) |
| Weaving type | Plain weave (10–200 mesh); Twill weave (200–400 mesh) | Same |
| Mesh range | 10–400 mesh | 10–400 mesh |
| Thickness range | ~0.05–1.0 mm | ~0.05–1.0 mm |
| Pore structure | Regular, uniform | Regular, uniform |
| Processability | Cutting, stamping, welding | Same |
| Performance Aspect | Nickel Mesh | Hydrophilic Nickel Mesh |
|---|---|---|
| Electrical conductivity | ★★★★☆ | ★★★★☆ |
| Surface wettability | ★★☆☆☆ | ★★★★☆ |
| Electrolyte spreading | Moderate | Fast and uniform |
| Gas bubble detachment | Moderate | Significantly improved |
| Interfacial polarization | ★★★☆☆ | ★★★★☆ |
| Suitability for high current density | Moderate | High |
| Long-term stability | Good | Excellent |

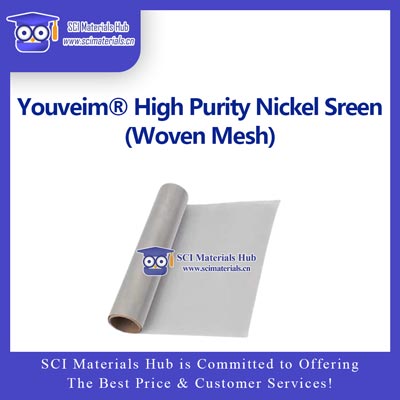

Youveim® Nickel Mesh (Woven) is manufactured from high-purity nickel wire (Ni ≥ 99.5%) using precision weaving technology.
It provides excellent electrical conductivity, good mechanical strength, and outstanding corrosion resistance in alkaline electrolytes.
Key Advantages
Low electrical resistance and stable current collection
Uniform pore structure for reproducible experiments
Compatible with a wide range of surface modifications and catalyst loading methods
Typical Applications
Alkaline water electrolysis (HER / OER) current collectors
Electrode substrates for electrochemical research
Conductive supports in batteries and energy storage devices
The hydrophilic version is based on standard woven nickel mesh with an additional surface hydrophilization and activation treatment.
This modification significantly improves the interaction between the mesh and the electrolyte.
Key Benefits
Rapid and uniform electrolyte wetting
Reduced formation of dry zones and gas blockage
Improved gas bubble release from the electrode surface
Lower interfacial resistance and polarization losses
As a result, hydrophilic nickel mesh is particularly well suited for medium-to-high current density operation and systems where gas evolution strongly affects performance.
Typical Applications
Medium and high current density alkaline water electrolysis
Substrates for Ni-based, NiFe, or NiMo electrocatalysts
Electrochemical systems requiring improved stability and lower overpotential
Cleaning & Pretreatment
Ultrasonic cleaning in deionized water or ethanol for 5–10 minutes
Dry at 60–80 °C or under vacuum
Optional short acid activation followed by thorough rinsing
Assembly Tips
Lightly flatten before use to ensure good surface contact
Prefer surface contact or welding over point contact
Compatible with spray coating, dip coating, and electrodeposition
| Application Requirement | Recommended Product |
|---|---|
| General electrochemical testing | Nickel Mesh (Woven) |
| Cost-effective current collector | Nickel Mesh (Woven) |
| Noticeable gas bubble accumulation | Hydrophilic Nickel Mesh |
| Medium–high current density operation | Hydrophilic Nickel Mesh |
| Lower polarization and improved stability | Hydrophilic Nickel Mesh |
Youveim® Nickel Mesh and Hydrophilic Nickel Mesh are not simply different surface finishes —
they represent engineered solutions for different electrochemical interface requirements.
By maintaining high conductivity and structural integrity while tuning surface wettability, Youveim® helps electrochemical systems operate more stably, more efficiently, and closer to real operating conditions.
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our ebay / Amazon / Alibaba stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
| Mesh & Weave | Areal Density (g/m²) | Thickness (mm) | Available Sizes & Unit Prices (USD) | Lead Time |
|---|---|---|---|---|
| 10 mesh, plain weave | – | – | – | In stock |
| 20 mesh, plain weave | – | – | – | In stock |
| 30 mesh, plain weave | – | – | – | In stock |
| 40 mesh, plain weave | – | – | – | In stock |
| 50 mesh, plain weave | – | – | – | In stock |
| 60 mesh, plain weave | – | – | – | In stock |
| 80 mesh, plain weave | – | – | – | In stock |
| 100 mesh, plain weave | 500 | 0.20 | 10×10 cm $10, 10×50 cm $48, 10×100 cm $80 20×20 cm $36, 20×50 cm $84, 20×100 cm $160 30×30 cm $80, 30×50 cm $120, 30×100 cm $220 | In stock |
| 120 mesh, plain weave | – | – | – | In stock |
| 150 mesh, plain weave | – | – | – | In stock |
| 200 mesh, plain weave | 260 | 0.10 | 10×10 cm $14, 10×50 cm $60, 10×100 cm $100 20×20 cm $50, 20×50 cm $120, 20×100 cm $220 30×30 cm $120, 30×50 cm $180, 30×100 cm $340 | In stock |
| 300 mesh, twill weave | 180 | 0.08 | 10×10 cm $16, 10×50 cm $76, 10×100 cm $128 20×20 cm $60, 20×50 cm $140, 20×100 cm $240 30×30 cm $140, 30×50 cm $220, 30×100 cm $420 | In stock |
| 400 mesh, twill weave | 160 | 0.06 | 10×10 cm $18, 10×50 cm $80, 10×100 cm $140 20×20 cm $70, 20×50 cm $170, 20×100 cm $300 30×30 cm $156, 30×50 cm $240, 30×100 cm $440 | In stock |
Notes
Custom sizes, cutting, welding, and surface treatments available
Volume orders and long-term cooperation pricing available
