In PEM/AAEM water electrolyzers, fuel cells, and hydrogen energy devices, anode diffusion layers (GDLs) and metal flow field structures are critical for current collection efficiency, gas release, corrosion resistance, and long-term system stability.
To meet high demands for stability, conductivity, and multifunctionality, Youveim® offers Research-Grade Titanium Diamond Mesh and Hydrophilic Titanium Diamond Mesh, providing reliable 2D metallic support solutions that can replace traditional carbon-based diffusion layers and support various metal/oxide coatings.
High-Purity Titanium Current Collector for Electrochemical Applications
Made from high-purity titanium >99.9% (TA1 standard)
Manufactured via mechanical expansion, flattening, and annealing
Smooth, flat surface with uniform thickness
High electrical conductivity and excellent corrosion resistance
Ideal for anode diffusion layers in water electrolyzers, fuel cell metallic flow fields, or electrocatalysis support

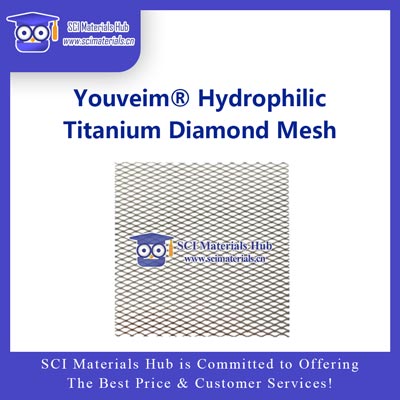

Interface-Enhanced Titanium Mesh for Improved Electrolyte Wetting and Gas Management
Based on standard titanium diamond mesh, treated with proprietary hydrophilic surface activation
Improves electrolyte wetting and gas–liquid interface behavior
Maintains original conductivity, pore structure, and mechanical strength
Optimized for high current density and gas-evolving conditions
| Feature / Parameter | Research-Grade Titanium Diamond Mesh | Hydrophilic Titanium Diamond Mesh |
|---|---|---|
| Material Purity | High-purity titanium >99.9% | High-purity titanium >99.9% |
| Thickness Range | 0.05 – 1.0 mm | 0.05 – 1.0 mm |
| Mesh Shape | Diamond (Expanded) | Diamond (Expanded) |
| Pore Size | 0.8 × 1.2 – 1.6 × 3.2 mm (customizable) | Same as standard titanium mesh (customizable) |
| LWD / SWD | See specification table (Long Way / Short Way of Diamond) | Same as standard titanium mesh |
| Surface Finish | Flattened + Annealed | Flattened + Annealed + Hydrophilic Activation |
| Optional Coatings | Au, Pt, IrOx, IrRuOx, PtIrRuOx | Same as standard titanium mesh |
| Core Advantages | High conductivity · Mechanical robustness · Corrosion resistance · Reusable | Same as standard titanium mesh + Improved wettability · Reduced bubble blockage · Stable at high current density |
| Typical Applications | PEM/AAEM water electrolyzer anode diffusion layer / support Fuel cell metallic flow field / electrode frame Electrocatalysis experiments | High-flow or high-gas-evolution anode diffusion layers Electrocatalysis support or high-load electrodes High current density water electrolysis systems |
| Size Range | Width 10–100 cm, Length 10 cm–10 m (customizable) | Same as research-grade titanium mesh |
| Processing Options | Laser cutting, punching, welding, marking, coating | Same as standard titanium mesh |
Notes:
LWD (Long Way of Diamond): Long diagonal of the diamond pore
SWD (Short Way of Diamond): Short diagonal of the diamond pore
Coatings are customizable in area, thickness, loading (mg/cm²), and atomic ratio
| Coating Type | Function / Suitable Environment |
|---|---|
| Gold (Au) | Prevents Ti surface oxidation, improves conductivity, suitable for neutral/weakly acidic conditions |
| Platinum (Pt) | Prevents TiO₂ insulating layer formation, improves stability, suitable for acidic/alkaline conditions |
| IrOx | Classic OER anode material, suitable for PEM electrolysis and high-voltage electrolyzers |
| IrRuOx | Improves OER catalytic efficiency, balances activity and cost, suitable for stack applications |
| PtIrRuOx | High-activity ternary coating, resistant to extreme corrosion and high current density environments |
| Application | Suggested Use |
|---|---|
| PEM/AAEM water electrolyzers | Anode diffusion layer / support layer / electrode frame |
| Fuel cells (partial) | Cathode support / metallic flow field components |
| Electrocatalysis experiments | Anode catalyst support or auxiliary electrode |
| Electrolyzer development | Sandwich-type water-splitting device replacing carbon paper GDL |
High-purity titanium: Excellent conductivity, long-term stability
Robust structure: Maintains stack integrity, resists mechanical pressure
Reusable: Supports cleaning and high-temperature treatment
Highly customizable: Cutting, welding, coating, compatible with complex stack designs
Lead time: Standard titanium mesh available in stock; custom coatings 3–5 days
Packaging: Roll or sheet, vacuum-packed to prevent oxidation
Invoice: 13% VAT invoice supported
Processing support: Laser cutting, spot welding, custom coatings, membrane electrode assembly compatible
| Thickness (mm) | LWD (mm) | SWD (mm) | Pore Size (mm) |
|---|---|---|---|
| 0.05 | 3.2 | 1.6 | 0.8 × 1.6 |
| 0.10 | 2.4 | 1.6 | 0.8 × 1.2 |
| 0.15 | 3.2 | 1.6 | 0.8 × 1.6 |
| 0.20 | 8 | 4 | 1.6 × 3.2 |
| 0.25 | 6 | 3 | 1 × 2 |
| 0.30 | 6 | 3 | – |
| 0.45–0.50 | 8 | 4 | – |
| 0.95–1.0 | 8 | 4 | – |
| 0.05 | Φ2 | – | – |
| 0.10 | Φ2 | – | – |
| 0.20 | Φ3 | – | – |
Notes: LWD = Long Way of Diamond; SWD = Short Way of Diamond. Custom dimensions are supported.
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our ebay / Amazon / Alibaba stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
| Model | Thickness (mm) | Mesh Size (mm) | 2×2 cm | 3×3 cm | 4×4 cm | 5×5 cm | 6×6 cm | 10×10 cm | 20×20 cm | 20×30 cm | 30×30 cm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.05 | 0.5 × 1.5 | $6 | $8 | $9 | $12 | $15 | $30 | $90 | $117 (18×30 cm) | – | |
| 0.10 | 0.8 × 1.2 | $6 | $8 | $9 | $12 | $15 | $30 | $90 | $117 (20×24 cm) | – | |
| 0.15 | 0.5 × 1.0 | $6 | $8 | $9 | $12 | $15 | $30 | $90 | $117 | – | |
| 0.20 | 1.5 × 3.2 | $6 | $8 | $9 | $12 | $15 | $30 | $90 | $117 | – | |
| 0.25 | 0.6 × 1.0 | $6 | $8 | $9 | $12 | $15 | $30 | $90 | $117 | – | |
| 0.25 | 1.0 × 2.0 | $6 | $8 | $9 | $12 | $15 | $30 | $90 | $117 | $180 | |
| 0.25 | 1.1 × 2.2 | $6 | $8 | $9 | $12 | $15 | $30 | $90 | $117 | $180 | |
| 0.32 | 1.0 × 2.0 | $6 | $8 | $9 | $12 | $15 | $30 | $90 | $117 | – | |
| 1.00 | 1.0 × 2.5 | $6 | $8 | $9 | $12 | $15 | $30 | $90 | $117 | $180 |
📌 Notes:
Prices are in USD (excluding tax).
Bulk purchase discounts are available.
Custom sizes (sheet / roll) and special coatings (Au, Pt, IrOx, IrRuOx, PtIrRuOx) are supported.
Coating prices depend on loading (mg/cm²) and area, quoted separately.
