In laboratory filtration, electrochemical devices, chemical processing, and industrial screening, metal mesh materials serve not only as structural supports and separation media, but also play a critical role in fluid distribution, interfacial behavior, and long-term operational stability.
Based on high-quality 304 austenitic stainless steel woven mesh, Youveim® offers two complementary solutions:
Youveim® 304 Stainless Steel Mesh and Youveim® Hydrophilic 304 Stainless Steel Mesh, designed to meet both general-purpose structural requirements and advanced wetting-controlled applications.
Youveim® 304 Stainless Steel Mesh is manufactured from premium 304 austenitic stainless steel wires using precision weaving processes. It combines excellent mechanical strength, corrosion resistance, and dimensional stability, making it one of the most widely used metal mesh materials for laboratory and industrial applications.
The material performs reliably in neutral and mildly acidic or alkaline environments, and is compatible with aqueous systems, electrolytes, and a broad range of chemical media.
Excellent Corrosion Resistance
Chromium- and nickel-containing 304 stainless steel offers strong resistance in most laboratory and industrial environments.
Uniform Aperture & Stable Structure
Precisely controlled mesh count, wire diameter, and thickness ensure consistent filtration accuracy and flow behavior.
Good Mechanical Strength & Processability
Suitable for cutting, bending, stamping, rolling, and other secondary fabrication processes.

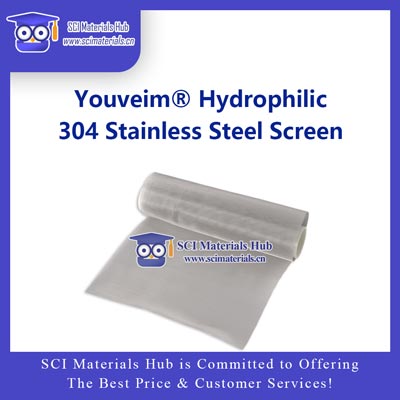

Youveim® Hydrophilic 304 Stainless Steel Mesh is based on standard 304 woven mesh and treated with a proprietary surface hydrophilization process to significantly enhance wettability in aqueous and polar liquid systems.
Without altering the original woven structure, electrical conductivity, or mechanical properties, the surface treatment enables rapid and uniform liquid spreading across wires and pores. This effectively reduces dry spots, liquid accumulation, and bubble retention in operation.
Rapid Wetting Behavior
Liquids spread quickly upon contact, minimizing contact angle and surface resistance.
More Uniform Fluid Distribution
Promotes consistent permeation and transport through the mesh structure.
Reduced Bubble or Droplet Retention
Particularly beneficial for electrochemical, electrolysis, and multiphase flow systems.
| Parameter | Specification |
|---|---|
| Base Material | 304 Austenitic Stainless Steel |
| Weave Type | Plain / Twill |
| Mesh Range | 10 – 400 mesh |
| Wire Diameter | 0.03 – 0.40 mm |
| Surface Condition | Native metal / Hydrophilic-treated |
| Mechanical Processing | Cutting, bending, forming supported |
Note: Different mesh counts correspond to different open areas and flow resistance. Selection should be based on filtration accuracy, structural support, or electrochemical requirements.
Standard Sizes
20 cm × 1 m
20 cm × 10 m
Customization Options
Custom cutting and dimensions
Bulk supply
Surface condition selection (standard or hydrophilic)
| Application | Recommended Product |
|---|---|
| General filtration and screening | 304 Stainless Steel Mesh |
| Laboratory structural support | 304 Stainless Steel Mesh |
| Aqueous and electrolyte systems | Hydrophilic 304 Stainless Steel Mesh |
| Electrochemical cells and collectors | Hydrophilic 304 Stainless Steel Mesh |
| Multiphase or bubble-prone systems | Hydrophilic 304 Stainless Steel Mesh |
| Catalyst coating and fixation | Hydrophilic 304 Stainless Steel Mesh |
Youveim® 304 Stainless Steel Mesh and Youveim® Hydrophilic 304 Stainless Steel Mesh
build upon proven woven metal structures while introducing surface-engineered functionality to address diverse application requirements.
From routine laboratory filtration to demanding electrochemical and multiphase systems, Youveim® delivers consistent, reliable, and customizable metal mesh solutions for research and industrial use.
🌍 International Orders & Shipping
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our Alibaba / Amazon / ebay stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
Material: SUS 304 Stainless Steel
Standard Width: 20 cm
| Mesh Count | Wire Diameter (mm) | Thickness (mm) | 20 cm × 1 m (USD) | 20 cm × 10 m (USD) |
|---|---|---|---|---|
| 10 mesh | 0.40 | 0.80 | — | — |
| 20 mesh | 0.23 | 0.46 | — | — |
| 24 mesh | 0.23 | 0.46 | — | — |
| 30 mesh | 0.18 | 0.36 | — | — |
| 40 mesh | 0.15 | 0.30 | — | — |
| 50 mesh | 0.13 | 0.26 | — | — |
| 60 mesh | 0.12 | 0.24 | — | — |
| 70 mesh | 0.12 | 0.24 | — | — |
| 80 mesh | 0.10 | 0.20 | — | — |
| 90 mesh | 0.10 | 0.20 | — | — |
| 100 mesh | 0.08 | 0.16 | $12 | $90 |
| 120 mesh | 0.07 | 0.14 | — | — |
| 150 mesh | 0.06 | 0.12 | $15 | $120 |
| 160 mesh | 0.06 | 0.12 | — | — |
| 180 mesh | 0.06 | 0.12 | — | — |
| 200 mesh | 0.05 | 0.10 | $15 | $120 |
| 250 mesh | 0.04 | 0.08 | — | — |
| 300 mesh | 0.04 | 0.08 | $18 | $150 |
| 350 mesh | 0.035 | 0.07 | — | — |
| 400 mesh | 0.03 | 0.06 | $30 | $240 |
Weaving Type
≤150 mesh: Plain weave
160–300 mesh: Dutch weave
350–400 mesh: Twill weave
Customization Available
Non-standard sizes
Special wire diameters
Reinforced (thickened) mesh
Cleaning / degreasing treatment
