Good Conductivity · Stable Aperture · Industrial & Research Grade Metal Mesh
Brass is a copper-zinc alloy primarily composed of copper with zinc added, boasting outstanding mechanical strength, excellent electrical conductivity and good corrosion resistance.
In applications such as filtration, electrochemistry, electronics, and industrial sieving, metal mesh materials not only provide structural support and media separation, but their electrical conductivity, uniformity, and surface/interface properties directly affect system efficiency and long-term stability.
Based on high-quality brass wire, Youveim® offers two versions: Brass Mesh and Hydrophilic Brass Mesh, providing reliable and flexible solutions for different environments and surface/interface requirements.

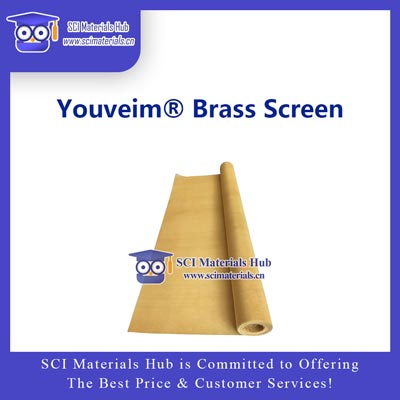

Youveim® Brass Mesh is made from premium brass wire with high-precision weaving technology. It combines excellent electrical conductivity, mechanical strength, and dimensional stability. The mesh has uniform apertures and a wide range of specifications, providing reliable structural support while maintaining high permeability.
This mesh is widely used in filtration, electrochemical experiments, electromagnetic shielding, thermal support, and various industrial and research scenarios, offering a classic, cost-effective, and versatile metal mesh solution.
Youveim® Hydrophilic Brass Mesh is based on the standard brass mesh and undergoes a surface hydrophilization and activation treatment, making the metal surface more easily wetted by aqueous solutions or electrolytes.
While maintaining the original conductivity and structural properties, this treatment significantly improves liquid spreading and interface contact, making it ideal for applications requiring enhanced wetting, fluid penetration, or bubble detachment, particularly in electrochemical and fluidic experimental systems.
Excellent Conductivity: Suitable for electrochemistry, electrical contact, and functional conductive structures.
Uniform and Controllable Aperture: High weaving precision ensures stable filtration and permeability.
Good Structural Stability: Combines flexibility and mechanical strength, resistant to deformation.
Wide Range of Specifications: From coarse to fine mesh, covering multiple application scenarios.
Processing Adaptability: Can be cut, stamped, laminated, or reshaped.
Optional Hydrophilic Version: Improves wetting behavior and interface mass transfer performance.
🧪 Laboratory & Research: Filtration, support, electrochemical testing, electrode substrates
⚙️ Industrial Filtration & Separation: Liquids, gases, and particulate screening
🔌 Electronics & Electrical: Electromagnetic shielding, conductive structural components
🌡️ Thermal & Support Structures: Heat dissipation components, thermal module support
🛠️ General Mechanical & Decorative: Protective mesh, partition mesh, structural filling
For high permeability and filtration precision: choose higher mesh counts (≥100 mesh).
For structural strength and support: prefer thicker or lower mesh count options.
For conductive or experimental use: select based on contact resistance, thickness, and surface state.
For applications requiring wetting or liquid spreading: Youveim® Hydrophilic Brass Mesh is recommended.
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our ebay / Amazon / Alibaba stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
| Model | Mesh / Type | Wire Dia. (mm) | Thickness (mm) | Aperture (mm) | 20x50cm (USD) |
|---|---|---|---|---|---|
| B20M26 | 20 mesh | 0.15 | 0.26 | 1.12 | $4 |
| B20M37 | 20 mesh | 0.20 | 0.37 | 1.10 | $6 |
| B20M46 | 20 mesh | 0.25 | 0.46 | 1.02 | $8 |
| B30M17 | 30 mesh | 0.10 | 0.17 | 0.74 | $4 |
| B30M37 | 30 mesh | 0.15 | 0.37 | 0.69 | $6 |
| B40M15 | 40 mesh | 0.09 | 0.15 | 0.54 | $4 |
| B40M22 | 40 mesh | 0.12 | 0.22 | 0.51 | $6 |
| B60M12 | 60 mesh | 0.07 | 0.12 | 0.39 | $4 |
| B60M14 | 60 mesh | 0.10 | 0.14 | 0.32 | $6 |
| B60M21 | 60 mesh | 0.12 | 0.21 | 0.30 | $8 |
| B80M13 | 80 mesh | 0.07 | 0.13 | 0.24 | $4 |
| B80M18 | 80 mesh | 0.10 | 0.18 | 0.217 | $6 |
| B100M13 | 100 mesh | 0.07 | 0.13 | 0.184 | $4 |
| B100M14 | 100 mesh | 0.08 | 0.14 | 0.174 | $6 |
| B120M13 | 120 mesh | 0.06 | 0.13 | 0.151 | $6 |
| B120M14 | 120 mesh | 0.07 | 0.14 | 0.141 | $6 |
| B150M14 | 150 mesh | 0.06 | 0.14 | 0.109 | $7 |
| B150M15 | 150 mesh | 0.07 | 0.15 | 0.099 | $6 |
| B180M12 | 180 mesh | 0.06 | 0.12 | 0.081 | $8 |
| B200M11 | 200 mesh | 0.05 | 0.11 | 0.077 | $8 |
| B220M09 | 220 mesh | 0.045 | 0.09 | 0.070 | $20 |
Notes:
These are standard stock specifications; thickness and aperture are typical reference values.
Supports size cutting, bulk supply, and custom specifications.
Hydrophilic versions are treated on top of these standard meshes; pricing available upon request.
