Youveim® 904L Stainless Steel Mesh vs. Youveim® Hydrophilic 904L Stainless Steel Mesh
Engineering-Grade Metal Mesh Solutions for Highly Corrosive, High-Demand Aqueous and Electrochemical Systems
In chemical filtration, electrochemical devices, high-temperature corrosive systems, and multiphase mass transfer applications, metal mesh serves not only as structural support and particle separation media, but its corrosion resistance, surface wettability, and liquid distribution uniformity directly influence mass transfer efficiency, operational stability, and service life.
Based on highly corrosion-resistant 904L austenitic stainless steel, Youveim® offers two versions:
Youveim® 904L Stainless Steel Mesh – Designed for highly corrosive environments, precision filtration, and structural support
Youveim® Hydrophilic 904L Stainless Steel Mesh – Treated with a proprietary hydrophilic surface process, optimized for aqueous systems, multiphase flow, electrochemical systems, and catalyst coating applications
I. Youveim® 904L Stainless Steel Mesh
High Corrosion Resistance · Mechanical Stability · Universal for Engineering and Research
Product Overview

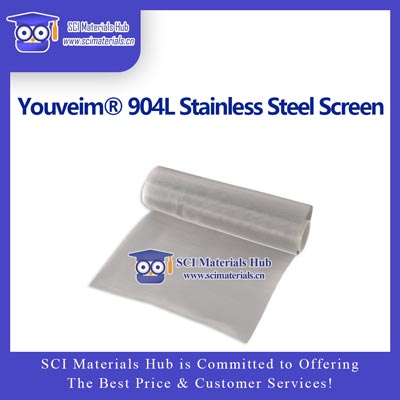

Youveim® 904L Stainless Steel Mesh is manufactured from 904L high-corrosion-resistant austenitic stainless steel wire using precision weaving processes. It combines excellent corrosion resistance, stable aperture geometry, and good mechanical workability.
It is suitable for strong acids, salt spray, and high-temperature aqueous environments, and is widely used in chemical filtration, precision screening, electrochemical research, and industrial structural support.
Core Material Advantages
Outstanding Corrosion Resistance
904L contains high nickel, high chromium, and molybdenum, enabling long-term stability in chloride-containing media, strong acids, and complex aqueous environments.
Uniform Aperture and Consistent Flow Resistance
Strict control of wire diameter and mesh count ensures filtration precision and fluid permeability consistency.
Excellent Mechanical Strength
Supports cutting, bending, stamping, and rolling to accommodate various assembly requirements.
II. Youveim® Hydrophilic 904L Stainless Steel Mesh
Rapid Wetting · Uniform Liquid Spreading · Multiphase-System Friendly
Product Overview
Based on standard 904L woven mesh, a proprietary hydrophilic surface treatment significantly enhances wettability in aqueous or polar solutions.
Upon liquid contact, a continuous liquid film rapidly forms across the wire surface and pore structure, improving internal fluid distribution and reducing localized dry zones, bubble retention, or droplet accumulation. It is particularly suitable for electrochemical, electrolytic, catalytic, and multiphase reaction systems.
Interfacial Advantages
Rapid wetting with uniform liquid film formation
Improved liquid distribution within porous structures
Reduced bubble or droplet retention
Maintains mechanical strength and high corrosion resistance
III. Key Parameter Comparison
| Item | 904L Stainless Steel Mesh | Hydrophilic 904L Stainless Steel Mesh |
|---|---|---|
| Base Material | 904L Austenitic Stainless Steel | 904L Austenitic Stainless Steel |
| Weave Type | Plain / Twill | Same as left |
| Mesh Count Range | 20 – 250 mesh | Same as left |
| Wire Diameter Range | 0.045 – 0.30 mm | Same as left |
| Surface Condition | Native metallic surface | Hydrophilic treated surface |
| Wettability | Standard metallic wettability | Rapid wetting, uniform liquid film |
| Suitable Environment | Highly corrosive aqueous / chemical systems | Aqueous, electrochemical, multiphase systems |
| Processing & Customization | Cutting, bending, rolling supported | Same as left |
IV. Common Specifications & Pricing (20 cm × 1 m)
| Mesh | Wire Diameter (mm) | Aperture (mm) | Price (USD) |
|---|---|---|---|
| 20 mesh | 0.30 | 1.00 | $40 |
| 30 mesh | 0.19 | 0.65 | $20 |
| 40 mesh | 0.20 | 0.435 | $20 |
| 60 mesh | 0.15 | 0.27 | $20 |
| 100 mesh | 0.10 | 0.154 | $20 |
| 250 mesh | 0.045 | 0.082 | $20 |
Note: The Hydrophilic 904L Stainless Steel Mesh is available in corresponding specifications. Pricing may vary depending on surface treatment method and purchase volume.
V. Typical Application Recommendations
| Application Requirement | Recommended Product |
|---|---|
| Highly corrosive liquid filtration | 904L Stainless Steel Mesh |
| Precision screening and support structures | 904L Stainless Steel Mesh |
| Aqueous or electrolyte systems | Hydrophilic 904L Stainless Steel Mesh |
| Electrochemical current collectors / multiphase flow systems | Hydrophilic 904L Stainless Steel Mesh |
| Catalyst coating and immobilization | Hydrophilic 904L Stainless Steel Mesh |
VI. Conclusion
Youveim® 904L Stainless Steel Mesh and Youveim® Hydrophilic 904L Stainless Steel Mesh are built on a high-corrosion-resistant 904L austenitic stainless steel woven platform. Through differentiated surface engineering design, they cover applications ranging from general high-corrosion filtration to demanding liquid wetting, multiphase mass transfer, and electrochemical systems.
Whether for laboratory research or long-term industrial operation, Youveim® remains committed to delivering stable, reliable, and customizable high-end metal mesh material solutions.
