Metallic Porous Structure Solutions for Extreme Corrosion and High-Load Electrochemical Systems
In strong acid / strong oxidizing / chloride-containing environments, high-temperature electrochemical reactions, and highly corrosive electrolytic systems, conventional stainless steels and nickel-based materials often suffer from failure, dissolution, or structural degradation.

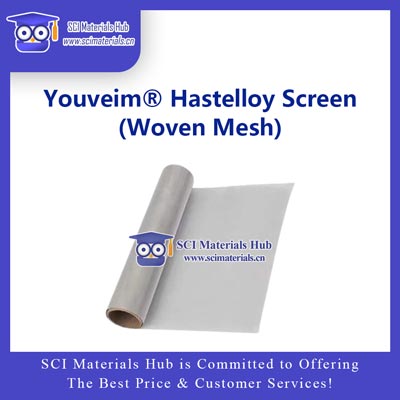

Youveim® Hastelloy Woven Mesh and its hydrophilic version are specifically engineered as research-grade and industrial-grade metallic porous substrates for such extreme operating conditions—balancing structural stability, maximum corrosion resistance, and electrochemical functionalization capability.
Youveim® Hastelloy Woven Mesh is manufactured from Ni–Cr–Mo series Hastelloy alloy wire through precision weaving processes, forming a regular and mechanically stable metallic porous network structure.
Hastelloy alloys are renowned for:
Exceptional corrosion resistance
Outstanding high-temperature stability
Superior resistance to pitting and crevice corrosion
They are particularly suitable for:
Strong acid systems (sulfuric acid, hydrochloric acid, phosphoric acid)
Chloride- and fluoride-containing media
High-temperature, strongly oxidizing electrochemical environments
This material can function as structural support and current collector, and is especially suitable as an electrode substrate, diffusion layer, and high-end catalyst support.
Youveim® Hydrophilic Hastelloy Woven Mesh is produced by applying surface hydrophilic modification and interfacial engineering treatments to high-quality Hastelloy woven mesh.
Without compromising corrosion resistance or mechanical strength, the treatment significantly enhances surface wettability and electrolyte infiltration behavior.
In highly corrosive electrochemical systems, hydrophilic modification effectively:
Increases electrolyte penetration rate
Reduces bubble retention and localized polarization
Improves effective reaction interface utilization
Enhances operational stability under high current densities
It is particularly suitable for PEM water electrolysis anodes (OER), highly corrosive electrolyzers, and long-term continuous operation systems.
Extreme Corrosion Resistance
Near “immunity-level” resistance to strong acids, chloride-containing media, and oxidizing environments.
Outstanding High-Temperature Stability
Maintains structural and electrochemical performance in elevated-temperature reaction systems.
Superior Resistance to Pitting and Crevice Corrosion
Suitable for complex electrode architectures and long-term service conditions.
Stable Woven Porous Structure
Uniform aperture distribution and strong mechanical support.
Electrochemical Functionalization Capability
Compatible with electroplating and electrodeposition of noble and transition metal catalysts.
Significantly improved wetting and infiltration speed
Rapid electrolyte penetration throughout the woven network
Reduced gas bubble coverage and mass transfer resistance
Particularly suitable for high gas-evolution reactions such as OER
More suitable for high current density and long-lifetime operation
Improved catalyst loading interface for uniform and robust catalytic layer adhesion
| Parameter | Youveim® Hastelloy Woven Mesh | Youveim® Hydrophilic Hastelloy Woven Mesh |
|---|---|---|
| Material System | Ni–Cr–Mo Hastelloy alloy | Ni–Cr–Mo Hastelloy alloy |
| Structure Type | Metallic woven mesh | Metallic woven mesh |
| Surface Condition | Native alloy surface | Hydrophilic treated surface |
| Mesh Range | 20–200 mesh (customizable) | 20–200 mesh (customizable) |
| Wire Diameter Range | 0.05–0.30 mm | 0.05–0.30 mm |
| Thickness | Varies with weave structure | Varies with weave structure |
| Electrical Conductivity | High | High |
| Wettability | Moderate | Excellent |
| Corrosion Resistance | Exceptional | Exceptional |
| Suitable Environment | Strong acid / Strong oxidation / High temperature | Strong acid / Strong oxidation / High temperature |
| Typical Applications | Electrode substrate / Current collector | High-loading electrodes / Diffusion layers |
PEM water electrolysis anodes (OER)
Highly corrosive electrolyzer electrodes and current collectors
High-temperature electrochemical reactors
Noble metal catalyst supports (Ir, Ru, Pt)
Corrosion-resistant filtration and separation in chemical processes
Structural support components for advanced batteries and reactors
Store in a dry and ventilated environment
For long-term storage, vacuum sealing or inert gas (N₂ / Ar) protection is recommended
Rinse surface with deionized water
Ultrasonic cleaning in ethanol or deionized water for 5–10 minutes
Dry at ≤ 80 °C
For hydrophilic versions, avoid prolonged exposure to high-temperature air environments.
Spray Coating Method
Suitable for IrO₂, RuO₂, Pt and other catalyst slurries.
Electrodeposition / Electroplating
Creates high-adhesion catalytic layers suitable for long-term operation.
Sol–Gel or In-Situ Growth Methods
Ideal for research-oriented electrode structure optimization.
Youveim® Hastelloy Woven Mesh provides a structurally and electrically reliable foundation for extreme corrosion and high-temperature environments.
Youveim® Hydrophilic Hastelloy Woven Mesh is further optimized for high current density, low polarization, and long-lifetime electrochemical systems, offering enhanced wettability and interfacial performance for next-generation advanced electrochemical applications.
🌍 International Orders & Shipping
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our Alibaba / Amazon / ebay stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
| Mesh Count | Wire Diameter (mm) | Mesh Size (mm) | Size (cm) | Price (USD) |
|---|---|---|---|---|
| 20 mesh | 0.30 | 1.000 | 20 × 100 | $40 |
| 40 mesh | 0.20 | 0.435 | 20 × 100 | $40 |
| 60 mesh | 0.12 | 0.300 | 20 × 100 | $40 |
| 60 mesh | 0.15 | 0.270 | 20 × 100 | $40 |
| 80 mesh | 0.12 | 0.197 | 20 × 100 | $40 |
| 100 mesh | 0.10 | 0.154 | 20 × 100 | $40 |
| 200 mesh | 0.05 | 0.007 | 20 × 100 | $40 |
