High-Melting-Point Structural Materials and Electrochemical Interface Optimization Solutions

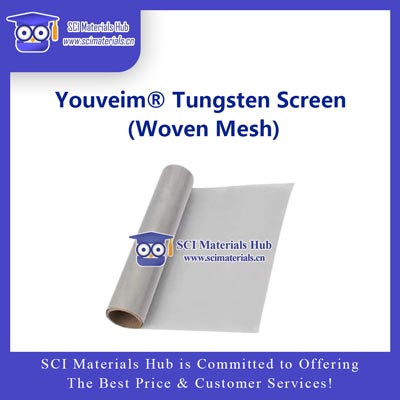

Youveim® Tungsten Mesh is manufactured from high-purity tungsten wire (W ≥ 99.95%) using precision twill weaving technology. The structure is dense, mechanically strong, and exhibits outstanding high-temperature resistance. It is specifically designed for high-temperature vacuum environments, semiconductor thermal field systems, and high-stability research applications.
Based on the standard tungsten mesh, Youveim® Hydrophilic Tungsten Mesh undergoes surface interface activation treatment through advanced surface engineering technology. This modification significantly enhances wettability, improves liquid spreading behavior, and increases interfacial contact efficiency—making it particularly suitable for electrochemical systems and liquid mass transfer applications.
Compared with plain weave, twill weave provides:
Higher mechanical strength
Better stability at high mesh counts
Denser pore structure
Improved surface flatness
Greater structural stability under high-temperature conditions
It is especially suitable for precision mesh specifications above 100 mesh.
Melting point: 3422°C
Density: 19.3 g/cm³
Low vapor pressure (ideal for high-vacuum systems)
Excellent strength retention at elevated temperatures
Good thermal shock resistance
High-density structural stability
Vacuum furnace thermal field structures
Semiconductor heat shielding
High-temperature filtration and support
Electron beam evaporation systems
Plasma and high-temperature reaction systems
Electrochemical electrode support
Electrolysis and catalytic experiments
Electrodeposition substrates
Liquid mass transfer enhancement structures
High-temperature electrochemical reaction systems
| Parameter | Youveim® Tungsten Mesh | Youveim® Hydrophilic Tungsten Mesh |
|---|---|---|
| Base Material | High-purity tungsten (W ≥ 99.95%) | High-purity tungsten (W ≥ 99.95%) |
| Weaving Method | Twill weave | Twill weave |
| Surface Condition | Black tungsten / Bright tungsten | Hydrophilic activated surface |
| Melting Point | 3422°C | 3422°C |
| Density | 19.3 g/cm³ | 19.3 g/cm³ |
| Surface Wettability | Native metallic wettability | Highly hydrophilic |
| Contact Angle | Typical metallic contact angle | Significantly reduced |
| High-Temperature Strength | Excellent | Excellent |
| Thermal Shock Resistance | Good | Good |
| Mesh Range | 20–300 mesh | 20–300 mesh |
| Wire Diameter Range | 0.03–0.10 mm | 0.03–0.10 mm |
| Aperture Range | 0.054–1.17 mm | 0.054–1.17 mm |
| Standard Sizes | 10×10 cm / 20×100 cm | Same as left |
| 300 Mesh Lead Time | Approx. 4 weeks | Approx. 4 weeks |
| Customization | Cutting and special specifications supported | Cutting and special specifications supported |
Youveim® Tungsten Mesh focuses on high-temperature structural stability and vacuum-environment applications.
Youveim® Hydrophilic Tungsten Mesh emphasizes electrochemical interface optimization and enhanced liquid mass transfer efficiency.
Both versions share the same high-purity tungsten base material. The key difference lies in surface interfacial properties, allowing users to select either a structural-focused or functionally enhanced version according to their application requirements.
🌍 International Orders & Shipping
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our Alibaba / Amazon / ebay stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
| Mesh Count | Wire Diameter (mm) | Mesh Size (mm) | 10×10cm ($) | 20×100cm ($) | Note |
|---|---|---|---|---|---|
| 20 mesh | 0.10 | 1.17 | $20 | $160 | Black Tungsten Mesh |
| 30 mesh | 0.10 | 0.75 | $20 | $160 | Black Tungsten Mesh |
| 40 mesh | 0.10 | 0.53 | $20 | $160 | Black Tungsten Mesh |
| 100 mesh | 0.05 | 0.20 | $20 | $160 | Black Tungsten Mesh |
| 150 mesh | 0.05 | 0.12 | $24 | $200 | Black Tungsten Mesh |
| 0.03 | 0.12 | $30 | $240 | White Tungsten Mesh | |
| 200 mesh | 0.03 | 0.10 | $30 | $240 | Black Tungsten Mesh |
| 0.03 | 0.10 | $40 | $360 | White Tungsten Mesh | |
| 300 mesh | 0.03 | 0.054 | $40 | $360 | Black Tungsten Mesh |
