Engineering-Grade Metallic Mesh for Ultra-Precision Filtration, Electrochemistry, and New Energy Systems
In precision filtration, electrochemical reactors, new energy devices, and multiphase mass-transfer systems, materials must provide not only stable structural strength and corrosion resistance, but also highly uniform pore structures, controlled surface states, and optimized wettability. These factors directly determine mass-transfer efficiency, reaction stability, and long-term operational durability.
Based on mature 316L austenitic stainless steel precision weaving technology, Youveim® introduces two product series:
Youveim® 316L Stainless Steel Mesh Cloth
Youveim® Hydrophilic 316L Stainless Steel Mesh Cloth
Together they cover multi-level application demands ranging from ultra-precision filtration to electrochemical functional substrates.
High Precision · High Strength · Ultra-Fine Filtration & Conductive Substrate
Youveim® 316L Stainless Steel Mesh Cloth is manufactured from 316L low-carbon austenitic stainless steel wires, using precision weaving with differentiated warp and weft wire diameters and mesh counts.
Compared with conventional equal-diameter square stainless steel meshes, this structure offers significant advantages in:
pore size precision
filtration density
structural stability
It enables micron-scale and even sub-micron filtration while maintaining excellent mechanical strength.
Its structural design is suitable not only for filtration and separation, but also naturally applicable as:
conductive substrates
structural support layers
functional coating carriers
Low Carbon Design (316L)
Effectively prevents intergranular corrosion and offers better weldability and heat-treatment adaptability than 316.
Outstanding Corrosion Resistance
Molybdenum-containing alloy performs reliably in acidic, alkaline, and chloride-containing environments, superior to 304 stainless steel.
Excellent High-Temperature Resistance
Capable of long-term operation in environments up to approximately 800 °C.
High Mechanical Strength
Resistant to deformation with strong pressure tolerance, suitable for continuous operation systems and scale-up engineering applications.
Warp–Weft Differential Weaving
Warp wires are typically thicker for structural strength
Weft wires are finer for high-precision filtration
Extremely Small and Uniform Pore Size
Suitable for high-precision particle separation and contamination control.
Contrast Weaving Structure
Improves filtration stability and service life while maintaining good throughput.
High Load Capacity
Suitable for filtration of high-viscosity fluids, high solid-content materials, and heavy loading processes.
✅ This weaving technology breaks the precision limits of conventional stainless steel meshes, making it an ideal choice for ultra-precision filtration.
Enhanced Wettability · Improved Mass Transfer · Multiphase System Friendly

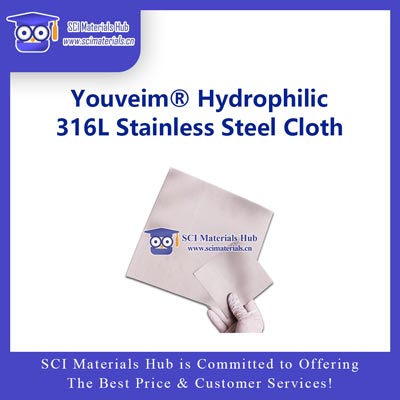

Youveim® Hydrophilic 316L Stainless Steel Mesh Cloth uses standard 316L stainless steel mesh cloth as the base material and applies a proprietary surface hydrophilization treatment.
Without altering the original:
pore structure
mechanical strength
electrical conductivity
this treatment significantly improves wettability in aqueous and polar media.
The metal surface is transformed from its intrinsic weak wettability to a stable hydrophilic state, effectively avoiding:
liquid repulsion
droplet retention
local dry zones
This makes the material particularly suitable for:
electrochemical reactions
multiphase flow systems
catalyst coating processes
Rapid wetting — liquids spread immediately upon contact
More uniform liquid distribution — reduced dry spots
Reduced bubble and droplet retention — more stable operation
Improved mass-transfer efficiency — enhanced reactant/product diffusion
Better catalyst loading performance — improved coating uniformity and adhesion
| Model | Mesh | Wire Diameter (mm) | Aperture (μm) | Open Area (%) | Thickness (mm) | Weight (kg/m²) |
|---|---|---|---|---|---|---|
| SSC316-1 | 20×250 | 0.25×0.20 | 119 | 17.6 | 0.65 | 3.01 |
| SSC316-2 | 20×200 | 0.35×0.28 | 118 | 12.1 | 0.91 | 4.58 |
| SSC316-3 | 24×300 | 0.28×0.18 | 110 | 19.6 | 0.64 | 3.01 |
| SSC316-4 | 20×150 | 0.45×0.35 | 100 | 7.5 | 1.16 | 6.00 |
| SSC316-5 | 30×340 | 0.28×0.16 | 89 | 17.9 | 0.60 | 2.84 |
| SSC316-6 | 30×360 | 0.25×0.15 | 80 | 17.0 | 0.55 | 2.48 |
| SSC316-7 | 30×250 | 0.25×0.20 | 78 | 11.2 | 0.55 | 3.20 |
| SSC316-8 | 40×560 | 0.18×0.10 | 70 | 23.5 | 0.36 | 1.73 |
| SSC316-9 | 40×400 | 0.19×0.12 | 63 | 15.4 | 0.43 | 2.00 |
| SSC316-10 | 50×600 | 0.12×0.09 | 50 | 17.2 | 0.32 | 1.47 |
| SSC316-11 | 80×700 | 0.11×0.08 | 30 | 9.8 | 0.27 | 1.39 |
| SSC316-12 | 80×800 | 0.10×0.07 | 25 | 12.2 | 0.23 | 1.15 |
| SSC316-13 | 90×760 | 0.10×0.07 | 25 | 9.6 | 0.24 | 1.24 |
| SSC316-14 | 200×600 | 0.07×0.05 | 23 | 12.0 | 0.15 | 0.52 |
| SSC316-15 | 100×850 | 0.10×0.063 | 22 | 10.0 | 0.23 | 1.14 |
| SSC316-16 | 100×760 | 0.10×0.071 | 20 | 7.4 | 0.24 | 1.26 |
| SSC316-17 | 130×1100 | 0.07×0.05 | 17 | 9.5 | 0.17 | 0.88 |
| SSC316-18 | 165×800 | 0.07×0.05 | 15 | 13.5 | 0.17 | 0.74 |
| SSC316-19 | 165×1400 | 0.063×0.04 | 13 | 8.8 | 0.14 | 0.73 |
| SSC316-20 | 200×1400 | 0.05×0.032 | 10 | 9.2 | 0.12 | 0.58 |
| SSC316-21 | 250×1600 | 0.05×0.032 | 8 | 3.8 | 0.11 | 0.63 |
| SSC316-22 | 280×2200 | 0.036×0.025 | 7 | 7.2 | 0.08 | 0.45 |
| SSC316-23 | 300×2100 | 0.036×0.025 | 6 | 6.0 | 0.08 | 0.44 |
| SSC316-24 | 325×2300 | 0.036×0.025 | 4 | 4.2 | 0.08 | 0.46 |
| SSC316-25 | 400×2800 | 0.03×0.018 | 3 | 4.7 | 0.06 | 0.36 |
Note: Custom warp-weft combinations can be designed based on filtration precision, flow rate, and structural requirements.
High-viscosity material filtration
Acid/alkali liquid precision separation
Chemical, petroleum, and pharmaceutical filtration systems
⚡ Lithium battery / fuel cell current collectors
⚡ Supercapacitor electrode supports
⚡ Conductive structural substrates for electrolyzers
⚡ AEM water electrolysis hydrogen production (direct catalyst spraying possible)
Wastewater treatment
Flue gas dust removal
Multiphase flow and interfacial mass-transfer research
Catalyst spraying: IrO₂, RuO₂, Pt
Precious metal plating: gold / platinum plating
Surface roughening or activation
Hydrophilic treatment (forming hydrophilic 316L mesh cloth)
| Parameter | 316L Stainless Steel Mesh Cloth | Hydrophilic 316L Stainless Steel Mesh Cloth |
|---|---|---|
| Base Material | 316L Austenitic Stainless Steel Wire | 316L Austenitic Stainless Steel Wire |
| Weaving Method | Precision Plain / Twill Weave | Precision Plain / Twill Weave |
| Pore Structure | Highly uniform pores | Highly uniform pores |
| Wettability | Standard metal surface | Stable hydrophilic surface |
| Fluid Distribution | Standard | More uniform and stable |
| Bubble Retention | Easier to attach | Significantly reduced |
| Main Applications | Precision filtration, structural support | Electrolysis, electrochemistry, multiphase systems |
| Surface Functionalization | Roughening / plating / coating possible | Same as left |
For filtration applications:
Edge sealing is recommended after cutting to prevent wire fraying.
For electrochemical applications:
Clean and degrease before use; surface activation or hydrophilic treatment may be applied if necessary.
Storage:
Store in a dry and light-protected environment. Functionalized materials should be sealed for long-term preservation.
Youveim® 316L Stainless Steel Mesh Cloth is an engineering-grade metallic mesh material that combines high filtration precision, corrosion resistance, and structural stability.
Youveim® Hydrophilic 316L Stainless Steel Mesh Cloth further optimizes interface properties and mass-transfer performance for aqueous, electrochemical, and new energy systems.
Together they form a comprehensive material solution covering:
Filtration → Structural Support → Conductive Substrate → Catalyst Carrier
suitable for applications ranging from scientific research to large-scale industrial implementation.
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our eBay / Amazon / Alibaba stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
| Model | Mesh Count (Mesh) | Wire Diameter (mm) | Aperture (μm) | Thickness (mm) | 10x10cm | 20x20cm | 30x30cm |
|---|---|---|---|---|---|---|---|
| SSC316-1 | 20×250 | 0.25×0.20 | 119 | 0.65 | |||
| SSC316-2 | 20×200 | 0.35×0.28 | 118 | 0.91 | |||
| SSC316-3 | 24×300 | 0.28×0.18 | 110 | 0.64 | |||
| SSC316-4 | 20×150 | 0.45×0.35 | 100 | 1.16 | |||
| SSC316-5 | 30×340 | 0.28×0.16 | 89 | 0.60 | |||
| SSC316-6 | 30×360 | 0.25×0.15 | 80 | 0.55 | |||
| SSC316-7 | 30×250 | 0.25×0.20 | 78 | 0.55 | |||
| SSC316-8 | 40×560 | 0.18×0.10 | 70 | 0.36 | 16 | 40 | 80 |
| SSC316-9 | 40×400 | 0.19×0.12 | 63 | 0.43 | |||
| SSC316-10 | 50×600 | 0.12×0.09 | 50 | 0.32 | 16 | 40 | 80 |
| SSC316-11 | 80×700 | 0.11×0.08 | 30 | 0.27 | |||
| SSC316-12 | 80×800 | 0.10×0.07 | 25 | 0.23 | 16 | 40 | 80 |
| SSC316-13 | 90×760 | 0.10×0.07 | 25 | 0.24 | |||
| SSC316-14 | 200×600 | 0.07×0.05 | 23 | 0.15 | 16 | 40 | 80 |
| SSC316-15 | 100×850 | 0.10×0.063 | 22 | 0.23 | |||
| SSC316-16 | 100×760 | 0.10×0.071 | 20 | 0.24 | |||
| SSC316-17 | 130×1100 | 0.07×0.05 | 17 | 0.17 | |||
| SSC316-18 | 165×800 | 0.07×0.05 | 15 | 0.17 | |||
| SSC316-19 | 165×1400 | 0.063×0.04 | 13 | 0.14 | |||
| SSC316-20 | 200×1400 | 0.05×0.032 | 10 | 0.12 | |||
| SSC316-21 | 250×1600 | 0.05×0.032 | 8 | 0.11 | |||
| SSC316-22 | 280×2200 | 0.036×0.025 | 7 | 0.08 | |||
| SSC316-23 | 300×2100 | 0.036×0.025 | 6 | 0.08 | |||
| SSC316-24 | 325×2300 | 0.036×0.025 | 4 | 0.08 | |||
| SSC316-25 | 400×2800 | 0.03×0.018 | 3 | 0.06 |
**Note: Custom sizes are available. For example, rolls (width 1m, length 30m) can be priced per square meter.**
