Metallic Porous Substrate Solutions for Alkaline Electrolysis and High-Conductivity Electrochemical Systems
In alkaline water electrolysis (AWE), nickel-based electrode systems, and various electrochemical energy storage technologies, electrode substrate materials do more than simply conduct electricity. They directly influence gas–liquid mass transfer, polarization behavior, and long-term operational stability.
Youveim® High-Purity Nickel Cloth and Youveim® Hydrophilic Nickel Cloth are metallic woven porous materials specifically developed for high conductivity, fast reaction kinetics, and strong alkaline operating environments.
(Nickel Cloth / Nickel Mesh Fabric)
Youveim® High-Purity Nickel Cloth is manufactured from ≥99.9% high-purity metallic nickel, which is drawn into fine wires and precision-woven into a fabric structure.
It offers:
excellent electrical conductivity
good corrosion resistance
outstanding mechanical flexibility
The continuous woven metallic structure ensures strong mechanical integrity while forming a uniform interconnected porous network, ideal for efficient gas–liquid transport and electrochemical reaction interfaces.
This material is widely used in applications such as:
alkaline water electrolysis electrode substrates
HER electrodes
porous diffusion layers
battery current collectors
electrocatalyst supports
(Hydrophilic Nickel Mesh Fabric)

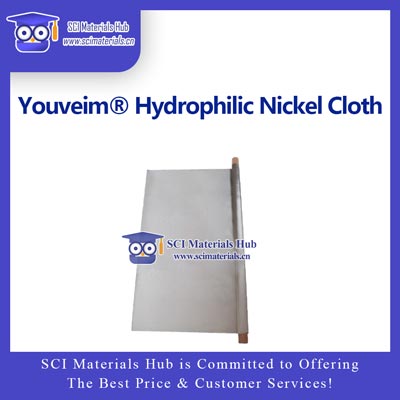

Youveim® Hydrophilic Nickel Cloth is produced by applying a surface hydrophilic modification treatment to high-purity nickel cloth.
This treatment does not alter the structural integrity or conductive network of the nickel substrate, but significantly improves its surface wettability.
In alkaline electrolysis systems, hydrophilic nickel cloth can:
accelerate electrolyte infiltration
reduce bubble coverage and retention
increase effective reaction area
reduce concentration polarization
It is particularly suitable for high-current-density HER/OER electrodes and long-term continuous alkaline electrolysis systems.
High Purity (≥99.9%)
Extremely low impurity levels ensure stable and consistent electrochemical behavior.
Excellent Electrical Conductivity
The continuous pure-nickel woven network ensures uniform current distribution.
Good Corrosion Resistance
Stable for long-term operation in alkaline and various electrolyte environments.
Uniform Porous Structure
Facilitates rapid gas release and electrolyte replenishment.
Excellent Processability
Can be cut, folded, or pressed, allowing adaptation to different electrode structure designs.
Significantly Improved Wettability
Electrolyte rapidly penetrates the entire woven structure.
Reduced Bubble Blocking Effect
Minimizes gas bubble polarization during HER and OER reactions.
Better for High Current Density Operation
Maintains stable mass transfer under high loading conditions.
More Catalyst-Friendly Interface
Improves uniform catalyst distribution and strong coating adhesion.
| Parameter | Youveim® High-Purity Nickel Cloth | Youveim® Hydrophilic Nickel Cloth |
|---|---|---|
| Material | Metallic Nickel (Ni) | Metallic Nickel (Ni) |
| Nickel Purity | ≥99.9% | ≥99.9% |
| Structural Form | Woven metallic porous structure | Same as left |
| Surface State | Native nickel surface | Hydrophilic treated surface |
| Thickness | 0.1–0.3 mm (customizable) | 0.1–0.3 mm (customizable) |
| Pore Size Range | 8–30 μm (approx. 800–1600 mesh) | Same as left |
| Electrical Conductivity | Extremely high | Extremely high |
| Wettability | Moderate | Excellent |
| Corrosion Resistance | Good (alkaline systems) | Good (alkaline systems) |
| Applicable Current Density | Medium–High | High–Ultra-High |
| Recommended Applications | Conventional alkaline electrolysis, electrode substrates | High-loading, high-stability alkaline electrolysis |
HER / OER electrode substrates
Porous gas diffusion layers (GDL)
Alkaline fuel cell electrode supports
Nickel–metal hydride (NiMH) batteries
Zinc–air battery current collectors
Catalyst supports for Pt, NiMo, NiFe, Ir, Ru, and other catalytic materials
Store in a dry and well-ventilated environment to avoid moisture-induced oxidation
For long-term storage, vacuum sealing or inert gas (N₂ / Ar) packaging is recommended
Rinse surface impurities with deionized water
Ultrasonically clean in a deionized water / ethanol mixture for 5–10 minutes
Dry at ≤80 °C to avoid surface property changes caused by high temperatures
Spray Coating
Prepare catalyst inks (e.g., NiMo, Pt, Ir, Ru) and spray evenly, followed by low-temperature curing.
Drop Casting / Brush Coating
Suitable for small-area laboratory electrode preparation.
Electrodeposition / Electroplating
Catalytic metals or alloys can be in-situ deposited on the nickel cloth surface, providing strong adhesion and high activity, particularly suitable for long-term operating systems.
Youveim® High-Purity Nickel Cloth provides a reliable, highly conductive, and scalable nickel-based porous metallic framework.
Youveim® Hydrophilic Nickel Cloth further optimizes this material for high-current-density, low-polarization, and long-lifetime alkaline electrolysis systems.
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our eBay / Amazon / Alibaba stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
| Model | Mesh Count (Mesh) | Wire Diameter (mm) | Aperture (μm) | Thickness (mm) | 10x10cm | 20x20cm | 20x30cm |
|---|---|---|---|---|---|---|---|
| NC800H | 80x800 | 0.1×0.055 | 25 | 0.24 | 100 | 280 | 360 |
| NC1600H | 200x1600 | 0.05×0.032 | 10 | 0.12 | 90 | 250 | 320 |
Note: Custom sizes are available. For example, rolls (width 1m, length 30m) can be priced per square meter.
