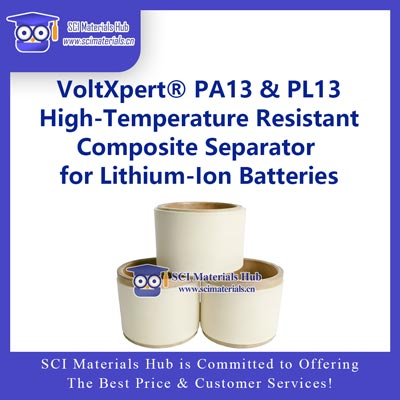

VoltXpert® High-Temperature-Resistant Lithium-Ion Battery Composite Separator Series
PA13 / PL13 High-Safety Composite Separator Solutions

With the rapid development of new energy vehicles and energy storage systems, lithium-ion batteries are continuously evolving toward higher energy density, enhanced safety levels, and longer cycle life. As a critical internal safety component, the separator not only physically isolates the cathode and anode, but also directly affects ion transport efficiency, thermal stability, and overall cell reliability.

The VoltXpert® high-temperature-resistant lithium-ion battery composite separator series has been developed in this context. Through a multilayer composite structure and functional ceramic coating technology, it achieves an optimal balance among safety protection, mechanical stability, and electrochemical performance.

The series currently includes two core models:

• VoltXpert® PA13: Double-sided PI + Al₂O₃ high-safety separator

• VoltXpert® PL13: PI + Al₂O₃ / LATP asymmetric functional separator

Both products are based on a 9 μm PE base film with functional coatings, resulting in a total thickness of approximately 13 μm. They balance safety performance and high energy density requirements, making them suitable for power batteries, energy storage batteries, and specialized power applications.

1. Product Structure Design

The VoltXpert® separator series adopts an organic–inorganic composite structure design. Through the synergistic effect of polymer base film and ceramic coatings, it significantly enhances thermal stability and mechanical strength under high-temperature conditions while maintaining excellent ionic conductivity.

PA13 Symmetric Safety Structure

Structure composition:

9 μm PE base film + double-sided 2 μm PI + Al₂O₃ composite coating

This structure emphasizes thermal safety and mechanical protection:

• PI provides excellent high-temperature resistance

• Al₂O₃ ceramic layer forms an insulating protective barrier

• Double-sided coating enhances overall puncture resistance

Suitable for power battery systems with extremely high safety requirements.

PL13 Asymmetric Functional Structure

Structure composition:

9 μm PE base film + single-sided 2 μm PI + Al₂O₃ coating + single-sided 2 μm LATP coating

This design optimizes performance through functional division on both sides:

CP side (Ceramic Protection):

• PI + Al₂O₃ composite layer

• Provides thermal resistance and mechanical protection

LP side (Lithium-conductive Protection):

• LATP solid electrolyte coating

• Enhances interfacial ionic conductivity

• Suppresses side reactions and improves cycle life

This structure enables synergistic optimization of safety protection and electrochemical performance.

2. Structural Comparison

3. Key Performance Comparison

Summary:

• PA13 focuses on extreme thermal stability and mechanical protection

• PL13 enhances interfacial ion transport while maintaining safety

• The two products are complementary in positioning

4. Core Performance Advantages

1. High Thermal Stability

• PA13 breakdown temperature reaches 205℃, far exceeding conventional polyolefin separators

• PL13 maintains low shrinkage (1–1.5%) at 200℃ for 30 minutes

• Low thermal shrinkage effectively reduces thermal runaway risk

2. Enhanced Mechanical Protection

• Puncture strength > 500 gf

• Tensile strength ~200 MPa

Effectively resists:

• Electrode burr penetration

• Cell expansion pressure

• Winding process stress

Ensures structural stability of the cell.

3. Efficient Ion Transport

• Thin structure and optimized porosity ensure good ionic conductivity

• PA13 permeability: 114 s/100 ml

• PL13 permeability: 124 s/100 ml

• LATP layer in PL13 further enhances interfacial conductivity

4. Stable Interfacial Bonding

• Strong adhesion between ceramic coating and PE base film

• Peel strength up to 100–187 N/m

• Prevents delamination during long-term cycling

5. Excellent Chemical Stability

• Ceramic coating provides strong electrolyte corrosion resistance

• Compatible with:

  • High-nickel ternary systems

  • High-voltage cathode materials

  • Long-cycle energy storage batteries

5. Typical Application Scenarios

New Energy Vehicle Power Batteries
Maintains stable separation under fast charging and high-temperature driving conditions.

Commercial & Industrial Energy Storage Systems
Provides higher safety redundancy under outdoor high-temperature and long-cycle conditions.

Specialized Power Supplies
Applicable to:

• Aerospace power systems

• Military equipment

• Industrial backup power

Suitable for extreme environments.

High-Rate & Long-Cycle Cells
PL13, with its LATP functional layer, is especially suitable for:

• Fast-charging batteries

• High-rate batteries

• Long-life energy storage cells

6. Product Value Summary

The VoltXpert® high-temperature-resistant composite separator series achieves comprehensive improvements in both safety and performance through innovative composite structure technology:

• Ultra-high thermal stability

• Excellent mechanical strength

• Efficient ionic conductivity

• Stable interfacial structure

• Outstanding chemical compatibility

VoltXpert® PA13
Focuses on extreme safety protection and high-temperature stability, ideal for high-safety power batteries.

VoltXpert® PL13
Achieves dual optimization of safety and electrochemical performance through the LATP functional layer, making it more suitable for high-rate and long-cycle battery systems.

Together, these two products form a high-performance separator solution, providing reliable core material support for new energy vehicle batteries, energy storage systems, and high-end power applications.
