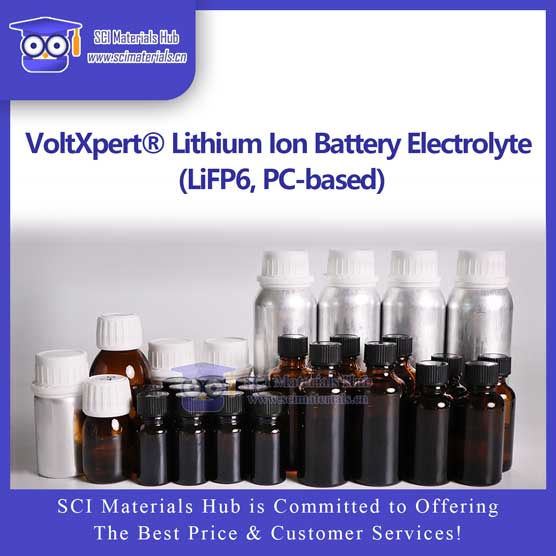

⚡ VoltXpert® PC-Based Lithium-Ion Battery Electrolyte System
LiPF₆ / PC / (EC / DMC / DEC / EMC) Multi-Solvent Solution
In response to the increasing demand for higher safety and wider temperature operating ranges, propylene carbonate (PC), with its high dielectric constant, is regaining importance as a key solvent in lithium-ion battery electrolyte systems.
Based on a LiPF₆ + PC core system, VoltXpert® integrates EC / DMC / DEC / EMC to build mono-, binary-, ternary-, and quaternary-solvent systems, covering full-scenario needs from fundamental research to high-performance applications.
🔹 Product System Overview
The VoltXpert® PC-based electrolyte system includes:
Single-solvent system (PC)
Binary system (PC + functional co-solvents)
Ternary system (PC + optimized functional combinations)
Quaternary system (full-performance balanced system)
📌 Unified Features:
PC (high dielectric constant, strong salt-dissolving capability)
LiPF₆ concentration:
1.0 M (standard type)
1.2 M (high-energy type)
🔹 Single-Solvent System (PC)
| Electrolyte Model | Chinese Name | Salt Concentration | Solvent Composition (Vol. Ratio) | Application Features |
|---|---|---|---|---|
| VX-P1-LP10 | High-Dielectric Base Electrolyte | 1.0 M | PC = 100% | High salt solubility, basic research |
| VX-P1-LP12H | High-Salt High-Stability Electrolyte | 1.2 M | PC = 100% | High-concentration system, stable interface |
📌 Key Features:
Extremely high dielectric constant
High viscosity → mainly for comparison studies or additive research
🔹 Binary Solvent System (PC + Functional Solvents)
| Electrolyte Model | Chinese Name | Salt Concentration | Solvent Composition (Vol. Ratio) | Application Features |
|---|---|---|---|---|
| VX-P2-LP10A | General Balanced Electrolyte | 1.0 M | PC:EC = 1:1 | Balanced SEI formation and solubility |
| VX-P2-LP10B | Low-Viscosity High-Conductivity Electrolyte | 1.0 M | PC:DMC = 1:1 | Reduced viscosity, improved rate performance |
| VX-P2-LP10C | Low-Temperature Conductive Electrolyte | 1.0 M | PC:DEC = 1:1 | Enhanced low-temperature performance |
| VX-P2-LP10D | High-Rate Optimized Electrolyte | 1.0 M | PC:EMC = 1:1 | Low viscosity, high conductivity |
| VX-P2-LP11B | High-Rate Enhanced Electrolyte | 1.0 M | PC:DMC = 1:2 | Fast-charging system |
| VX-P2-LP12A | High-Stability Film-Forming Electrolyte | 1.0 M | PC:EC = 2:1 | Strong SEI formation |
| VX-P2-LP12H | High-Energy-Density Electrolyte | 1.2 M | PC:DMC = 1:1 | High-salt system |
📌 Design Logic:
PC + EC → Strong SEI formation
PC + DMC/EMC → Low viscosity, high rate capability
PC + DEC → Low-temperature optimization
🔹 Ternary Solvent System (PC + Dual Functional Synergy)
| Electrolyte Model | Chinese Name | Salt Concentration | Solvent Composition (Vol. Ratio) | Application Features |
|---|---|---|---|---|
| VX-P3-LP10A | Standard General Electrolyte | 1.0 M | PC:EC:DMC = 1:1:1 | Commercial baseline system |
| VX-P3-LP10B | High-Rate Electrolyte | 1.0 M | PC:DMC:EMC = 1:1:1 | Low-viscosity fast charging |
| VX-P3-LP10C | Low-Temperature Electrolyte | 1.0 M | PC:DEC:EMC = 1:1:1 | Low-temperature optimization |
| VX-P3-LP11A | Fast-Charging Power Electrolyte | 1.0 M | PC:EC:DMC = 1:1:2 | Power battery system |
| VX-P3-LP12A | High-Stability Cycle Electrolyte | 1.0 M | PC:EC:DMC = 2:1:1 | Long-cycle performance |
| VX-P3-LP13C | Low-Temperature Enhanced Electrolyte | 1.0 M | PC:DEC:EMC = 1:2:2 | Extreme cold applications |
| VX-P3-LP12H | High-Energy Electrolyte | 1.2 M | PC:EC:DMC = 2:1:1 | High-salt system |
| VX-P3-LP13H | Low-Temperature High-Salt Electrolyte | 1.2 M | PC:DEC:EMC = 1:2:2 | Low-temp + high-salt system |
🔹 Quaternary Solvent System (PC + Full Performance Optimization)
| Electrolyte Model | Chinese Name | Salt Concentration | Solvent Composition (Vol. Ratio) | Application Features |
|---|---|---|---|---|
| VX-P4-LP10 | All-Purpose Balanced Electrolyte | 1.0 M | PC:EC:DMC:EMC = 1:1:1:1 | Best overall performance |
| VX-P4-LP11 | High-Rate All-Purpose Electrolyte | 1.0 M | PC:EC:DMC:EMC = 1:1:2:2 | Fast-charging system |
| VX-P4-LP12 | High-Stability All-Purpose Electrolyte | 1.0 M | PC:EC:DMC:EMC = 2:1:1:1 | Strong SEI |
| VX-P4-LP13 | Low-Temperature All-Purpose Electrolyte | 1.0 M | PC:EC:DEC:EMC = 1:1:2:2 | Low-temperature enhancement |
| VX-P4-LP14 | Ultra-Low Viscosity Electrolyte | 1.0 M | PC:DMC:DEC:EMC = 1:2:2:2 | Extremely low viscosity |
| VX-P4-LP12H | High-Energy All-Purpose Electrolyte | 1.2 M | PC:EC:DMC:EMC = 2:1:1:1 | High-salt, high-energy |
🔹 Solvent Function Analysis
| Solvent | Core Function |
|---|---|
| PC | High dielectric constant, enhances LiPF₆ dissociation |
| EC | Forms stable SEI film |
| DMC | Reduces viscosity, improves rate performance |
| EMC | Enhances conductivity and fluidity |
| DEC | Improves low-temperature performance |
🔹 Product Core Advantages
✅ High salt-dissolving capability (PC core)
Significantly improves ion dissociation and conductivity
✅ Wide temperature adaptability (-30°C to 60°C)
DEC / EMC synergistically enhance low-temperature performance
✅ Multiple system options (1–4 component systems)
From lab research to industrial scale-up
✅ High safety design
PC-based systems offer superior thermal stability vs. conventional electrolytes
🔹 Typical Application Scenarios
🚗 Power batteries (fast charging / high rate)
🔋 Energy storage systems (long-cycle stability)
❄️ Low-temperature batteries (extreme cold environments)
🧪 Electrolyte formulation development & additive research
💡 Summary
The VoltXpert® PC-based electrolyte system adopts a modular “mono → multi-component” design, achieving:
High conductivity + low viscosity + strong interfacial stability
Full coverage from fundamental research to commercial applications
Ready for formulation development and process scale-up
📧 Email: contact@scimaterials.cn
📞 Tel: +86 153-7569-8751
🔗 Click to place quick orders via our eBay / Amazon stores.
🌐 We ship worldwide via DHL, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
⚡ VoltXpert® PC-Based Lithium-Ion Battery Electrolyte Price List
LiPF₆ / PC / (EC / DMC / DEC / EMC) System
🔹 Single-Solvent System (PC)
| Electrolyte Model | Chinese Name | 10g | 50g | 100g | 200g | 500g | 1kg | Composition |
|---|---|---|---|---|---|---|---|---|
| VX-P1-LP10 | High-Dielectric Base Electrolyte | $16 | $40 | $60 | $80 | $120 | $160 | 1.0 M LiPF₆, PC = 100% |
| VX-P1-LP12H | High-Salt High-Stability Electrolyte | $19.2 | $48 | $72 | $96 | $144 | $192 | 1.2 M LiPF₆, PC = 100% |
🔹 Binary Solvent System (PC + Functional Solvents)
| Electrolyte Model | Chinese Name | 10g | 50g | 100g | 200g | 500g | 1kg | Composition |
|---|---|---|---|---|---|---|---|---|
| VX-P2-LP10A | General Balanced Electrolyte | $16 | $40 | $60 | $80 | $120 | $160 | 1.0 M LiPF₆, PC:EC = 1:1 |
| VX-P2-LP10B | Low-Viscosity High-Conductivity Electrolyte | $19.2 | $48 | $72 | $96 | $144 | $192 | 1.0 M LiPF₆, PC:DMC = 1:1 |
| VX-P2-LP10C | Low-Temperature Conductive Electrolyte | $19.2 | $48 | $72 | $96 | $144 | $192 | 1.0 M LiPF₆, PC:DEC = 1:1 |
| VX-P2-LP10D | High-Rate Optimized Electrolyte | $19.2 | $48 | $72 | $96 | $144 | $192 | 1.0 M LiPF₆, PC:EMC = 1:1 |
| VX-P2-LP11B | High-Rate Enhanced Electrolyte | $19.2 | $48 | $72 | $96 | $144 | $192 | 1.0 M LiPF₆, PC:DMC = 1:2 |
| VX-P2-LP12A | High-Stability Film-Forming Electrolyte | $19.2 | $48 | $72 | $96 | $144 | $192 | 1.0 M LiPF₆, PC:EC = 2:1 |
| VX-P2-LP12H | High-Energy-Density Electrolyte | $19.2 | $48 | $72 | $96 | $144 | $192 | 1.2 M LiPF₆, PC:DMC = 1:1 |
🔹 Ternary Solvent System (PC + Dual Functional Synergy)
| Electrolyte Model | Chinese Name | 10g | 50g | 100g | 200g | 500g | 1kg | Composition |
|---|---|---|---|---|---|---|---|---|
| VX-P3-LP10A | Standard General Electrolyte | $16 | $40 | $60 | $80 | $120 | $180 | 1.0 M LiPF₆, PC:EC:DMC = 1:1:1 |
| VX-P3-LP10B | High-Rate Electrolyte | $19.2 | $48 | $72 | $96 | $144 | $216 | 1.0 M LiPF₆, PC:DMC:EMC = 1:1:1 |
| VX-P3-LP10C | Low-Temperature Electrolyte | $19.2 | $48 | $72 | $96 | $144 | $216 | 1.0 M LiPF₆, PC:DEC:EMC = 1:1:1 |
| VX-P3-LP11A | Fast-Charging Power Electrolyte | $19.2 | $48 | $72 | $96 | $144 | $216 | 1.0 M LiPF₆, PC:EC:DMC = 1:1:2 |
| VX-P3-LP12A | High-Stability Cycling Electrolyte | $19.2 | $48 | $72 | $96 | $144 | $216 | 1.0 M LiPF₆, PC:EC:DMC = 2:1:1 |
| VX-P3-LP13C | Low-Temperature Enhanced Electrolyte | $19.2 | $48 | $72 | $96 | $144 | $216 | 1.0 M LiPF₆, PC:DEC:EMC = 1:2:2 |
| VX-P3-LP12H | High-Energy Electrolyte | $19.2 | $48 | $72 | $96 | $144 | $216 | 1.2 M LiPF₆, PC:EC:DMC = 2:1:1 |
| VX-P3-LP13H | Low-Temperature High-Salt Electrolyte | $19.2 | $48 | $72 | $96 | $144 | $216 | 1.2 M LiPF₆, PC:DEC:EMC = 1:2:2 |
🔹 Quaternary Solvent System (PC + Full Performance Optimization)
| Electrolyte Model | Chinese Name | 10g | 50g | 100g | 200g | 500g | 1kg | Composition |
|---|---|---|---|---|---|---|---|---|
| VX-P4-LP10 | All-Purpose Balanced Electrolyte | $16 | $40 | $60 | $80 | $120 | $180 | 1.0 M LiPF₆, PC:EC:DMC:EMC = 1:1:1:1 |
| VX-P4-LP11 | High-Rate All-Purpose Electrolyte | $19.2 | $48 | $72 | $96 | $144 | $216 | 1.0 M LiPF₆, PC:EC:DMC:EMC = 1:1:2:2 |
| VX-P4-LP12 | High-Stability All-Purpose Electrolyte | $19.2 | $48 | $72 | $96 | $144 | $216 | 1.0 M LiPF₆, PC:EC:DMC:EMC = 2:1:1:1 |
| VX-P4-LP13 | Low-Temperature All-Purpose Electrolyte | $19.2 | $48 | $72 | $96 | $144 | $216 | 1.0 M LiPF₆, PC:EC:DEC:EMC = 1:1:2:2 |
| VX-P4-LP14 | Ultra-Low Viscosity Electrolyte | $19.2 | $48 | $72 | $96 | $144 | $216 | 1.0 M LiPF₆, PC:DMC:DEC:EMC = 1:2:2:2 |
| VX-P4-LP12H | High-Energy All-Purpose Electrolyte | $19.2 | $48 | $72 | $96 | $144 | $216 | 1.2 M LiPF₆, PC:EC:DMC:EMC = 2:1:1:1 |
