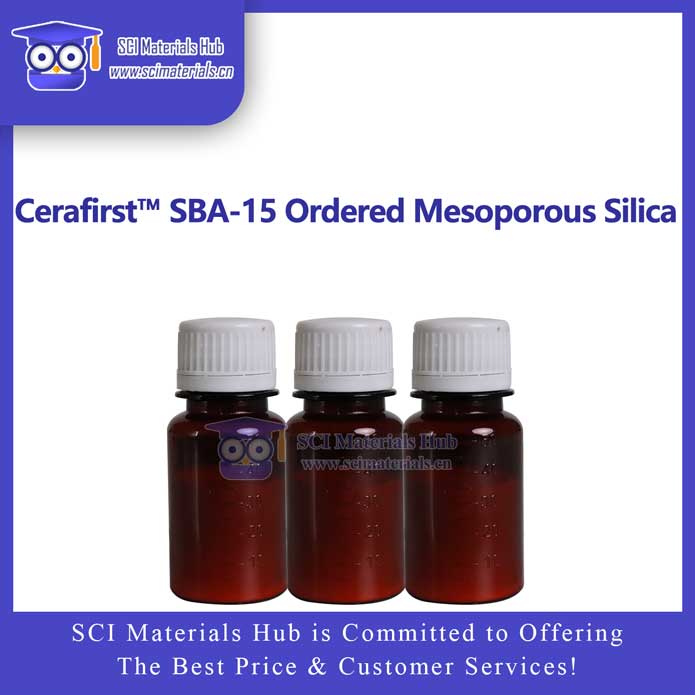

Cerafirst™ SBA-15
Ordered Mesoporous Silica
Cerafirst™ SBA-15 is a typical ordered mesoporous silica material featuring a well-ordered two-dimensional hexagonal pore structure and excellent tunable pore size. It is constructed via a templating method to form a stable mesoporous network, ensuring both high specific surface area and good pore connectivity, which significantly enhances mass transport performance.
Product Overview
Cerafirst™ SBA-15 is a typical ordered mesoporous silica material featuring a well-ordered two-dimensional hexagonal pore structure and excellent tunable pore size. It is constructed via a templating method to form a stable mesoporous network, ensuring both high specific surface area and good pore connectivity, which significantly enhances mass transport performance.
Based on nitrogen adsorption–desorption measurements, the sample exhibits a typical small mesoporous structure (~3 nm), accompanied by a small amount of microporosity. This results in a hierarchical pore system that balances adsorption capacity and diffusion efficiency, making it suitable for catalysis, electrochemical applications, and adsorption/separation processes.
m²/g
nm
cm³/g
nm
Key Structural Parameters
| Parameter Type | Item | Value |
|---|---|---|
| Specific Surface Area | BET Surface Area | 701 m²/g |
| Pore Volume | Total Pore Volume (P/P₀ ≈ 0.995) | 0.465 cm³/g |
| Pore Volume | Micropore Volume (t-plot) | 0.052 cm³/g |
| Pore Volume | Mesopore Volume (BJH desorption) | 0.34 cm³/g |
| Pore Size | Average Pore Diameter (BJH desorption) | 2.9 nm |
| Pore Size | Pore Size Range (BJH) | ~2.6–3.1 nm |
Structural Feature Analysis
High Specific Surface Area
The material exhibits a high specific surface area of approximately 701 m²/g, indicating abundant surface active sites beneficial for catalysis and interfacial reactions.
Mesopore-Dominated Structure
Mesopores dominate (≈0.34 cm³/g), significantly higher than micropores (≈0.05 cm³/g), which is a characteristic feature of SBA-15 materials.
Small Mesopore Regime
The average pore size is approximately 2.9 nm, with a narrow distribution ranging from 2.6 to 3.1 nm.
Application Significance
Electrochemistry & Energy Storage
Its small mesopores facilitate electrolyte infiltration and fast ion transport, making it suitable as an electrode support or interfacial modification material.
Catalysis
Its high surface area and ordered pore channels enable uniform dispersion of active species and improved catalytic efficiency.
Adsorption & Separation
It is particularly effective for medium-to-large molecules such as organic pollutants and dye molecules.
Summary
High Surface Area
~701 m²/g
Large Pore Volume
~0.46 cm³/g
Small Mesopores
~2.9 nm
Narrow Distribution
2.6–3.1 nm
Overall, it is a mesopore-dominated hierarchical porous material system, combining excellent mass transport properties with high surface activity, making it an ideal base material for catalysis, energy storage, and functional material development.
Quick Selection
Cerafirst™ SBA-15 Ordered Mesoporous Silica · Specifications & Price List (USD $)
Complete Model / Parameter / Price List
1g / 5g / 20g / 100g
| Product Model | Parameters | 1g | 5g | 20g | 100g | Lead Time |
|---|---|---|---|---|---|---|
| SBA15A3P Precursor | BET 258 m²/g, pore size 3.1 nm | 36 | 90 | 280 | 960 | In stock |
| SBA15A3 | BET 701 m²/g, pore size 2.9 nm | 40 | 100 | 300 | 1000 | In stock |
| Strip-shaped (Pore Size ≈4nm) | Particle Size: ≈3 μm; Relative Crystallinity: >95%; Specific Surface Area: ≥650 m²/g; Pore Volume: ≈1.26 ml/g; n-Hexane Adsorption: 12.3 m/m% | 40 | 100 | 300 | 1000 | In stock |
| Strip-shaped (Pore Size 6-7nm) | 40 | 100 | 300 | 1000 | In stock | |
| Strip-shaped (Pore Size 7-9nm) | 40 | 100 | 300 | 1000 | In stock | |
| Strip-shaped (Pore Size 9-11nm) | 40 | 100 | 300 | 1020 | In stock |
