(Supplied by SCI Materials Hub)
In Transmission Electron Microscopy (TEM) experiments, the selection of support films on grids directly affects imaging quality and experimental accuracy. As commonly used laboratory consumables, ZJ series TEM copper grids are widely preferred due to their stable material quality and precise specifications.
This article provides a comprehensive overview of the ZJ TEM copper grid product line, covering structure, specifications, and application scenarios, helping you quickly identify the most suitable option for your experiments and avoid common selection mistakes.
This product line is supplied by SCI Materials Hub, a professional scientific materials provider offering reliable sourcing, customization services, technical support, and stable inventory. It supports both small-scale research procurement and pilot-scale production, serving universities, research institutes, and enterprises worldwide.
ZJ TEM copper grids are divided into five main categories:
⚡ ZJ Ultra-Thin Carbon Film
🧱 ZJ Standard Carbon Film (Regular Carbon Film)
🧫 ZJ Holey Carbon Support Film (Conventional Microgrid)
🧬 ZJ Small-Hole Microgrid Carbon Support Film
⚙️ ZJ Thin Carbon Film
Each category is designed for specific experimental needs, with differences in structure, specifications, and application scenarios.
The ultra-thin carbon film adopts a three-layer structure, where an additional ultra-thin carbon layer is deposited on a microgrid support film.
Unlike pure carbon films supported only by grid holes, this ultra-thin layer (<5 nm) is one of the thinnest available support films, specifically designed for well-dispersed nanomaterials.
This structure enables uniform sample distribution and is ideal for:
🧬 1D nanomaterials (nanowires, nanotubes)
🔬 Low-contrast, small-size nanocrystals
📡 High-resolution TEM imaging
| Mesh | 50 pcs Code | 100 pcs Code | 🎁 Bonus |
|---|---|---|---|
| 200 mesh | BZ11032b | BZ11032a | Free DZ140 box (for 100 pcs) |
| 230 mesh | BZ110323b | BZ110323a | Free DZ140 box (for 100 pcs) |
| 300 mesh | BZ11033b | BZ11033a | Free DZ140 box (for 100 pcs) |
High-resolution TEM imaging
🧪 Nanoparticle observation
🧱 Thin film structure analysis
🧬 1D nanomaterials observation

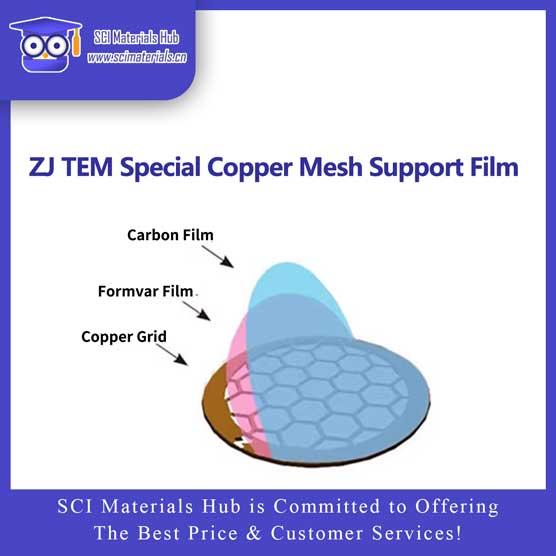

Standard carbon film consists of:
🧱 Carbon layer + Formvar film + Copper grid (two-layer support structure)
It is the most commonly used support film. The carbon layer improves conductivity and thermal stability, reducing charging and heating effects.
📏 Thickness: ~10–20 nm
🔬 Suitable for: 20–50 nm samples
⚖️ Balanced: strength vs. image quality
| Mesh | 50 pcs Code | 100 pcs Code |
|---|---|---|
| 50 mesh | BZ110205b | BZ110205a |
| 75 mesh | BZ1102075b | — |
| 100 mesh | BZ11021b | BZ11021a |
| 150 mesh | BZ110215b | BZ110215a |
| 200 mesh | BZ11022b | BZ11022a |
| 230 mesh | BZ110223b | BZ110223a |
| 300 mesh | BZ11023b | BZ11023a |
| 400 mesh | BZ11024b | BZ11024a |
Routine TEM observation
🔬 Morphology analysis
🎓 Teaching labs
📦 Batch sample testing
Holey carbon films are prepared by creating 2.5–10 μm pores on a Formvar film followed by carbon coating.
🔓 Typical pore size: ~5 μm
⚡ Holey structure enables background-free imaging
📡 Enhances image contrast
Applications include:
🧬 Nanoparticles positioned at hole edges
⚙️ Nanowires bridging holes
📊 Selected Area Electron Diffraction (SAED)
| Mesh | 50 pcs Code | 100 pcs Code | 🎁 Bonus |
|---|---|---|---|
| 200 mesh | BZ110125b | BZ110125a | Free DZ140 box |
| 230 mesh | BZ1101235b | BZ1101235a | Free DZ140 box |
| 300 mesh | BZ110135b | BZ110135a | Free DZ140 box |
Nanoparticles
⚛️ Quantum dots
🧫 Biomacromolecules
📡 SAED analysis
Small-hole microgrid films have pore sizes of approximately 2 μm.
Suitable for:
🦠 Viruses
🧫 Bacteria
❄️ Cryo-TEM samples
These allow particles to attach at pore edges, improving stability.
| Mesh | 50 pcs Code | 100 pcs Code |
|---|---|---|
| 200 mesh | BZ110122b | BZ110122a |
| 230 mesh | BZ1101232b | BZ1101232a |
| 300 mesh | BZ110132b | BZ110132a |
🦠 Virus observation
🧫 Bacteria analysis
🧬 Biological sections
❄️ Cryo-TEM
Thin carbon films are suitable for:
⚡ 100 kV TEM
🧬 Biological samples
🔬 Nanomaterials
Features:
📉 Higher contrast
⚖️ Lower beam damage
🎯 Better detail visibility
| Packaging | Available Mesh |
|---|---|
| 50 pcs / 100 pcs | 100, 150, 200, 230, 300, 400 mesh |
| Product Type | Structure | Mesh Range | Key Advantage | Application |
|---|---|---|---|---|
| ⚡ Ultra-Thin Carbon | 3-layer,<5 nm carbon | 200–300 | Highest resolution | Nanowires, nanotubes |
| 🧱 Standard Carbon | Formvar + carbon (10–20 nm) | 50–400 | Versatile, cost-effective | Routine TEM |
| 🧫 Holey Carbon | ~5 μm pores | 200–300 | Background-free | SAED, nanoparticles |
| 🧬 Small-Hole Carbon | ~2 μm pores | 200–300 | Stable support | Biological samples |
| ⚙️ Thin Carbon | Thin carbon layer | 50–400 | Balanced | 100 kV TEM |
This product series is exclusively supplied by SCI Materials Hub, a professional supplier covering:
⚗️ Carbon materials
🧪 Catalysts
🧬 Ion exchange membranes
🧫 Electron microscopy consumables
Services include:
🔧 Technical consultation
📦 Stable inventory
🧪 Custom processing
🌍 Global delivery
Work in a clean environment
Eliminate static electricity
Open the grid box slowly
Use fine tweezers (e.g., EZ5888/9) to grip edges
❌ Do not touch film surface
The lettered side is the film side
Place film-side up on filter paper or TEM substrate (e.g., GZ2060)
Drop sample solution appropriately
Pre-dry using infrared lamp (e.g., LP23030-B)
Clean surface with air blower (e.g., KS18666) before loading
Inspect under microscope before use
Store in TEM grid box (e.g., DZ160)
Keep dry and away from light
Shelf life: 1 year
Each box has a unique serial number
QR code for product traceability
Contact support with images/data if issues arise
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our eBay / Amazon / Alibaba stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
| Specification | Price (USD) |
|---|---|
| 200 mesh / 50 pcs (BZ11032b) | 231 |
| 200 mesh / 100 pcs (BZ11032a, incl. DZ140 box) | 426 |
| 230 mesh / 50 pcs (BZ110323b) | 231 |
| 230 mesh / 100 pcs (BZ110323a, incl. DZ140 box) | 426 |
| 300 mesh / 50 pcs (BZ11033b) | 231 |
| 300 mesh / 100 pcs (BZ11033a, incl. DZ140 box) | 426 |
| Specification | Price (USD) |
|---|---|
| 50 mesh / 50 pcs (BZ110205b) | 118.5 |
| 75 mesh / 50 pcs (BZ1102075b) | 118.5 |
| 100 mesh / 50 pcs (BZ11021b) | 103.5 |
| 150 mesh / 50 pcs (BZ110215b) | 88.5 |
| 200 mesh / 50 pcs (BZ11022b) | 81 |
| 230 mesh / 50 pcs (BZ110223b) | 81 |
| 300 mesh / 50 pcs (BZ11023b) | 82.5 |
| 400 mesh / 50 pcs (BZ11024b) | 84 |
| Specification | Price (USD) |
|---|---|
| 50 mesh / 100 pcs (BZ110205a) | 216 |
| 100 mesh / 100 pcs (BZ11021a) | 186 |
| 150 mesh / 100 pcs (BZ110215a) | 156 |
| 200 mesh / 100 pcs (BZ11022a) | 141 |
| 230 mesh / 100 pcs (BZ110223a) | 141 |
| 300 mesh / 100 pcs (BZ11023a) | 144 |
| 400 mesh / 100 pcs (BZ11024a) | 147 |
| Specification | Price (USD) |
|---|---|
| 200 mesh / 50 pcs (BZ110125b) | 201 |
| 200 mesh / 100 pcs (BZ110125a, incl. DZ140 box) | 366 |
| 230 mesh / 50 pcs (BZ1101235b) | 201 |
| 230 mesh / 100 pcs (BZ1101235a, incl. DZ140 box) | 366 |
| 300 mesh / 50 pcs (BZ110135b) | 201 |
| 300 mesh / 100 pcs (BZ110135a, incl. DZ140 box) | 366 |
| Specification | Price (USD) |
|---|---|
| 200 mesh / 50 pcs (BZ110122b) | 201 |
| 200 mesh / 100 pcs (BZ110122a) | 366 |
| 230 mesh / 50 pcs (BZ1101232b) | 201 |
| 230 mesh / 100 pcs (BZ1101232a) | 366 |
| 300 mesh / 50 pcs (BZ110132b) | 201 |
| 300 mesh / 100 pcs (BZ110132a) | 366 |
| Specification | Price (USD) |
|---|---|
| 100 mesh / 50 pcs | 111 |
| 100 mesh / 100 pcs | 186 |
| 150 mesh / 50 pcs | 88.5 |
| 150 mesh / 100 pcs | 156 |
| 200 mesh / 50 pcs | 81 |
| 200 mesh / 100 pcs | 141 |
| 230 mesh / 50 pcs | 81 |
| 230 mesh / 100 pcs | 141 |
| 300 mesh / 50 pcs | 82.5 |
| 300 mesh / 100 pcs | 144 |
| 400 mesh / 50 pcs | 84 |
| 400 mesh / 100 pcs | 147 |
