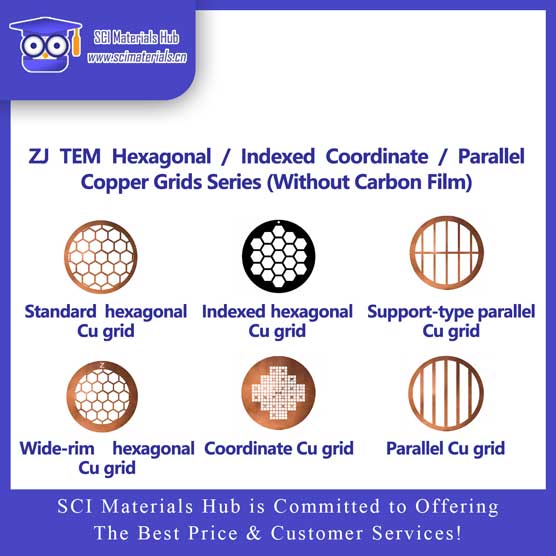

ZJ TEM Grid Selection Guide: Hexagonal Mesh, Indexed, Coordinate & Parallel Copper Grids

In Transmission Electron Microscopy (TEM) experiments, grids are critical consumables that directly determine imaging quality. Different structures and mesh sizes significantly affect electron beam transmission, sample stability, and final imaging performance.

This guide provides a systematic overview of ZJ TEM grids, along with full specifications to help you quickly select the right type.

1. ZJ TEM Hexagonal Copper Grids (Standard Rim / Wide Rim)

Key Features

• Suitable for collecting ultrathin sections from water surfaces

• Wide mesh range (50–400 mesh)

• High electron transparency for improved imaging

Overview

Hexagonal copper grids offer large openings and a wide field of view, making them widely used in biological sample preparation. Copper provides low cost and non-magnetic properties, suitable for most routine TEM experiments.

📊 Standard Hexagonal Copper Grids (Rim 250 μm)

📊 Wide-Rim Hexagonal Copper Grids (Rim 350 μm)

👉 Selection Tips

• Routine experiments → Standard rim

• Large or fragile samples → Wide rim

2. ZJ TEM Indexed Hexagonal Copper Grids (Film-Free)

Key Features

• Standardized pore size and spacing

• Supports indexed positioning

• Higher mechanical strength and traceable parameters

Overview

Indexed grids are designed for modern digital TEM analysis. Each mesh corresponds to a fixed number of openings, enabling standardized production and precise positioning.

📊 Indexed Hexagonal Grids

👉 Selection Tips
Suitable for:
✔ Repeated positioning
✔ Automated analysis
✔ Digital TEM applications

3. ZJ TEM Coordinate Grids

Key Features

• Precise sample positioning

• Multi-region labeling

• Supports repeated observation

Overview

Coordinate grids use etched reference systems (F1/F2/F4, etc.) to enable precise sample localization and revisiting. They are widely used in materials science and biological research.

📊 Coordinate Grids

👉 Selection Tips

• High-precision positioning → Gold grids

• Cost-effective → Copper grids

• Special environments → Nickel grids

4. ZJ TEM Support Parallel Copper Grids / Parallel Copper Grids

Key Features

• High mechanical strength

• Suitable for strip-shaped samples

• Stable support

📊 Support Parallel Copper Grids

📊 Parallel Copper Grids

👉 Selection Tips

• Strip materials → Parallel grids

• Fragile samples → Support type

5. Comparison of Grid Materials

Summary

Core logic for TEM grid selection:

✔ Mesh determines resolution and field of view
✔ Structure determines support and stability
✔ Material determines compatibility
✔ Stock status affects procurement timing

👉 If your application is:

• Biological sections → Hexagonal copper grids

• Precise positioning → Coordinate grids

• Automated analysis → Indexed grids

• Strip-shaped materials → Parallel grids

Choosing the right grid directly impacts your experimental success rate.

🌍 International Orders & Shipping

📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751

🔗 Place quick orders on our eBay / Amazon / Alibaba stores.

🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.

💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
