🔬 Thermal Analysis Crucible Selection Guide: Aluminum Crucibles vs. Alumina Crucibles

In thermal analysis experiments such as DSC (Differential Scanning Calorimetry), TGA (Thermogravimetric Analysis), and STA (Simultaneous Thermal Analysis), crucibles are essential consumables that significantly affect the accuracy of test results. Different testing temperatures and sample properties require different crucible materials.

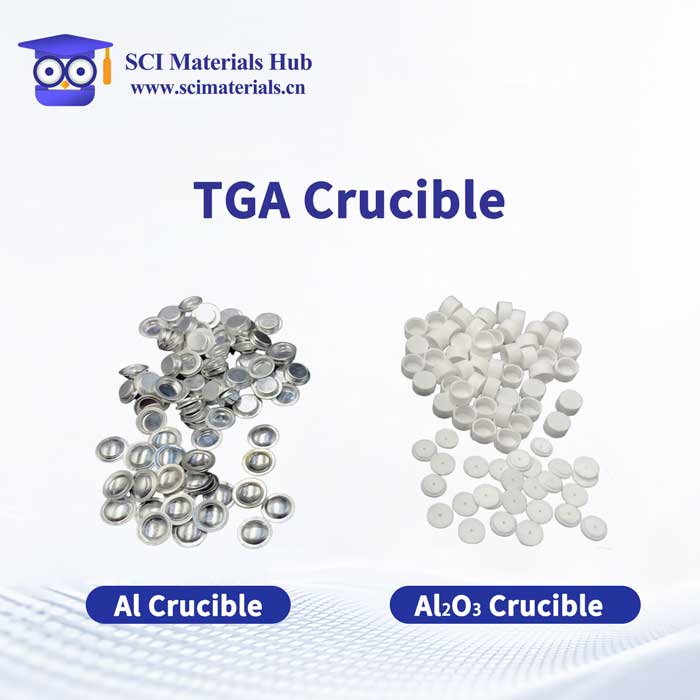

Currently, the most commonly used thermal analysis crucibles in laboratories are Aluminum Crucibles and Alumina Crucibles. Selecting the appropriate crucible material can effectively improve measurement accuracy and testing efficiency. ✨

🧪 Aluminum Crucibles: The Classic Choice for DSC Testing

Aluminum crucibles are manufactured from high-purity aluminum and feature lightweight construction, excellent thermal conductivity, and reliable sealing performance. They are among the most widely used consumables for DSC analysis.

⭐ Features of Aluminum Crucibles

⚡ Fast heat transfer

⚡ Rapid temperature response

⚡ Cost-effective

⚡ Excellent sealing performance

⚡ Suitable for volatile sample testing

📊 Typical Applications

✔ DSC (Differential Scanning Calorimetry)

✔ Polymer analysis

✔ Plastic and rubber testing

✔ Pharmaceutical and food research

✔ Volatile organic compound (VOC) analysis

🌡️ Recommended Temperature Range

Recommended operating temperature:

-170°C to approximately 600°C

For low- and medium-temperature thermal analysis experiments, aluminum crucibles provide excellent testing performance.

🔥 Alumina Crucibles: The Preferred Choice for High-Temperature Thermal Analysis

Alumina crucibles are manufactured from high-purity aluminum oxide (Al₂O₃) powder through high-temperature sintering. They offer exceptional temperature resistance and outstanding chemical stability.

They are especially suitable for high-temperature material characterization and long-term thermal stability testing.

🌡️ Outstanding High-Temperature Resistance

High-purity alumina crucibles can withstand prolonged exposure to elevated temperatures.

✅ Continuous operating temperature above 1600°C

✅ Maximum temperature resistance up to approximately 1750°C

✅ Resistant to deformation, softening, and cracking

Capable of meeting the requirements of most high-temperature thermal analysis applications.

⚡ Stable Thermal Conductivity

Alumina provides reliable thermal conductivity.

Rapid heat transfer between the sample and crucible helps reduce temperature gradients and improve testing accuracy.

🔹 Uniform temperature distribution

🔹 Excellent test repeatability

🔹 Stable thermal response

🏗️ Dense Structure and Stable Performance

Manufactured using high-purity alumina powder and precision sintering technology.

✨ Uniform microstructure

✨ High mechanical strength

✨ Low porosity

✨ Reduced interference peaks

During testing, alumina crucibles are less likely to react physically or chemically with samples, ensuring reliable and accurate analytical results.

♻️ Reusable and Cost-Effective

Alumina crucibles can be cleaned and reused multiple times.

Cleaning methods:

💧 Rinse with deionized water

💧 Ultrasonic cleaning

💧 Soak in 10% hydrochloric acid solution

💧 Dry thoroughly before reuse

Under normal laboratory conditions, repeated use does not significantly affect testing performance.

📈 Aluminum Crucibles vs. Alumina Crucibles

🎯 Typical Application Fields

🔬 Research Laboratories

Thermal analysis testing

Materials development

New energy research

Catalyst research

🏭 Industrial Testing

Battery material testing

Powder metallurgy analysis

Ceramic material characterization

Metal material analysis

🎓 Universities & Research Institutes

Teaching laboratories

Scientific research projects

Material property analysis

⭐ Product Advantages Summary

🥇 Aluminum Crucibles

✅ Fast heat transfer

✅ Excellent sealing performance

✅ Ideal for DSC testing

✅ Economical and practical

🥇 Alumina Crucibles

✅ High-temperature resistance up to 1600–1750°C

✅ Excellent chemical stability

✅ Reliable thermal conductivity

✅ Stable structural performance

✅ High reusability

✅ Suitable for TGA, DSC, and STA instruments

🚀 Conclusion

Whether you need aluminum crucibles for routine DSC testing or 99% alumina crucibles for high-temperature thermal analysis, selecting the appropriate crucible material is essential for obtaining accurate and reliable results.

🔹 Choose Aluminum Crucibles for low-temperature and routine DSC applications.

🔹 Choose Alumina Crucibles for high-temperature thermal analysis and challenging sample testing.

By matching the crucible material to your experimental requirements, you can improve testing accuracy, extend consumable lifespan, and obtain more reliable data for research and quality control applications. 🔬✨
