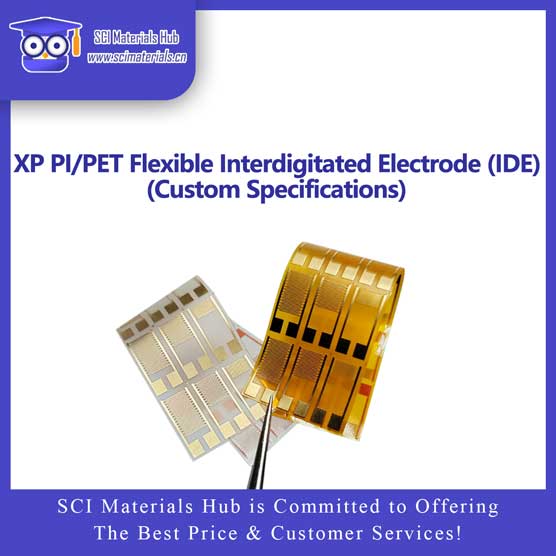

High-Precision Microelectrode Structure · Flexible Substrate · Custom Solutions for Research and Industry
In flexible electronics, electrochemical sensing, biosensing, and micro/nano-device research, Interdigitated Electrodes (IDE) are widely used due to their high sensitivity, uniform electric field distribution, and ease of integration.
Flexible interdigitated electrodes utilize micron-scale metal trace structures fabricated on flexible substrates, providing lightweight, bendable, and versatile solutions for sensing, impedance analysis, conductivity testing, and microfluidic applications.
An Interdigitated Electrode (IDE) is a microstructured device consisting of two interlocking comb-shaped electrode arrays that are electrically isolated from each other.
Its key features include:
Small electrode spacing
High sensitivity
Uniform electric field distribution
Easy miniaturization
Flexible design capability
As a result, IDEs are widely used in:
Electrochemical sensing
Biosensing
Gas sensing
Impedance analysis
Flexible electronics
Microfluidic chips
Conductive material research
Flexible interdigitated electrodes typically employ a multilayer metal composite structure:
| Layer | Material |
|---|---|
| Surface Layer | Gold (Au) |
| Intermediate Layer | Nickel (Ni) |
| Conductive Layer | Copper (Cu) |
| Substrate | PI or PET |
Among them:
The gold layer provides excellent conductivity and oxidation resistance.
The nickel layer enhances adhesion and structural stability.
The copper layer serves as the primary conductive pathway.
The flexible substrate enables bending and lightweight applications.
PI substrates offer excellent heat resistance and chemical stability:
Temperature range: approximately -269°C to 280°C
Resistant to strong acids and alkalis
Excellent flexural and fatigue resistance
Stable mechanical properties
Suitable for long-term cyclic testing
Recommended for:
Electrochemical testing
High-temperature experiments
Flexible electronics
Long-term stable operation
PET substrates provide high transparency and lightweight characteristics:
Temperature range: approximately -60°C to 200°C
High optical transparency
Lightweight and flexible
Suitable for optical observation
Recommended for:
Optoelectronic experiments
Visible microfluidic systems
Transparent flexible devices
Room-temperature sensing applications
Flexible interdigitated electrodes support a wide range of customizable specifications:
| Parameter | Description |
|---|---|
| Overall Size | Common sizes: 5×10 mm, 10×10 mm, 10×20 mm |
| Finger Length | Customizable |
| Line Width | Micron-level customization available |
| Line Spacing | Micron-level customization available |
| Finger Pairs | Multiple options available |
| Substrate Type | PI / PET |
| Electrode Material | Au / Ni / Cu |
Supported configurations:
Single-channel structures
Multi-channel designs
High-density microelectrodes
Flexible curved structures
Custom pattern designs
Manufactured using precision etching and metal deposition processes, ensuring uniform line widths and spacings for highly sensitive detection applications.
Flexible substrates adapt to curved surfaces and dynamic bending requirements, making them ideal for flexible electronics and wearable technologies.
The stable metal surface layer enables applications such as:
Impedance testing
Electrochemical analysis
Biosensing
Conductivity characterization
Supports:
Various sizes
Different line widths and spacings
Different finger pair counts
Multi-channel configurations
Custom pattern designs
Meeting both research and industrial development requirements.
| Application Area | Description |
|---|---|
| 🧪 Electrochemical Sensing | Current, voltage, and impedance measurements |
| 🧬 Biosensing | Detection of DNA, proteins, and biomolecules |
| 🌫 Gas Sensing | VOC, humidity, and gas sensor testing |
| 📡 Flexible Electronics | Wearable and flexible electronic devices |
| 🔬 Microfluidic Chips | Lab-on-a-chip integration |
| ⚡ Conductive Material Testing | Thin films, inks, and nanomaterial analysis |
| 💡 Optoelectronic Experiments | Transparent devices and optical testing |
Recommended:
PI-Based Flexible Interdigitated Electrode
Suitable for:
High-temperature environments
Long-duration experiments
Strong acid and alkaline systems
High-reliability testing
Recommended:
PET-Based Flexible Interdigitated Electrode
Suitable for:
Optical experiments
Microscopic observation
Transparent devices
Room-temperature flexible applications
Flexible interdigitated electrodes combine:
High-precision microstructures
Flexible and bendable design
Excellent electrical conductivity
Extensive customization capabilities
Dual substrate options (PI / PET)
They are widely applicable in university research, laboratory development, electrochemical studies, flexible electronics, and sensor technologies.
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our eBay / Amazon / Alibaba stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
| Specification | Price (USD) |
|---|---|
| 5×5mm-15Pairs-50μm Line Width/Spacing-Yellow PI | 40 |
| 5×5mm-7Pairs-50μm Line Width/100μm Spacing-Yellow PI | 40 |
| 10×10mm-15Pairs-100μm Line Width/50μm Spacing-Yellow PI | 16 |
| 10×10mm-5Pairs-100μm Line Width/Spacing-Yellow PI | 29 |
| 10×20mm-25Pairs-50μm Line Width/Spacing-Yellow PI | 32 |
| 10×20mm-25Pairs-100μm Line Width/50μm Spacing-Yellow PI | 32 |
| 10×20mm-20Pairs-100μm Line Width/Spacing-Yellow PI | 32 |
| 10×20mm-12Pairs-200μm Line Width/Spacing-Yellow PI | 32 |
| 20×15mm-25Pairs-50μm Line Width/Spacing-Yellow PI | 40 |
| 25×63mm-25Pairs-150μm Line Width/850μm Spacing-Yellow PI | 85 |
| 60×60mm-80Pairs-100μm Line Width/Spacing-Yellow PI | 85 |
| 70×65mm-80Pairs-100μm Line Width/Spacing-Yellow PI | 93 |
| 10×10mm-15Pairs-100μm Line Width/50μm Spacing-Clear PET | 16 |
| 10×10mm-5Pairs-100μm Line Width/Spacing-Clear PET | 29 |
| 10×20mm-25Pairs-50μm Line Width/Spacing-Clear PET | 32 |
| 10×20mm-25Pairs-100μm Line Width/50μm Spacing-Clear PET | 32 |
| 10×20mm-20Pairs-100μm Line Width/Spacing-Clear PET | 32 |
| 10×20mm-12Pairs-200μm Line Width/Spacing-Clear PET | 32 |
| 11×25mm-4Pairs-800μm Line Width/500μm Spacing-Clear PET | 73 |
| 11×25mm-25Pairs-800μm Line Width/50μm Spacing-Clear PET | 68 |
| 20×15mm-25Pairs-50μm Line Width/Spacing-Clear PET | 40 |
| 21×31mm-28Pairs-150μm Line Width/200μm Spacing-Clear PET | 73 |
| 25×30mm-10Pairs-200μm Line Width/Spacing-Clear PET | 73 |
| 36×39mm-12Pairs-100μm Line Width/900μm Spacing-Clear PET | 101 |
