High-Performance Titanium-Based Porous Transport Layer (PTL) Solution
Designed for PEM water electrolysis, AEM electrolyzers, CO₂ electrolysis, and advanced electrochemical systems.
In electrochemical systems such as water electrolysis for hydrogen, CO₂ reduction, and flow batteries, the Porous Transport Layer (PTL) plays a critical role in:
Traditional carbon paper suffers from corrosion under strong oxidative conditions. Titanium, with excellent corrosion resistance and electrical conductivity, has become the preferred material for anode PTLs, especially in PEM water electrolyzers.

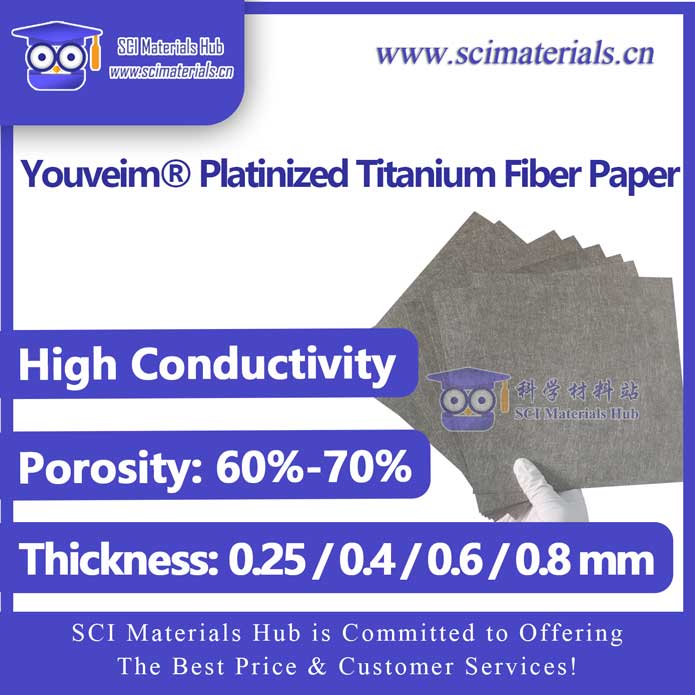

Youveim® Titanium Fiber Paper / Titanium Felt is made from high-purity titanium fibers through a 3D sintering process, forming a continuous conductive network with an open porous structure. It combines high porosity, excellent conductivity, mechanical strength, and chemical stability, making it a key material for high-performance electrolyzers.
| Feature | Advantage |
|---|---|
| High-purity titanium fiber sintering | Continuous and stable conductive network |
| 3D porous structure | Enhanced gas and liquid transport efficiency |
| Excellent corrosion resistance | Long-term stability in harsh oxidative environments |
| High mechanical strength | Maintains structural integrity under compression |
| High porosity | Reduces mass transfer resistance |
| Catalyst loadable | Supports Pt, Ir, Ru, and other catalysts |
| Customizable | Available in various thicknesses, porosity, and sizes |
PEM electrolyzer anodes operate under high oxidative potentials:
2H₂O → O₂ + 4H⁺ + 4e⁻
| Carbon Paper | Titanium Fiber Paper |
|---|---|
| Prone to carbon corrosion | Excellent oxidation resistance |
| Conductivity decreases over time | Stable low resistance over long periods |
| Limited lifetime | Suitable for continuous operation |
| Less stable at high current density | Suitable for industrial-scale operation |
Consequently, titanium-based PTLs are now standard for PEM electrolyzer anodes.
Anode (OER side)
Cathode (HER side)
| Model | Thickness (mm) | Porosity | Fiber Length | Fiber Diameter |
|---|---|---|---|---|
| TF010L | 0.10 | 50–60% | 35 mm | 25–50 μm |
| TF020L | 0.20 | 50–60% | 35 mm | 25–50 μm |
| TF025L | 0.25 | 50–60% | 35 mm | 25–50 μm |
| TF030L | 0.30 | 50–60% | 35 mm | 25–50 μm |
| TF040M | 0.40 | 55–65% | 35 mm | 25–50 μm |
| TF050M | 0.50 | 60–70% | 35 mm | 25–50 μm |
| TF060M | 0.60 | 60–70% | 35 mm | 25–50 μm |
| TF080M | 0.80 | 65–75% | 35 mm | 25–50 μm |
| TF100M | 1.00 | 65–75% | 35 mm | 25–50 μm |
| TF120H | 1.20 | 70–80% | 35 mm | 25–50 μm |
| TF150H | 1.50 | 70–80% | 35 mm | 25–50 μm |
| Model | Thickness (mm) | Porosity | Fiber Length | Fiber Diameter |
|---|---|---|---|---|
| TIFP025M | 0.25 | 60–70% | 70 mm | 25–50 μm |
| TIFP040M | 0.40 | 60–70% | 70 mm | 25–50 μm |
| TIFP060M | 0.60 | 60–70% | 70 mm | 25–50 μm |
| TIFP080M | 0.80 | 60–70% | 70 mm | 25–50 μm |
| Porosity | Characteristics | Recommended Applications |
|---|---|---|
| 50–60% | High liquid retention | Small lab-scale electrolyzers |
| 55–65% | Balanced performance | General research |
| 60–70% | Excellent gas diffusion | High current density |
| 70–80% | Ultra-low mass transfer resistance | Industrial electrolyzers |
| Property | 35 mm Fiber | 70 mm Fiber |
|---|---|---|
| Flatness | ★★★★★ | ★★★★☆ |
| Flexibility | ★★★★★ | ★★★☆☆ |
| Conductive continuity | ★★★★☆ | ★★★★★ |
| Mechanical strength | ★★★★☆ | ★★★★★ |
| Large-area application | ★★★☆☆ | ★★★★★ |
| Industrial operation | ★★★☆☆ | ★★★★★ |
Lab research: 35 mm series
Pilot and industrial applications: 70 mm series
| Application | Recommended Model |
|---|---|
| 1–5 cm² electrolyzer | TF025L / TF040M |
| 5–25 cm² electrolyzer | TF040M / TF060M |
| 25–100 cm² electrolyzer | TF060M / TF080M |
| >100 cm² PEM electrolyzer | TF080M / TF120H |
| High current density (>3 A/cm²) | TF120H / TF150H |
| Industrial hydrogen production | TIFP060M / TIFP080M |
Titanium fiber paper also serves as an excellent catalyst support.
| Reaction | Typical Catalysts |
|---|---|
| OER | IrO₂, RuO₂ |
| HER | Pt/C, Pt Black |
| AEM electrolysis | NiFeOx |
| CO₂ reduction | Ag, Au, Cu |
| Seawater electrolysis | IrRuOx |
Common loading methods: spraying, ultrasonic spraying, electrodeposition, electroplating, slurry coating, hot-press transfer.
| Application | Function |
|---|---|
| PEM water electrolysis | Anode PTL |
| AEM electrolyzers | Electrode diffusion layer |
| CO₂ electrolyzers | Current collector & support |
| Flow batteries | Electrode scaffold |
| Electrocatalysis research | Catalyst support |
| Metal-air batteries | Gas diffusion support |
Pre-treatment: DI water ultrasonic cleaning → ethanol ultrasonic cleaning → drying at 80°C
Compression guidance:
| System | Recommended Compression |
|---|---|
| PEM electrolyzer | 10–25% |
| AEM electrolyzer | 10–20% |
| CO₂ electrolyzer | 5–15% |
Over-compression may reduce porosity, increase mass transfer resistance, and reduce electrochemical performance.
Q1: Difference between titanium mesh and titanium fiber paper?
Titanium mesh is a 2D woven structure with larger pores; titanium fiber paper is a 3D sintered structure with higher surface area, uniform current distribution, and superior mass transfer capability.
Q2: Can it replace carbon paper?
Yes. For PEM anodes, titanium fiber paper is now the industry standard and a superior upgrade to carbon paper.
Q3: Is thicker always better?
Not necessarily. Thickness increases mechanical strength and conductivity stability, but also raises pressure drop and material cost. Selection should match electrolyzer size.
Q4: Can you provide pre-coated catalyst products?
Yes. Supports IrO₂, RuO₂, Pt, Ag, NiFeOx, and other custom coatings.
Q5: Can custom sizes be provided?
Yes. Supports round, square, and irregular shapes up to 500 mm × 500 mm and larger.
SCI Materials Hub provides high-quality Youveim® Titanium Fiber Paper and complete electrolyzer solutions:
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our eBay / Amazon / Alibaba stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
Standard size pricing (USD, per sheet)
All products available in: 5×5 cm / 10×10 cm / 20×20 cm
| Product Code | Thickness (mm) | Porosity | Fiber Length | 5×5 cm | 10×10 cm | 20×20 cm | Lead Time |
|---|---|---|---|---|---|---|---|
| TIFP025M | 0.25 | 60–70% | 70 mm | $39 | $99 | $350 | In stock |
| TIFP040M | 0.40 | 60–70% | 70 mm | $39 | $99 | $350 | In stock |
| TIFP060M | 0.60 | 60–70% | 70 mm | $39 | $99 | $350 | In stock |
| TIFP080M | 0.80 | 60–70% | 70 mm | $39 | $99 | $350 | In stock |
| Product Code | Thickness (mm) | Porosity | Fiber Length | 5×5 cm | 10×10 cm | 20×20 cm | Lead Time |
|---|---|---|---|---|---|---|---|
| TF010L | 0.10 | 50–60% | 35 mm | $29 | $79 | $290 | In stock |
| TF020L | 0.20 | 50–60% | 35 mm | $32 | $85 | $310 | In stock |
| TF025L | 0.25 | 50–60% | 35 mm | $35 | $90 | $320 | In stock |
| TF030L | 0.30 | 50–60% | 35 mm | $36 | $95 | $330 | In stock |
| TF040M | 0.40 | 55–65% | 35 mm | $38 | $95 | $330 | In stock |
| TF050M | 0.50 | 60–70% | 35 mm | $42 | $110 | $380 | In stock |
| TF060M | 0.60 | 60–70% | 35 mm | $45 | $120 | $420 | In stock |
| TF080M | 0.80 | 65–75% | 35 mm | $55 | $145 | $520 | In stock |
| TF100M | 1.00 | 65–75% | 35 mm | $68 | $180 | $650 | In stock |
| TF120H | 1.20 | 70–80% | 35 mm | $80 | $220 | $780 | In stock |
| TF150H | 1.50 | 70–80% | 35 mm | $95 | $260 | $920 | In stock |
Youveim® Titanium Fiber Paper is supplied by SCI Materials Hub, providing:
Youveim® Titanium Fiber Paper delivers a scalable PTL platform ranging from laboratory research to industrial hydrogen production systems, combining:
