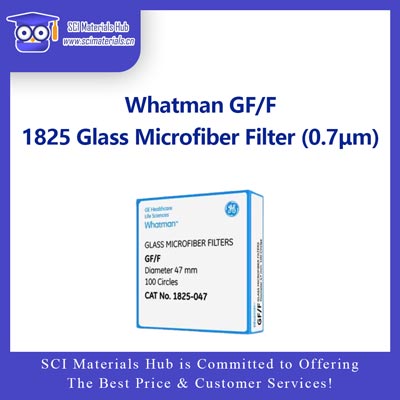

GF/F is a high-purity glass microfiber filter with a nominal particle retention rating of approximately 0.7 μm. It features low chloride content, low metal extractables, stable particle retention, and a fast filtration rate.
It is suitable for heavy metal testing, trace element analysis, environmental water filtration, soil extract filtration, and sample preparation before ICP, ICP-MS, or AAS analysis.
Nominal particle retention: approximately 0.7 μm
Low chloride content and low metal extractables
Reduced background interference in trace analysis
Good balance between filtration speed and particle retention
Available in discs, strips, sheets, and rolls
Suitable for custom cutting and industrial processing
Heavy metal analysis
ICP, ICP-MS, and AAS sample preparation
Environmental water and wastewater filtration
Soil extract filtration
Trace element testing
Large-volume vacuum filtration
Lateral-flow strip and filter-disc production
| Catalog Number | Size / Format | Pack Size | Recommended Application |
|---|---|---|---|
| 1825-021 | Φ21 mm, 0.7 μm | 100 pcs/pack | Small-volume heavy metal sample filtration |
| 1825-024 | Φ24 mm, 0.7 μm | 100 pcs/pack | Trace element sample preparation |
| 1825-025 | Φ25 mm, 0.7 μm | 100 pcs/pack | Use with standard small filter holders |
| 1825-037 | Φ37 mm, 0.7 μm | 100 pcs/pack | Soil heavy metal extract filtration |
| 1825-042 | Φ42.5 mm, 0.7 μm | 100 pcs/pack | Small-volume ICP sample preparation |
| 1825-047 | Φ47 mm, 0.7 μm | 100 pcs/pack | Surface-water heavy metal testing |
| 1825-055 | Φ55 mm, 0.7 μm | 100 pcs/pack | Medium-volume sample filtration |
| 1825-070 | Φ70 mm, 0.7 μm | 100 pcs/pack | Routine laboratory vacuum filtration |
| 1825-090 | Φ90 mm, 0.7 μm | 25 pcs/pack | Small-batch heavy metal filtration |
| 1825-10045 | Φ23.5 mm, 0.7 μm | 100 pcs/pack | Microsample and pre-injection filtration |
| 1825-10076 | 16 × 110 mm strip, 0.7 μm | 100 pcs/pack | Lateral-flow test-strip material |
| 1825-10126 | 34 mm × 150 m roll, 0.7 μm | 1 roll/pack | Filter-disc and strip converting |
| 182510155 | 16 mm × 50 m roll, 0.7 μm | 1 roll/pack | Small test-strip production |
| 1825-110 | Φ110 mm, 0.7 μm | 25 pcs/pack | Medium-volume water filtration |
| 1825-125 | Φ125 mm, 0.7 μm | 25 pcs/pack | Large-volume environmental testing |
| 1825-125A | Ultra-low-chloride Φ125 mm, 0.7 μm | 25 pcs/pack | Ultra-trace ICP-MS analysis |
| 1825-142 | Φ142 mm, 0.7 μm | 25 pcs/pack | Medium-scale flat-sheet filtration |
| 1825-142A | Ultra-low-chloride Φ142 mm, 0.7 μm | 25 pcs/pack | Ultra-trace element analysis |
| 1825-150 | Φ150 mm, 0.7 μm | 25 pcs/pack | Industrial wastewater testing |
| 1825-150A | Ultra-low-chloride Φ150 mm, 0.7 μm | 25 pcs/pack | Very-low-extractables analysis |
| 1825-185 | Φ185 mm, 0.7 μm | 25 pcs/pack | Large-volume extract filtration |
| 1825-185A | Ultra-low-chloride Φ185 mm, 0.7 μm | 25 pcs/pack | Large-volume ultra-trace analysis |
| 1825-257 | Φ257 mm, 0.7 μm | 25 pcs/pack | Large vacuum filtration |
| 1825-293 | Φ293 mm, 0.7 μm | 25 pcs/pack | High-volume water processing |
| 1825-6005 | 30 cm × 50 m roll, 0.7 μm | 1 roll/pack | Batch converting and custom cutting |
| 1825-6906 | 600 mm × 540 m roll, 0.7 μm | 1 roll/pack | Industrial-scale converting |
| 1825-915 | 46 × 57 cm sheet, 0.7 μm | 25 pcs/pack | Industrial flat-sheet filtration |
For routine heavy metal testing, select 1825-047, 1825-070, or 1825-090. Small-volume samples can use 1825-021, 1825-024, 1825-025, or 1825-10045.
For ICP-MS and ultra-trace analysis, the ultra-low-chloride A-series formats—1825-125A, 1825-142A, 1825-150A, and 1825-185A—are recommended.
Large discs, sheets, and rolls are suitable for industrial wastewater filtration, flat-sheet filtration, custom cutting, and test-strip production.
Use clean forceps to place the filter in the filtration device. Ensure proper edge sealing and pre-rinse with ultrapure water or sample solution when required. Add the sample slowly and collect either the filtrate or the filter according to the analytical method.
For trace analysis, include filter blanks and replicate samples to control background contamination.
For highly turbid samples, sedimentation, centrifugation, or coarse prefiltration is recommended before using GF/F. Avoid touching the filter directly to minimize contamination.
GF/F is intended for particle retention and analytical sample preparation. It is not a sterilizing-grade membrane.
GF/F low-chloride high-purity glass microfiber filters are designed for heavy metal testing, trace element analysis, environmental sample filtration, and ICP/ICP-MS sample preparation. Their low extractables, 0.7 μm retention rating, and wide range of formats make them suitable for both laboratory analysis and industrial processing.
