Models: JK1820 / JK1821 / JK1822 / JK1823 / JK1825
DiffuLayer® JK Series glass microfiber filter discs are available in five filtration grades and multiple standard diameters. They are suitable for laboratory filtration, electrochemical testing, particle collection, sample preparation, and prefiltration.
Each model provides a different balance of particle retention, filtration speed, and loading capacity.
| Parameter | JK1820 | JK1821 | JK1822 | JK1823 | JK1825 |
|---|---|---|---|---|---|
| Grade | GF/A | GF/B | GF/C | GF/D | GF/F |
| Pore Size | 1.6 μm | 1.0 μm | 1.2 μm | 2.7 μm | 0.7 μm |
| Product Positioning | General-purpose and balanced | Medium-high precision | Conventional fine filtration | High-loading prefilter | High-precision filtration |
| Filtration Speed | Relatively fast | Medium | Medium | Fast | Relatively slow |
| Loading Capacity | Relatively high | Medium | Medium | High | Medium |
| Recommended Applications | Electrochemical testing and general filtration | Particle retention | Sample preparation | High-turbidity samples and prefiltration | Fine-particle filtration |
Quick Selection: JK1820 for general laboratory use; JK1823 for particle-rich or high-turbidity samples; JK1825 for fine filtration; JK1821 for approximately 1.0 μm particle retention; JK1822 for approximately 1.2 μm particle retention.
| Feature | Description |
|---|---|
| Five Grades | Covers nominal retention ratings from 0.7 to 2.7 μm |
| Ready-to-Use Discs | No additional cutting required |
| Multiple Diameters | Available in Φ25, Φ47, Φ90, Φ110, and Φ150 mm |
| Depth Filtration | Particles are retained within the microfiber structure |
| Good Liquid Absorption | Suitable for filtration and electrochemical wetting |
| Unified Model System | Easy identification, purchasing, and inventory control |
Laboratory filtration: Clarification of solutions, suspended-particle removal, particle collection, and sample preparation.
Electrochemical research: Electrolyte wetting tests, electrode separation, separator screening, and comparative performance studies.
Environmental testing: Collection and filtration of wastewater particulates, airborne particles, and low-concentration suspended matter.
Prefiltration: JK1823 is recommended for highly turbid or particle-rich samples to reduce clogging of downstream fine filters.
Select a disc diameter suitable for the holder, fixture, or electrode.
Handle the disc with clean tweezers.
Place it flat in the device without folding or damaging the edge.
Pre-wet with the test liquid or electrolyte when required.
Increase vacuum or pressure gradually.
After use, process, store, analyze, or dispose of the disc according to the test procedure.
| Requirement | Recommended Model |
|---|---|
| General filtration and electrochemical tests | JK1820 |
| Approximately 1.0 μm particle retention | JK1821 |
| Approximately 1.2 μm particle retention | JK1822 |
| High-turbidity samples and prefiltration | JK1823 |
| Fine-particle filtration and environmental analysis | JK1825 |
Handle with clean tweezers and avoid direct contact with the active filtration area. Select a disc slightly larger than the electrode when used as an experimental separator. Avoid folding, stretching, or repeated use. For strong acids, alkalis, high temperatures, or special solvents, perform a compatibility test before use. Store sealed in a clean, dry, and dust-free environment.
What is the main difference between the five models?
They differ mainly in nominal particle retention, filtration speed, and loading capacity.
Is nominal particle retention the same as absolute pore size?
No. Glass microfiber filters use a depth-filtration structure, so nominal retention is not equivalent to a uniform absolute pore size.
Which model is suitable for general laboratory use?
JK1820 provides a balanced combination of filtration precision, speed, and loading capacity.
Which model is recommended for particle-rich samples?
JK1823 is recommended for high-turbidity samples and prefiltration.
Is JK1825 always the best choice?
No. It provides finer filtration but may clog faster when processing samples with high particle concentrations.
Can the discs be reused?
Single use is recommended to avoid contamination, structural damage, and changes in filtration performance.
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our eBay / Amazon / Alibaba stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay

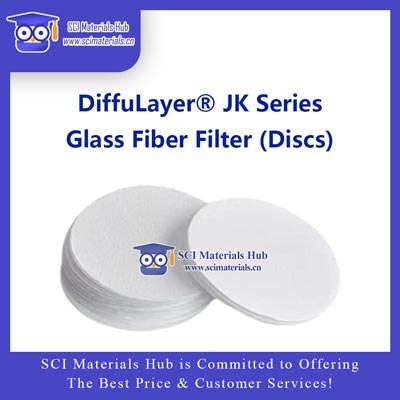

DiffuLayer® JK Series Glass Fiber Filter (Discs)
| Product Model | Product Parameters | Specification | Price (USD) |
|---|---|---|---|
| JK1820 | GF/A Pore Size: 1.6 μm Balanced general-purpose grade | Φ25 mm_100 pcs | $52 |
| Φ47 mm_100 pcs | $88 | ||
| Φ90 mm_25 pcs | $162 | ||
| Φ110 mm_100 pcs | $185 | ||
| Φ150 mm_100 pcs | $343 | ||
| JK1821 | GF/B Pore Size: 1.0 μm Medium-high precision grade | Φ25 mm_100 pcs | $76 |
| Φ47 mm_100 pcs | $124 | ||
| Φ90 mm_25 pcs | $94 | ||
| Φ110 mm_25 pcs | $117 | ||
| Φ150 mm_25 pcs | $242 | ||
| JK1822 | GF/C Pore Size: 1.2 μm Standard fine-filtration grade | Φ25 mm_100 pcs | $59 |
| Φ47 mm_100 pcs | $90 | ||
| Φ90 mm_25 pcs | $180 | ||
| Φ110 mm_25 pcs | $236 | ||
| Φ150 mm_100 pcs | $410 | ||
| JK1823 | GF/D Pore Size: 2.7 μm High-loading prefilter grade | Φ25 mm_100 pcs | $73 |
| Φ47 mm_100 pcs | $126 | ||
| Φ90 mm_25 pcs | $86 | ||
| Φ110 mm_25 pcs | $132 | ||
| JK1825 | GF/F Pore Size: 0.7 μm High-precision filtration grade | Φ25 mm_100 pcs | $122 |
| Φ47 mm_100 pcs | $234 | ||
| Φ90 mm_25 pcs | $144 | ||
| Φ110 mm_25 pcs | $216 | ||
| Φ150 mm_25 pcs | $388 |
