DiffuLayer® JK Series Glass Microfiber Filter Sheets and Rolls are available in two grades:
JK1820 (GF/A): Balanced performance for general filtration, electrochemical testing, and custom cutting.
JK1823 (GF/D): Higher loading capacity and faster flow for particle-rich samples, prefiltration, and large-area filtration.
Sheets are suitable for direct use, flat filtration, and small-scale cutting. Rolls are suitable for batch punching, continuous cutting, custom shapes, and different laboratory devices.
| Parameter | JK1820 | JK1823 |
|---|---|---|
| Grade | GF/A | GF/D |
| Pore Size | 1.6 μm | 2.7 μm |
| Product Positioning | General-purpose and balanced | High-loading prefilter |
| Filtration Speed | Relatively fast | Fast |
| Loading Capacity | Relatively high | High |
| Recommended Samples | General laboratory solutions | Particle-rich and highly turbid samples |
| Recommended Applications | General filtration, electrochemical testing, and custom cutting | Prefiltration and large-area filtration |
| Product Forms | Sheets and rolls | Sheets and rolls |
| Feature | Description |
|---|---|
| Two Grades | JK1820 for general use; JK1823 for high-loading prefiltration |
| Sheets and Rolls | Suitable for direct use or secondary processing |
| Multiple Widths | Roll widths from 55 to 400 mm |
| Multiple Lengths | Available in 1, 3, and 5 m |
| Easy to Cut | Can be processed into discs, squares, strips, or custom shapes |
| Depth Filtration | Suitable for particle retention and sample pretreatment |
| Good Liquid Absorption | Suitable for liquid filtration and electrochemical testing |
Batch disc punching: Rolls can be processed into discs of different diameters using a punch or die-cutting machine.
Electrochemical testing: The material can be cut according to electrode and fixture dimensions for wetting tests, filter-media screening, and electrode separation.
Large-area filtration: Rolls with widths of 300 or 400 mm are suitable for flat filtration and large laboratory devices.
Prefiltration: JK1823 is recommended for highly turbid or particle-rich samples before fine filtration.
Custom processing: Sheets and rolls can be cut into round, square, strip-shaped, or other customized forms.
Select the appropriate sheet size.
Handle with clean tweezers.
Use directly or cut to the required dimensions.
Check that the cut edges are smooth and free from excessive fiber shedding.
Pre-wet before filtration or electrochemical testing when required.
Unroll the material on a clean, flat surface.
Measure and mark the required size.
Cut using a sharp blade, punch, or die-cutting machine.
Avoid excessive stretching, folding, or repeated bending.
Reseal unused material to protect it from moisture and dust.
Use sharp cutting tools to reduce edge fiber shedding.
Keep the cutting area clean and free from dust or oil.
Do not repeatedly fold, rub, or stretch the material.
For battery experiments, cut the material slightly larger than the electrode.
Increase vacuum gradually during vacuum filtration.
Select JK1823 for samples with high particle content.
Store unused material sealed in a clean, dry, and dust-free environment.
Perform a compatibility test before use with strong acids, alkalis, special solvents, or high temperatures.
Choose sheets for direct use, small-scale cutting, or flat filtration. Choose rolls for batch punching, continuous cutting, and custom processing.
JK1820 has a nominal particle retention of 1.6 μm and provides balanced performance. JK1823 has a nominal particle retention of 2.7 μm, faster flow, and higher loading capacity.
Yes. A punch or die-cutting machine is recommended for consistent size and smooth edges.
The roll width should be larger than the required cutting size, with sufficient allowance for processing.
It is usually caused by a blunt blade, repeated pulling, or uneven cutting pressure. Use a sharp tool and complete the cut in one pass.
Yes. Both sheets and rolls can be processed into discs, squares, strips, and other custom shapes.
JK1823 is recommended for particle-rich and highly turbid samples.
Reseal unused rolls and store them in a dry, clean, dark environment protected from moisture, compression, and contamination.
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our eBay / Amazon / Alibaba stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay

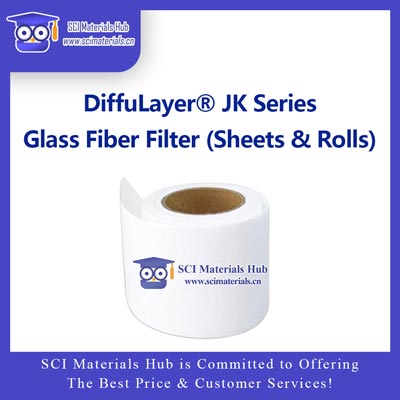

DiffuLayer® JK Series Glass Fiber Filter (Sheets & Rolls)
| Product Model | Product Parameters | Specification | Price (USD) |
|---|---|---|---|
| JK1820 | GF/A Pore Size: 1.6 μm Balanced general-purpose grade | Sheet: 90 mm × 90 mm_50 pcs/box | $31 |
| Sheet: 100 mm × 100 mm_50 pcs/box | $35 | ||
| Sheet: 100 mm × 100 mm_100 pcs/box | $70 | ||
| Sheet: 120 mm × 120 mm_50 pcs/box | $51 | ||
| Roll: 55 mm × 1 m_1 roll | $10 | ||
| Roll: 55 mm × 3 m_1 roll | $28 | ||
| Roll: 55 mm × 5 m_1 roll | $39 | ||
| Roll: 60 mm × 5 m_1 roll | $39 | ||
| Roll: 100 mm × 1 m_1 roll | $15 | ||
| Roll: 100 mm × 3 m_1 roll | $44 | ||
| Roll: 100 mm × 5 m_1 roll | $75 | ||
| Roll: 120 mm × 1 m_1 roll | $15 | ||
| Roll: 120 mm × 3 m_1 roll | $44 | ||
| Roll: 120 mm × 5 m_1 roll | $75 | ||
| Roll: 152 mm × 5 m_1 roll | $56 | ||
| Roll: 300 mm × 3 m_1 roll | $88 | ||
| Roll: 400 mm × 3 m_1 roll | $115 | ||
| JK1823 | GF/D Pore Size: 2.7 μm High-loading prefilter grade | Sheet: 120 mm × 120 mm_10 pcs/box | $39 |
| Sheet: 120 mm × 120 mm_20 pcs/box | $67 | ||
| Sheet: 300 mm × 300 mm_1 pc/pack | $23 | ||
| Roll: 120 mm × 1 m_1 roll | $39 | ||
| Roll: 120 mm × 3 m_1 roll | $91 | ||
| Roll: 120 mm × 5 m_1 roll | $155 | ||
| Roll: 300 mm × 1 m_1 roll | $79 | ||
| Roll: 300 mm × 3 m_1 roll | $183 | ||
| Roll: 300 mm × 5 m_1 roll | $315 |
