Mass-Transport Capability
Evaluated through Gurley values or equivalent gas-permeability parameters. This dimension affects reactant delivery, water-vapor transport and liquid-water discharge.

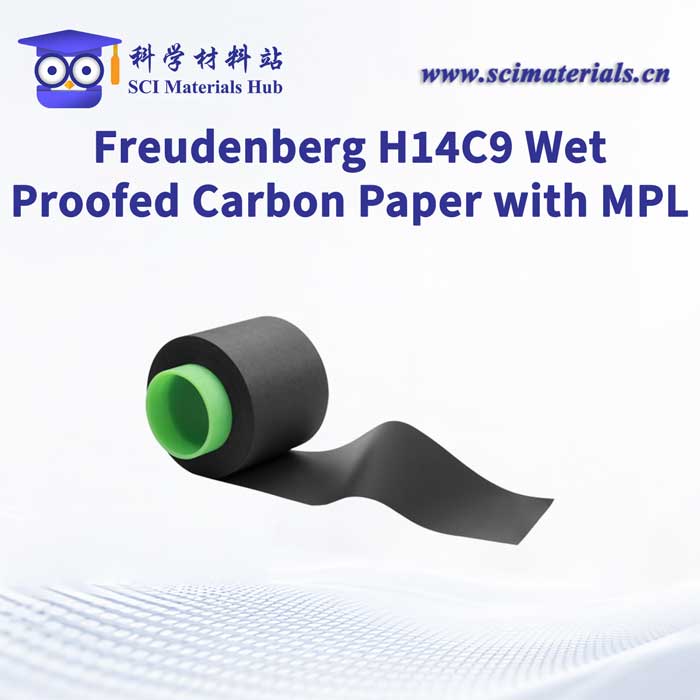

The Freudenberg H14 series is a family of high-performance gas diffusion layers developed for low-temperature proton exchange membrane fuel cells. The series combines a thin carbon-fiber substrate, a single-sided microporous layer, PTFE hydrophobic treatment and tightly controlled electrical resistance.
Freudenberg H14 carbon papers are engineered as multifunctional electrode components rather than simple conductive carbon substrates. Their performance is determined by the interaction between gas transport, liquid-water removal, electrical conductivity and mechanical compression.
SCI Materials Hub supplies H14-series GDL materials and organizes their principal properties into a standardized engineering framework. This allows researchers, MEA developers and fuel-cell stack engineers to compare grades according to the parameters most relevant to practical operation.
SCI Materials Hub evaluates the H14 series through three connected engineering dimensions.
Evaluated through Gurley values or equivalent gas-permeability parameters. This dimension affects reactant delivery, water-vapor transport and liquid-water discharge.
Through-plane resistance influences electrode ohmic loss, especially under high current density and high compression.
Compressed thickness and tensile strength determine sealing compatibility, contact uniformity and resistance to edge damage during MEA assembly.
Units have been organized as mm, g/m2, mΩ·cm2, N/cm and Gurley seconds or equivalent gas-permeability values.
| Grade | Thickness @ 1 MPa | Basis Weight g/m2 | Through-Plane Resistance mΩ·cm2 | Gas Permeability / Gurley | Tensile Strength N/cm | PTFE Treatment | MPL |
|---|---|---|---|---|---|---|---|
| H14C7 | 0.017 mm | 100 | 6.0 | — | 14 | Yes | Single-sided |
| H14C9 | 0.180 mm | 100 | 7.0 | — | 14 | Yes | Single-sided |
| H14C10 | 0.170 mm | 97 | 5.0 | 1.4 μm2 equivalent | >14 | Yes | Single-sided |
| H14C14 | 0.145 mm | — | 5.5 | 0.5 s | >14 | Yes | Single-sided |
| H14C15 | 0.145 mm | — | 5.5 | 15 s | >14 | Yes | Single-sided |
| H14CX483 | 0.180 mm | — | 6.0 | 1.0 μm2 equivalent | >14 | Yes | Single-sided |
| H14CX653 | 0.185 mm | 94 | 6.0 | 1.0 μm2 | >14 | Yes | Single-sided |
The grades can be grouped into three practical categories according to their primary design objective.
Designed to reduce through-plane resistance and minimize the electrical contribution of the GDL to total cell resistance.
These grades provide a balanced combination of substrate thickness, gas diffusion and MPL-assisted water control.
Intended for systems where rapid reactant delivery and controlled liquid-water removal are critical to maintaining high-load performance.
The MPL improves gas distribution at the catalyst-layer interface, supports more uniform current generation and reduces the risk of localized liquid-water accumulation.
PTFE modifies the wetting behavior of the carbon-fiber network, helping control water retention and create more stable discharge pathways from the electrode.
Lower thickness can reduce electrical path length, but also decreases mechanical tolerance. Final performance therefore depends on matching the GDL to the gasket and compression design.
Final selection should also consider operating pressure, humidification, gas stoichiometry, flow-field geometry, catalyst loading and cell compression.
During standard PEMFC MEA assembly, the smooth MPL-coated surface should face the catalyst layer, while the fibrous carbon-paper surface should face the flow field or bipolar plate.
H14C7 is positioned as a more extremely thin, low-resistance option. H14C10 provides a more balanced combination of low resistance and gas-transport stability.
GDL selection is a multiparameter decision. A very thin, low-resistance structure may provide less mechanical tolerance or less water-storage capacity. Under highly humidified conditions, the overall pore structure and liquid-water transport can be more important than resistance alone.
An MPL is strongly recommended for most PEMFC electrodes because it improves the interface between the macroporous substrate and the catalyst layer. It may not be required for basic gas permeability testing. In CO? electrolysis, an MPL is often beneficial, but its hydrophobicity and wetting behavior must be optimized for the specific electrolyte and operating mode.
Common causes include:
H14C14 and H14C15 may be considered where a stable gas–liquid interface and MPL-supported reaction uniformity are required. However, electrolyte breakthrough, salt precipitation, hydrophobicity and pressure balance should be validated for the actual electrolyzer configuration.
Prolonged direct ultrasonication is not recommended. It can damage the carbon-fiber network, detach the MPL or alter the treated surface. Catalyst ink should normally be dispersed separately before coating.
Research-size carbon paper GDL supplied by SCI Materials Hub.
Choose your preferred international marketplace to view available products and purchasing options.
Reference retail prices for standard research-size, single-sheet cutting.
| Grade | 5 × 5 cm | 10 × 10 cm | 20 × 20 cm |
|---|---|---|---|
| H14C7 | US$99.80 | — | — |
| H14C9 | US$99.80 | — | — |
| H14C10 | US$99.80 | — | — |
| H14C14 | US$20.00 | US$70.00 | US$240.00 |
| H14C15 | US$20.00 | US$70.00 | US$240.00 |
| H14Cx483 | US$39.80 | US$119.80 | US$359.80 |
| H14Cx653 | US$39.80 | US$119.80 | US$359.80 |
Contact our team for full sheets, bulk orders, custom cutting, institutional purchasing and MEA material matching.
