Reactant Transport
Distributes hydrogen, air and other reactant gases between the flow field and catalyst layer.
A versatile gas diffusion layer platform designed for PEM fuel cells, selected HT-PEMFC systems, automotive fuel cells, stationary power generation, CHP systems and advanced MEA development.
In a proton-exchange-membrane fuel cell, the gas diffusion layer is a core component of the membrane electrode assembly. It connects the catalyst layer with the flow field while simultaneously controlling gas transport, electron conduction, water removal and mechanical support.
Freudenberg® H23-series GDLs use a flexible carbon-fiber paper substrate combined with a single-sided microporous layer. Different grades are configured for distinct humidity conditions, gas-flow requirements, electrical-resistance targets and fuel-cell system architectures.
The series can support applications ranging from laboratory MEA development and single-cell testing to automotive PEMFC stacks, high-humidity stationary systems and combined heat and power platforms.
Distributes hydrogen, air and other reactant gases between the flow field and catalyst layer.
Conducts electrons from the catalyst layer toward the bipolar plate while limiting contact resistance.
Balances liquid-water discharge and membrane hydration under changing operating conditions.
Provides mechanical support for the catalyst layer and helps preserve a uniform reaction interface.
Supports pressure distribution, dimensional consistency and stable long-term stack contact.
Different grades use distinct substrate and MPL structures to address high-humidity, low-humidity, air-cooled and dynamic automotive operating conditions.
The single-sided MPL improves catalyst-layer contact, supports more uniform gas distribution and assists water management at the electrode interface.
Selected H23 grades provide through-plane resistance values as low as 6.5 mΩ·cm², helping reduce the electrical contribution of the GDL to total cell loss.
The flexible substrate supports easier assembly, improved compression accommodation and more stable contact within the membrane electrode assembly.
Values are presented in the form available for each grade. Gurley time and intrinsic permeability are based on different test methods.
| Grade | Thickness | MPL | PTFE Treatment | Gas-Transport Value | Through-Plane Resistance | Engineering Positioning |
|---|---|---|---|---|---|---|
| H23C2 | 220 μm | Single-sided | No | Gurley 50 s | 9 mΩ·cm² | High-humidity systems |
| H23C3 | 235 μm | Single-sided | Yes | Gurley 15 s | 9 mΩ·cm² | Low-humidity and air-cooled systems |
| H23C5 | 220 μm | Single-sided | No | Gurley 25 s | 6.5 mΩ·cm² | Low-resistance automotive applications |
| H23C6 | 250 μm | Single-sided | Yes | Gurley 70 s | 8 mΩ·cm² | High-humidity stationary systems |
| H23C8 | 205 μm | Single-sided | Yes | Gurley 80 s | 8 mΩ·cm² | Automotive and dynamic-load platforms |

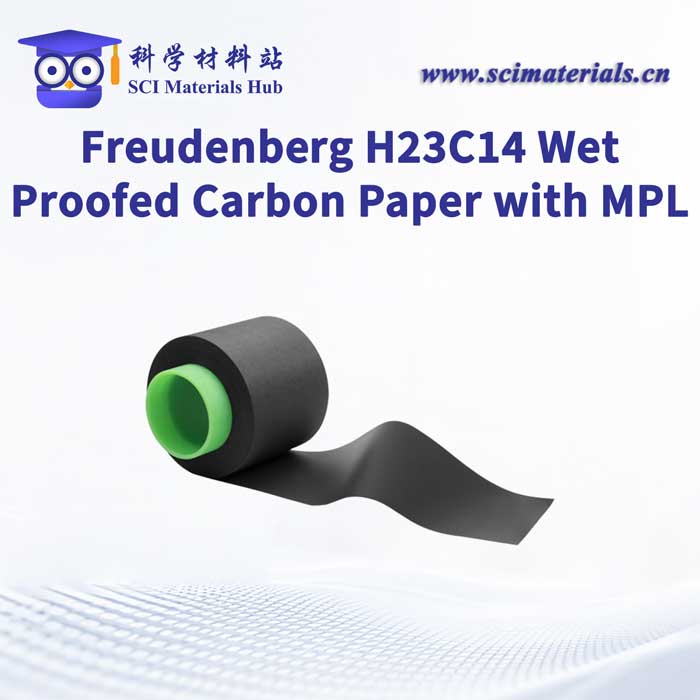

| H23C14 | 215 μm | Single-sided | No | Gurley 0.5 s | 6.5 mΩ·cm² | Specialized flow-field development |
| H23C15 | 210 μm | Single-sided | No | Gurley 15 s | 6.5 mΩ·cm² | General MEA research platform |
| H23Cx653 | 250 μm | Single-sided | Yes | 1.4 μm² | 7 mΩ·cm² | High-performance automotive PEMFC |
Technical note: A lower Gurley time generally indicates easier air passage when measurements are conducted using the same method and conditions.
Permeability expressed in μm² and Gurley time expressed in seconds should not be directly converted or ranked without reviewing the relevant test standard.
Final selection should be validated using the actual flow field, humidity, compression, gas stoichiometry and catalyst-layer design.
Ratings below represent the SCI Materials Hub engineering classification for preliminary grade selection.
| Grade | High-Humidity PEMFC | Low-Humidity PEMFC | HT-PEMFC | CHP System | Automotive PEMFC | Air-Cooled Fuel Cell | Primary Positioning |
|---|---|---|---|---|---|---|---|
| H23C2 | ★★★★★ | ★★☆☆☆ | ★★★★★ | ★★★★★ | ★★☆☆☆ | ★☆☆☆☆ | |
| H23C3 | ★★☆☆☆ | ★★★★★ | ★★★★☆ | ★★★☆☆ | ★★★☆☆ | ★★★★★ | |
| H23C5 | ★★★☆☆ | ★★★★☆ | ★★☆☆☆ | ★★☆☆☆ | ★★★★★ | ★★★☆☆ | |
| H23C6 | ★★★★★ | ★★☆☆☆ | ★★☆☆☆ | ★★★★★ | ★★★★☆ | ★☆☆☆☆ | |
| H23C8 | ★★☆☆☆ | ★★★★★ | ★★☆☆☆ | ★★☆☆☆ | ★★★★★ | ★★★☆☆ | |
| H23C14 | ★★★★☆ | ★★☆☆☆ | ★★☆☆☆ | ★★★☆☆ | ★★★☆☆ | ★☆☆☆☆ | |
| H23C15 | ★★★☆☆ | ★★★☆☆ | ★★☆☆☆ | ★★★☆☆ | ★★★☆☆ | ★★☆☆☆ | |
| H23Cx653 | ★★★☆☆ | ★★★★☆ | ★★☆☆☆ | ★★☆☆☆ | ★★★★★ | ★★☆☆☆ |
Recommended where membrane hydration, continuous operation and stable water management are major design priorities.
Positioned for systems requiring more stable membrane hydration and electrode performance under relatively dry operating conditions.
Recommended for automotive stacks requiring low resistance, rapid dynamic response and controlled transport under changing power demand.
Balanced options for laboratory testing, reference-electrode preparation and comparative MEA development.
Ratings summarize application positioning rather than replacing cell-level validation.
SCI Materials Hub supplies Freudenberg H23-series GDL materials for laboratory research, pilot-scale development and industrial evaluation.
Freudenberg-series carbon-paper GDL materials for research and engineering evaluation.
Small-format sheets suitable for single-cell testing, catalyst coating and MEA development.
Larger sheets and bulk quantities for pilot-scale or repeated electrode preparation.
Precision cutting for rectangular, circular and custom-shaped fuel-cell electrodes.
Material matching, electrode processing and membrane-electrode assembly support.
Supporting membranes, ionomers, catalysts, GDLs and other electrochemical test materials.
Preliminary recommendations based on humidity, current density, flow-field design and compression.
Supply support for universities, research institutes and industrial fuel-cell development teams.
The microporous layer is positioned between the carbon-paper substrate and the catalyst layer. It helps distribute gases, improve catalyst-layer contact, manage liquid water and reduce local interface resistance.
The H23 grades listed in this guide use a single-sided MPL structure.
PTFE modifies surface wetting and can help reduce liquid-water accumulation, preserve gas pathways and limit cathode flooding. Grades listed with PTFE treatment include H23C3, H23C6, H23C8 and H23Cx653.
H23Cx653 is positioned as an advanced automotive option. H23C5 and H23C8 may also be evaluated for automotive PEMFC systems requiring low resistance and dynamic operation.
H23C2 and H23C6 are the primary options in this guide for high-humidity stationary power and CHP systems.
It may be evaluated in selected laboratory studies, but the H23 series is primarily designed for fuel-cell applications. Commercial PEM electrolyzers commonly use porous titanium transport layers where corrosion resistance is required.
H23C15 and H23C5 provide useful starting points for general MEA research, comparative single-cell testing and catalyst-layer development.
Yes. In a standard fuel-cell assembly, the smoother MPL-coated side should normally face the catalyst layer, while the fibrous substrate side faces the flow field or bipolar plate.
No. They are based on different measurement principles. Gurley time measures the time required for a defined amount of air to pass through the material, while permeability in μm² represents an intrinsic flow-related property.
No. Electrical resistance is only one selection parameter. Water management, gas transport, thickness, compression, mechanical stability and the operating humidity must also be considered.
Select the initial grade according to humidity, current density, power demand and system type. The material should then be validated under the actual flow field, gas pressure, catalyst loading, compression and operating temperature.
Single-sided microporous-layer carbon-paper gas diffusion media supplied by SCI Materials Hub in standard research sizes.
Select your preferred marketplace to view available products, shipping options and order information.
Reference retail prices for individually supplied research-size sheets.
| Product Grade | Thickness | 5 × 5 cm | 10 × 10 cm | 20 × 20 cm | 40 × 45 cm |
|---|---|---|---|---|---|
| Freudenberg H23C2 | 220 μm | US$16.00 | US$50.00 | US$160.00 | US$570.00 |
| Freudenberg H23C3 | 235 μm | US$16.00 | US$50.00 | US$160.00 | US$570.00 |
| Freudenberg H23C5 | 220 μm | US$16.00 | US$50.00 | US$160.00 | US$570.00 |
| Freudenberg H23C6 | 250 μm | US$16.00 | US$50.00 | US$160.00 | US$570.00 |
| Freudenberg H23C8 | 205 μm | US$16.00 | US$50.00 | US$160.00 | US$570.00 |
| Freudenberg H23C14 | 215 μm | US$16.00 | US$50.00 | US$160.00 | US$570.00 |
| Freudenberg H23C15 | 210 μm | US$16.00 | US$50.00 | US$160.00 | US$570.00 |
| Freudenberg H23Cx653 | 250 μm | US$16.00 | US$50.00 | US$160.00 | US$570.00 |
Contact our team for full-sheet supply, bulk purchasing, custom cutting, institutional orders and long-term cooperation.
