Flexible Carbon-Paper Structure
The flexible substrate supports convenient cutting, positioning and installation during electrode and MEA assembly.

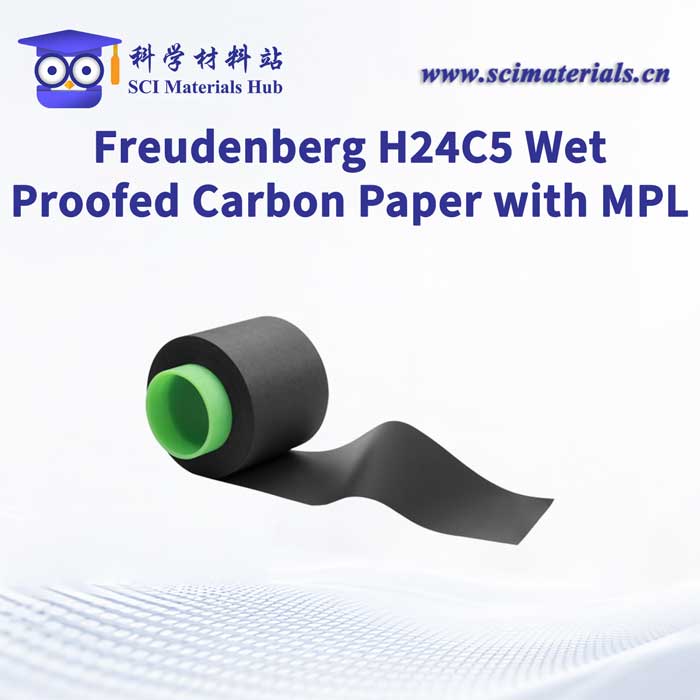

Freudenberg H24C5 is a flexible and easy-to-handle carbon-paper gas diffusion layer designed for low-temperature proton-exchange-membrane fuel-cell applications. The material includes a microporous layer and has a nominal thickness of 270 μm.
The Freudenberg® H24C5 is a flexible carbon-paper gas diffusion layer developed for low-temperature polymer electrolyte membrane fuel cells.
Its integrated microporous layer provides a more uniform interface between the carbon-paper substrate and the catalyst layer. The flexible structure also supports convenient handling and assembly during laboratory electrode preparation and fuel-cell stack integration.
H24C5 is recommended for low-humidification stationary systems, backup-power units, air-cooled fuel cells and independent off-grid LT-PEMFC power systems.
A practical GDL solution for low-temperature fuel-cell systems requiring flexible handling and an integrated MPL interface.
The flexible substrate supports convenient cutting, positioning and installation during electrode and MEA assembly.
The MPL provides a more uniform surface between the gas diffusion substrate and the catalyst-layer interface.
The 270 μm structure provides a defined GDL thickness for low-temperature PEMFC cell and stack integration.
Recommended for several low-temperature PEM fuel-cell operating modes, including stationary, backup, air-cooled and off-grid power.
Freudenberg H24C5 is primarily recommended for the following low-temperature polymer electrolyte membrane fuel-cell systems.
Recommended for stationary low-temperature PEMFC systems operated under relatively low humidification conditions and integrated with combined heat and power equipment.
Suitable for backup fuel-cell systems requiring a practical, flexible carbon-paper GDL for standby and intermittent operation.
Recommended for air-cooled low-temperature PEMFC systems where the gas diffusion layer must integrate with compact cell and stack structures.
Applicable to independent and remote fuel-cell power systems used outside conventional electrical-grid infrastructure.
Freudenberg H24C5 was formerly marketed under the designation shown below. This information can help users compare older literature, historical quotations and previous product records.
Formerly known as: H2415 C5Freudenberg H24C5 combines a flexible carbon-paper substrate with an integrated microporous layer and is recommended for low- humidification stationary CHP, backup, air-cooled and off-grid LT-PEMFC systems.
Flexible carbon-paper gas diffusion layer with an integrated microporous layer, supplied by SCI Materials Hub.
Select your preferred marketplace to view product availability, shipping options and order information.
Flexible carbon-paper GDL with an integrated microporous layer.
| Product | Size | SKU | Price | Lead Time |
|---|---|---|---|---|
| Freudenberg H24C5 | 15 × 11 cm | 20003050-1511 | US$86.00 | Please inquire |
| Freudenberg H24C5 | 30 × 22 cm | 20003050-3022 | US$258.00 | Please inquire |
| Freudenberg H24C5 | 30 × 44 cm | 20003050-3044 | US$458.00 | Please inquire |
Contact our team for bulk purchasing, institutional quotations, custom dimensions and long-term supply projects.
