Flexible Carbon-Paper Substrate
The flexible structure supports convenient handling, cutting, positioning and assembly during electrode and MEA preparation.

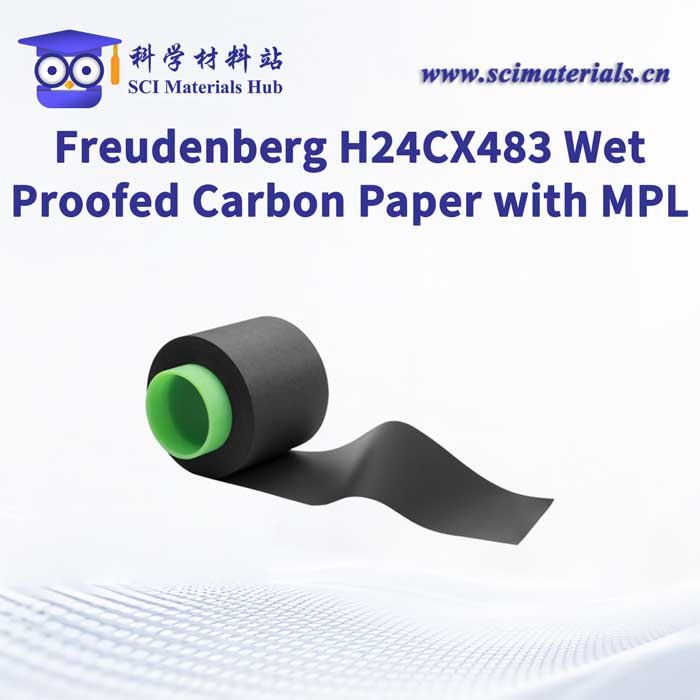

Freudenberg H24Cx483 is a flexible and easy-to-handle carbon-paper gas diffusion layer designed for low-temperature proton-exchange- membrane fuel-cell automotive applications. It combines a microporous layer with a hydrophobic treatment and has a nominal thickness of 250 μm.
Freudenberg® H24Cx483 is a flexible carbon-paper gas diffusion layer intended for low-temperature PEM fuel-cell automotive applications.
The material incorporates a microporous layer that creates a more uniform interface between the carbon-paper substrate and the catalyst layer. Its hydrophobic treatment is designed to modify the wetting behavior of the GDL and support water management within the fuel-cell electrode structure.
With a nominal thickness of 250 μm, H24Cx483 provides a defined carbon-paper structure for integration into automotive low-temperature PEMFC electrodes and membrane electrode assemblies.
A practical gas diffusion layer combining flexible handling, a microporous interface and hydrophobic surface properties.
The flexible structure supports convenient handling, cutting, positioning and assembly during electrode and MEA preparation.
The MPL provides a more uniform surface between the carbon-paper substrate and the catalyst-layer interface.
The hydrophobic treatment modifies the wetting behavior of the carbon paper and supports liquid-water management within the GDL.
The defined 250 μm structure supports integration into low-temperature PEMFC automotive electrode and stack designs.
The carbon-paper substrate forms the primary porous and electrically conductive support structure of the gas diffusion layer.
The microporous layer creates a finer and more uniform interface for integration with the catalyst layer of the membrane electrode assembly.
Hydrophobic treatment helps control the interaction between the porous structure and liquid water during fuel-cell operation.
Freudenberg H24Cx483 is recommended for automotive applications based on low-temperature proton-exchange-membrane fuel-cell technology. Its flexible carbon-paper construction, microporous layer, hydrophobic treatment and 250 μm thickness provide a defined GDL structure for automotive electrode and MEA integration.
Freudenberg H24Cx483 combines a carbon-paper gas diffusion substrate with a microporous layer and hydrophobic treatment, providing a practical material platform for automotive LT-PEMFC electrode and MEA development.
Flexible carbon-paper gas diffusion layer with a microporous layer and hydrophobic treatment, supplied by SCI Materials Hub.
Select your preferred marketplace to view product availability, shipping options and order information.
Flexible carbon-paper GDL with an MPL and hydrophobic treatment.
| Product | Size | SKU | Price | Availability |
|---|---|---|---|---|
| Freudenberg H24Cx483 | 10 × 10 cm | 20003044-1010 | US$59.80 | In Stock |
| Freudenberg H24Cx483 | 20 × 20 cm | 20003044-2020 | US$180.00 | In Stock |
| Freudenberg H24Cx483 | 20 × 25 cm | 20003044-2025 | US$210.00 | In Stock |
| Freudenberg H24Cx483 | 30 × 45 cm | 20003044-3045 | US$458.00 | In Stock |
Contact our team for bulk purchasing, institutional quotations, custom dimensions and long-term supply projects.
