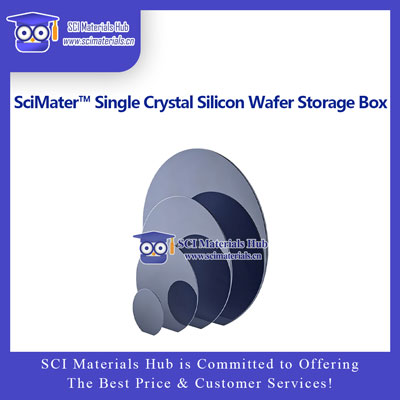

SciMater™ Single Crystal Silicon Wafer Storage Box-SCI Materials Hub

Product Overview

Wafer storage boxes and handling supplies protect full wafers, diced silicon pieces, chips, and precision material samples from impact, scratches, particle contamination, and sample mixing during handling, transport, and storage. The range includes large-wafer boxes, standard and antistatic self-adhesive boxes, removable trays, and dust-removal sheets selected according to sample size, electrostatic sensitivity, visibility requirements, and transfer method.

The designations 3020, 4020, 5510, 7515, 8512, 12012, 15020, and Tray 5050 are retained as original product codes and should not be interpreted directly as internal usable dimensions. Before ordering, confirm the external form, usable internal area, compatible sample thickness, antistatic rating, tray structure, and package quantity.

Broad Size Coverage

Covers miniature wafers, diced pieces, 4-inch wafers, and 12-inch wafer storage requirements.

Multiple Appearance Options

Available in fully transparent, fully black, black-base clear-lid, and black-base light-blue-lid configurations.

Antistatic Options

Suitable for storing and transferring electrostatic-sensitive chips, wafers, and microelectronic devices.

Compatible Cleanroom Supplies

Can be combined with removable adhesive trays and dust-removal sheets for sample management and particle control.

Product Types

WAFER

Wafer Boxes and Single-Wafer Boxes

For individual storage, transfer, and transport protection of 4-inch and 12-inch wafers.

SELF

Standard Self-Adhesive Sample Boxes

Transparent, black, and black-base clear-lid structures support observation, light shielding, and organized classification.

ESD

Antistatic Self-Adhesive Boxes

For storage of electrostatic-sensitive wafers, chips, electronic components, and miniature devices.

TRAY

Removable Self-Adhesive Tray

The Tray 5050 base can be removed for convenient loading, transfer, observation, and cleaning.

CLEAN

Dust-Removal Sheets

For lifting loose particles and dust from boxes, work surfaces, tools, and nonfunctional areas.

OEM

Configuration Support

Select according to sample length, width, thickness, electrostatic sensitivity, light-shielding needs, and transport method.

Complete Product Specifications

All wafer boxes, self-adhesive boxes, antistatic boxes, removable trays, and dust-removal sheets are presented in one table. Prices are not included.

Product Category	Model / Specification	Box Appearance	Lid Structure	Tray Structure	Antistatic Property	Suitable Samples	Key Features	Packaging / Notes
Wafer Boxes	4-Inch Low-Pressure Release Self-Adhesive Box	Confirm from Actual Product	Low-Pressure Release	Self-Adhesive Support Structure	Not Specified	4-Inch Wafer	Suitable for individual wafer protection and low-impact handling	Confirm usable internal dimensions and release method
Single-Wafer Boxes	12-Inch Single-Wafer Box	Confirm from Actual Product	Lidded Box	Single-Wafer Support	Not Specified	Single 12-Inch Wafer	Suitable for independent storage and transport of large wafers	Confirm locking and cushioning structure
Wafer Boxes	12-Inch Wafer Box	Confirm from Actual Product	Lidded Box	Confirm from Actual Product	Not Specified	12-Inch Wafer	For storage and transfer of large wafers	Confirm whether the internal structure is single-wafer or another format
Standard Self-Adhesive Sample Boxes	3020	Fully Transparent	Clear Lid	Transparent Self-Adhesive Tray	Not Specified	Miniature wafers, chips, and precision samples	Allows easy observation of sample condition and labels	Confirm usable dimensions from the actual product
Standard Self-Adhesive Sample Boxes	3020	Black Base with Clear Lid	Clear Lid	Black Self-Adhesive Tray	Not Specified	Miniature wafers, chips, and light- or dark-colored samples	The black tray improves contrast for light-colored sample outlines	Confirm usable dimensions from the actual product
Standard Self-Adhesive Sample Boxes	4020	Fully Transparent	Clear Lid	Transparent Self-Adhesive Tray	Not Specified	Wafers, chips, and precision components	Supports observation and organized classification	Confirm usable dimensions from the actual product
Standard Self-Adhesive Sample Boxes	4020	Black Base with Clear Lid	Clear Lid	Black Self-Adhesive Tray	Not Specified	Wafers, chips, and precision components	Combines visibility with improved base contrast	Confirm usable dimensions from the actual product
Standard Self-Adhesive Sample Boxes	5510	Fully Transparent	Clear Lid	Transparent Self-Adhesive Tray	Not Specified	Diced wafers, chips, and thin samples	Visible sample storage	Product Code 5510
Standard Self-Adhesive Sample Boxes	5510	Fully Black	Black Lid	Black Self-Adhesive Tray	Not Specified	Samples requiring light shielding or contrast observation	Reduces external light and supports classification	Product Code 5510
Standard Self-Adhesive Sample Boxes	5510	Black Base with Clear Lid	Clear Lid	Black Self-Adhesive Tray	Not Specified	Light-colored wafers, chips, and small components	Improves sample visibility and outline contrast	Product Code 5510
Standard Self-Adhesive Sample Boxes	7515	Fully Transparent	Clear Lid	Transparent Self-Adhesive Tray	Not Specified	Small- to medium-size wafers and precision samples	Supports observation and quick sample verification	Product Code 7515
Standard Self-Adhesive Sample Boxes	7515	Fully Black	Black Lid	Black Self-Adhesive Tray	Not Specified	Wafers and components requiring light-shielded storage	Suitable for light shielding and batch classification	Product Code 7515
Standard Self-Adhesive Sample Boxes	7515	Black Base with Clear Lid	Clear Lid	Black Self-Adhesive Tray	Not Specified	Wafers, chips, and precision components	Combines visual inspection with sample contrast	Product Code 7515
Standard Self-Adhesive Sample Boxes	8512	Fully Transparent	Clear Lid	Transparent Self-Adhesive Tray	Not Specified	Larger diced pieces, chips, and optical components	Larger support area with good visibility	Product Code 8512
Standard Self-Adhesive Sample Boxes	8512	Fully Black	Black Lid	Black Self-Adhesive Tray	Not Specified	Samples requiring light shielding or classification	Fully black structure reduces external light interference	Product Code 8512
Standard Self-Adhesive Sample Boxes	8512	Black Base with Clear Lid	Clear Lid	Black Self-Adhesive Tray	Not Specified	Larger wafers, chips, and precision components	Supports observation and improves contrast for light-colored samples	Product Code 8512
Standard Self-Adhesive Sample Boxes	12012	Fully Transparent	Clear Lid	Transparent Self-Adhesive Tray	Not Specified	Larger wafers, glass pieces, and optical components	Large-format transparent storage with direct visibility	Product Code 12012
Standard Self-Adhesive Sample Boxes	12012	Fully Black	Black Lid	Black Self-Adhesive Tray	Not Specified	Larger wafers and components requiring light shielding	Suitable for light shielding, classification, and transport protection	Product Code 12012
Standard Self-Adhesive Sample Boxes	12012	Black Base with Clear Lid	Clear Lid	Black Self-Adhesive Tray	Not Specified	Larger wafers, glass pieces, and precision components	Large support area with convenient visual inspection	Product Code 12012
Standard Self-Adhesive Sample Boxes	15020	Black Base with Clear Lid	Clear Lid	Black Self-Adhesive Tray	Not Specified	Large wafers, optical substrates, and precision components	Larger internal space combining visibility and support	Product Code 15020
Antistatic Self-Adhesive Boxes	5510	Fully Black	Black Lid	Black Self-Adhesive Tray	Antistatic	Electrostatic-sensitive chips, wafers, and electronic devices	Combines antistatic protection, light shielding, and secure support	Confirm specific surface-resistance parameters
Antistatic Self-Adhesive Boxes	5510	Black Base with Light Blue Lid	Light Blue Lid	Black Self-Adhesive Tray	Antistatic	Electrostatic-sensitive chips, wafers, and microelectronic components	Supports visual inspection and antistatic management	Confirm specific surface-resistance parameters
Antistatic Self-Adhesive Boxes	8512	Fully Black	Black Lid	Black Self-Adhesive Tray	Antistatic	Larger electrostatic-sensitive wafers and devices	Larger support area with antistatic protection	Confirm specific surface-resistance parameters
Antistatic Self-Adhesive Boxes	8512	Black Base with Light Blue Lid	Light Blue Lid	Black Self-Adhesive Tray	Antistatic	Larger electrostatic-sensitive wafers and microelectronic components	Combines visual inspection, antistatic performance, and secure support	Confirm specific surface-resistance parameters
Self-Adhesive Tray	Tray 5050	Confirm from Actual Product	Confirm compatible lid by model	Removable Self-Adhesive Tray	Not Specified	Wafers, chips, glass pieces, and precision samples	Removable tray supports transfer, observation, and cleaning	Confirm whether the outer box is included
Dust-Removal Supplies	ZPS-8050	Adhesive-Sheet Consumable	—	—	Not Applicable	Boxes, work surfaces, tools, and nonfunctional areas	For lifting loose dust and particles	100 Sheets / Pack

Do not determine antistatic performance solely from the color of a transparent, black, or black-base clear-lid box. Only models explicitly marked as antistatic should be managed as antistatic products. Confirm the surface-resistance range and antistatic grade before purchase.

Main Applications

Silicon Piece and Wafer Storage

For organized storage of full wafers, diced silicon pieces, SOI, SiC, and functional coated substrates.

Chip and Microdevice Transfer

Suitable for transfer of bare dies, MEMS devices, sensor chips, and microelectronic components.

Optical Component Protection

Suitable for small glass pieces, filters, optical windows, and precision optical components.

Electrostatic-Sensitive Devices

Antistatic models are suitable for chips and electronic devices sensitive to electrostatic discharge.

Laboratory Sample Management

For labeling and classifying samples by batch, size, coating, and processing status.

Cleanroom Transfer

Suitable for internal sample transfer in laboratories, cleanrooms, and micro-/nanofabrication facilities.

Transport and Delivery Protection

Reduces sliding, impact, and scratching during shipping, handling, and handover.

Materials Characterization Preparation

Supports organized storage and transfer of test samples to SEM, AFM, XRD, and other instruments.

Particle and Dust Management

Use dust-removal sheets to remove loose particles from boxes, tools, and work areas.

Selection Guide

Direct Sample Observation: Choose a fully transparent self-adhesive box to verify sample quantity, position, and labels without opening the lid.
Observation of Light-Colored Samples: Choose a black-base clear-lid structure to improve outline contrast for light-colored wafers and transparent components.
Light-Shielded Storage: A fully black box may be selected, but verify its actual light-blocking capability for photosensitive samples.
Electrostatic-Sensitive Chips: Choose a 5510 or 8512 model explicitly marked as antistatic and confirm the surface-resistance grade.
Large Wafers: Use the 4-inch low-pressure release box for 4-inch wafers and the corresponding wafer box for 12-inch wafers.
Removable Tray Required: Choose Tray 5050 with a removable self-adhesive base for loading, observation, and complete sample transfer.
Frequent Transfer: Confirm lid locking, tray retention, wear resistance, internal clearance, and cleaning method.
High Cleanliness Requirements: Inspect cleanliness before use and avoid taking ordinary packaging materials directly into clean areas.

How to Use

Confirm Box Specifications

Verify the model, usable internal area, sample thickness, antistatic property, and quantity.

Inspect Cleanliness

Confirm that the box is free of particles, debris, oil, damage, and abnormal deformation.

Wear Clean Gloves

Use powder-free gloves, finger cots, or antistatic tools and avoid touching samples with bare fingers.

Place the Sample Gently

Place the wafer horizontally at the center of the adhesive tray and avoid dragging or edge impact.

Close the Lid Smoothly

Confirm that the sample remains within the support area, close the lid slowly, and check the lock.

Create a Label

Label the sample name, size, batch, processing status, date, and operator.

Store by Category

Store separately by material, coating, batch, and electrostatic-sensitivity level.

Inspect Regularly

Check box cleanliness, tray adhesion, lid deformation, and label integrity.

Handling and Storage Precautions

Avoid Dragging Samples

Place and remove wafers vertically to avoid lateral dragging across the tray surface.

Control Sample Thickness

Excessive sample thickness may contact the lid, causing compression, scratches, or failure to close.

Use Grounding with Antistatic Models

Antistatic boxes should still be used with a grounded workstation, antistatic wrist strap, and proper handling procedures.

Avoid Strong Solvent Cleaning

Confirm material compatibility before using solvents to prevent cracking, deformation, or surface haze.

Keep Dust-Removal Sheets off Functional Surfaces

Dust-removal sheets should not be applied directly to polished wafer surfaces, coated surfaces, or precision optical surfaces.

Store Clean and Dry

Keep boxes and supplies away from high temperatures, high humidity, dust, corrosive gases, and intense UV exposure.

FAQ

1. How does a self-adhesive box hold a wafer?

A self-adhesive box usually supports the sample on a tray with adhesive or conformal holding capability, reducing wafer movement inside the box. The exact holding method, release force, and compatible surface depend on the specific model.

2. What do the numbers 5510, 7515, and 8512 mean?

These numbers are retained as original product codes and should not be interpreted as internal dimensions without confirming the manufacturer's definition. Before ordering, verify the external dimensions, usable internal area, and permitted sample thickness.

3. How should fully transparent, fully black, and black-base clear-lid boxes be selected?

Fully transparent boxes support direct observation; fully black boxes are useful for classification or reducing external light; black-base clear-lid boxes combine visibility with outline contrast. Color does not indicate antistatic performance.

4. Is every black self-adhesive box antistatic?

No. Only models explicitly identified as antistatic should be managed as antistatic products. A standard fully black box may indicate color only, so antistatic parameters must be confirmed separately.

5. Can an antistatic self-adhesive box completely prevent electrostatic damage?

Not by itself. Antistatic boxes should be combined with grounded workstations, antistatic wrist straps, ionizers, proper packaging, and an ESD-control procedure.

6. Can these boxes store gold-coated, silver-coated, or two-dimensional-material samples?

Yes, but confirm that the adhesive tray will not contaminate, adhere to, or damage the functional surface. For sensitive coatings, perform a small compatibility test and avoid direct contact between the functional surface and the tray whenever possible.

7. What are the advantages of the removable Tray 5050 base?

The removable tray allows a complete sample group to be lifted out of the outer box for loading, observation, microscopy, transfer, and separate tray cleaning.

8. Can a dust-removal sheet be used directly on a wafer surface?

Direct contact with polished wafer surfaces, metal coatings, two-dimensional materials, or optical functional surfaces is not recommended. Dust-removal sheets are better suited to loose particles on boxes, tools, work surfaces, and noncritical areas.

9. Can wafer boxes be cleaned with alcohol or other solvents?

First confirm the solvent resistance of the box and tray materials. Some plastics may crack, deform, haze, or lose holding performance after contact with alcohol, acetone, or other solvents.

10. Which parameters should be confirmed before ordering?

Confirm sample size and thickness, box model, usable internal area, color configuration, antistatic requirement, removable-tray requirement, operating environment, quantity, and packaging method.

Ordering Information

Recommended Inquiry Format

Sample Type + Sample Length and Width or Wafer Size + Sample Thickness + Standard/Antistatic + Box Model + Fully Transparent/Fully Black/Black Base with Clear Lid + Quantity + Removable Tray Required or Not.

Example: 10 × 10 mm gold-coated silicon piece + approximately 500 μm thick + antistatic self-adhesive box + model 5510 + black base with light blue lid + 50 boxes.

Product Summary

The range includes 4-inch and 12-inch wafer boxes, standard self-adhesive boxes from 3020 to 15020, antistatic 5510 and 8512 boxes, the removable Tray 5050 base, and ZPS-8050 dust-removal sheets. Transparent structures support direct observation, black structures support classification and reduced light exposure, black-base clear-lid structures combine inspection with contrast, and antistatic models are intended for electrostatic-sensitive chips and devices. Confirm usable internal dimensions, sample thickness, antistatic grade, tray structure, and material compatibility before purchase.
