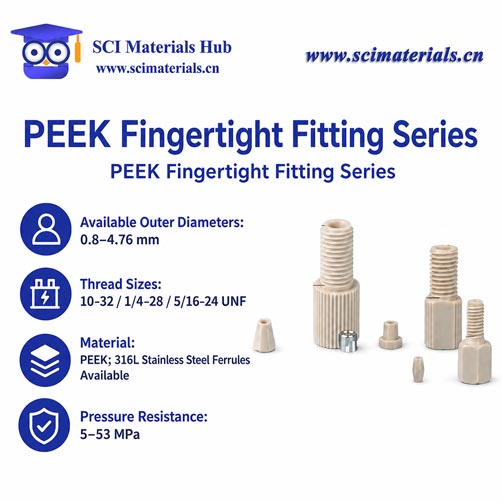

PEEK FLANGELESS FITTINGS · CHFT / CHFTJ / CHFTS
PEEK Flangeless Fittings
Designed for laboratory fluidics, chromatography, and microfluidic tubing connections, this PEEK flangeless fitting family covers tubing ODs from 1/32″ and 1/16″ through 2.0–4.0 mm, 1/8″, and 3/16″. Three thread families—10-32, 1/4-28, and 5/16-24—support straightforward selection by tubing size, thread, ferrule/sleeve configuration, and documented pressure rating.
Core Configuration
Series RangeCHFT / CHFTJ / CHFTS
Tubing OD1/32″ to 3/16″
0.8–4.76 mm
0.8–4.76 mm
Interface Thread10-32UNF
1/4-28UNF
5/16-24UNF
1/4-28UNF
5/16-24UNF
ConfigurationStandard / Flat-Bottom / Inverted
316L Sleeve / High-Pressure
316L Sleeve / High-Pressure
PRODUCT OVERVIEW
Select by Tubing Size, Thread, Ferrule System, and Pressure Rating
Model differences are defined by tubing OD, interface thread, ferrule/sleeve combination, port geometry, and documented pressure rating. For models without a listed pressure rating, contact technical support to confirm suitability for your operating conditions.
QUICK SELECTION
Quick Selection
Use the selector to compare model, tubing OD, thread, ferrule/sleeve configuration, and pressure rating. The same filters are applied to the comparison table below.
21matching models
Filter by series, tubing size, thread, and pressure rating to narrow the available configurations.CHFT1601
CHFT Standard Flangeless · 1/16″ (1.6 mm) · 1/4-28UNF
Tubing OD: 1/16″ (1.6 mm)Thread: 1/4-28UNFFerrule / Sleeve: CHRH01 (Inverted)Pressure Rating: 33 MPaMaterial: PEEK / Natural
CHFT1604
CHFT Standard Flangeless · 1/16″ (1.6 mm) · 1/4-28UNF
Tubing OD: 1/16″ (1.6 mm)Thread: 1/4-28UNFFerrule / Sleeve: CHRH01 (Inverted)Pressure Rating: 30 MPaMaterial: PEEK / Natural
CHFT1607
CHFT Standard Flangeless · 1/16″ (1.6 mm) · 10-32UNF
Tubing OD: 1/16″ (1.6 mm)Thread: 10-32UNFFerrule / Sleeve: CHRH-01 (Standard)Pressure Rating: 35 MPaMaterial: PEEK / Natural
CHFT-16
CHFT Standard Flangeless · 1/16″ (1.6 mm) · 1/4-28UNF
Tubing OD: 1/16″ (1.6 mm)Thread: 1/4-28UNFFerrule / Sleeve: CHRH-16 (Inverted)Pressure Rating: 33 MPaMaterial: PEEK / Natural
CHFT-20
CHFT Standard Flangeless · 2.0 mm · 1/4-28UNF
Tubing OD: 2.0 mmThread: 1/4-28UNFFerrule / Sleeve: CHRH-20Pressure Rating: —Material: PEEK / Natural
CHFT-30
CHFT Standard Flangeless · 3.0 mm · 1/4-28UNF
Tubing OD: 3.0 mmThread: 1/4-28UNFFerrule / Sleeve: CHRH-30Pressure Rating: —Material: PEEK / Natural
CHFT-32
CHFT Standard Flangeless · 1/8″ (3.2 mm) · 1/4-28UNF
Tubing OD: 1/8″ (3.2 mm)Thread: 1/4-28UNFFerrule / Sleeve: CHRH-32Pressure Rating: —Material: PEEK / Natural
CHFT-802
CHFT Standard Flangeless · 1/8″ (3.2 mm) · 1/4-28UNF
Tubing OD: 1/8″ (3.2 mm)Thread: 1/4-28UNFFerrule / Sleeve: CHRH-04 (Inverted)Pressure Rating: 5 MPaMaterial: PEEK / Natural
CHFT-804
CHFT Standard Flangeless · 1/8″ (3.2 mm) · 1/4-28UNF
Tubing OD: 1/8″ (3.2 mm)Thread: 1/4-28UNFFerrule / Sleeve: Flat-Bottom ConfigurationPressure Rating: 5 MPaMaterial: PEEK / Natural
CHFT-805
CHFT Standard Flangeless · 1/8″ (3.2 mm) · 5/16-24UNF
Tubing OD: 1/8″ (3.2 mm)Thread: 5/16-24UNFFerrule / Sleeve: CHRH-05Pressure Rating: 5 MPaMaterial: PEEK / Natural
CHFT-1601
CHFT Standard Flangeless · 1/16″ (1.6 mm) · 1/4-28UNF
Tubing OD: 1/16″ (1.6 mm)Thread: 1/4-28UNFFerrule / Sleeve: Flat-Bottom ConfigurationPressure Rating: 25 MPaMaterial: PEEK / Natural
CHFT-(805-16)
CHFT Standard Flangeless · 1/16″ (1.6 mm) · 5/16-24UNF
Tubing OD: 1/16″ (1.6 mm)Thread: 5/16-24UNFFerrule / Sleeve: CHRH-16Pressure Rating: 5 MPaMaterial: PEEK / Natural
CHFT-WG32
CHFT Micro Flangeless · 1/32″ (0.8 mm) · 10-32UNF
Tubing OD: 1/32″ (0.8 mm)Thread: 10-32UNFFerrule / Sleeve: CHRH-WG32Pressure Rating: 9 MPaMaterial: PEEK / Natural
CHFTJ-16
CHFTJ 316L Stainless-Steel Sleeve · 1/16″ (1.6 mm) · 1/4-28UNF
Tubing OD: 1/16″ (1.6 mm)Thread: 1/4-28UNFFerrule / Sleeve: CHRH-161 + CHRT-01Pressure Rating: 50 MPaMaterial: PEEK + 316L
CHFTJ-20
CHFTJ 316L Stainless-Steel Sleeve · 2.0 mm · 1/4-28UNF
Tubing OD: 2.0 mmThread: 1/4-28UNFFerrule / Sleeve: CHRH-201 + CHRT-02Pressure Rating: —Material: PEEK + 316L
CHFTJ-25
CHFTJ 316L Stainless-Steel Sleeve · 2.5 mm · 1/4-28UNF
Tubing OD: 2.5 mmThread: 1/4-28UNFFerrule / Sleeve: CHRH-251 + CHRT-03Pressure Rating: —Material: PEEK + 316L
CHFTJ-30
CHFTJ 316L Stainless-Steel Sleeve · 3.0 mm · 1/4-28UNF
Tubing OD: 3.0 mmThread: 1/4-28UNFFerrule / Sleeve: CHRH-301 + CHRT-04Pressure Rating: —Material: PEEK + 316L
CHFTJ-32
CHFTJ 316L Stainless-Steel Sleeve · 1/8″ (3.2 mm) · 1/4-28UNF
Tubing OD: 1/8″ (3.2 mm)Thread: 1/4-28UNFFerrule / Sleeve: CHRH-321 + CHRT-04Pressure Rating: 35 MPaMaterial: PEEK + 316L
CHFTJ-40
CHFTJ 316L Stainless-Steel Sleeve · 4.0 mm · 5/16-24UNF
Tubing OD: 4.0 mmThread: 5/16-24UNFFerrule / Sleeve: CHRH-401 + CHRT-07Pressure Rating: —Material: PEEK + 316L
CHFTJ-476
CHFTJ 316L Stainless-Steel Sleeve · 3/16″ (4.76 mm) · 5/16-24UNF
Tubing OD: 3/16″ (4.76 mm)Thread: 5/16-24UNFFerrule / Sleeve: CHRH-47 + CHRT-08Pressure Rating: —Material: PEEK + 316L
CHFTS-03
CHFTS High-Pressure Series · 1/16″ (1.6 mm) · 10-32UNF
Tubing OD: 1/16″ (1.6 mm)Thread: 10-32UNFFerrule / Sleeve: CHRH-07Pressure Rating: 53 MPaMaterial: PEEK / Natural
No models match the current filters. Please adjust your selection.
SERIES GUIDE
Series Guide
Start with tubing OD and thread, then select the ferrule system and pressure class. This sequence helps avoid choosing visually similar fittings with incompatible interfaces.
Standard Flangeless
PEEK bodies paired with PEEK ferrules cover common 1/16″, 1/8″, and 2.0–3.2 mm tubing, with inverted and flat-bottom port options.
- Broadest Model Coverage
- For General Laboratory Fluidics
- Multiple Ferrule Options
316L Stainless-Steel Sleeve Series
PEEK fittings paired with CHRH ferrules and CHRT 316L stainless-steel sleeves cover tubing ODs from 1.6 to 4.76 mm.
- 316L Sleeve
- Metric / Imperial Tubing
- Selected Models Rated 35–50 MPa
High-Pressure Series
CHFTS-03 combines 1/16″ tubing compatibility with a 10-32UNF interface and a documented 53 MPa rating for applications where pressure capability is a primary selection criterion.
- Compact Configuration
- 10-32UNF
- Documented 53 MPa Rating
PRODUCT IMAGES
21 Model-Specific Product Images
Browse the 21 model-specific product images to review fitting geometry, dimensions, and compatible ferrule/sleeve details. Select any image to view it at a larger size.
PARAMETER COMPARISON
Complete 21-Model Specification Comparison
Compare all 21 standard configurations by tubing OD, interface thread, ferrule/sleeve combination, pressure rating, and material or structure.
| Series | Model | Compatible Tubing OD | Interface Thread | Ferrule / Sleeve | Pressure Rating | Material / Configuration |
|---|---|---|---|---|---|---|
| CHFT | CHFT1601 | 1/16″ (1.6 mm) | 1/4-28UNF | CHRH01 (Inverted) | 33 MPa | PEEK / Natural |
| CHFT | CHFT1604 | 1/16″ (1.6 mm) | 1/4-28UNF | CHRH01 (Inverted) | 30 MPa | PEEK / Natural |
| CHFT | CHFT1607 | 1/16″ (1.6 mm) | 10-32UNF | CHRH-01 (Standard) | 35 MPa | PEEK / Natural |
| CHFT | CHFT-16 | 1/16″ (1.6 mm) | 1/4-28UNF | CHRH-16 (Inverted) | 33 MPa | PEEK / Natural |
| CHFT | CHFT-20 | 2.0 mm | 1/4-28UNF | CHRH-20 | — | PEEK / Natural |
| CHFT | CHFT-30 | 3.0 mm | 1/4-28UNF | CHRH-30 | — | PEEK / Natural |
| CHFT | CHFT-32 | 1/8″ (3.2 mm) | 1/4-28UNF | CHRH-32 | — | PEEK / Natural |
| CHFT | CHFT-802 | 1/8″ (3.2 mm) | 1/4-28UNF | CHRH-04 (Inverted) | 5 MPa | PEEK / Natural |
| CHFT | CHFT-804 | 1/8″ (3.2 mm) | 1/4-28UNF | Flat-Bottom Configuration | 5 MPa | PEEK / Natural |
| CHFT | CHFT-805 | 1/8″ (3.2 mm) | 5/16-24UNF | CHRH-05 | 5 MPa | PEEK / Natural |
| CHFT | CHFT-1601 | 1/16″ (1.6 mm) | 1/4-28UNF | Flat-Bottom Configuration | 25 MPa | PEEK / Natural |
| CHFT | CHFT-(805-16) | 1/16″ (1.6 mm) | 5/16-24UNF | CHRH-16 | 5 MPa | PEEK / Natural |
| CHFT-MICRO | CHFT-WG32 | 1/32″ (0.8 mm) | 10-32UNF | CHRH-WG32 | 9 MPa | PEEK / Natural |
| CHFTJ | CHFTJ-16 | 1/16″ (1.6 mm) | 1/4-28UNF | CHRH-161 + CHRT-01 | 50 MPa | PEEK + 316L |
| CHFTJ | CHFTJ-20 | 2.0 mm | 1/4-28UNF | CHRH-201 + CHRT-02 | — | PEEK + 316L |
| CHFTJ | CHFTJ-25 | 2.5 mm | 1/4-28UNF | CHRH-251 + CHRT-03 | — | PEEK + 316L |
| CHFTJ | CHFTJ-30 | 3.0 mm | 1/4-28UNF | CHRH-301 + CHRT-04 | — | PEEK + 316L |
| CHFTJ | CHFTJ-32 | 1/8″ (3.2 mm) | 1/4-28UNF | CHRH-321 + CHRT-04 | 35 MPa | PEEK + 316L |
| CHFTJ | CHFTJ-40 | 4.0 mm | 5/16-24UNF | CHRH-401 + CHRT-07 | — | PEEK + 316L |
| CHFTJ | CHFTJ-476 | 3/16″ (4.76 mm) | 5/16-24UNF | CHRH-47 + CHRT-08 | — | PEEK + 316L |
| CHFTS | CHFTS-03 | 1/16″ (1.6 mm) | 10-32UNF | CHRH-07 | 53 MPa | PEEK / Natural |
TYPICAL APPLICATIONS
Applications
Designed for serviceable tubing connections across research fluidic systems, with selection based on interface requirements rather than a single application category.
Chromatography & LC Fluidics
For internal or external small-bore tubing connections where serviceability and component replacement are important.
Microfluidic & Reaction Systems
Supports compact connections between microreactors, pump/valve modules, and small-scale fluid transport components.
Custom Laboratory Fluidics
Standardize selection by tubing OD and thread to reduce assembly errors caused by mixed fitting specifications.
High-Pressure Research Fluidics
Where pressure capability is critical, prioritize models with documented ratings and verify tubing, port, and assembly conditions for the complete system.
INSTALLATION NOTES
Installation & Use Guide
Verify tubing OD, thread, port geometry, and ferrule/sleeve configuration together. Do not substitute a visually similar model without confirming the full interface.
Confirm Tubing OD
Use the actual tubing OD as the first selection criterion and avoid mixing imperial and metric tubing specifications.
Verify Thread
Confirm 10-32UNF, 1/4-28UNF, or 5/16-24UNF and verify whether a flat-bottom port is required.
Match Ferrule / Sleeve
For CHFTJ models, verify both the CHRH ferrule and the corresponding CHRT stainless-steel sleeve.
Verify Pressure Rating
Final pressure capability depends on tubing, mating port, and assembly conditions. Contact technical support for models without a documented rating.
FAQ
Frequently Asked Questions
Quick guidance for distinguishing similar models, interface differences, and documented specification values.
What are the main differences between CHFT, CHFTJ, and CHFTS?
CHFT is the standard flangeless series, CHFTJ uses 316L stainless-steel sleeves, and CHFTS is intended for higher-pressure configurations. Always verify tubing OD, thread, ferrule system, and pressure requirements together.
Why are there multiple models for 1/16″ tubing?
The same tubing OD may be offered with different threads, inverted or flat-bottom structures, ferrule combinations, or pressure designs, so tubing size alone is not sufficient for selection.
What does “—” mean in the pressure-rating column?
It means no explicit pressure rating is provided for that model in the available product documentation. A value is not inferred from similar models.
Can I match a fitting to an existing valve or manifold?
Yes. Provide tubing OD, equipment-side thread, port geometry, target pressure, and media information to narrow the model range.
PURCHASE & TECHNICAL SUPPORT
Purchase & Technical Support
Standard CHFT, CHFTJ, and CHFTS models can be specified directly by model number. If your fluidic interface is uncertain, send the tubing OD, thread, port orientation, target pressure, and media information for technical confirmation.
Amazon Marketplace
Search by CHFT / CHFTJ / CHFTS model number to locate matching marketplace listings.
eBay Marketplace
Search by model number for international marketplace purchasing and availability checks.
RFQ Email
contact@scimaterials.cn
For quotations, bulk orders, custom requirements, and project procurement.
+86 153 5789 9751
International product and selection inquiries.
Telephone
+86 130 0303 8751
+86 156 0553 2352
Custom Inquiry Details
Port count / tubing OD / thread / port type
Bore / flow direction / space constraints / media
Specifications are based on the available product documentation. Pressure values are listed only where explicitly specified; contact us to confirm current availability and configuration details.
