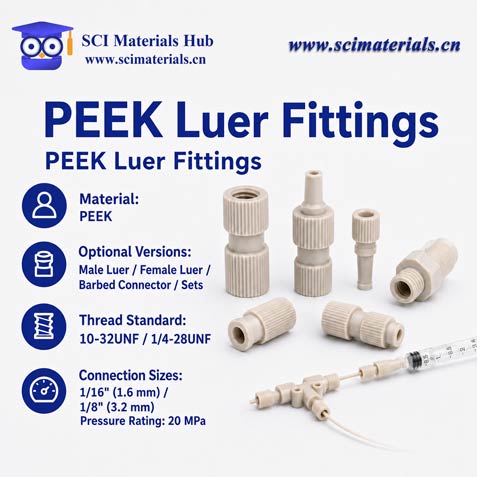

Luer Interface Adapters & Syringe Fluidic Connection Components
Designed for laboratory fluid delivery, syringe connection, tubing adaptation, and compact fluidic-line assembly, this Luer connection series includes 15 purchasing options covering male and female Luer fittings, 10-32UNF and 1/4-28UNF threads, 1/8 and 1/16 tubing formats, standalone syringes, and complete kits. CHLR01 and CHLR02 are defined model options, and six specifications carry an explicit 20 MPa pressure rating for projects that require pressure-rated interfaces.
Modular choices from individual fittings to complete syringe fluidic lines
Specifications are presented only from the supplied product data. Material, operating temperature, and other unlisted parameters should be confirmed before purchase.
The standard fitting range covers 1/8 (1/4-28UNF) female Luer fittings, 1/16 (10-32UNF) female Luer fittings, Luer-to-10-32UNF male-thread adapters, 1/4-28UNF male/female Luer fittings, 10-32UNF male/female Luer fittings, and conical-seat male Luer structures.
For syringe-driven experiments, complete options are available with a Luer fitting, syringe, and 1 m tubing in both 1/8 and 1/16 configurations. A female Luer + tee + tubing + syringe kit is also available for branched or more complete fluidic assemblies.
For applications requiring a stated pressure rating, six options are explicitly marked 20 MPa: 1/4-28UNF male Luer, 1/4-28UNF female Luer, 10-32UNF male Luer, 10-32UNF female Luer, CHLR01, and CHLR02.
CHLR01 is specified as 10-32 conical-seat, 1/16 (1.6 mm), 20 MPa. CHLR02 is listed as 1/4-28 flat-seat, 1/(3.2 mm), 20 MPa. Original specification wording is retained where the supplied data does not define a field more precisely.
Selection Highlights
Supports Luer, 10-32UNF, and 1/4-28UNF interfaces for flexible adaptation between laboratory fluidic components.
Male and female Luer versions are available across multiple thread families, allowing straightforward matching to the mating device interface.
Six specifications are explicitly rated to 20 MPa and can be identified directly by pressure-rating information.
Choose individual fittings or combinations including tubing, syringe, and tee components to reduce the effort of matching separate fluidic parts.
Quick Selection Filter
Combine product category, interface, and function/structure filters to narrow the available specifications quickly.
| No. | Model | Specification Name | Category | Interface | Function / Structure | Pressure Rating |
|---|---|---|---|---|---|---|
| 01 | — | 1/8 (1/4-28UNF) Female Luer Fitting | Luer fitting | 1/8 / 1/4-28UNF | Female Luer | Not specified |
| 02 | — | 1/16 (10-32UNF) Female Luer Fitting | Luer fitting | 1/16 / 10-32UNF | Female Luer | Not specified |
| 03 | — | Syringe | Syringe | — | Standalone syringe | Not specified |
| 04 | — | Luer to 10-32UNF Male-Thread Adapter | Adapter fitting | 10-32UNF | Male-thread adapter | Not specified |
| 05 | — | 1/4-28UNF Male Luer Fitting · 20 MPa | Luer fitting | 1/4-28UNF | Male Luer | 20MPa |
| 06 | — | 1/4-28UNF Female Luer Fitting · 20 MPa | Luer fitting | 1/4-28UNF | Female Luer | 20MPa |
| 07 | — | 1/4-28 Conical-Seat Male Luer (without cap) | Luer fitting | 1/4-28 | Conical-seat male | Not specified |
| 08 | — | 1/8 Luer Fitting + Syringe + 1 m Tubing Kit | Fluidic kit | 1/8 | Fitting + Syringe + Tubing | Not specified |
| 09 | — | 1/16 Luer Fitting + Syringe + 1 m Tubing Kit | Fluidic kit | 1/16 | Fitting + Syringe + Tubing | Not specified |
| 10 | — | 10-32UNF Male Luer Fitting · 20 MPa | Luer fitting | 10-32UNF | Male Luer | 20MPa |
| 11 | — | 10-32UNF Female Luer Fitting · 20 MPa | Luer fitting | 10-32UNF | Female Luer | 20MPa |
| 12 | — | 10-32 Conical-Seat Male Luer (without cap) | Luer fitting | 10-32 | Conical-seat male | Not specified |
| 13 | CHLR01 | CHLR01 · 10-32 Conical-Seat · 1/16 (1.6 mm) · 20 MPa | CHLR Series | 10-32 / 1/16 | Conical-seat connection | 20MPa |
| 14 | CHLR02 | CHLR02 · 1/4-28 Flat-Seat · 1/(3.2 mm) · 20 MPa | CHLR Series | 1/4-28 | Flat-seat connection | 20MPa |
| 15 | — | Female Luer + Tee + Tubing + Syringe Kit | Fluidic kit | — | Female Luer + Tee + Tubing + Syringe | Not specified |
Model Specification Comparison
All 15 supplied specifications are listed. “Not specified” means the current source data does not provide that parameter.
| No. | Model | Specification | Interface / Thread | Tubing / Size | Luer Format | Pressure Rating | Configuration |
|---|---|---|---|---|---|---|---|
| 01 | — | 1/8 (1/4-28UNF) Female Luer Fitting | 1/4-28UNF | 1/8 | Female | Not specified | Single fitting |
| 02 | — | 1/16 (10-32UNF) Female Luer Fitting | 10-32UNF | 1/16 | Female | Not specified | Single fitting |
| 03 | — | Syringe | — | — | — | Not specified | Syringe |
| 04 | — | Luer to 10-32UNF Male-Thread Adapter | 10-32UNF | — | Luer Side | Not specified | Adapter fitting |
| 05 | — | 1/4-28UNF Male Luer Fitting | 1/4-28UNF | — | Male | 20MPa | Single fitting |
| 06 | — | 1/4-28UNF Female Luer Fitting | 1/4-28UNF | — | Female | 20MPa | Single fitting |
| 07 | — | 1/4-28 Conical-Seat Male Luer (without cap) | 1/4-28 | — | Male | Not specified | Single fitting |
| 08 | — | 1/8 Luer Fitting + Syringe + 1 m Tubing Kit | Luer | 1/8 | Connector | Not specified | Fitting + Syringe + 1 m Tubing |
| 09 | — | 1/16 Luer Fitting + Syringe + 1 m Tubing Kit | Luer | 1/16 | Connector | Not specified | Fitting + Syringe + 1 m Tubing |
| 10 | — | 10-32UNF Male Luer Fitting | 10-32UNF | — | Male | 20MPa | Single fitting |
| 11 | — | 10-32UNF Female Luer Fitting | 10-32UNF | — | Female | 20MPa | Single fitting |
| 12 | — | 10-32 Conical-Seat Male Luer (without cap) | 10-32 | — | Male | Not specified | Single fitting |
| 13 | CHLR01 | 10-32 conical-seat 1/16(1.6mm) | 10-32 conical-seat | 1/16 (1.6mm) | — | 20MPa | CHLR Fitting |
| 14 | CHLR02 | 1/4-28 flat-seat 1/(3.2mm) | 1/4-28 flat-seat | 1/(3.2mm) | — | 20MPa | CHLR Fitting |
| 15 | — | Female Luer + Tee + Tubing + Syringe Kit | Luer | tubing | Female | Not specified | Female Luer + Tee + Tubing + Syringe |
Interface & Structure Guide
When selecting a fitting, verify the thread, tubing size, male/female configuration, and seat geometry together.
Includes male Luer, female Luer, male-thread adapters, conical-seat male fittings, and CHLR01.
Includes 1/8 female Luer, male/female fittings, conical-seat male fittings, and CHLR02.
Male and female fittings mate in different directions; select the version that matches the opposite interface.
Choose an individual fitting or a kit that includes a syringe, tubing, and/or tee depending on the required assembly level.
Recommended Selection Sequence
Confirm whether the experimental tubing is 1/16, 1/8, or another connection size.
Verify whether the device-side thread is 10-32UNF or 1/4-28UNF.
Select a male or female Luer fitting according to the mating Luer interface.
For a ready-to-assemble syringe fluidic line, choose a kit that includes both tubing and a syringe.
Typical Applications
Luer-to-syringe configurations are suitable for laboratory liquid injection and low-flow fluidic-line assembly.
Used to adapt between 10-32UNF, 1/4-28UNF, and Luer connection formats.
1/16 and 1/8 kits provide a matched fitting, tubing, and syringe combination.
The female Luer + tee + tubing + syringe kit supports experimental setups that require a branched fluidic path.
FAQ
Which specifications are explicitly rated to 20 MPa?
Six options are explicitly marked: 1/4-28UNF male Luer, 1/4-28UNF female Luer, 10-32UNF male Luer, 10-32UNF female Luer, CHLR01, and CHLR02.
Does the absence of a 20 MPa label mean the fitting cannot handle pressure?
No. “Not specified” only means the supplied specification does not state a pressure value. For pressure-sensitive applications, confirm the required rating before purchase.
How should I choose between 10-32UNF and 1/4-28UNF?
Match the actual device-side thread; appearance alone is not a reliable basis for selection.
How do I choose between male and female Luer fittings?
Match the fitting to the mating Luer interface. The quick selector above can narrow the list to male or female options.
What is the main difference between CHLR01 and CHLR02?
CHLR01 is 10-32 conical-seat, 1/16 (1.6 mm), 20 MPa. CHLR02 is listed as 1/4-28 flat-seat, 1/(3.2 mm), 20 MPa.
Should I buy an individual fitting or a complete kit?
If you already have a syringe and tubing, an individual fitting may be sufficient. For a new fluidic setup, compare kits that include tubing and a syringe.
Purchasing & Technical Support
Select standard specifications by tubing size, 10-32UNF / 1/4-28UNF thread, male/female Luer format, and whether a complete kit is required. For CHLR01 / CHLR02 confirmation, pressure requirements, or unfamiliar device interfaces, provide an interface photo, the original fitting specification, tubing size, and intended use.
