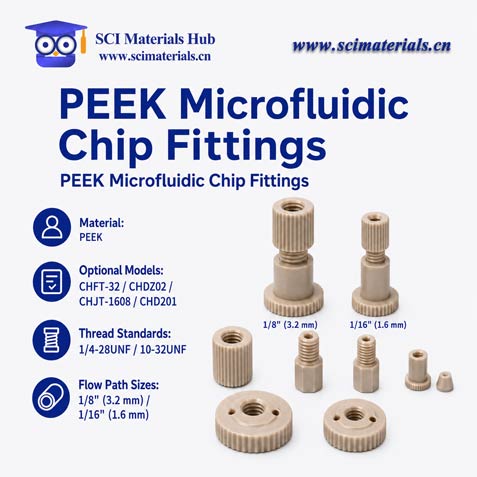

Biochip Fluidic Connectors & Bases
Designed for tubing connection, interface adaptation, and component matching in biochip experiments, this series provides two clearly defined systems: 1/8 tubing with 1/4-28UNF threads and 1/16 tubing with 10-32UNF threads. Choose a complete kit, individual connector, or standalone base according to the tubing size, device interface, and components already available in the laboratory.
A modular connection platform for biochip fluidic systems
The supplied data defines product names, pricing, and quantity fields. Material, pressure rating, operating temperature, and other unlisted parameters should be confirmed before purchase.
1/8 Tubing SeriesThe 1/8 tubing family uses the listed 1/4-28UNF interface system and includes a complete kit, split connector, and standalone base. Select the complete kit for new assemblies, or purchase only the connector or base when supplementing an existing setup.
1/16 Tubing SeriesThe 1/16 tubing family corresponds to the 10-32UNF interface system and includes a 1608 connector, complete kit, and standalone base. This lets laboratories purchase only the parts required for an existing fluidic system and avoid unnecessary duplicate components.
For reliable selection, first confirm whether the experimental setup uses1/8 or 1/16 tubing, then verify the corresponding thread. The current mapping is straightforward: 1/8 pairs with 1/4-28UNF, while 1/16 pairs with 10-32UNF.
“1608 connector” is retained as the original product designation. The supplied data does not further define the dimensions represented by “1608,” so no unverified dimensional interpretation is added.
Selection Highlights
Both 1/8 and 1/16 series are available, allowing the product range to be narrowed quickly from the tubing already used in the experiment.
1/8 maps to 1/4-28UNF and 1/16 maps to 10-32UNF, simplifying interface matching.
Purchase a complete kit or individual connector/base components to maintain or expand an existing fluidic system.
Use tubing size → thread interface → component type to narrow the selection and reduce specification mismatches.
Quick Selection Filter
Combine tubing size, thread interface, and component type to narrow the six available specifications.
| No. | Product Specification | Tubing Size | Thread | Component Type | Structure | Selection Note |
|---|---|---|---|---|---|---|
| 01 | Biochip 1/8 · 1/4-28UNF Complete Kit | 1/8 | 1/4-28UNF | Complete Kit | Complete 1/8 Series Kit | Recommended for new assemblies or complete-system purchasing |
| 02 | Biochip 1/8 · 1/4-28UNF Split Connector | 1/8 | 1/4-28UNF | Connector | Split Connector | Choose when a matching base is already available and only the connector is needed |
| 03 | Biochip 1/8 · 1/4-28UNF Base | 1/8 | 1/4-28UNF | Base | Standalone Base | Choose when matching connection hardware is available and a replacement/additional base is needed |
| 04 | Biochip 1/16 · 10-32UNF 1608 Connector | 1/16 | 10-32UNF | Connector | 1608 Connector | 1/16 + 10-32UNF connector option |
| 05 | Biochip 1/16 · 10-32UNF Complete Kit | 1/16 | 10-32UNF | Complete Kit | Complete 1/16 Series Kit | Recommended for new assemblies or complete-system purchasing |
| 06 | Biochip 1/16 · 10-32UNF Base | 1/16 | 10-32UNF | Base | Standalone Base | Choose when the connector is already available and only the base is needed |
Model Specification Comparison
All six supplied specifications are listed with no placeholder models.
| No. | Product Specification | Tubing Size | Thread Interface | Product Category | Structure | Recommended Purchase |
|---|---|---|---|---|---|---|
| 01 | Biochip 1/8 · 1/4-28UNF Complete Kit | 1/8 | 1/4-28UNF | Kit | Complete Kit | Complete matching / New assembly |
| 02 | Biochip 1/8 · 1/4-28UNF Split Connector | 1/8 | 1/4-28UNF | Connector | Split Connector | Connector replacement / Addition |
| 03 | Biochip 1/8 · 1/4-28UNF Base | 1/8 | 1/4-28UNF | Base | Standalone Base | Base replacement / Addition |
| 04 | Biochip 1/16 · 10-32UNF 1608 Connector | 1/16 | 10-32UNF | Connector | 1608 Connector | 1/16 tubing connector matching |
| 05 | Biochip 1/16 · 10-32UNF Complete Kit | 1/16 | 10-32UNF | Kit | Complete Kit | Complete matching / New assembly |
| 06 | Biochip 1/16 · 10-32UNF Base | 1/16 | 10-32UNF | Base | Standalone Base | Base replacement / Addition |
Interface & Component Guide
Paired with 1/4-28UNF in the supplied specifications; available as a complete kit, split connector, or base.
Paired with 10-32UNF in the supplied specifications; available as a 1608 connector, complete kit, or base.
Suitable for systems that already have the matching base or require only a replacement/additional connector.
Standalone bases are available for both systems, supporting component replacement or expansion in existing experimental setups.
Recommended Selection Sequence
First confirm whether the system uses 1/8 or 1/16 tubing.
Confirm whether the device-side thread is 1/4-28UNF or 10-32UNF.
Choose a complete kit, connector, or standalone base according to the components already available.
If part of the system is already available, purchase only the missing individual component.
Typical Applications
Provides matched tubing and interface component options for biochip fluidic experiments.
A complete kit is suitable when the full matched component set is required.
Split connectors and the 1608 connector can be purchased separately as replacement/additional connection parts.
Bases can be purchased separately for both systems to support maintenance or expansion of existing setups.
FAQ
How should I choose between 1/8 and 1/16?
Choose according to the actual tubing size. The current 1/8 series corresponds to 1/4-28UNF, while the 1/16 series corresponds to 10-32UNF.
Do I need to purchase a complete kit?
No. Both systems include individually purchasable components, so you can select only the connector or base required by the existing setup.
What purchasing formats are available for the 1/8 series?
The 1/8 series includes a complete kit, split connector, and standalone base.
What purchasing formats are available for the 1/16 series?
The 1/16 series includes a 1608 connector, complete kit, and standalone base.
What are the exact dimensions of the “1608 connector”?
The supplied specification only provides the product designation “1608 connector” and does not define the associated dimensions, so no dimensional value is inferred here.
Why are pressure rating, material, and operating temperature not listed?
These parameters are not present in the supplied data. If your application has defined technical requirements, confirm them before purchasing.
Purchasing & Technical Support
Select standard specifications by 1/8 / 1/16 tubing, 1/4-28UNF / 10-32UNF interface, and component type. If the interface is uncertain, provide a photo of the biochip interface, the original connection-component specification, tubing size, and required quantity for confirmation.
