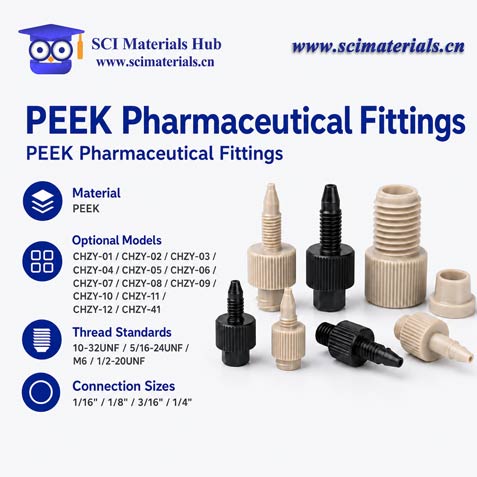

CHZY Series Fluidic Connectors & CHRH Ferrule Components
The CHZY series is designed for research fluidic systems that require tubing-size matching, threaded interfaces, adapters, and CHRH ferrule combinations. The supplied range contains 18 purchasing options spanning 1/16, 1/8, 3/16, and 1/4 size designations, with interfaces including 10-32UNF, 5/16-24, M6, 1/2-20, and Luer thread formats. Main CHZY connectors, CHZY + CHRH combinations, and standalone ferrules are available for flexible system assembly and replacement.
A multi-specification connection system from basic fittings to CHRH ferrule matching
Product names and specifications are presented from the supplied data. Material, operating temperature, and other unlisted performance parameters should be confirmed before purchase.
For small-diameter tubing, the current range includes multiple1/16 + 10-32UNFoptions, including CHZY-01, CHZY-02, CHZY-08, and CHZY-10. CHZY-11 additionally provides an1/16 + M6option for a different interface family.
For 5/16-24 interfaces, the current range covers 1/16, 1/8, and 3/16 size designations and uses CHRH-16, CHRH-05, CHRH-04, and CHRH-476 identifiers to define matched connector-and-ferrule purchasing combinations.
CHZY-12 is directly listed as1/16--1/8, making it the identified cross-size option. CHZY-09 is explicitly listed as10-32UNF / Luer Thread · 20 MPa, and is the only supplied specification with an explicit pressure value.
The CHZY-41 family currently includes a standalone CHZY-41 entry, a 1/4 1/2-20 + CHRH-41 combination, and a CHZY-41 + CHRH-41 ferrule item. The entry named only “CHZY-41” does not include further size or interface fields in the supplied data, so those parameters remain to be confirmed rather than inferred.
Selection Highlights
The supplied range covers 1/16, 1/8, 3/16, and 1/4, plus a 1/16--1/8 cross-size model.
Specification names include 10-32UNF, 5/16-24, M6, 1/2-20, and Luer-thread formats.
Multiple main-connector specifications include a defined CHRH matching number, with corresponding standalone ferrule items also available.
CHZY-09 is explicitly listed with a 10-32UNF / Luer-thread interface and a 20 MPa pressure rating.
Quick Selection Filter
Combine size, interface, and component-type filters to narrow the 18 available specifications.
| No. | Specification / Model | Size | Thread / Interface | CHRH Match | Component Type | Pressure Rating |
|---|---|---|---|---|---|---|
| 01 | CHZY-01 1/16 10-32UNF | 1/16 | 10-32UNF | — | Main connector | Not specified |
| 02 | CHZY-02 1/16 10-32UNF | 1/16 | 10-32UNF | — | Main connector | Not specified |
| 03 | CHZY-03 1/16 5/16-24+CHRH-16 | 1/16 | 5/16-24 | CHRH-16 | CHZY + CHRH | Not specified |
| 04 | CHZY-03 + CHRH-16 Ferrule | For CHZY-03 / 1/16 | — | CHRH-16 | Ferrule | Not specified |
| 05 | CHZY-04 1/8 5/16-24+CHRH-05 | 1/8 | 5/16-24 | CHRH-05 | CHZY + CHRH | Not specified |
| 06 | CHZY-05 1/8 5/16-24+CHRH-04 | 1/8 | 5/16-24 | CHRH-04 | CHZY + CHRH | Not specified |
| 07 | CHZY-06 1/16 5/16-24+CHRH-04 | 1/16 | 5/16-24 | CHRH-04 | CHZY + CHRH | Not specified |
| 08 | CHZY-06 + CHRH-04 Ferrule | For CHZY-06 / 1/16 | — | CHRH-04 | Ferrule | Not specified |
| 09 | CHZY-07 3/16 5/16-24+CHRH-476 | 3/16 | 5/16-24 | CHRH-476 | CHZY + CHRH | Not specified |
| 10 | CHZY-07 + CHRH-476 Ferrule | For CHZY-07 / 3/16 | — | CHRH-476 | Ferrule | Not specified |
| 11 | CHZY-08 1/16 10-32UNF | 1/16 | 10-32UNF | — | Main connector | Not specified |
| 12 | CHZY-09 · 10-32UNF / Luer Thread · 20 MPa | Not specified | 10-32UNF / Luer Thread | — | Luer Adapter Specification | 20MPa |
| 13 | CHZY-10 1/16 10-32UNF | 1/16 | 10-32UNF | — | Main connector | Not specified |
| 14 | CHZY-11 1/16 M6 | 1/16 | M6 | — | Main connector | Not specified |
| 15 | CHZY-12 1/16--1/8 | 1/16--1/8 | Not specified | — | Cross-Size Connection | Not specified |
| 16 | CHZY-41 | Not specified | Not specified | — | Parameters to be confirmed | Not specified |
| 17 | CHZY-41 1/4 1/2-20+CHRH-41 | 1/4 | 1/2-20 | CHRH-41 | CHZY + CHRH | Not specified |
| 18 | CHZY-41 + CHRH-41 Ferrule | For CHZY-41 / 1/4 | — | CHRH-41 | Ferrule | Not specified |
Model Specification Comparison
All 18 supplied specifications are displayed. “Not specified” means that field is not provided in the current source data.
| No. | Model / Specification | Size | Interface / Thread | CHRH | Type | Pressure Rating | Selection Note |
|---|---|---|---|---|---|---|---|
| 01 | CHZY-01 1/16 10-32UNF | 1/16 | 10-32UNF | — | Main connector | Not specified | 1/16 + 10-32UNF |
| 02 | CHZY-02 1/16 10-32UNF | 1/16 | 10-32UNF | — | Main connector | Not specified | Same interface family as CHZY-01; model-specific differences should be confirmed |
| 03 | CHZY-03 1/16 5/16-24+CHRH-16 | 1/16 | 5/16-24 | CHRH-16 | Connector + CHRH set | Not specified | Main connector + CHRH-16 |
| 04 | CHZY-03 + CHRH-16 Ferrule | For 1/16 | — | CHRH-16 | Ferrule | Not specified | Ferrule item matched to CHZY-03 |
| 05 | CHZY-04 1/8 5/16-24+CHRH-05 | 1/8 | 5/16-24 | CHRH-05 | Connector + CHRH set | Not specified | 1/8 + CHRH-05 |
| 06 | CHZY-05 1/8 5/16-24+CHRH-04 | 1/8 | 5/16-24 | CHRH-04 | Connector + CHRH set | Not specified | 1/8 + CHRH-04 |
| 07 | CHZY-06 1/16 5/16-24+CHRH-04 | 1/16 | 5/16-24 | CHRH-04 | Connector + CHRH set | Not specified | 1/16 + CHRH-04 |
| 08 | CHZY-06 + CHRH-04 Ferrule | For 1/16 | — | CHRH-04 | Ferrule | Not specified | Ferrule item matched to CHZY-06 |
| 09 | CHZY-07 3/16 5/16-24+CHRH-476 | 3/16 | 5/16-24 | CHRH-476 | Connector + CHRH set | Not specified | 3/16 + CHRH-476 |
| 10 | CHZY-07 + CHRH-476 Ferrule | For 3/16 | — | CHRH-476 | Ferrule | Not specified | Ferrule item matched to CHZY-07 |
| 11 | CHZY-08 1/16 10-32UNF | 1/16 | 10-32UNF | — | Main connector | Not specified | 1/16 + 10-32UNF |
| 12 | CHZY-09 · 10-32UNF / Luer Thread · 20 MPa | Not specified | 10-32UNF / Luer | — | Luer-interface specification | 20MPa | Only supplied option explicitly rated 20 MPa |
| 13 | CHZY-10 1/16 10-32UNF | 1/16 | 10-32UNF | — | Main connector | Not specified | 1/16 + 10-32UNF |
| 14 | CHZY-11 1/16 M6 | 1/16 | M6 | — | Main connector | Not specified | 1/16 + M6 |
| 15 | CHZY-12 1/16--1/8 | 1/16--1/8 | Not specified | — | Cross-size model | Not specified | Dual-size designation |
| 16 | CHZY-41 | Not specified | Not specified | — | CHZY-41 | Not specified | Detailed parameters require confirmation |
| 17 | CHZY-41 1/4 1/2-20+CHRH-41 | 1/4 | 1/2-20 | CHRH-41 | Connector + CHRH set | Not specified | 1/4 + CHRH-41 |
| 18 | CHZY-41 + CHRH-41 Ferrule | For 1/4 | — | CHRH-41 | Ferrule | Not specified | Ferrule item matched to CHZY-41 |
Interface & Component Guide
CHZY-01, CHZY-02, CHZY-08, and CHZY-10 are all explicitly listed as 1/16 + 10-32UNF.
The current range covers 1/16, 1/8, and 3/16 with different CHRH matching numbers.
CHZY-11, CHZY-09, and CHZY-41 cover different interface directions and can be selected according to the device-side specification.
CHRH-16, CHRH-05, CHRH-04, CHRH-476, and CHRH-41 all appear in the supplied specification names.
Recommended Selection Sequence
Determine whether the system requires 1/16, 1/8, 3/16, 1/4, or a cross-size option.
Verify whether the device side uses 10-32UNF, 5/16-24, M6, 1/2-20, or a Luer format.
For combination specifications, verify the CHRH number. If only the ferrule is needed, select the corresponding standalone ferrule item.
For an explicit pressure requirement, first confirm CHZY-09, the only supplied option clearly marked 20 MPa.
Typical Applications
Select connection components according to tubing sizes such as 1/16, 1/8, and 3/16.
Suitable for systems requiring 10-32UNF, 5/16-24, M6, or 1/2-20 interface matching.
CHZY-09 explicitly includes a 10-32UNF / Luer-thread designation.
Purchase matched CHZY + CHRH combinations or standalone ferrules according to the CHZY model and CHRH number.
FAQ
How many specifications are currently available?
The supplied specification table contains 18 purchasing options.
Which models are 1/16 + 10-32UNF?
The supplied data explicitly includes CHZY-01, CHZY-02, CHZY-08, and CHZY-10.
Which models use 5/16-24?
The current main combination specifications include CHZY-03, CHZY-04, CHZY-05, CHZY-06, and CHZY-07.
Which specification is explicitly rated to 20 MPa?
CHZY-09, listed as 10-32UNF / Luer thread, pressure rating 20 MPa.
Can ferrules be purchased separately?
Yes. The table includes several standalone ferrule items corresponding to CHRH-16, CHRH-04, CHRH-476, and CHRH-41.
CHZY-01, 02, 08, and 10 show the same interface data. Are they identical?
The supplied table only shows that all four are 1/16 + 10-32UNF and does not provide further structural or dimensional differences, so they should not be assumed to be identical.
Why does CHZY-41 not show detailed parameters?
One supplied purchasing entry is listed only as “CHZY-41” without size or interface information, so no additional values are inferred.
Purchasing & Technical Support
Select standard specifications by CHZY model, tubing size, thread interface, and CHRH matching number. If the exact model is uncertain, provide a photo of the existing connector, tubing outside diameter or specification, device-side thread, whether a ferrule is required, and the required quantity.
