Sample loops for HPLC/LC injection valves, analytical-instrument fluidics, method development, and laboratory fluidic systems. Standard nominal volumes include 5, 10, 20, 25, 50, 100, 200, 250, and 500 μL plus 1.0 and 5.0 mL. All standard models use a 1/16 in (approximately 1.6 mm) connection size for straightforward selection by target injection volume and instrument configuration.
CHDLH models are organized by nominal volume, covering micro, routine, and larger-volume injection ranges for HPLC injection-valve configuration, method development, fluidic maintenance, and research-instrument assembly.

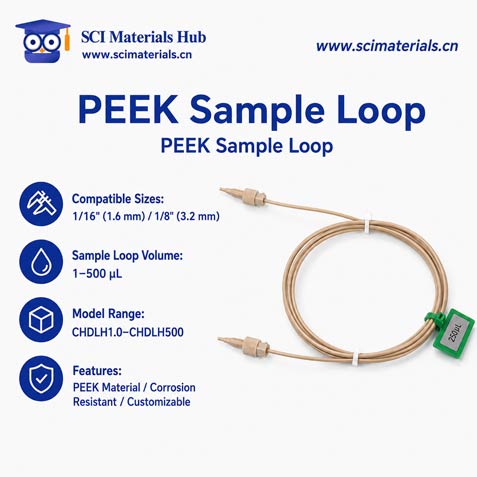

Sample loops are used in injection-valve fluid paths to define a fixed sample volume. This series spans from 5 μL micro-volume loops to 5.0 mL larger-volume loops. Select according to the analytical method, sample requirement, and instrument configuration, and confirm target volume, instrument model, valve interface, and 1/16 in connection compatibility before ordering.
Filter by volume range and volume unit to display matching CHDLH models and connection sizes.
The comparison table lists every standard CHDLH model with nominal volume, volume class, and connection size for direct side-by-side review.
| Model | Nominal Volume | Volume Unit | Volume Class | Connection Size | Metric Size |
|---|---|---|---|---|---|
| CHDLH05 | 5 | μL | Micro | 1/16 in | 1.6 mm |
| CHDLH10 | 10 | μL | Micro | 1/16 in | 1.6 mm |
| CHDLH20 | 20 | μL | Micro | 1/16 in | 1.6 mm |
| CHDLH25 | 25 | μL | Micro | 1/16 in | 1.6 mm |
| CHDLH50 | 50 | μL | Standard | 1/16 in | 1.6 mm |
| CHDLH100 | 100 | μL | Standard | 1/16 in | 1.6 mm |
| CHDLH200 | 200 | μL | Standard | 1/16 in | 1.6 mm |
| CHDLH250 | 250 | μL | Standard | 1/16 in | 1.6 mm |
| CHDLH500 | 500 | μL | Higher Volume | 1/16 in | 1.6 mm |
| CHDLH1.0 | 1.0 | mL | Large Volume | 1/16 in | 1.6 mm |
| CHDLH5.0 | 5.0 | mL | Large Volume | 1/16 in | 1.6 mm |
The main difference is nominal volume: CHDLH05 is 5 μL and CHDLH50 is 50 μL.
CHDLH1.0 is a 1.0 mL sample loop with a standard 1/16 in connection size.
Confirm the target sample volume, instrument model, injection-valve interface, tubing size, and installation geometry.
Yes. Use the volume and unit controls together to narrow the list to matching CHDLH models.
Yes. Provide the target volume, instrument model, interface conditions, quantity, and application for review by our sales and technical team.
Standard CHDLH models are available through marketplace channels. For bulk orders, volume selection, instrument-interface confirmation, or complete fluidic-system support, provide the target volume, instrument model, interface size, and quantity.
Availability, instrument compatibility, special configurations, and final delivery details are subject to order and technical confirmation.
Browse CHDLH HPLC sample loops by volume range, unit, and price. The model finder and parameter/price comparison are combined into one complete table. Standard models are available through Amazon and eBay, while bulk orders, special volumes, and instrument-interface requirements can be handled by direct quotation.
Determine the required sample volume first, then confirm the CHDLH model, price, and instrument interface.
Model lookup and parameter/price comparison are combined in one module. Filter by volume range, volume unit, and price range to display matching models, nominal volume, connection size, and whole-number USD pricing.
| Model | Nominal Volume | Unit | Volume Class | Connection Size | Metric Size | Price (USD) | Buy |
|---|---|---|---|---|---|---|---|
| CHDLH05 | 5 | μL | Micro | 1/16 in | 1.6 mm | $31 | Amazon |
| CHDLH10 | 10 | μL | Micro | 1/16 in | 1.6 mm | $31 | Amazon |
| CHDLH20 | 20 | μL | Micro | 1/16 in | 1.6 mm | $38 | Amazon |
| CHDLH25 | 25 | μL | Micro | 1/16 in | 1.6 mm | $38 | Amazon |
| CHDLH50 | 50 | μL | Standard | 1/16 in | 1.6 mm | $39 | Amazon |
| CHDLH100 | 100 | μL | Standard | 1/16 in | 1.6 mm | $40 | Amazon |
| CHDLH200 | 200 | μL | Standard | 1/16 in | 1.6 mm | $40 | Amazon |
| CHDLH250 | 250 | μL | Standard | 1/16 in | 1.6 mm | $65 | Amazon |
| CHDLH500 | 500 | μL | Higher Volume | 1/16 in | 1.6 mm | $68 | Amazon |
| CHDLH1.0 | 1.0 | mL | Large Volume | 1/16 in | 1.6 mm | $101 | Amazon |
| CHDLH5.0 | 5.0 | mL | Large Volume | 1/16 in | 1.6 mm | $128 | Amazon |
For bulk purchasing, instrument compatibility, or special specifications, provide the following information in one request.
All prices on this page are shown as whole-number USD amounts.
They are combined into one module: the controls filter the table below, which displays models, parameters, and prices together.
Yes. Volume range, unit, and price controls can be combined to narrow the table.
Yes. For example, you can combine “50–250 μL” + “μL” + a selected USD price range, and only matching models will remain visible.
Send the target volume, instrument model, valve interface, quantity, and application details by email, WeChat, WhatsApp, or phone for confirmation.
Standard CHDLH models are available online. For bulk orders, special volumes, instrument compatibility checks, or complete fluidic-system support, provide the target volume, model, quantity, instrument model, and interface conditions for faster quotation and technical review.
Prices are based on the current specification data. Availability, final transaction price, special configurations, and instrument compatibility are subject to final order and technical confirmation.
