A series of air electrodes designed for metal-air battery, air-electrode, and gas–liquid interface research. The current range includes six models—C20, M24, C30, F182, M182, and TG186—with multiple electrode-body sizes, top extension dimensions, and package quantities. Based on the supplied product image, a typical unit consists of a black rectangular electrode body with a silver-gray extension / conductive area at the top.
The page is organized around the actual product form and sales specifications, making it easy to compare models, dimensions, and package quantities.
Fueiceel® C20 / M24 / C30 / F182 / M182 / TG186 air electrodes form a systematic product platform for metal-air battery and air-electrode research.

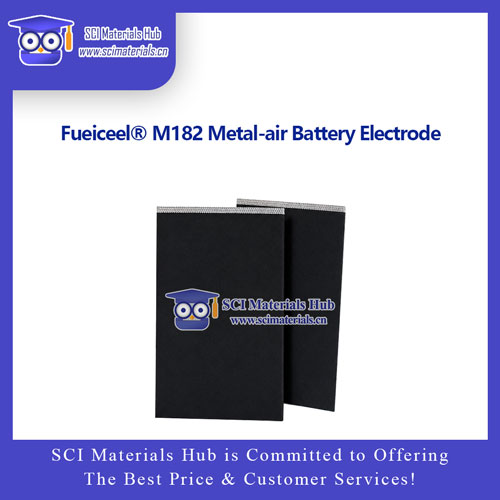

Based on the supplied product image, a typical electrode consists of a black rectangular body with a silver-gray top section. For the 72 × (108+4) mm format, 72 mm is the body width, 108 mm is the body height, and +4 mm is the top extension.
The current information is intended primarily for model, size, and price selection. Catalyst-layer composition, catalyst loading, membrane thickness, gas permeability, electrochemical performance, and related technical parameters should be confirmed from the technical data for the specific model.
Available in small, medium, and larger formats including 168 × (218+8) mm.
Available with multiple body sizes including 35, 72, 115, and 168 mm.
Available in multiple commonly used sizes for direct comparison with C20 and M24.
Available with body sizes including 35, 72, 115, and 168 mm.
Currently focused on sizes including 72, 115, and 168 mm.
Large-format specifications with package quantities ranging from small research batches to bulk purchasing.
The structural illustration is based on the supplied 72 × (108+4) mm product image.
The electrode body is a black rectangular sheet with a visible silver-gray extension / conductive area at the top.
Using72 × (108+4) mmas an example: 72 mm is the body width, 108 mm is the black electrode-body height, and +4 mm is the top extension area.
Specifications such as 115 × (115+4) mm and 168 × (218+8) mm follow the same notation. Final dimensions should be confirmed from the actual product and specification for the selected model.
Select the body width and height according to the battery window, fixture chamber, and available installation space.
Confirm whether a +4, +8, +10, or +20 mm top extension is compatible with the device.
Compare C20, M24, C30, F182, M182, and TG186 horizontally within the same size row.
Select the package quantity according to preliminary tests, parallel experiments, or batch projects.
The first column shows size and package quantity, while the first row lists the model family. “—” indicates that the corresponding combination is not listed in the current pricing data.
| Size / Package | C20 | M24 | C30 | F182 | M182 | TG186 |
|---|---|---|---|---|---|---|
| 35 × (80+4) mm 5 pcs | ¥110 | — | ¥130 | — | — | — |
| 35 × (80+10) mm 10 pcs | ¥219 | ¥170 | ¥219 | ¥170 | — | — |
| 72 × (108+4) mm 5 pcs | ¥190 | ¥150 | ¥228.5 | ¥150 | ¥150 | — |
| 72 × (108+4) mm 10 pcs | ¥342.5 | ¥285.5 | ¥409 | — | ¥285.5 | — |
| 72 × (108+4) mm 20 pcs | ¥586 | ¥523 | — | ¥523 | — | — |
| 100 × (100+4) mm 2 pcs | ¥150 | — | — | — | — | — |
| 115 × (115+4) mm 5 pcs | ¥323.5 | ¥238 | ¥352 | ¥238 | ¥238 | — |
| 115 × (115+4) mm 10 pcs | ¥542 | ¥475.5 | ¥586 | — | ¥475.5 | — |
| 115 × (115+4) mm 20 pcs | ¥962 | ¥820 | — | ¥820 | — | — |
| 168 × (218+8) mm 1 pc | ¥209.5 | ¥160 | ¥219 | ¥160 | ¥160 | — |
| 168 × (218+8) mm 10 pcs | ¥1676 | ¥1276.5 | ¥1506 | — | ¥1276.5 | — |
| 168 × (218+8) mm 20 pcs | ¥2530 | ¥2170 | — | ¥2170 | — | — |
| 169 × (195.5+20) mm 2 pcs | — | — | — | — | — | ¥238 |
| 169 × (195.5+20) mm 5 pcs | — | — | — | — | — | ¥580 |
| 169 × (195.5+20) mm 10 pcs | — | — | — | — | — | ¥1072 |
| 169 × (195.5+20) mm 50 pcs | — | — | — | — | — | ¥3930 |
| 169 × (195.5+20) mm 100 pcs | — | — | — | — | — | ¥6510 |
| 169 × (195.5+20) mm 500 pcs | — | — | — | — | — | ¥27010 |
| 169 × (195.5+20) mm 1000 pcs | — | — | — | — | — | ¥50410 |
Air-electrode configuration, battery-structure assembly, and comparative electrode screening.
Research experiments involving different models, sizes, and installation structures.
For studies involving gas supply, liquid-phase contact, and porous interfaces.
Suitable for projects ranging from small research sample quantities to hundreds or thousands of pieces.
Standard specifications can be ordered directly. Please contact us in advance for custom dimensions, bulk purchases, model confirmation, or project-specific application support.
Standard specifications, bulk purchasing, and research-project support for C20 / M24 / C30 / F182 / M182 / TG186.
Providing complete information helps us confirm the model and quotation more efficiently.
Models are arranged across the first row and electrode sizes down the first column. Each cell lists the available package quantities and prices for that model-size combination.
| Size / Model | C20 | C30 | F182 | M24 | M182 | TG186 |
|---|---|---|---|---|---|---|
| 35 × (80 + 4) mm | 5 pcs $22 | 5 pcs $26 | — | — | — | — |
| 35 × (80 + 10) mm | 10 pcs $44 | 10 pcs $44 | 10 pcs $34 | 10 pcs $34 | — | — |
| 72 × (108 + 4) mm | 5 pcs $38 10 pcs $69 20 pcs $118 | 5 pcs $46 10 pcs $82 | 5 pcs $30 20 pcs $105 | 5 pcs $30 10 pcs $58 20 pcs $105 | 5 pcs $30 10 pcs $58 | — |
| 100 × (100 + 4) mm | 2 pcs $30 | — | — | — | — | — |
| 115 × (115 + 4) mm | 5 pcs $65 10 pcs $109 20 pcs $193 | 5 pcs $71 10 pcs $118 | 5 pcs $48 20 pcs $164 | 5 pcs $48 10 pcs $96 20 pcs $164 | 5 pcs $48 10 pcs $96 | — |
| 168 × (218 + 8) mm | 1 pc $42 10 pcs $336 20 pcs $506 | 1 pc $44 10 pcs $302 | 1 pc $32 20 pcs $434 | 1 pc $32 10 pcs $256 20 pcs $434 | 1 pc $32 10 pcs $256 | — |
| 169 × (195.5 + 20) mm TG186 | — | — | — | — | — | 2 pcs $48 5 pcs $116 10 pcs $215 50 pcs $786 100 pcs $1302 500 pcs $5402 1000 pcs $10082 |
