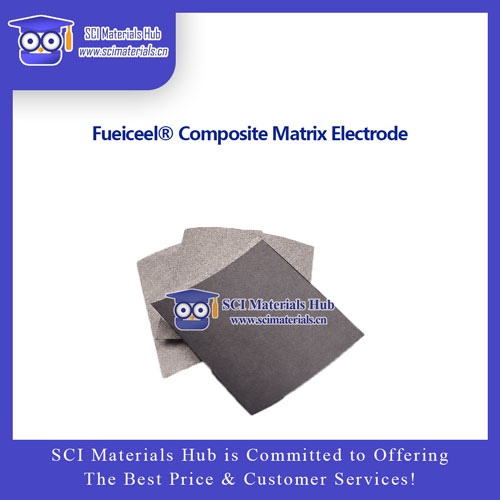

Fueiceel® Composite Matrix Electrode

  • Product Code：
  • Description：Fueiceel® Composite Matrix Electrode
  • Brand：Fueiceel®
  • Lead time：Please ask
  • Views：
  • Telephone：+86 153-5789-9751; +86 156-0553-2352
  • Keywords：Fueiceel® Composite Matrix Electrode

Fueiceel® Composite Electrode SubstrateComposite Electrode Substrate

A multilayer electrode substrate formed by laminating carbon paper or carbon cloth, a waterproof layer, and a current-collecting layer. It is designed for air-electrode, zinc-air battery, and other metal-air battery research. The composite structure combines conductive support, gas transport, and liquid blocking, helping reduce leakage, electrolyte seepage, electrode flooding, and blockage of gas pathways during air-electrode operation.

StructureMultilayer Composite SubstrateCarbon Paper / Carbon Cloth Waterproof LayerWaterproof Membrane Current CollectorNickel Foam Size10 × 10 cm
3-Layer Composite Substrate · Waterproof Layer · Current Collector
Hydrophilic / Hydrophobic Two Carbon-Paper Types
10 × 10 cm Current Standard Size
Cut-to-Size Thin-Sheet Research Substrate
PRODUCT OVERVIEW

Product Overview

The conductive substrate, waterproof structure, and current collector are pre-laminated to reduce repeated assembly steps in air-electrode experiments.

Fueiceel® composite electrode substrates combine carbon paper or carbon cloth, a waterproof layer, and a current-collecting layer into a multilayer substrate that can be used directly for subsequent catalyst loading and air-electrode fabrication.

The laminated structure helps improve bonding stability among the functional layers while supporting electrical conduction, liquid resistance, and gas-pathway requirements. In air-electrode operation, it can help reduce leakage, seepage, and excessive electrolyte intrusion into gas channels.

No pretreatment is required. Catalyst material can be coated uniformly onto the carbon-paper or carbon-cloth side and dried to obtain the desired electrode material. The thin-sheet format can also be cut to match the experimental dimensions.

Product Name Composite Electrode Substrate
Brand Fueiceel®
Substrate Carbon Paper / Carbon Cloth
Functional Layer Waterproof Membrane
Current-Collecting Structure Nickel Foam
Standard Size 10 × 10 cm
MULTILAYER STRUCTURE

Three-Layer Composite Structure

Each functional layer serves a distinct role, including catalyst support, gas–liquid interface management, and current collection.

01

Carbon Paper / Carbon Cloth Substrate

Serves as the base for catalyst loading and porous-electrode construction. Catalyst material can be coated on this side, and the sheet can be cut further according to the required electrode dimensions.

02

Waterproof Functional Layer

Located in the middle of the composite structure to help establish the gas–liquid interface in an air electrode and reduce the risk of leakage, seepage, and excessive liquid intrusion.

03

Current-Collecting Layer / Nickel Foam

Provides conductive support and current collection. After lamination with the carbon layer and waterproof layer, it forms an integrated thin sheet that is convenient for air-electrode assembly and subsequent use.

KEY FEATURES

Key Features

01 Pre-Laminated Structure

Multiple layers are pre-laminated to reduce repetitive stacking and fixing during experiments.

02 Integrated Lamination

The layers are combined into an integrated structure for convenient catalyst-layer preparation and electrode assembly.

03 Gas–Liquid Interface Design

The waterproof layer can help reduce the risk of electrolyte entering the gas pathway.

04 Easy to Cut

The thin-sheet structure can be cut according to the experimental fixture and active area.

SUBSTRATE OPTIONS

Substrate Types

Current standard products are available with either hydrophilic or hydrophobic carbon paper.

HYDROPHILIC

Hydrophilic Carbon-Paper Composite Substrate

Composed of hydrophilic carbon paper, a waterproof membrane, and nickel foam. Suitable for air-electrode research where improved liquid wetting on the carbon-paper side is desired.

Hydrophilic Carbon Paper Waterproof Membrane Nickel Foam
HYDROPHOBIC

Hydrophobic Carbon-Paper Composite Substrate

Composed of hydrophobic carbon paper, a waterproof membrane, and nickel foam. Suitable for air-electrode research where reduced liquid wetting on the carbon-paper side and gas–liquid interface behavior are important.

Hydrophobic Carbon Paper Waterproof Membrane Nickel Foam
CORE SPECIFICATIONS

Core Specifications

Only confirmed specifications are shown. Porosity, area resistance, gas permeability, and other values are not estimated where supporting test data have not been provided.

Product Form Multilayer Composite Sheet
Carbon Material Carbon Paper / Carbon Cloth
Carbon-Paper Type Hydrophilic / Hydrophobic
Waterproof Structure Waterproof Membrane
Current-Collecting Structure Nickel Foam
Standard Size 100 × 100 mm
Pretreatment No Pretreatment Required Ready for subsequent electrode fabrication
Processing User-Cuttable A sharp utility / paper cutter is recommended
SPECIFICATION & PRICE

Standard Sizes & Pricing

Both current standard composite structures are supplied in 10 × 10 cm size. Only final selling prices are shown.

SizeCarbon-Paper TypeWaterproof LayerCurrent CollectorPrice
10 × 10 cmHydrophilic Carbon PaperNickel FoamWaterproof Membrane$28
Hydrophilic Carbon PaperWaterproof MembraneNickel Foam$28
Hydrophilic Carbon ClothNickel FoamWaterproof Membrane$54
Hydrophobic Carbon PaperNickel FoamWaterproof Membrane$28
Hydrophobic Carbon PaperWaterproof MembraneNickel Foam$28
Hydrophobic Carbon ClothNickel FoamWaterproof Membrane$69
Price unit: CNY per pack. The page displays final selling prices only and does not show internal procurement costs. Please contact us to confirm custom sizes or other substrate combinations according to project requirements.
USAGE INSTRUCTIONS

Usage Instructions

The composite substrate requires no pretreatment and can proceed directly to catalyst-layer preparation and electrode assembly.

STEP 01 No Pretreatment Required

Keep the composite substrate flat after removal from the package. No additional pretreatment is required.

STEP 02 Apply Catalyst Material

Apply the required catalyst material uniformly to the carbon-paper / carbon-cloth surface.

STEP 03 Dry the Coated Electrode

After coating, dry the electrode according to the catalyst-layer process requirements to obtain the desired electrode material.

STEP 04 Installation Orientation

During use, the carbon-paper / carbon-cloth side is recommended to face the electrolyte.

CUTTING & STORAGE

Cutting, Packaging & Storage

Cutting & Handling Notes

  • Slight curling may occur after roll lamination and can be a normal characteristic of a thin multilayer composite sheet.
  • Handle gently during use and storage. Keep the electrode as flat as possible and avoid bending.
  • Use a sharp utility knife, paper cutter, or similar cutting tool.
  • Ordinary scissors are not recommended because they can increase local compression, carbon-paper damage, or delamination risk.
  • The substrate is a thin-sheet material and can be cut according to the required electrode area.

Packaging & Storage Recommendations

  • For shipping, cushioning material and a flat support plate are recommended for protection.
  • Avoid dropping, folding, severe bending, or localized compression.
  • Avoid cracking the carbon paper and minimize the risk of delamination of the multilayer structure.
  • Store unused composite substrates in a sealed resealable bag.
  • Store flat and avoid placing heavy objects on the material for extended periods.
APPLICATIONS

Typical Applications

ZINC-AIR Zinc-Air Batteries

For zinc-air battery air-electrode substrates, catalyst-layer support, and gas–liquid interface structure research.

METAL-AIR Metal-Air Batteries

Can be used for air-electrode structure studies and material screening in other metal-air battery systems.

AIR CATHODE Air-Cathode Research

Suitable for catalyst coating, multilayer structure assembly, and air-cathode prototype development.

GAS-LIQUID Gas–Liquid Interface Research

For studying gas transport, electrolyte wetting, and interfacial conditions in porous electrodes.

PURCHASE & CONTACT

Purchase Channels & Custom Support

Standard specifications can be ordered directly. Please contact us in advance for custom dimensions, substrate structures, or bulk projects.

Fueiceel® Composite Electrode Substrate

Hydrophilic / Hydrophobic Carbon-Paper Composite · Research Selection · Bulk Purchasing · Custom Support

ONLINE STORE SCI Materials Hub View Online Product →
WECHAT SCI-Materials-Hub Copy WeChat ID
PHONE +86 130-0303-8751 Call Now
PHONE +86 156-0553-2352 Call Now
EMAIL contact@scimaterials.cn Request Quotation
STANDARD SIZE 10 × 10 cm View Sizes & Pricing

Recommended Information for Inquiries

The following information helps us identify the most suitable composite substrate efficiently.

01
Carbon Substrate Type Hydrophilic Carbon Paper / Hydrophobic Carbon Paper / Carbon Cloth
02
Target Size Standard 10 × 10 cm or Custom Size
03
Purchase Quantity Research Samples / Small Batch / Bulk
04
Experimental System Zinc-Air / Other Metal-Air Batteries
05
Special Requirements Dimensions, Substrate, Current Collector, or Project-Specific Requirements
FAQ

FAQ

What materials make up the composite electrode substrate?
The current standard structure consists of carbon paper, a waterproof membrane, and nickel foam. Hydrophilic or hydrophobic carbon-paper versions are available according to the required substrate wettability.
Is pretreatment required before use?
According to the current product-use information, no pretreatment is required. Catalyst coating and subsequent electrode fabrication can be performed directly.
Which side should the catalyst be coated on?
The catalyst material can be coated uniformly on the carbon-paper / carbon-cloth side. During use, this side is recommended to face the electrolyte.
Why are ordinary scissors not recommended for cutting?
The composite substrate is a multilayer thin-sheet structure. Ordinary scissors can create relatively high localized compression and bending during cutting, which may damage the carbon paper or cause interlayer separation. A sharp utility knife or paper cutter is recommended.
Is slight curling of the product normal?
Slight curling may occur after multilayer lamination. Handle gently during use and storage, keep the sheet as flat as possible, and avoid severe bending.
Are the hydrophilic and hydrophobic versions priced the same?
For the current standard 10 × 10 cm specification, both the hydrophilic carbon paper + waterproof membrane + nickel foam version and the hydrophobic carbon paper + waterproof membrane + nickel foam version are priced at ¥140 per pack.
Fueiceel® Composite Electrode Substrate Carbon Paper / Carbon Cloth · Waterproof Layer · Current Collector · Composite Substrate for Air-Electrode Research
Purchase & Support
Composite Substrate Electrode Price List

Contact Information

  • Mobile Taobao Store: Science Materials Station (科学材料站)
  • Taobao: Visit the Taobao store page
  • Phone: +86 130-0303-8751 / +86 156-0553-2352
  • WeChat: SCI-Materials-Hub
  • Quotation / Corporate Purchasing: contact@scimaterials.cn

Fueiceel® Composite Substrate Electrode Price List

Carbon Substrate Type × Composite Structure Price List

Youveim® composite substrate electrodes consist of carbon paper or carbon cloth, a waterproof membrane, and nickel foam. Hydrophilic and hydrophobic substrate options are available for selection according to the experimental system and electrode structure.

Brand: Youveim® Product: Composite Substrate Electrode Size: 10 × 10 cm Substrate: Hydrophilic / Hydrophobic Carbon Paper or Cloth Composite Layers: Waterproof Membrane + Nickel Foam Price Unit: USD / set
SizeCarbon Substrate TypeComposite StructurePrice
10 × 10 cm Square Composite Electrode Hydrophilic Carbon Paper N1 Hydrophilic Carbon Paper + Nickel Foam + Waterproof Membrane $28
Hydrophilic Carbon Paper N2 Hydrophilic Carbon Paper + Waterproof Membrane + Nickel Foam $28
Hydrophilic Carbon Cloth N3 Hydrophilic Carbon Cloth + Nickel Foam + Waterproof Membrane $54
Hydrophobic Carbon Paper P1 Hydrophobic Carbon Paper + Nickel Foam + Waterproof Membrane $28
Hydrophobic Carbon Paper P2 Hydrophobic Carbon Paper + Waterproof Membrane + Nickel Foam $28
Hydrophobic Carbon Cloth P3 Hydrophobic Carbon Cloth + Nickel Foam + Waterproof Membrane $69
Selection Note: All listed products are 10 × 10 cm square composite substrate electrodes. Select a hydrophilic or hydrophobic carbon-paper/carbon-cloth structure according to the experimental system.
Currency Conversion: USD price = CNY price ÷ 5, rounded up to the nearest whole US dollar.

Partial references citing our materials (from Google Scholar)


Carbon Dioxide Reduction

1. ACS Nano Strain Relaxation in Metal Alloy Catalysts Steers the Product Selectivity of Electrocatalytic CO2 Reduction

The bipolar membrane (Fumasep FBM) in this paper was purchased from SCI Materials Hub, which was used in rechargeable Zn-CO2 battery tests. The authors reported a strain relaxation strategy to determine lattice strains in bimetal MNi alloys (M = Pd, Ag, and Au) and realized an outstanding CO2-to-CO Faradaic efficiency of 96.6% with outstanding activity and durability toward a Zn-CO2 battery.


2. Front. Chem. Boosting Electrochemical Carbon Dioxide Reduction on Atomically Dispersed Nickel Catalyst

In this paper, Vulcan XC-72R was purchased from SCI Materials Hub. Vulcan XC 72R carbon is the most common catalyst support used in the anode and cathode electrodes of Polymer Electrolyte Membrane Fuel Cells (PEMFC), Direct Methanol Fuel Cells (DMFC), Alkaline Fuel Cells (AFC), Microbial Fuel Cells (MFC), Phosphoric Acid Fuel Cells (PAFC), and many more!


3. Adv. Mater. Partially Nitrided Ni Nanoclusters Achieve Energy-Efficient Electrocatalytic CO2 Reduction to CO at Ultralow Overpotential

An AEM membrane (Sustainion X37-50 Grade RT, purchased from SCI Materials Hub) was activated in 1 M KOH for 24 h, washed with ultra-purity water prior to use.


4. Adv. Funct. Mater. Nanoconfined Molecular Catalysts in Integrated Gas Diffusion Electrodes for High-Current-Density CO2 Electroreduction

In this paper (Supporting Information), an anion exchanged membrane (Fumasep FAB-PK-130 obtained from SCI Materials Hub (www.scimaterials.cn)) was used to separate the catholyte and anolyte chambers.

SCI Materials Hub: we also recommend our Fumasep FAB-PK-75 for the use in a flow cell.


5. Appl. Catal. B Efficient utilization of nickel single atoms for CO2 electroreduction by constructing 3D interconnected nitrogen-doped carbon tube network

In this paper, the Nafion 117 membrane was obtained from SCI Materials Hub.


6. Vacuum Modulable Cu(0)/Cu(I)/Cu(II) sites of Cu/C catalysts derived from MOF for highly selective CO2 electroreduction to hydrocarbons

In this paper, Proton exchange membrane (Nafion 117), Nafion D520, and Toray 060 carbon paper were purchased from SCI Materials Hub.


7. National Science Review Confinement of ionomer for electrocatalytic CO2 reduction reaction via efficient mass transfer pathways

An anion exchange membrane (PiperION-A15-HCO3) was obtained from SCI Materials Hub.


8. Catalysis Communications Facilitating CO2 electroreduction to C2H4 through facile regulating {100} & {111} grain boundary of Cu2O

Carbon paper (TGPH060), membrane solution (Nafion D520), and ionic membrane (Nafion N117) were obtained from Wuhu Eryi Material Technology Co., Ltd (a company under SCI Materials Hub).


Batteries

1. J. Mater. Chem. A Blocking polysulfides with a Janus Fe3C/N-CNF@RGO electrode via physiochemical confinement and catalytic conversion for high-performance lithium–sulfur batteries

Graphene oxide (GO) in this paper was obtained from SCI Materials Hub. The authors introduced a Janus Fe3C/N-CNF@RGO electrode consisting of 1D Fe3C decorated N-doped carbon nanofibers (Fe3C/N-CNFs) side and 2D reduced graphene oxide (RGO) side as the free-standing carrier of Li2S6 catholyte to improve the overall electrochemical performance of Li-S batteries.


2. Joule A high-voltage and stable zinc-air battery enabled by dual-hydrophobic-induced proton shuttle shielding

This paper used more than 10 kinds of materials from SCI Materials Hub and the authors gave detailed properity comparsion.

The commercial IEMs of Fumasep FAB-PK-130 and Nafion N117 were obtained from SCI Materials Hub.

Gas diffusion layers of GDL340 (CeTech) and SGL39BC (Sigracet) and Nafion dispersion (Nafion D520) were obtained from SCI Materials Hub.

Zn foil (100 mm thickness) and Zn powder were obtained from the SCI Materials Hub.

Commercial 20% Pt/C, 40% Pt/C and IrO2 catalysts were also obtained from SCI Materials Hub.


3. Journal of Energy Chemistry Vanadium oxide nanospheres encapsulated in N-doped carbon nanofibers with morphology and defect dual-engineering toward advanced aqueous zinc-ion batteries

In this paper, carbon cloth (W0S1011) was obtained from SCI Materials Hub. The flexible carbon cloth matrix guaranteed the stabilization of the electrode and improved the conductivity of the cathode.


4. Energy Storage Materials Defect-abundant commercializable 3D carbon papers for fabricating composite Li anode with high loading and long life

The 3D carbon paper (TGPH060 raw paper) were purchased from SCI Materials Hub.


5. Nanomaterials A Stable Rechargeable Aqueous Zn–Air Battery Enabled by Heterogeneous MoS2 Cathode Catalysts

Nafion D520 (5 wt%), and carbon paper (GDL340) were received from SCI-Materials-Hub.


6. SSRN An Axially Directed Cobalt-Phthalocyanine Covalent Organic Polymer as High-Efficient Bifunctional Catalyst for Zn-Air Battery

Carbon cloth (W0S1011) and other electrochemical consumables required for air cathode were provided by SCI Materials Hub.


Oxygen Reduction Reaction

1. J. Chem. Eng. Superior Efficiency Hydrogen Peroxide Production in Acidic Media through Epoxy Group Adjacent to Co-O/C Active Centers on Carbon Black

In this paper, Vulcan XC 72 carbon black, ion membrane (Nafion N115, 127 μL), Nafion solution (D520, 5 wt%), and carbon paper (AvCarb GDS 2230 and Spectracarb 2050A-1050) were purchased from SCI Materials Hub.


2. Journal of Colloid and Interface Science Gaining insight into the impact of electronic property and interface electrostatic field on ORR kinetics in alloy engineering via theoretical prognostication and experimental validation

The 20 wt% Pt3M (M = Cr, Co, Cu, Pd, Sn, and Ir) were purchased from SCI Materials Hub. This work places emphasis on the kinetics of the ORR concerning Pt3M (M = Cr, Co, Cu, Pd, Sn, and Ir) catalysts, and integrates theoretical prognostication and experimental validation to illuminate the fundamental principles of alloy engineering.


Water Electrolysis

1. International Journal of Hydrogen Energy Gold as an efficient hydrogen isotope separation catalyst in proton exchange membrane water electrolysis

The cathodic catalysts of Pt/C (20 wt%, 2–3 nm) and Au/C (20 wt%, 4–5 nm) were purchased from SCI Materials Hub.


2. Small Science Silver Compositing Boosts Water Electrolysis Activity and Durability of RuO2 in a Proton-Exchange-Membrane Water Electrolyzer

Two fiber felts (0.35 mm thickness, SCI Materials Hub) were used as the porous transport layers at both the cathode and the anode.


3. Advanced Functional Materials Hierarchical Crystalline/Amorphous Heterostructure MoNi/NiMoOx for Electrochemical Hydrogen Evolution with Industry-Level Activity and Stability

Anion-exchange membrane (FAA-3-PK-130) was obtained from SCI Materials Hub website.


Fuel Cells

1. Polymer Sub-two-micron ultrathin proton exchange membrane with reinforced mechanical strength

Gas diffusion electrode (60% Pt/C, Carbon paper) was purchased from SCI Materials Hub.


Characterization

1. Chemical Engineering Journal Electrochemical reconstitution of Prussian blue analogue for coupling furfural electro-oxidation with photo-assisted hydrogen evolution reaction

An Au nanoparticle film was deposited on the total reflecting plane of a single reflection ATR crystal (SCI Materials Hub, Wuhu, China) via sputter coater.

Related Products

We Provide A Broad Range of Materials, Instruments & Solutions in Advanced Science and Technologies About Us
Product consultation
Customer service1
Customer service2
After-sales and technical consultation
Customer service1
Customer service2
WeChat Customer Service

Back to top
