A metal-mesh gas diffusion electrode series designed for fuel cells, metal-air batteries, and gas-involved electrochemical research. Nickel mesh, copper mesh, and titanium mesh substrates are available and can be selected according to the experimental system, fixture dimensions, active area, electrolyte environment, and electrode-size requirements.
The same product series covers nickel, copper, and titanium mesh substrates, allowing selection according to the electrochemical system, dimensions, and material-compatibility requirements.
Metal-mesh gas diffusion electrodes use metal mesh as the conductive and mechanical support substrate. They can be used to build electrode structures that combine gas transport, electronic conduction, and reaction-interface functions. The metal framework provides stable mechanical support while facilitating reliable contact with battery fixtures, electrode end plates, and conductive components.
This series is divided by metal substrate intoNickel Mesh Gas Diffusion Electrodes、 Copper Mesh Gas Diffusion ElectrodesandTitanium Mesh Gas Diffusion Electrodes. Different metals have different conductivity, corrosion-resistance, and electrochemical-compatibility characteristics. Final selection should consider electrolyte composition, operating potential, reaction atmosphere, and fixture structure.
Standard products range from small laboratory samples to larger-area sheets, supporting material screening, compact electrochemical cells, fuel cells, metal-air batteries, and other gas-involved electrochemical experiments.
For material selection, prioritize electrolyte compatibility and operating potential, then consider conductivity, mechanical support, and dimensional requirements.
Uses nickel mesh as the conductive and mechanical support framework. Multiple standard dimensions and package quantities are available for fuel-cell, air-electrode, and related electrochemical research.
Uses copper mesh as the conductive metal support substrate for research systems requiring a defined metallic conductive framework. Material compatibility should be confirmed against the electrolyte and operating potential before use.

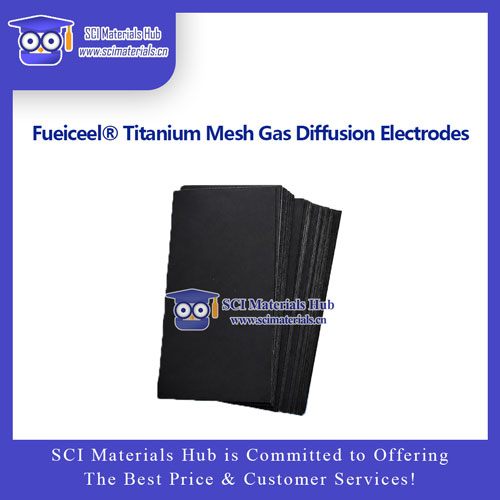

Uses titanium mesh as the metal substrate and is available in a broad range of standard sizes. It can be prioritized for electrochemical research where corrosion compatibility of the metal substrate is important.
| Substrate | Primary Selection Direction | Key Items to Confirm | Standard Options | Selection Guidance |
|---|---|---|---|---|
| Nickel Mesh | General Conductive Metal-Mesh Support | Electrolyte compatibility, mesh opening, thickness, cutting size | 3 Options | Recommended for General Comparison |
| Copper Mesh | Copper-Based Conductive Framework | Corrosive environment, operating potential, surface condition | 1 Option | Select After Confirming the System |
| Titanium Mesh | Titanium-Based Metal Support | Electrolyte environment, contact method, surface treatment | 6 Options | Priority Option for Corrosive Systems |
Within the electrode structure, the metal-mesh substrate mainly provides mechanical support, electrical conduction, and assistance in constructing the gas-transport interface.
The metal mesh provides stable structural support for the diffusion electrode and facilitates cutting, installation, and fixture clamping.
The metal substrate can serve as an important pathway for electron transport and connection to external test equipment.
The open structure of the metal mesh supports construction of gas-involved electrochemical reaction interfaces.
Nickel, copper, or titanium mesh can be selected according to the experimental system to meet different material-compatibility requirements.
The following are the current standard specifications. Each size and package quantity is listed separately for convenient experimental selection.
| Substrate | Size | Package | Reference Price | Notes |
|---|---|---|---|---|
| Nickel Mesh | 100 × 100 mm | 50 pcs | ¥1030 | Standard Options |
| Nickel Mesh | 100 × 200 mm | 2 pcs | ¥90 | Small Pack |
| Nickel Mesh | 100 × 200 mm | 5 pcs | ¥210 | Standard Pack |
| Substrate | Size | Package | Reference Price | Notes |
|---|---|---|---|---|
| Copper Mesh | 150 × 185 mm | 5 pcs | ¥295 | Standard Options |
| Substrate | Size | Package | Reference Price | Notes |
|---|---|---|---|---|
| Titanium Mesh | 35 × 80 mm | 5 pcs | ¥146 | Small Size |
| Titanium Mesh | 60 × 100 mm | 5 pcs | ¥238 | Standard Options |
| Titanium Mesh | 100 × 100 mm | 1 pc | ¥190 | Acidic-Electrode Specification |
| Titanium Mesh | 100 × 100 mm | 5 pcs | ¥390 | Standard Pack |
| Titanium Mesh | 165 × 100 mm | 5 pcs | ¥600.4 | Large Size |
| Titanium Mesh | 165 × 200 mm | 5 pcs | ¥1132 | Large Size |
We recommend selecting in the following order: Experimental System → Metal Substrate → Electrode Size → Package Quantity.
Evaluate metal compatibility according to electrolyte composition, operating potential, reaction gas, and experimental environment.
Choose a suitable conductive support substrate from nickel, copper, or titanium mesh.
Select the sheet dimensions according to the battery fixture, flow-field size, and active reaction area.
Select the package quantity according to consumption per experiment, number of repeated tests, and sample-screening requirements.
If mesh opening, thickness, surface condition, or active area has special requirements, confirm them in advance.
If standard specifications do not fit the experimental device, custom dimensions and quantities can be discussed.
Suitable for gas-involved electrochemical systems and development of metal-mesh-based electrode structures.
For gas diffusion electrodes, electrode structures, and related materials research.
Suitable for air-electrode and gas-involved electrochemical-system development.
For constructing metal-mesh-supported reaction electrodes and functional interfaces.
Compare the compatibility of different metal substrates in the target experimental system.
Suitable for experimental structures requiring a gas–electrode–electrolyte interface.
For compatibility studies among different substrates, functional layers, and fixture structures.
Multiple small-size options facilitate matching with laboratory electrochemical test devices.
Custom requirements can be confirmed according to the target fixture, active area, and experimental plan.
In addition to the standard nickel, copper, and titanium mesh specifications listed on this page, custom requirements can be discussed when the experimental device has special needs for sheet dimensions, package quantity, active area, or other structural parameters.
Common questions about selecting and using nickel, copper, and titanium mesh gas diffusion electrodes.
Specifications and pricing for nickel mesh, copper mesh, and titanium mesh gas diffusion electrodes
| Size | Nickel Mesh | Copper Mesh | Titanium Mesh |
|---|---|---|---|
| 35 × 80 mm | — | — | 5 pcs $30 |
| 60 × 100 mm | — | — | 5 pcs $48 |
| 10 × 10 cm 100 × 100 mm | 50 pcs $206 | — | 1 pc Acidic $38 5 pcs $78 |
| 100 × 200 mm | 2 pcs $18 5 pcs $42 | — | — |
| 150 × 185 mm | — | 5 pcs $59 | — |
| 165 × 100 mm | — | — | 5 pcs $120 |
| 165 × 200 mm | — | — | 5 pcs $227 |
