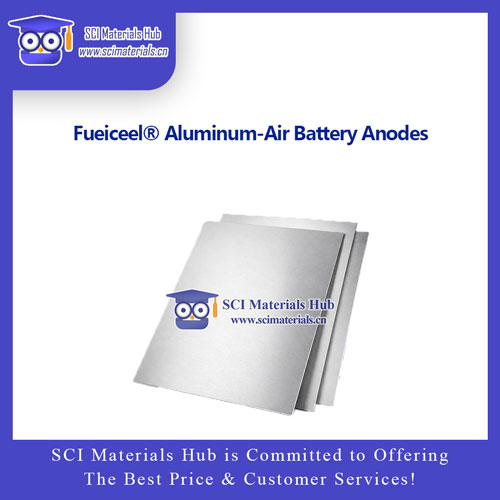

An aluminum-based anode sheet series designed for aluminum-air battery and metal-air battery research. Two standard models are available: JX15 Neutral and JX25 Alkaline. The standard sheet size is 200 × 155 mm, with 1-piece and 10-piece package options for laboratory electrode-material screening, aluminum-air cell assembly, and related electrochemical research.
JX15 and JX25 are intended for different experimental systems. Standard products use the same 200 × 155 mm sheet format, making laboratory selection, repeat testing, and sample management easier.
Aluminum-air battery anodes are metallic electrode materials used in metal-air battery research. In an experimental setup, they work together with the air electrode, electrolyte, and battery fixture to form the test system. This series is intended primarily for research and material validation, with JX15 and JX25 aluminum electrode sheets for different experimental environments.
Standard products are classified by experimental system asJX15 NeutralandJX25 Alkaline. Both versions use the same standard 200 × 155 mm format and are available in 1-piece or 10-piece packages for single-sample validation, repeat experiments, and multi-condition comparisons.
Select the model according to the target electrolyte environment, cell structure, air-electrode configuration, and experimental plan. If the test setup requires a special electrode shape, dimensions, installation position, or quantity, a non-standard processing option can be discussed.
The two models are separated by experimental system. Determine whether the experiment uses a neutral or alkaline environment first, then select the corresponding model and package quantity.
Designed for the neutral aluminum-air battery system defined in the supplied product information. The standard sheet size is 200 × 155 mm, with 1-piece and 10-piece packages for preliminary validation and repeated experiments.
Designed for the alkaline aluminum-air battery system defined in the supplied product information. It uses the same standard 200 × 155 mm format as JX15 and is also available in 1-piece and 10-piece packages for experiment planning and sample management.
| Model | System Type | Standard Size | Package | Selection Guidance |
|---|---|---|---|---|
| JX15 | Neutral | 200 × 155 mm | 1 / 10 pcs | Neutral-System Research |
| JX25 | Alkaline | 200 × 155 mm | 1 / 10 pcs | Alkaline-System Research |
The following diagram shows a typical functional relationship between the aluminum anode, electrolyte, and air electrode in an experimental cell. It is a structural illustration and does not represent product performance test results.
JX15 / JX25 aluminum electrode sheets are used as the metal anode material. Select the appropriate model according to whether the experimental system is neutral or alkaline.
Works together with the aluminum anode to form the aluminum-air battery experimental structure and establish the air-side electrochemical reaction interface.
The aluminum electrode sheet is used on the metal-anode side of aluminum-air and related metal-air battery experiments.
JX15 and JX25 correspond to the neutral and alkaline classifications in the supplied product information, making selection by experimental environment straightforward.
All four standard SKUs use the same 200 × 155 mm format, simplifying experimental setup, fixture matching, and sample management.
If the experimental fixture or cell structure requires another size or shape, cutting and processing options can be discussed.
This page lists JX15 Neutral and JX25 Alkaline in four standard specifications.
| Model | Type | Size | Package | Reference Price | Notes |
|---|---|---|---|---|---|
| JX15 | Neutral | 200 × 155 mm | 1 pc | ¥60 | Single-Piece Research Option |
| JX15 | Neutral | 200 × 155 mm | 10 pcs | ¥580 | Multi-Piece Research Option |
| JX25 | Alkaline | 200 × 155 mm | 1 pc | ¥60 | Single-Piece Research Option |
| JX25 | Alkaline | 200 × 155 mm | 10 pcs | ¥580 | Multi-Piece Research Option |
Recommended selection sequence: Experimental System → Product Model → Package Quantity → Fixture Dimensions.
First determine whether the experiment uses a neutral or alkaline system, then match the corresponding product model.
Select JX15 for the neutral classification and JX25 for the alkaline classification.
Choose the 1-piece option for single-sample validation; choose the 10-piece package for repeat experiments or multiple test groups.
The standard sheet is 200 × 155 mm. If the experimental fixture does not match directly, other dimensional requirements can be discussed.
Suitable for aluminum-air batteries, metal-air batteries, and research involving aluminum-based metal anodes.
For laboratory aluminum-air cell assembly, material validation, and experimental-system development.
Used as an aluminum-based metal anode material in related metal-air battery experiments.
For aluminum-anode material studies under different electrolytes and experimental conditions.
For structural compatibility studies among the aluminum anode, air electrode, electrolyte, and fixture.
JX15 is intended for the neutral experimental system defined in the supplied product information.
JX25 is intended for the alkaline experimental system defined in the supplied product information.
The 10-piece package is suitable for repeat experiments, multiple comparison groups, and continued use.
Other dimensions and special shapes can be discussed according to the experimental setup.
Standard JX15 / JX25 products use a unified 200 × 155 mm format. If the experimental fixture, battery housing, or active area requires another size, a custom aluminum-electrode solution can be discussed based on the experimental requirements, drawings, or dimensional parameters.
Common questions about JX15 / JX25 aluminum-air battery anode models, dimensions, and experimental selection.
Fueiceel® aluminum-air battery anodes are available in Neutral JX15, Alkaline JX15, ZXL15, and JXL25 series. Select the appropriate specification according to the electrolyte system, anode dimensions, thickness, and package quantity.
| Size / Thickness | Neutral JX15 | Alkaline JX15 | ZXL15 | JXL25 |
|---|---|---|---|---|
| 100 × 50 mm Thickness 1 mm | 6 pcs $42 | 6 pcs $42 | 6 pcs $42 | 6 pcs $42 |
| 61 × 135 mm Thickness 1 mm | 1 pc $8 6 pcs $17 20 pcs $42 | 1 pc $8 6 pcs $17 20 pcs $42 | 1 pc $8 6 pcs $17 20 pcs $42 | 1 pc $8 6 pcs $17 20 pcs $42 |
| 61 × 135 mm Thickness 2 mm | 1 pc $10 6 pcs $26 20 pcs $71 | 1 pc $10 6 pcs $26 20 pcs $71 | 1 pc $10 6 pcs $26 20 pcs $71 | 1 pc $10 6 pcs $26 20 pcs $71 |
| 61 × 135 mm Thickness 3 mm | 1 pc $12 6 pcs $38 20 pcs $105 | 1 pc $12 6 pcs $38 20 pcs $105 | 1 pc $12 6 pcs $38 20 pcs $105 | 1 pc $12 6 pcs $38 20 pcs $105 |
| 150 × 215 mm Thickness 3 mm | 1 pc $26 10 pcs $180 20 pcs $323 | 1 pc $26 10 pcs $180 20 pcs $323 | 1 pc $26 10 pcs $180 20 pcs $323 | 1 pc $26 10 pcs $180 20 pcs $323 |
| 150 × 217 mm Thickness 3 mm | 1 pc $60 | 1 pc $60 | 1 pc $60 | 1 pc $60 |
| 300 × 300 mm Thickness 3 mm | 1 pc $61 | 1 pc $61 | 1 pc $61 | 1 pc $61 |
| 100 × 115 mm Thickness 3.2 mm | 1 pc $14 6 pcs $44 20 pcs $134 | 1 pc $14 6 pcs $44 20 pcs $134 | 1 pc $14 6 pcs $44 20 pcs $134 | 1 pc $14 6 pcs $44 20 pcs $134 |
| 133 × 100 mm Thickness 4 mm | 1 pc $36 | 1 pc $36 | 1 pc $36 | 1 pc $36 |
| 240 × 110 mm Thickness 10 mm | 1 pc $154 | 1 pc $154 | 1 pc $154 | 1 pc $154 |
| 200 × 155 mm Thickness 10 mm | 1 pc $26 10 pcs $198 | 1 pc $26 10 pcs $198 | — | 1 pc $26 10 pcs $198 |
