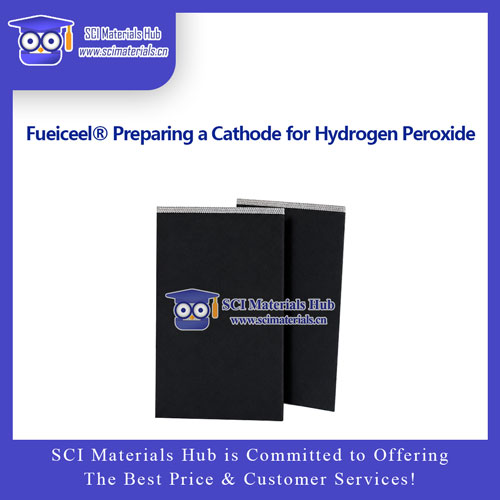

Fueiceel® Hydrogen Peroxide Generation Cathodes
A cathode series designed for electrochemical hydrogen peroxide generation, air-cathode reactions, and water-treatment-related research. Nickel mesh is used as the current collector. Standard sizes include 72 × (108 + 4) mm and 168 × (218 + 7 / 8) mm, with single-piece and multi-piece laboratory packages available. Custom dimensions and quantities can also be discussed.
Product Overview
The nickel-mesh current collector provides electrical connection and mechanical support, while the cathode body is intended for electrochemical hydrogen peroxide generation and air-cathode research systems.
Hydrogen peroxide generation cathodes are functional electrodes used forelectrochemical hydrogen peroxide generationand related air-cathode experiments. This series uses nickel mesh as the current collector. The metal-mesh framework provides conductive connection and mechanical support, facilitating integration with laboratory fixtures, electrode terminals, and reaction devices.
Standard products mainly cover two electrode-size groups. The smaller format uses72 × (108 + 4) mmconfiguration, where the additional dimension in parentheses represents the current-collection connection area outside the main electrode body. Larger formats include168 × (218 + 7) mmand168 × (218 + 8) mmconfigurations.
The products can be used in laboratory hydrogen peroxide generation devices, water-treatment-related electrochemical research, air-cathode system development, and electrode-structure screening. Electrolytes, gas-delivery methods, and fixture structures vary among experimental systems, so electrode dimensions and quantities should be selected according to the specific setup.
Nickel Mesh
Standard SKUs
Unit: mm
Unit: mm
Electrode Structure & Current Collection
The following is a structural illustration showing the basic relationship between the main electrode body and the nickel-mesh current-collection area. It is not based on a supplied reference image.
Nickel mesh serves as the current-collecting and supporting framework, facilitating electrical connection to external components and integration with laboratory fixtures.
Dimensions are expressed as “main body size + current-collection connection area,” making it easier to confirm the required installation space.
Standard products cover 72 × 108 mm and 168 × 218 mm main-body sizes for different experimental scales.
The smaller format is available in 2-, 3-, 5-, and 10-piece packages for sample validation and repeated experiments.
Suitable for development of research devices involving electrochemical hydrogen peroxide generation, air cathodes, and water-treatment-related electrochemistry.
Dimension Marking Guide
The dimension shown in parentheses represents the additional current-collection connection area. When selecting a product, confirm both the main electrode area and the installation space available in the fixture.
The main area is approximately 72 mm wide and 108 mm long, with an additional current-collection connection area of about 4 mm. Standard packages contain 2, 3, 5, or 10 pieces.
One of the larger-area versions, with a 168 × 218 mm main body plus an additional connection area of approximately 7 mm. Available as 1 pc or 10 pcs.
Another standard large-format version with the same 168 × 218 mm main body and an additional connection area of approximately 8 mm. The current standard option is 1 pc.
Specifications & Pricing
This page lists 7 standard sales specifications. All versions use nickel mesh as the current collector. Inventory, profit margin, and internal seller codes are not displayed.
| Current Collector | Electrode Size | Quantity | Reference Price | Specification Notes |
|---|---|---|---|---|
| Nickel Mesh | 72 × (108 + 4) mm | 2 pcs | ¥238 | Small-Format Research Pack |
| Nickel Mesh | 72 × (108 + 4) mm | 3 pcs | ¥352 | Small-Format Research Pack |
| Nickel Mesh | 72 × (108 + 4) mm | 5 pcs | ¥561 | Multi-Piece Research Pack |
| Nickel Mesh | 72 × (108 + 4) mm | 10 pcs | ¥892 | Repeat-Experiment Pack |
| Nickel Mesh | 168 × (218 + 7) mm | 1 pc | ¥570.5 | Large-Format Single Piece |
| Nickel Mesh | 168 × (218 + 7) mm | 10 pcs | ¥4000 | Large-Format Multi-Piece Pack |
| Nickel Mesh | 168 × (218 + 8) mm | 1 pc | ¥580 | Large-Format Single Piece |
Quick Selection
Recommended selection sequence: Experimental Device → Active Area → Current-Collection Tab Space → Required Quantity.
Confirm the Experimental Device
First confirm the available installation space in the hydrogen peroxide generation device, electrochemical reactor, or air-cathode fixture.
Confirm the Main Electrode Size
The two primary standard main-body sizes are 72 × 108 mm and 168 × 218 mm.
Allow Space for the Current-Collection Tab
Do not consider only the main electrode area. Also allow for the additional 4, 7, or 8 mm current-collection connection region.
Confirm Required Quantity
The smaller format is available in 2-, 3-, 5-, and 10-piece packages. Select the quantity according to repeat-test frequency and sample consumption.
Applications
Designed for research involving electrochemical hydrogen peroxide generation, air cathodes, and water-treatment-related electrochemistry.
For cathode-material research in laboratory electrochemical hydrogen peroxide generation systems.
For development of air-involved cathode structures, electrode interfaces, and experimental devices.
Can be used in research on water treatment and disinfection associated with hydrogen peroxide generation.
For comparing cathode materials and structural designs under different experimental conditions.
For studying compatibility among electrode dimensions, clamping methods, and reactor internal structures.
The 72 × 108 mm main-body size is suitable for compact laboratory devices and material validation.
The 168 × 218 mm main-body size is intended for experimental devices requiring a larger electrode area.
Custom requirements can be discussed according to the experimental fixture, reaction area, and connection method.
Custom Hydrogen Peroxide Generation Cathodes
In addition to the 7 standard specifications listed on this page, the product information also includes a custom hydrogen peroxide cathode option. If the standard dimensions do not match the experimental device, a non-standard solution can be discussed based on fixture space, main electrode area, current-collection connection region, and required quantity.
FAQ
Common questions about hydrogen peroxide generation cathodes, nickel-mesh current collectors, and dimensional selection.
