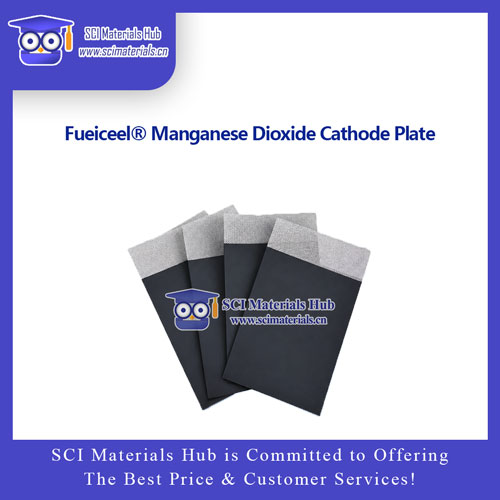

Fueiceel® Manganese Dioxide Cathodes
A manganese dioxide cathode sheet series designed for aqueous zinc–manganese batteries, zinc-based batteries, and related electrochemical research. Stainless steel mesh is used as the conductive current collector. Standard double-sided and single-sided coating versions are available, with active-material loadings of 12, 24, and 48 mg/cm². Available formats include square electrodes, compact electrodes with exposed current-collection tabs, 90 × 76.5 mm sheets, and electrodes for coin-cell experiments.
Product Overview
Uses stainless steel mesh as the conductive and mechanical support framework, covering standard double-sided, single-sided, square-sheet, exposed-tab, and coin-cell formats.
Manganese dioxide cathodes are prefabricated cathode sheets designed foraqueous zinc–manganese batteries and related electrochemical systems. The electrode uses stainless steel mesh as the current collector, with a manganese dioxide active-material layer formed on the metal-mesh framework for convenient conductive connection to laboratory fixtures, leads, or battery structures.
Standard manganese dioxide cathodes use adouble-sided active-material structure, meaning that active-material layers are present on both sides of the stainless steel mesh current collector. Some specifications are explicitly identified asSingle-Sided. These products have active material on only one side, while the other side remains the stainless steel mesh current-collector surface. This configuration is suitable for experiments with specific electrode orientation or assembly requirements.
Standard active-material loadings include 12, 24, and 48 mg/cm². Electrode dimensions include 10 × 10 mm, 20 × 20 mm, 25 × 25 mm, 90 × 76.5 mm, and Φ12 mm. Some square-sheet formats use a “main body size + 10 mm current-collection area” notation; the additional +10 mm is the exposed stainless steel mesh current-collection region.
Stainless Steel Mesh
Standard SKUs
mg/cm²
Double-Sided / Single-Sided
Double-Sided & Single-Sided Electrode Structures
The CSS-based structural illustrations below show the relationship between the manganese dioxide active layer and the stainless steel mesh current collector without using reference product images.
Standard Double-Sided MnO₂ Cathode
StandardActive-Material Layer
Current Collector
Active-Material Layer
Standard specifications use a double-sided coating structure. The stainless steel mesh is located within the electrode, with manganese dioxide active-material layers on both sides, making it suitable for general aqueous zinc–manganese battery and electrochemical-material experiments.
Single-Sided MnO₂ Cathode
Single-SidedActive-Material Layer
Current Collector
Exposed Side
Single-sided models have a manganese dioxide active-material layer on only one side, while the opposite side is the stainless steel mesh current collector. This configuration is suitable for experiments requiring a defined electrode orientation, contact method, or one-directional reaction interface.
Stainless Steel Mesh Current Collection
The stainless steel mesh provides both electrical connection and mechanical support for the electrode layer. Some models include an additional exposed current-collection region.
The metal mesh extends through the electrode body, providing mechanical support for the manganese dioxide electrode layer while establishing an electron-transport pathway.
For specifications marked 10 × (10 + 10) mm, 20 × (20 + 10) mm, and 25 × (25 + 10) mm, the additional +10 mm region is the exposed stainless steel mesh current-collection area.
The reverse side of a single-sided electrode has no active material, leaving the stainless steel mesh current collector exposed and making it easier to define the reaction side and current-collection direction.
Specifications & Pricing
The table below summarizes the 20 currently listed standard SKUs. Models marked “Single-Sided” have active material on only one side; all other standard models are shown as double-sided structures.
| Size / Specification | Coating Configuration | Active-Material Loading | Package Quantity | Reference Price |
|---|---|---|---|---|
| 10 × 10 mm | Double-Sided | 48 mg/cm² | 3 pcs | ¥120 |
| Φ12 mm | Single-Sided | 12 mg/cm² | 60 pcs | ¥1360 |
| 10 × (10 + 10) mm | Double-Sided | 24 mg/cm² | 2 pcs | ¥90 |
| 10 × (10 + 10) mm | Double-Sided | 24 mg/cm² | 3 pcs | ¥130 |
| 10 × (10 + 10) mm | Double-Sided | 48 mg/cm² | 2 pcs | ¥90 |
| 20 × 20 mm | Double-Sided | 24 mg/cm² | 2 pcs | ¥180 |
| 20 × 20 mm | Double-Sided | 48 mg/cm² | 2 pcs | ¥180 |
| 20 × (20 + 10) mm | Double-Sided | 24 mg/cm² | — | ¥100 |
| 20 × (20 + 10) mm | Double-Sided | 48 mg/cm² | — | ¥100 |
| 25 × 25 mm | Double-Sided | 24 mg/cm² | 1 pc | ¥106 |
| 25 × 25 mm | Double-Sided | 48 mg/cm² | 1 pc | ¥106 |
| 25 × (25 + 10) mm | Double-Sided | 24 mg/cm² | — | ¥110 |
| 25 × (25 + 10) mm | Double-Sided | 48 mg/cm² | — | ¥110 |
| 90 × 76.5 mm | Single-Sided | 12 mg/cm² | 1 pc | ¥130 |
| 90 × 76.5 mm | Double-Sided | 24 mg/cm² | 1 pc | ¥170 |
| 90 × 76.5 mm | Single-Sided | 24 mg/cm² | 1 pc | ¥130 |
| 90 × 76.5 mm | Double-Sided | 48 mg/cm² | 1 pc | ¥170 |
| 90 × 76.5 mm | Double-Sided | 48 mg/cm² | 8 pcs | ¥1181.5 |
| 25 × 25 mm for Coin-Cell Use | Single-Sided | 12 mg/cm² | 5 pcs | ¥304 |
| 25 × 25 mm for Coin-Cell Use | Single-Sided | 24 mg/cm² | 5 pcs | ¥304 |
Reference Technical Parameters
The following parameters are compiled from the supplied manganese-electrode parameter table and are intended as representative sample references. Values may vary with electrode size, loading, and single-/double-sided configuration.
| No. | Item | Unit | Test / Calculation Method | Reference Value |
|---|---|---|---|---|
| 01 | Point Resistance (Multimeter) | Ω | Direct multimeter measurement between the nearest two points | 50 ± 10 |
| 02 | Point Resistance (Internal Resistance Meter) | Ω | Direct internal-resistance-meter measurement using the nearest four points | 3 ± 0.5 |
| 03 | Thickness | mm | Thickness Gauge | 0.24 ± 0.01 |
| 04 | Electrode Sheet Weight | g | Electronic Balance | 4.5 ± 0.2 |
| 05 | Stainless Steel Weight | g | Electronic Balance | 2.2 ± 0.1 |
| 06 | Electrode Coating Weight | g | Electronic Balance | 2.4 ± 0.1 |
| 07 | Active-Material Weight | mg | Electronic Balance | 1600 ± 50 |
| 08 | Area | cm² | Ruler Measurement | 68 ± 2 |
| 09 | Areal Density | mg/cm² | Calculated | 24 ± 1 |
| 10 | Electrolyte Uptake | g/g | Soak the electrode sheet with current collector in 2 M zinc sulfate solution for 24 h, then calculate the ratio of absorbed electrolyte to total weight | 0.55 ± 0.05 |
| 11 | Capacity | mAh | Assemble a cell using one positive and two negative electrodes with AGM separators; discharge at 50 mA, approximately 0.73 mA/cm² | 400 ± 50 |
| 12 | Specific Capacity | mAh/g | Actual capacity divided by active-material mass | 220 ± 20 |
Quick Selection
Recommended selection sequence: Battery Structure → Single-/Double-Sided → Electrode Size → Active-Material Loading → Current-Collection Method.
Choose Single-Sided or Double-Sided
For general experiments, a double-sided structure can be considered first. If the reaction interface has a defined orientation, select a single-sided model.
Confirm Active-Material Loading
Current specifications cover 12, 24, and 48 mg/cm². Select the loading according to the experimental design.
Confirm Electrode Size
For small-scale experiments, choose 10, 20, or 25 mm square sheets. For larger-sheet experiments, choose 90 × 76.5 mm.
Determine Whether an Exposed Current-Collection Area Is Needed
If convenient clamping or wiring is required, choose a specification with an additional +10 mm stainless steel mesh current-collection area.
Applications
Suitable for aqueous zinc–manganese batteries, zinc-based energy-storage systems, and research involving manganese dioxide cathode materials.
For cathode-material and cell-assembly research in aqueous zinc–manganese batteries.
For comparing materials under different loadings, electrode areas, and structural conditions.
For research on zinc-based aqueous electrochemical systems and cathode structures.
Includes Φ12 mm and single-sided cathode specifications for coin-cell experiments.
Single-sided models are suitable for experimental structures requiring a defined reaction direction.
Standard double-sided structures are suitable for fundamental research on manganese dioxide cathode sheets.
For studying the structural relationship between the stainless steel mesh current collector and active-material layer.
Can be used for experimental research on electrode parameters such as thickness, areal density, electrolyte uptake, and capacity.
FAQ
Common questions about manganese dioxide cathodes, single-/double-sided structures, stainless steel mesh current collectors, and specification selection.
