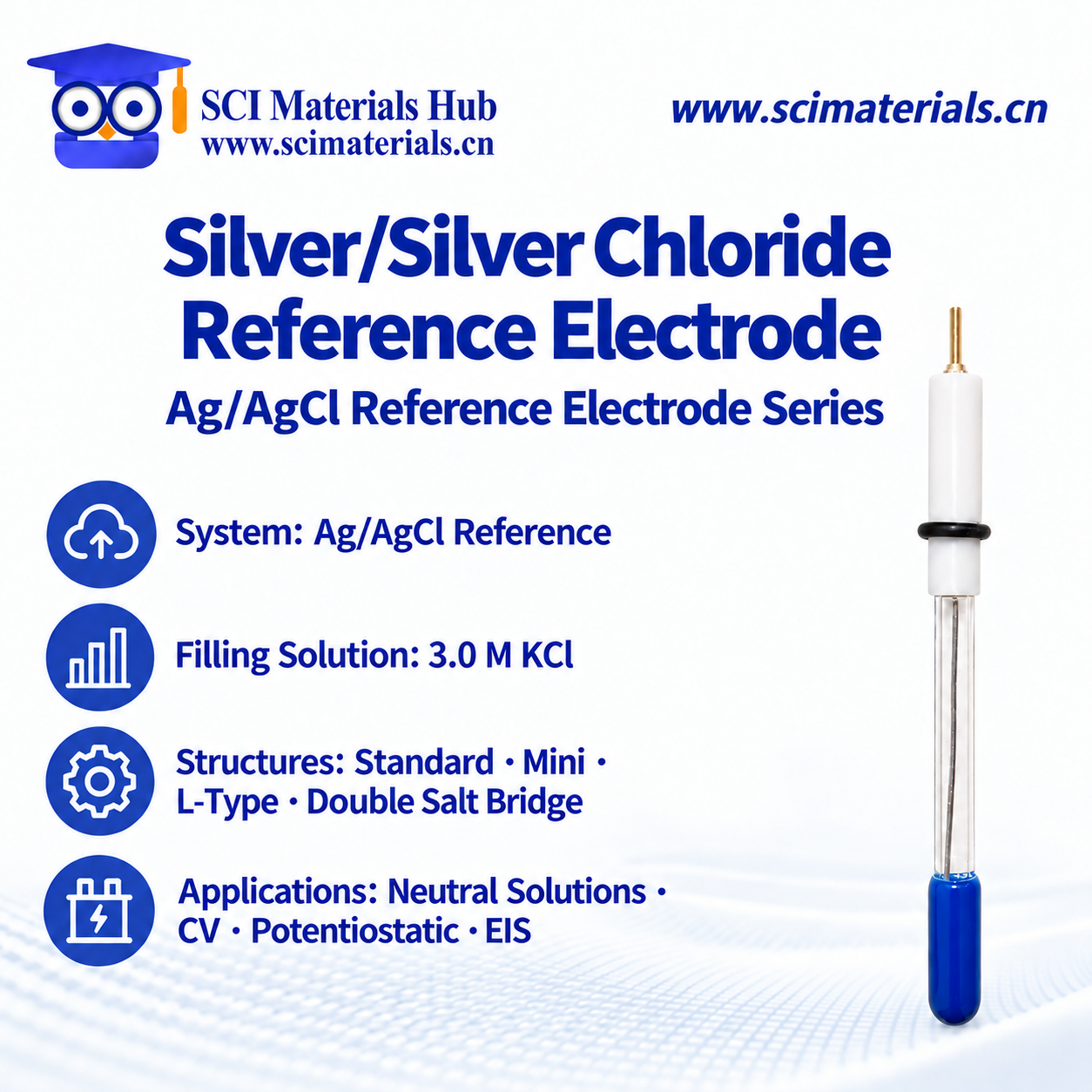

Ag/AgCl Reference Electrode

An Ag/AgCl reference electrode series for neutral solutions, including standard, miniature, L-shaped, extended-length, all-PTFE, and double-salt-bridge configurations.

Product Overview

The Ag/AgCl reference electrode uses an Ag/AgCl reference system and is suitable for electrochemical testing in neutral solutions. Different models provide different tube diameters, lengths, shaft structures, and salt bridge configurations for various electrochemical cells and experimental environments.

Electrode TypeAg/AgCl Reference Electrode

Recommended MediumNeutral solutions

Common Filling Solution3.0 M potassium chloride

ConfigurationsGlass tube, all-PTFE, double salt bridge, and L-shaped

Configurations

Standard type: suitable for routine electrochemical testing.
All-PTFE type: highly corrosion-resistant and suitable for specialized equipment.
Extended type: suitable for deeper cells or remote installation.
Miniature and L-shaped types: suitable for small cells, narrow spaces, and special installation positions.
Double-salt-bridge type: extends and buffers the liquid pathway while reducing the risk of sample contamination.

Applications

Three-electrode systems with electrochemical workstations.
Cyclic voltammetry, potentiostatic, and impedance testing.
Corrosion, electrodeposition, electrocatalysis, and materials research.
Neutral aqueous solutions and test systems requiring salt bridge protection.

Although Ag/AgCl and calomel electrodes may also be used with acidic or alkaline samples, strong acids and bases can shorten service life. Use with a salt bridge is recommended.

Filling Procedure

Remove the glass tube and add an appropriate amount of filling solution inside the tube.
Add filling solution to the PTFE sleeve or PTFE cap.
Reinsert the glass tube into the PTFE sleeve and allow the liquid levels on both sides to equilibrate.
Before use, hold the electrode upright and gently tap the tube so internal bubbles rise and disappear.

Precautions

During measurement, the internal salt bridge liquid level should be higher than the sample liquid level to prevent reverse permeation.
Avoid samples that react with the filling solution and form precipitates, which may block the porous ceramic junction.
Clean the electrode and replace the filling solution regularly to keep the liquid pathway open.
Some internal substances may be toxic and salt bridge solutions may be corrosive. Follow laboratory safety procedures.

Storage and Care

For short-term storage, immerse the electrode in the same filling solution used inside the electrode.
For long-term storage, cover the protective cap and store the electrode away from light.
A salt bridge may be added when required to extend, buffer, and protect the reference system.
Select the salt bridge filling solution according to the sample and experimental system.

Frequently Asked Questions

What solutions are suitable for an Ag/AgCl reference electrode?

It is mainly suitable for neutral solutions. For acidic or alkaline systems, use a salt bridge to reduce the impact on service life.

Why must bubbles be removed before use?

Bubbles may interrupt the internal ion pathway and cause potential drift or unstable measurements.

Why should the internal liquid level be higher than the sample?

Maintaining a positive hydraulic pressure difference helps reduce reverse penetration of the sample and contamination of the internal filling solution.

What is the purpose of a salt bridge?

A salt bridge extends the electrode, buffers liquid contact, and reduces contamination of the reference system by the sample.

Ag/AgCl Reference Electrode ' Specifications and Prices

ELECTROCHEMICAL REFERENCE ELECTRODES

Ag/AgCl Reference Electrode

Ag/AgCl reference electrode series for neutral solutions and electrochemical testing equipment.

Neutral Solutions3.0 M KCl Filling SolutionMultiple ConfigurationsSalt Bridge Protection

Specifications and Price Table

Product Name	Model / Type	Size / Configuration	Structure / Application	Sale Price (USD)
Ag/AgCl Reference Electrode	CHI111 Ag/AgCl	Φ4 × 50 mm	3.0 M KCl filling solution	$40
	SHI111 Ag/AgCl	Φ4 × 45 mm	Standard type	$26
	R218 Ag/AgCl	Φ6 × 65 mm	Regular type	$22
	R218-A Ag/AgCl	6 × 100 mm	Extended type	$38
	R0301 Ag/AgCl	All-PTFE Φ6 mm	All-PTFE configuration	$53
	R0302 Ag/AgCl	Φ4 × 100 mm	Extended type	$26
	R0303 Ag/AgCl	Φ3.8 × 50 mm	Miniature configuration	$24
	R0303 Ag/AgCl	Φ3.8 × 70 mm	Miniature extended configuration	$26
	R0303-F Ag/AgCl	All-PTFE Φ6 mm	All-PTFE configuration	$46
	R0305 Saturated Ag/AgCl	Φ6 × 65 mm	Saturated Ag/AgCl type	$28
	R0305-A Saturated Ag/AgCl	6 × 100 mm	Saturated extended type	$38
	R0306 Ag/AgCl	Φ6 × 70 mm	Regular type	$26
	R0306 Ag/AgCl	Φ6 × 100 mm	Extended type	$36
	R0306 Ag/AgCl	Φ6 × 140 mm	Long-shaft type	$38
	Double-Salt-Bridge Ag/AgCl Electrode	R218 + salt bridge	Double-salt-bridge configuration	$40
		R0303 + salt bridge	Double-salt-bridge configuration	$36
		R0306 + salt bridge	Double-salt-bridge configuration	$38
	Miniature Ag/AgCl	Φ3.8 × 15 mm	Miniature configuration	$34
	Miniature Extended Type	Φ3.8 × 20 mm	Miniature extended configuration	$34
	Miniature Ag/AgCl	Φ3.8 × 25 mm	Miniature configuration	$34
	L-Shaped Miniature Ag/AgCl	Φ3.8 × 30 mm	L-shaped miniature configuration	$34
	L-Shaped Ag/AgCl	Φ3.8 × 100 mm	L-shaped extended configuration	$34
	L-Shaped Ag/AgCl	Φ6 × 70 mm	L-shaped configuration	$30
	L-Shaped Ag/AgCl	Φ6 × 100 mm	L-shaped extended configuration	$34

For acidic, alkaline, or precipitation-prone systems, use a salt bridge where appropriate and remove internal bubbles before operation. USD prices are calculated as the CNY price divided by 5 and rounded to the nearest whole dollar.
