Suitable for standard salt bridges, Luggin capillaries, and routine laboratory procurement.
AmazonProduct Overview

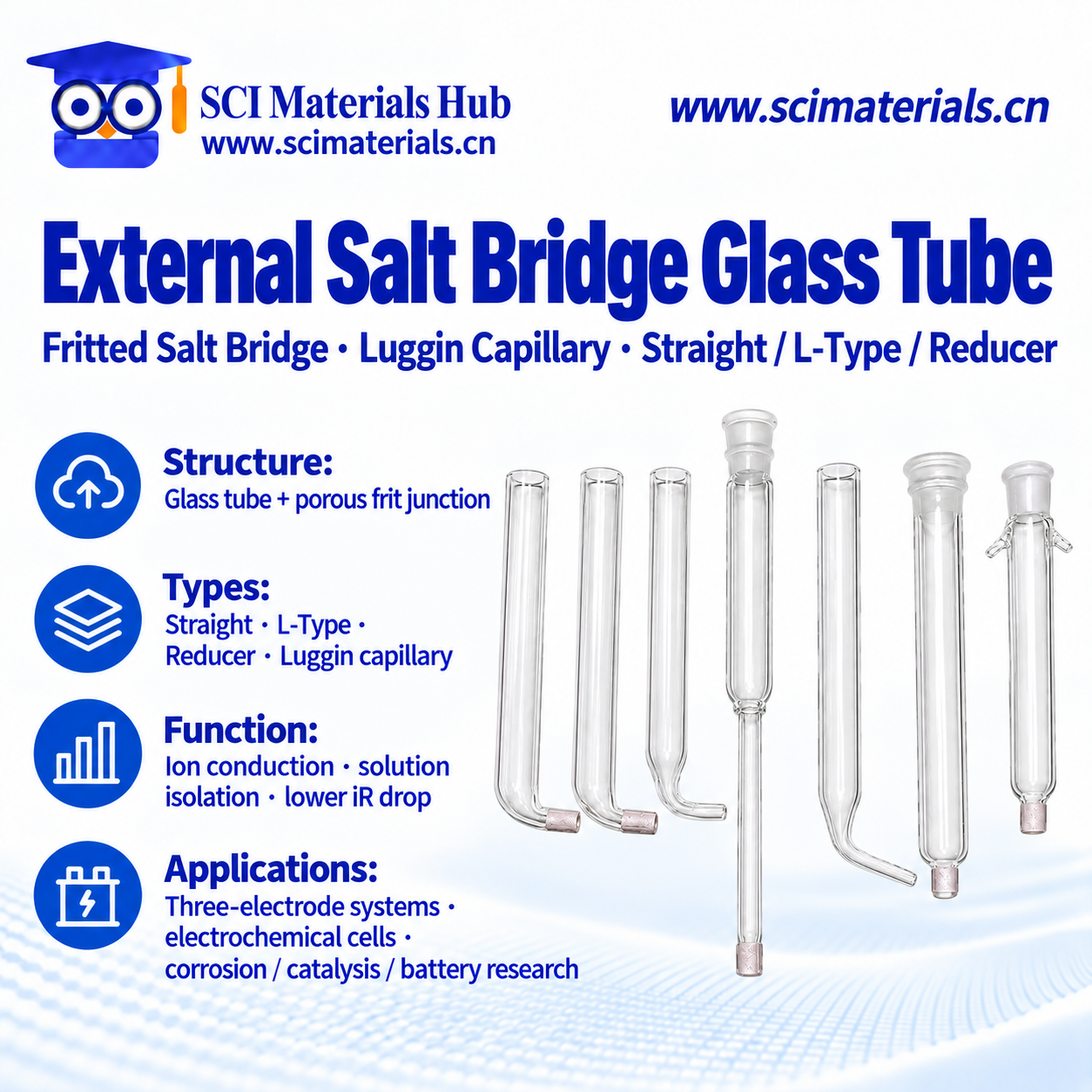

Sintered glass salt bridges use a porous sintered-glass liquid junction to provide ionic conduction between a reference electrode and the test solution while reducing contamination caused by direct contact between different solutions. Straight, L-shaped, reduced-diameter, and Luggin capillary structures are available for different cell spaces, installation directions, and reference electrode configurations.
Main StructureGlass tube with porous sintered-glass liquid junction
Common FormsStraight, L-shaped, and reduced-diameter designs
Compatible SystemsReference electrodes, working electrodes, and three-electrode setups
Sintered Glass Salt Bridge and Luggin Capillary Comparison
| Comparison Item | Sintered Glass Salt Bridge | Luggin Capillary |
|---|---|---|
| Main Function | Ionic conduction, solution isolation, and reduced cross-contamination | Shortened reference measurement path and reduced ohmic potential drop |
| Liquid Junction | Porous sintered-glass junction | Tip of a slender glass capillary |
| Installation Position | Between the reference electrode and test solution | Capillary tip positioned close to the working electrode surface |
| Primary Use | Isolation of different solutions and reference electrode protection | High-resistivity solutions or high-current testing |
| Common Structures | Straight, L-shaped, and reduced-diameter | L-shaped Luggin capillary and fine-tip capillary |
| Precaution | Prevent clogging, drying, cracking, and solution reactions | Do not position the tip too close to or in contact with the working electrode |
The two components can be used separately or together when reference electrode protection and accurate potential measurement are both important.
Applications
- Cyclic voltammetry, linear sweep, and potentiostatic electrochemical testing.
- Corrosion, electrocatalysis, battery, and electrolysis experiments.
- Solution isolation between reference and working electrodes.
- Electrochemical cells with deep liquid levels, limited space, or side-mounted components.
- High-resistance systems requiring reduced ohmic potential drop.
Luggin Capillary Principle and Function
When current passes through an electrochemical cell, an ohmic potential drop develops in the solution between the electrodes. This effect becomes more significant in high-resistivity solutions or at higher currents.
A Luggin capillary extends the reference-electrode solution path into a slender capillary whose tip is positioned close to the working electrode. This minimizes current in the reference measurement circuit and helps provide more accurate potential data.
The capillary tip should be close to the working electrode surface but not too close, because excessive proximity can create a shielding effect and alter current distribution. The recommended distance is generally no less than the outside diameter of the Luggin capillary.
Use
- Before use, inspect the glass tube, sintered-glass junction, and capillary tip for damage.
- Add a compatible electrolyte to the salt bridge or capillary while avoiding air bubbles.
- Immerse the sintered-glass junction in the test solution and keep the connection stable.
- When using a Luggin capillary, position the tip close to the working electrode without touching its surface.
- Rinse promptly after the experiment to prevent solution crystallization or contamination of the sintered-glass junction.
Preparation, Maintenance, and Storage
- To prepare an agar-saturated KCl salt bridge, add 3 g of agar to 97 mL of distilled water, heat in a water bath until fully dissolved, then add 30 g of KCl and mix thoroughly.
- After the KCl has fully dissolved, fill the hot solution into a pre-bent glass tube and allow the agar to solidify.
- Agar-saturated KCl salt bridges are not suitable for systems containing Ag+, Hg2+, ClO4-, or other species that may react with the bridge solution.
- Keep the test temperature below 70°C. Temperatures above 80°C may damage the salt bridge structure.
- After the experiment, rinse with deionized water and store immersed in saturated KCl solution to prevent cracking.
- Do not store other items in the salt-bridge container, and do not use the dedicated dropper for other purposes.
Frequently Asked Questions
What is the difference between a sintered glass salt bridge and a Luggin capillary?
A sintered glass salt bridge is mainly used for ionic connection and solution isolation. A Luggin capillary is mainly used to shorten the reference measurement path and reduce ohmic potential drop.
Can the tip of a Luggin capillary touch the working electrode?
Contact is not recommended. A tip that is too close may shield the surface, scratch the electrode, or affect current distribution.
Why can a salt bridge become clogged?
If the salt bridge solution reacts with the test solution and forms a precipitate, the precipitate may block the pores of the sintered-glass junction and destabilize the liquid junction.
Can salt bridges be used in high-temperature experiments?
Keep the test temperature below 70°C. Temperatures above 80°C may damage an agar salt bridge or related structures.
How should the component be stored after use?
Rinse it and keep the sintered-glass junction and capillary moist in a compatible solution to prevent drying, crystallization, and contamination.
