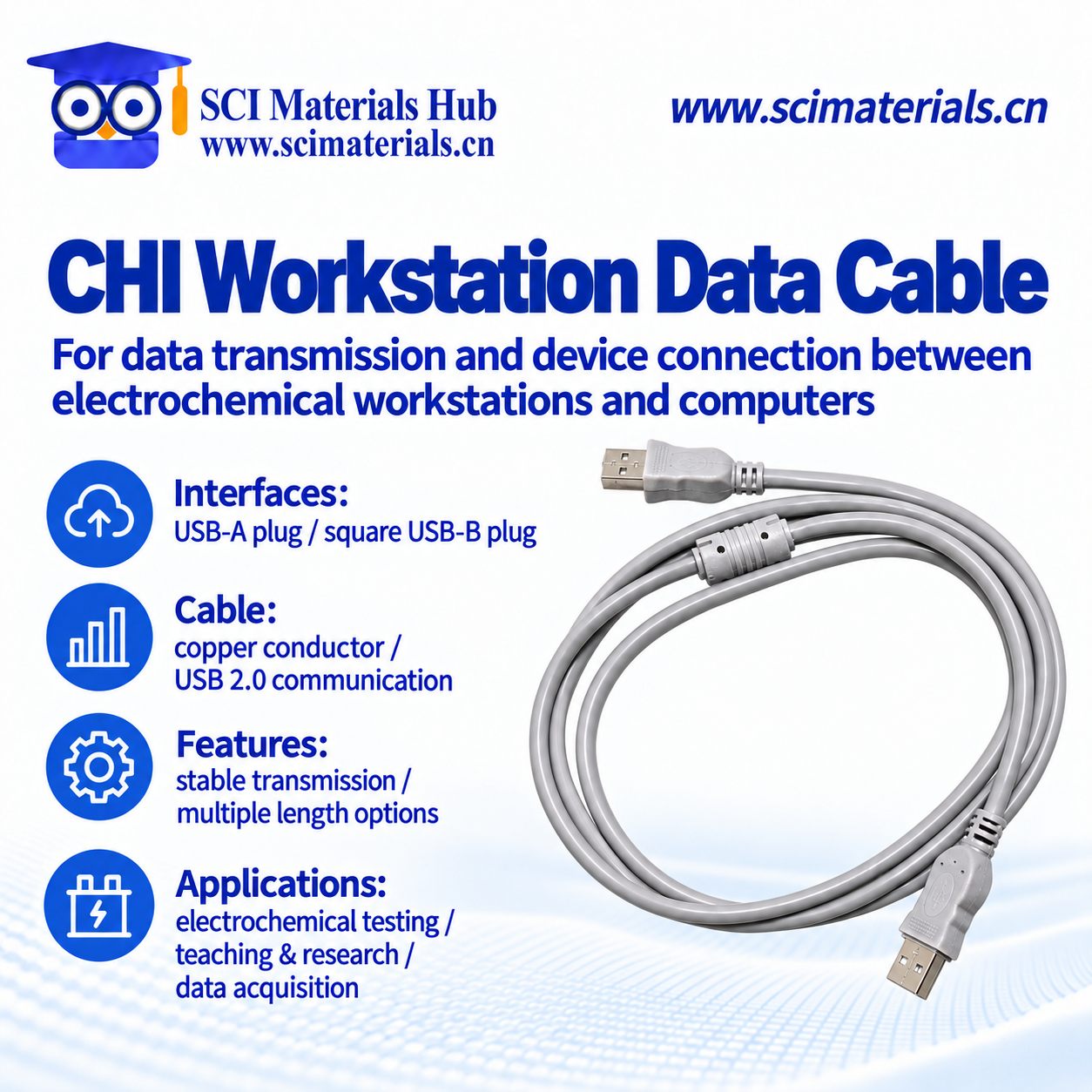

AmazonCHI Workstation Data Cable
Designed for data transfer and device communication between a computer and an electrochemical workstation in laboratory testing, teaching, and research environments.
Product Overview
The CHI workstation data cable is a USB 2.0 communication cable for electrochemical workstation data transfer. Its all-copper conductor provides good conductivity and stable communication between a computer USB port and the workstation interface.
It supports workstation software control, test data acquisition, experimental parameter setup, data storage, and result analysis. Standard lengths are available, and custom lengths can be selected according to the laboratory layout and distance between devices.
Product: CHI Workstation Data Cable. Select the cable length according to the installation distance, computer position, and laboratory bench layout.
Interface Structure
Computer-Side ConnectorUSB male connector for desktop computers, laptops, or other devices with a USB port.
Workstation-Side ConnectorSmall square male connector for the data communication interface of the electrochemical workstation.
Cable MaterialAll-copper conductor suitable for laboratory data transfer and instrument communication.
Connection Method
- Confirm that both the electrochemical workstation and computer are turned off or in a safe standby state.
- Insert the USB male connector into the computer USB port.
- Insert the small square male connector into the corresponding workstation data port.
- Turn on the computer and workstation, then open the supplied control or testing software.
- Confirm the device connection status in the software. Once communication is established, testing can begin.
Use and Applications
Software Control
After connection, the cable can be used to send workstation test programs, set experimental parameters, start or stop tests, and read test status.
Data Acquisition
It transfers current, potential, time, cyclic voltammetry curves, and other experimental data to a computer for storage and analysis.
Application Scenarios
- Cyclic voltammetry, chronoamperometry, chronopotentiometry, and other electrochemical experiments.
- Research testing for batteries, corrosion, electrocatalysis, and materials analysis.
- University teaching laboratories, research platforms, and routine testing laboratories.
Maintenance and Precautions
- Hold the connector housing when plugging or unplugging. Do not pull the cable itself.
- Do not use the cable in an environment with moisture, liquid, or heavy dust around the interfaces.
- Avoid prolonged bending, compression, crushing by heavy objects, or exposure to high heat.
- If communication is abnormal, reconnect both ends and check for loose or contaminated interfaces.
- Confirm that the workstation interface matches the cable before connection. Do not force the connector into place.
- When not in use for an extended period, disconnect the cable and coil it in a dry environment.
Frequently Asked Questions
Which two devices does this cable connect?
One end connects to a computer USB port, and the other connects to the small square data port of an electrochemical workstation.
Can it be used for charging?
This product is designed for instrument communication and data transfer. It is not recommended for charging unmatched devices.
Can the length be customized?
Standard lengths are available. Custom lengths can be discussed according to the device distance and laboratory bench layout.
What should I do if the computer cannot recognize the workstation?
Check that both connectors are fully inserted, the workstation power and driver software are working properly, and the matching interface and supplied software are being used.
