Passes a 400-mesh screen, with an average particle size of approximately 6 to 8 micrometers.

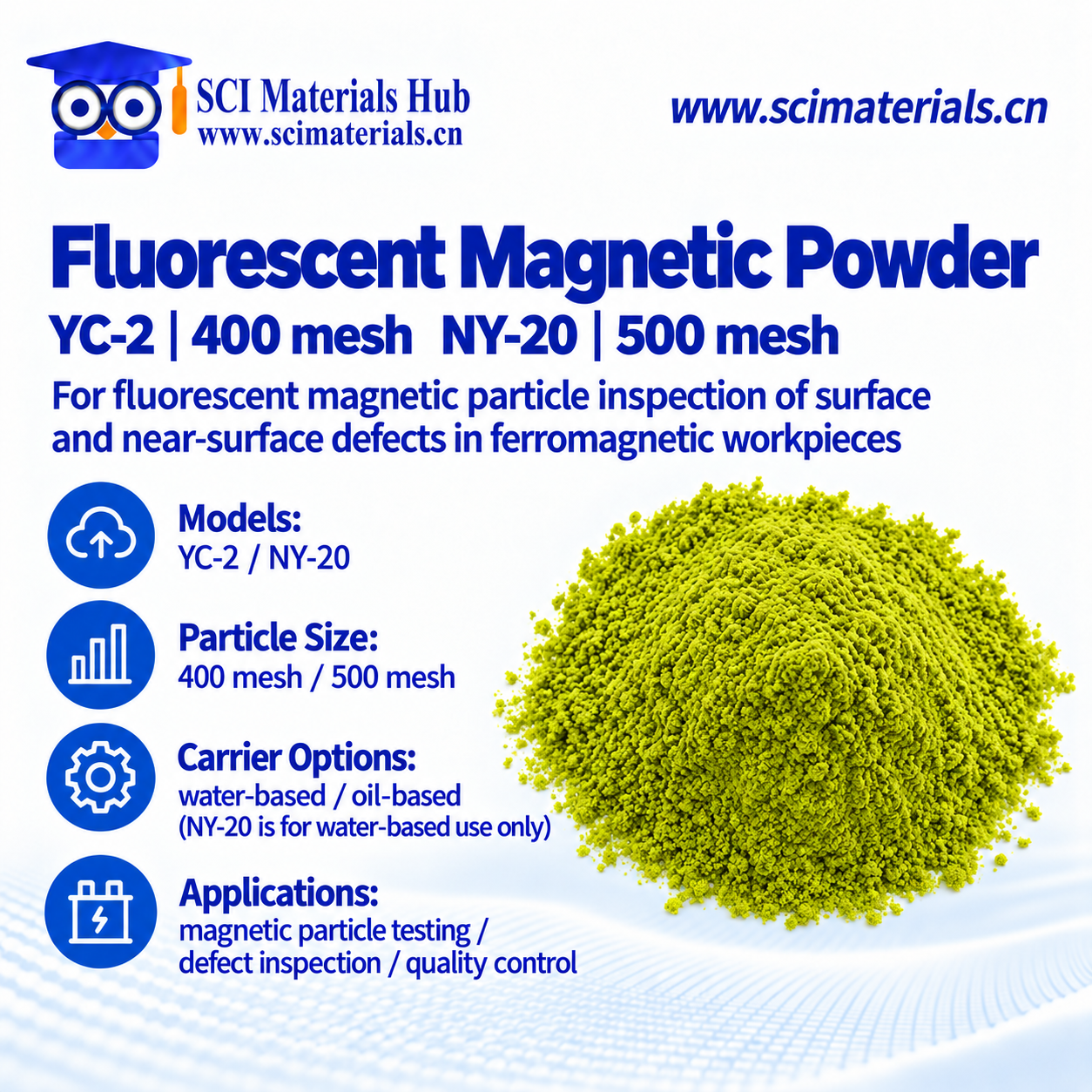

Available in YC-2, 400 mesh, and NY-20, 500 mesh, for fluorescent magnetic-particle inspection of surface and near-surface defects in ferromagnetic workpieces.
Fluorescent magnetic particle is an inspection material for ferromagnetic materials. After a workpiece is magnetized, leakage fields form around surface or near-surface defects. Magnetic particles in the suspension gather at these leakage fields and form clear fluorescent indications under long-wave ultraviolet illumination.
This series includes YC-2 and NY-20. The two models differ in particle fineness, suspension concentration, carrier liquid and preparation method. Select the product according to the inspection process.
| Comparison Item | YC-2 Fluorescent Magnetic Particle | NY-20 Fluorescent Magnetic Particle |
|---|---|---|
| Particle fineness | 400 mesh | 500 mesh |
| Recommended concentration | 1 to 3 g/L | 5 to 8 g/L, approximately 0.5% to 0.8% |
| Compatible carrier liquid | Water suspension or oil suspension | Water suspension only |
| Water-based preparation | Recommended with YF-1 dispersant | No additional additive required |
| Oil-based preparation | Can be used with FM-3 inspection carrier | Not applicable |
| Mixing time | Mix until uniformly dispersed | Recommended 5 to 10 minutes; extend to 10 to 15 minutes for larger systems |
Passes a 400-mesh screen, with an average particle size of approximately 6 to 8 micrometers.
Suitable for observing defect indications under ultraviolet illumination.
After preparation, particles should remain uniformly suspended in the carrier liquid.
| Technical Item | Parameter or Requirement |
|---|---|
| Model | YC-2 |
| Particle mesh | Passes a 400-mesh screen |
| Average particle size | 6 to 8 micrometers |
| Fluorescence brightness | 250 to 350 |
| Suspension performance | 200 to 230 mm |
| Impurities | <1% |
| Magnetic attraction test | No residue |
| Recommended concentration | 1 to 3 g of powder per liter of carrier liquid |
Fine 500-mesh particle suitable for water-based fluorescent magnetic-particle inspection.
Add 5 to 8 g of NY-20 fluorescent powder per liter of water suspension.
This model is for water suspension only and is not intended for oil suspension.
Measure the powder accurately according to the model, carrier volume and recommended concentration.
Add the powder to dispersant or a small amount of water so it becomes fully wetted.
Mix thoroughly until a uniform paste without obvious dry clumps is formed.
Add water slowly, then start agitation and spray circulation after adding the mixture to the tank.
Check the tank, pipes and suspension paths for foreign matter. Start agitation and spray circulation and inspect the returning water or oil. Clean the system immediately if contamination is present.
Prepare the suspension at the recommended concentration for YC-2 or NY-20. First make a paste with a small amount of carrier, then dilute it gradually and add it to the equipment tank.
Start agitation and spray circulation so the particles remain uniformly dispersed. Maintain suitable circulation throughout the inspection.
Select the magnetization method, field direction and magnetizing current according to the material, dimensions, shape, surface condition, defect direction, inspection method and effective inspection area.
Place an A-type test piece closely against the workpiece surface with the grooved side facing the workpiece. Do not cover the grooves with adhesive. Continue inspection only when the circular and cross indications are clearly visible.
Observe fluorescent particles under long-wave ultraviolet illumination that meets the inspection requirements. Warm up the ultraviolet lamp and wait for stable output before inspection.
| Standard | Standard Name | Application |
|---|---|---|
| JB/T 6063-2006 | Non-destructive Testing: Materials for Magnetic Particle Testing | Technical requirements for magnetic-particle inspection materials |
| JB/T 4730-2005 | Non-destructive Testing of Pressure Equipment | Reference for magnetic-particle inspection of pressure equipment |
| TB/T 2047-2005 | Technical Conditions for Magnetic Particles Used in Railway Magnetic-Particle Testing | Reference for railway magnetic-particle inspection materials |
Actual inspection and acceptance should follow the currently applicable standards and process documents for the user's industry and workpiece type.
Choose YC-2 when water-based or oil-based suspension is required. NY-20 is a 500-mesh product for water suspension only and requires no additional additive.
Wet the powder with YF-1 dispersant, mix it into a paste, gradually add the required water and mix thoroughly.
Mix the powder into a paste with a small amount of FM-3 inspection carrier, then add the remaining carrier and mix thoroughly.
No. NY-20 is intended for water suspension only.
No. A concentration that is too low may miss small defects, while a concentration that is too high may increase background and reduce the clarity of defect indications.
It verifies the combined sensitivity of the magnetic powder, suspension, magnetizing equipment and inspection process before formal inspection begins.
YC-2 400-mesh and NY-20 500-mesh fluorescent magnetic particles for ferromagnetic workpiece inspection.
| Product Name | Model | Package | Particle Fineness | Recommended Concentration | Compatible Carrier Liquid | Price (USD) |
|---|---|---|---|---|---|---|
| Fluorescent Magnetic Particle | NY-20 | 1 kg | 500 mesh | 5 to 8 g/L | Water suspension | $98 |
| YC-2 | 1 kg | 400 mesh Average particle size: 6 to 8 micrometers | 1 to 3 g/L | Water or oil suspension | $112 |
Prices are converted from the original CNY prices using CNY price divided by 5 and rounded to the nearest whole US dollar. YC-2 supports water- or oil-based suspension; NY-20 is for water suspension only.
Choose the model, particle fineness, carrier liquid and recommended concentration for your inspection process.
