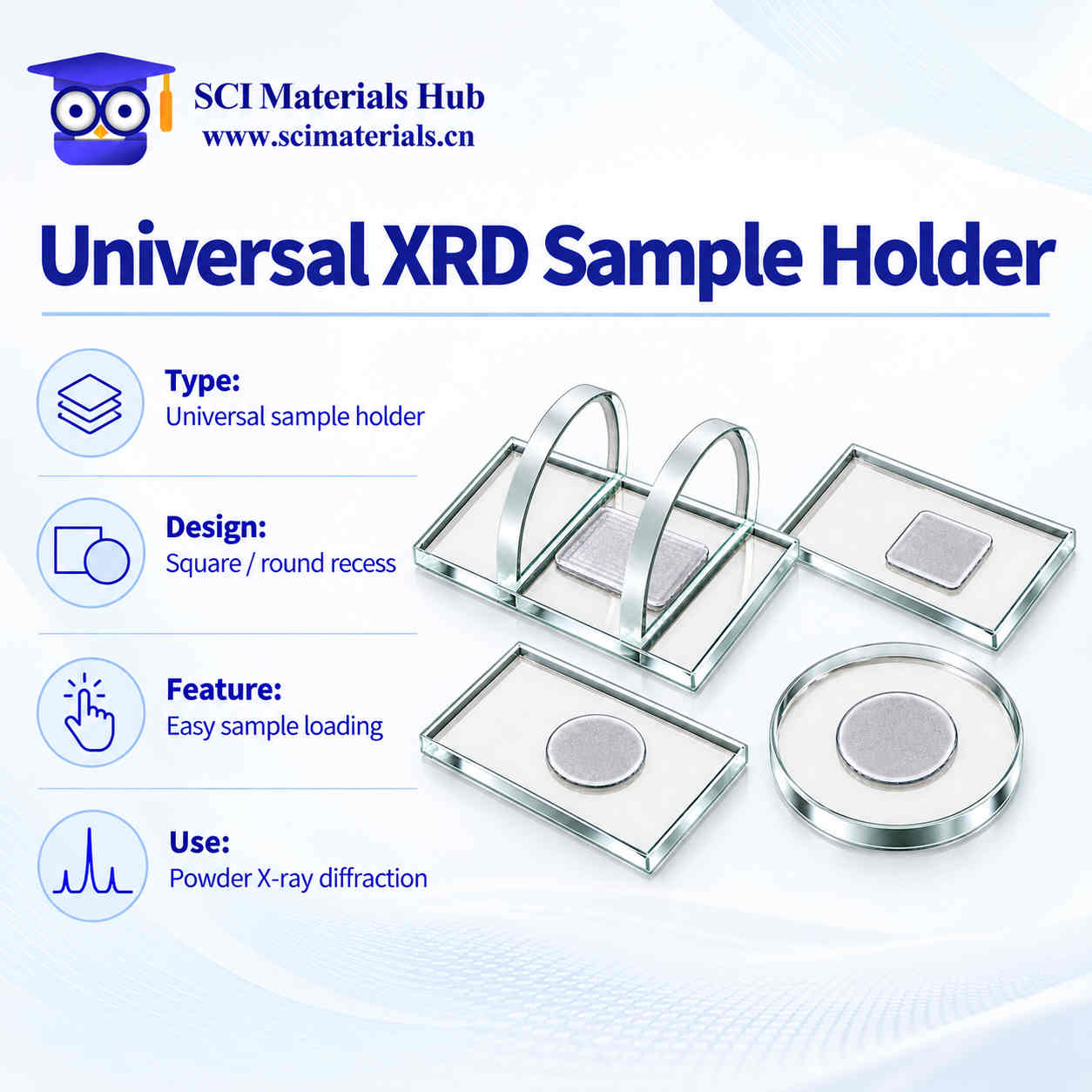

A glass sample-mounting solution for powders, films, sheet specimens, and micro-volume samples. Available with square wells, round wells, sealed structures, standard dimensions, and non-standard customization. Precisely defined wells and a flat surface support sample loading, leveling, sealing, and repeatable positioning.
Universal XRD Sample Holder is designed for powders, particles, slurries, films, and sheet specimens. The well shape, well depth, and body dimensions can be selected according to the sample volume and testing method.
Transparent glass makes the loading condition easy to inspect, while the flat surface helps control sample height and reduce measurement deviations caused by uneven loading.
Confirm the dimensions accepted by the instrument before selecting the well opening and depth. For powder samples, keep the sample surface level with the instrument reference plane.
For sealing, holes, special body shapes, or ultra-shallow wells, provide a dimensional drawing before ordering.
The sample holder is manufactured from optical glass with a flat, transparent surface for inspecting sample coverage, loading uniformity, and residue inside the well.
It is suitable for routine XRD analysis of solid, powder, particle, film, and sheet specimens.
Typical Glass Body: 50 × 35 × 2 mm
Reference Sealing Shield: Φ35 mm
Common Wells: 10 × 10 × 0.5, 15 × 15 × 0.5 and 20 × 20 × 0.5 mm
Body dimensions, well shape, well depth, and shield design vary by model.
| Type | Typical Well | Typical Body | Design Features | Suitable Samples | Selection Notes |
|---|---|---|---|---|---|
| Universal Sealed | 10–20 mm Square Well | 50 × 35 × 2 mm | Sealed protective structure | Powders requiring containment | Confirm the sealing method |
| Universal Glass | 5–20 mm Square / Round Wells | 50 × 35 × 2 mm | Standard transparent structure | Routine powders and sheet specimens | Specify the well shape |
| Thickened Glass | 20 × 20 × 2 mm | 50 × 35 × 4 mm | Deeper well and thicker body | Larger sample volumes | Confirm vertical clearance |
| Rectangular XRD | 10 × 10 / 15 × 15 mm | 75 × 25 mm | Elongated body | Routine XRD powder testing | Check tray dimensions |
| Custom Rectangular | Square / Round Well | Various Rectangular Bodies | Adjustable dimensions and depth | Dedicated fixtures and samples | Provide a dimensional drawing |
| Custom Round | Φ5–Φ33 mm Round Well | Φ15–Φ51 mm | Disc-shaped body | Round trays and powder samples | Confirm diameter and thickness |
| No. | Type / Specification | Well Dimensions | Overall Dimensions | Design Notes |
|---|---|---|---|---|
| 01 | Universal Sealed Square Well | 10 × 10 × 0.5 mm | 50 × 35 × 2 mm | Sealed |
| 02 | 15 × 15 × 0.5 mm | 50 × 35 × 2 mm | Sealed | |
| 03 | 20 × 20 × 0.5 mm | 50 × 35 × 2 mm | Sealed | |
| 04 | 20 × 20 mm | 50 × 35 × 2 mm | With Φ1 mm Hole | |
| 05 | Universal Square Well | 5 × 5 × 0.5 mm | 35 × 50 × 2 mm | Specify Round Well When Ordering |
| 06 | 10 × 10 × 0.5 mm | 35 × 50 × 2 mm | Specify Round Well When Ordering | |
| 07 | 15 × 15 × 0.5 mm | 35 × 50 × 2 mm | Specify Round Well When Ordering | |
| 08 | 20 × 20 × 0.5 mm | 35 × 50 × 2 mm | Specify Round Well When Ordering | |
| 09 | Universal Glass | 5 × 5 mm / Φ5 mm | 50 × 35 × 2 mm | Specify Square / Round Well When Ordering |
| 10 | 10 × 10 mm / Φ10 mm | 50 × 35 × 2 mm | Specify Square / Round Well When Ordering | |
| 11 | 15 × 15 mm / Φ15 mm | 50 × 35 × 2 mm | Specify Square / Round Well When Ordering | |
| 12 | 20 × 20 mm / Φ20 mm | 50 × 35 × 2 mm | Specify Square / Round Well When Ordering | |
| 13 | Universal Thickened Glass Square Well | 20 × 20 × 2 mm | 50 × 35 × 4 mm | Thickened |
| 14 | Rectangular Glass XRD Sample Holder | 10 × 10 × 0.6–0.7 mm | 75 × 25 × 1 mm | Elongated Rectangle |
| 15 | 15 × 15 × 2 mm | 75 × 25 × 3 mm | Elongated Rectangle | |
| 16 | Custom Rectangular XRD Sample Holder | 16 × 16 × 0.1 mm | 40 × 28 × 1.5 mm | Ultra-Shallow Square Well |
| 17 | 20 × 15 × 0.5 mm | 55 × 36 × 2 mm | Rectangular Square Well | |
| 18 | 20 × 15 × 0.8 mm | 46 × 36 × 3 mm | Rectangular Square Well | |
| 19 | 20 × 20 × 0.5 mm | 27 × 24 × 2 mm | Compact Body | |
| 20 | 21 × 5 × 1 mm | 26 × 10 × 9 mm | Narrow Elongated Square Well | |
| 21 | 26 × 13 × 2 mm | 30 × 20 × 4 mm | Deep Rectangular Well | |
| 22 | 86 × 86 × 0.5 mm | 100 × 100 × 2 mm | Large-Area Square Well | |
| 23 | Round Well: Φ10 × 1 mm | 50 × 25 × 2 mm | Rectangular Body / Round Well | |
| 24 | Round Well: Φ15 × 4 mm | 55 × 35 × 7 mm | Rectangular Body / Deep Round Well | |
| 25 | Round Well: Φ35 × 0.5 mm | 50 × 50 × 2 mm | Square Body / Round Well | |
| 26 | Round Well: Φ40 × 2 mm | 50 × 50 × 4 mm | Square Body / Round Well | |
| 27 | Round Well: Φ1 × 0.2 mm | Φ50 × 2 mm | Round Body with Micro Well | |
| 28 | Custom Round XRD Sample Holder | Round Well: Φ5 × 0.5 mm | Φ24 × 1 mm | Micro Round Well |
| 29 | Round Well: Φ10 × 2 mm | Φ15 × 4 mm | Compact Round Body | |
| 30 | Round Well: Φ25 × 1 mm | Φ51 × 8 mm | Thickened Round Body | |
| 31 | Round Well: Φ30 × 1 mm | Φ45 × 3 mm | Round Body | |
| 32 | Round Well: Φ33 × 1 mm | Φ44 × 3 mm | Round Body |
Confirm that the holder fits the instrument tray and does not alter the required measurement height.
Use lint-free wipes and a compatible cleaning method. Dry completely before loading.
Add the sample gradually and avoid voids, raised areas, or tilted surfaces.
Confirm that the sample surface is level and centered before starting the measurement.
Provide body length, width or diameter, total thickness, well shape, opening dimensions, well depth, well-center position, and any required holes.
Specify the target instrument, tray constraints, sample form, expected loading volume, tolerances, and required sealing or edge-treatment details.
Either shape can be used for powders. Square wells efficiently use the available area, while round wells are suitable for circular locating features or disc-shaped samples.
No. Well depth should match the sample volume and measurement requirements. Excessive depth increases sample consumption.
Sealed holders are suitable for samples that scatter easily, require protective covering, or need reduced environmental exposure.
No. These glass holders are not designed for vacuum, heating, or pressure applications.
A sample surface offset from the reference plane changes the measurement geometry and may introduce peak-position deviations.
Yes. Remove residue after use and inspect the holder for cracks, chips, contamination, or remaining sample material.
Yes. Provide the tray dimensions, locating features, permitted thickness, well position, and critical tolerances.
Standard options are available through our online stores. Assistance is available for confirming well shape, instrument compatibility, and custom requirements.
Compare product structures, well dimensions, overall dimensions, and corresponding USD prices. All prices are calculated by dividing the original RMB price by 5 and rounding to the nearest whole US dollar.
| Type / Specification | No. | Well Dimensions | Overall Dimensions | USD Price |
|---|---|---|---|---|
| Universal Sealed-Style Square Well | 01 | Square well: 10 × 10 × 0.5 mm | 50 × 35 × 2 mm | USD 32 |
| Universal Sealed Square Well | 02 | Square well: 15 × 15 × 0.5 mm | 50 × 35 × 2 mm | USD 34 |
| 03 | Square well: 20 × 20 × 0.5 mm | 50 × 35 × 2 mm | USD 34 | |
| 04 | Square well: 20 × 20 mm, with Φ1 mm hole | 50 × 35 × 2 mm | USD 42 | |
| Universal Square Well Specify a round well if required | 05 | Square well: 5 × 5 × 0.5 mm | 35 × 50 × 2 mm | USD 18 |
| 06 | Square well: 10 × 10 × 0.5 mm | 35 × 50 × 2 mm | USD 20 | |
| 07 | Square well: 15 × 15 × 0.5 mm | 35 × 50 × 2 mm | USD 22 | |
| 08 | Square well: 20 × 20 × 0.5 mm | 35 × 50 × 2 mm | USD 22 | |
| Universal Glass Specify a square or round well when ordering | 09 | Square / round well: 5 × 5 mm / Φ5 mm | 50 × 35 × 2 mm | USD 8 |
| 10 | Square / round well: 10 × 10 mm / Φ10 mm | 50 × 35 × 2 mm | USD 8 | |
| 11 | Square / round well: 15 × 15 mm / Φ15 mm | 50 × 35 × 2 mm | USD 8 | |
| 12 | Square / round well: 20 × 20 mm / Φ20 mm | 50 × 35 × 2 mm | USD 8 | |
| Universal Thickened Glass Square Well | 13 | Square well: 20 × 20 × 2 mm | 50 × 35 × 4 mm | USD 22 |
| Rectangular Glass XRD Sample Holder | 14 | Square well: 10 × 10 × 0.6–0.7 mm | 75 × 25 × 1 mm | USD 46 |
| 15 | Square well: 15 × 15 × 2 mm | 75 × 25 × 3 mm | USD 46 | |
| 16 | Square well: 16 × 16 × 0.1 mm | 40 × 28 × 1.5 mm | USD 15 | |
| 17 | Square well: 20 × 15 × 0.5 mm | 55 × 36 × 2 mm | USD 22 | |
| 18 | Square well: 20 × 15 × 0.8 mm | 46 × 36 × 3 mm | USD 22 | |
| 19 | Square well: 20 × 20 × 0.5 mm | 27 × 24 × 2 mm | USD 18 | |
| 20 | Square well: 21 × 5 × 1 mm | 26 × 10 × 9 mm | USD 26 | |
| 21 | Square well: 26 × 13 × 2 mm | 30 × 20 × 4 mm | USD 22 | |
| 22 | Square well: 86 × 86 × 0.5 mm | 100 × 100 × 2 mm | USD 76 | |
| 23 | Round well: Φ10 × 1 mm | 50 × 25 × 2 mm | USD 20 | |
| 24 | Round well: Φ15 × 4 mm | 55 × 35 × 7 mm | USD 34 | |
| 25 | Round well: Φ35 × 0.5 mm | 50 × 50 × 2 mm | USD 30 | |
| 26 | Round well: Φ40 × 2 mm | 50 × 50 × 4 mm | USD 46 | |
| 27 | Round well: Φ1 × 0.2 mm | Φ50 × 2 mm | USD 41 | |
| Round Glass XRD Sample Holder | 28 | Round well: Φ5 × 0.5 mm | Φ24 × 1 mm | USD 46 |
| 29 | Round well: Φ10 × 2 mm | Φ15 × 4 mm | USD 22 | |
| 30 | Round well: Φ25 × 1 mm | Φ51 × 8 mm | USD 37 | |
| 31 | Round well: Φ30 × 1 mm | Φ45 × 3 mm | USD 42 | |
| 32 | Round well: Φ33 × 1 mm | Φ44 × 3 mm | USD 26 |
Standard specifications can be purchased directly. For round-well options, special holes, sealed structures, or custom dimensions, confirm the critical parameters before placing an order.
