RIGAKU XRD SAMPLE HOLDER

Rigaku XRD Sample Holder

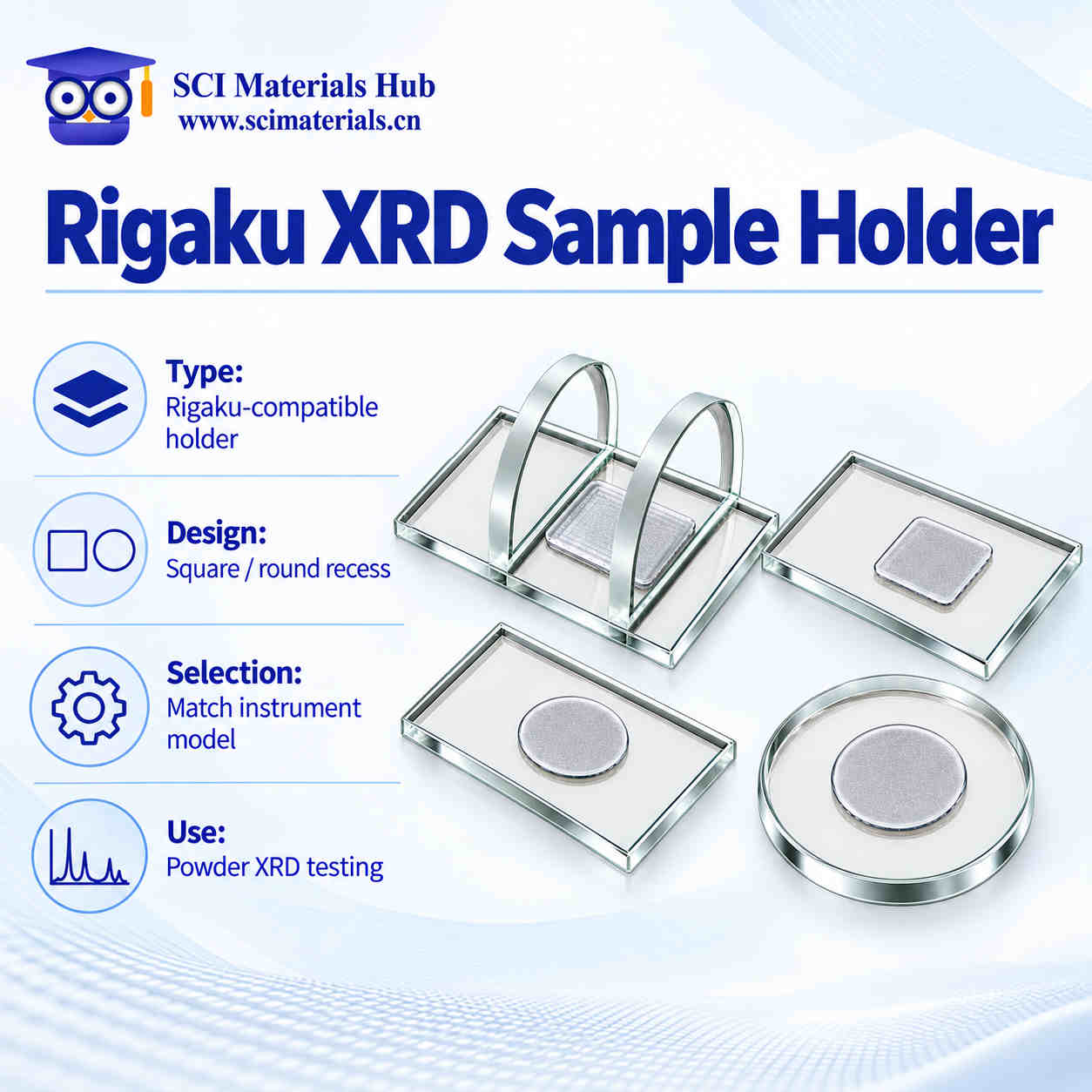

Glass sample mounting and positioning components designed for Rigaku X-ray diffractometers. Available configurations include sealed square wells, magnetic autosampler recesses, standard square wells, and optional round wells for stable loading and repeatable testing.

Rigaku Compatible Square / Round Wells Sealed Design Magnetic Autosampling Multiple Sizes

PRODUCT OVERVIEW

Product Overview

The Rigaku XRD sample holder supports, locates, and maintains the sample surface during diffraction measurements. Different well diameters, lengths, widths, and depths accommodate varying sample volumes, particle sizes, and test methods.

The range includes manual-loading holders, sealed square-well designs, and magnetic autosampler holders. Standard external dimensions are matched to common Rigaku sample positions for fast laboratory changeover.

Selection Essentials
Confirm the instrument model, holder dimensions, well geometry, well depth, sample condition, and whether sealing or automatic loading is required. Specify round-well requirements when ordering.

MATERIAL & STRUCTURE

Materials & Construction

01 Glass Body Made from dimensionally stable glass with a flat surface for easy inspection of sample loading and routine cleaning.

02 Precision-Machined Wells Square and round wells are available in common depths from 0.2 to 1 mm to control sample thickness and loading volume.

03 Sealed & Magnetic Designs Sealed versions help reduce sample exposure, while magnetic versions fit compatible autosampler positions and mounting mechanisms.

KEY FEATURES

Key Features

Broad Size Range Well openings from 5 to 25 mm support trace samples, routine powders, and larger loading areas.

Stable Positioning Regular outer geometry and a flat base help maintain consistent test position and sample-surface height.

Multiple Configurations Choose sealed square wells, magnetic recesses, standard square wells, or round wells specified at ordering.

Easy to Clean The glass surface makes residue easy to identify and supports efficient sample changeover.

Repeatable Testing Defined well geometry helps standardize loading area and thickness for better batch-to-batch comparability.

Small-Sample Friendly Shallow and compact wells reduce sample consumption for powder analysis and research applications.

APPLICATIONS

Applications

Powder Phase Analysis Phase identification of inorganic powders, minerals, ceramics, catalysts, and metal powders.

Battery & Energy Materials XRD characterization of electrode powders, electrolytes, precursors, and related functional materials.

Chemical & Pharmaceutical Materials Polymorph identification, crystallinity analysis, and structural confirmation of synthesized products.

Education & Routine Testing Batch testing and method development in universities, institutes, and analytical laboratories.

Low-Volume Sample Testing Small and shallow wells are suitable when sample quantity is limited or consumption must be minimized.

Automated Sample Testing Magnetic versions are designed for compatible Rigaku automatic loading systems.

HOW TO USE

How to Use

Confirm Specifications

Verify the sample position, external dimensions, well geometry, and well depth.

Clean the Holder

Remove residue from the well and base. Keep all contact surfaces clean and dry.

Load the Sample

Distribute the sample evenly, then gently press or level it to avoid a tilted surface.

Install & Measure

Place the holder securely in position and begin testing after confirming that it is stable.

SELECTION GUIDE

Selection Guide

Application Need	Recommended Design	Selection Focus
Routine Powder Testing	Square / Round Well	Opening size, well depth, and external dimensions
Small Sample Volume	5–10 mm small or shallow well	Reduce consumption and maintain a level surface
Air or Moisture Protection	Sealed square well	Seal and sample compatibility
Automated Batch Testing	Magnetic autosampler holder	Loader mechanism and round-well diameter
Special Geometry or Dimensions	Round well or custom dimensions	Drawing, depth, and tolerances before ordering

CARE & STORAGE

Cleaning & Maintenance

Gentle Cleaning Use a soft brush, lint-free wipe, or compatible solvent. Do not scrape the well using hard tools.

Avoid Impact Protect glass components from drops, impacts, and point loads. Discontinue use if cracks or chips are found.

Organized Storage Store each holder separately after cleaning and drying. Organize different depths and dimensions by label.

FAQ

Frequently Asked Questions

How should I choose between a square and round well?

Choose according to instrument compatibility, sample form, and loading practice. If a round well is required, specify its diameter and depth when ordering.

Is a deeper well always better?

No. Select the depth according to sample absorption, available quantity, and test requirements. A shallow well is generally easier to fill and level when sample quantity is limited.

Does the magnetic holder fit every Rigaku instrument?

Compatibility should not be assumed. Confirm the autosampler mechanism, positioning method, and permitted external dimensions.

How should residue be removed after use?

Remove dry powder using a soft brush, then wipe with a cleaner compatible with the sample and glass. Dry thoroughly to prevent cross-contamination.

Type / Specification	Well Dimensions	Overall Dimensions	Price
Rigaku Sealed Square Well	Square well: 10×10×0.5 mm	50×35×1.6 mm	$32 USD
	Square well: 15×15×0.5 mm	50×35×1.6 mm	$34 USD
	Square well: 20×20×0.5 mm	50×35×1.6 mm	$34 USD
Rigaku Magnetic Autosampler Holder — Recessed	Round well: Φ5×0.5 mm	—	$30 USD
	Round well: Φ10×0.5 mm	—	$32 USD
	Round well: Φ15×0.5 mm	—	$32 USD
	Round well: Φ20×0.5 mm	—	$34 USD
	Round well: Φ25×0.5 mm	—	$36 USD
Rigaku Square Well — Specify Round Well if Required	Square well: 5×5×0.5 mm	35×50×1.6 mm	$18 USD
	Square well: 10×10×0.5 mm	35×50×1.6 mm	$20 USD
	Square well: 15×15×0.5 mm	35×50×1.6 mm	$22 USD
	Square well: 20×20×0.5 mm	35×50×1.6 mm	$22 USD
Rigaku Square-Well Series	Square well: 5×5×0.5 mm	50×35×1.6 mm	$12 USD
	Square well: 10×10×0.5 mm	50×35×1.6 mm	$12 USD
	Square well: 15×15×0.5 mm	50×35×1.6 mm	$12 USD
Rigaku Square Well	Square well: 20×20×0.2 mm	50×35×1.6 mm	$15 USD
Rigaku Square Well — Specify Round Well if Required	Square well: 20×20×0.5 mm	50×35×1.6 mm	$14 USD
Rigaku Square Well	Square well: 20×20×1 mm	50×35×1.6 mm	$16 USD
