PANALYTICAL XRD SAMPLE HOLDERS

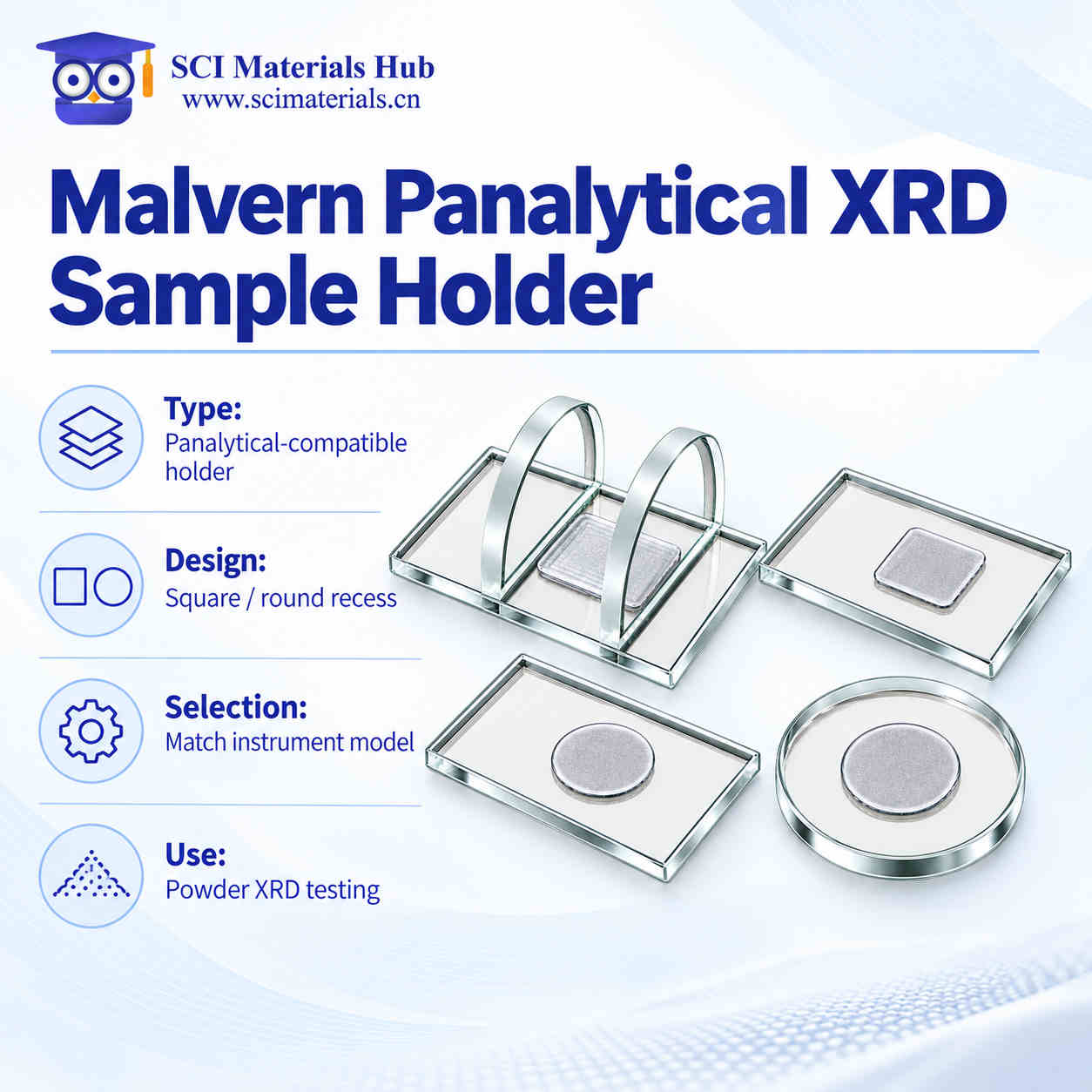

PANalytical XRD Sample Holders

Sample mounting and positioning solutions for PANalytical X-ray diffractometers. Sealed and standard square-recess designs cover common sample loading areas from 5 × 5 mm to 20 × 20 mm.

For PANalytical XRD Sealed Square Recess Standard Square Recess 0.5 mm Recess Depth Consistent Sample Loading

PRODUCT OVERVIEW

Product Overview

PANalytical XRD sample holders support loading, surface leveling and repeatable positioning of powders, granules and small quantities of solid samples. Defined square recesses help control the loading area and sample thickness while maintaining a stable measurement surface.

Sealed square-recess holders measure 45 × 35 × 2 mm overall, while standard square-recess holders measure 35 × 45 × 2 mm. Confirm the orientation against the instrument's sample position and locating arrangement.

Key Selection Checks
Before ordering, confirm the instrument model, holder orientation, square recess length and width, recess depth and sealing requirements. The mounting orientation of 45 × 35 mm and 35 × 45 mm holders may affect compatibility.

MATERIAL & STRUCTURE

Materials & Construction

Glass Body A flat surface makes samples and residue easy to inspect, supporting routine laboratory loading and cleaning.

Precisely Machined Square Recess Clearly defined boundaries help control the loading area, sample layer thickness and surface height.

Sealing Components Sealed designs help reduce sample exposure to air and moisture. Confirm the sealing method and material compatibility before ordering.

STRUCTURE OPTIONS

Main Holder Types

PANalytical Sealed Square Recess Overall dimensions of 45 × 35 × 2 mm, with square recesses of 10 × 10, 15 × 15 or 20 × 20 mm.

PANalytical Square Recess Overall dimensions of 35 × 45 × 2 mm, with square recesses of 5 × 5, 10 × 10, 15 × 15 or 20 × 20 mm.

Standard Recess Depth All listed specifications have a recess depth of 0.5 mm, supporting thin-layer powder loading and surface leveling.

KEY FEATURES

Product Features

Clearly Defined Size Options Covers common square recess sizes from 5 × 5 to 20 × 20 mm.

Consistent Positioning Regular holder geometry and support surfaces help maintain sample position and measurement height.

Defined Loading Area Square recesses provide a regular sample surface with clearly defined boundaries.

Thin-Layer Loading A 0.5 mm recess depth helps control powder consumption and makes surface leveling convenient.

Optional Sealed Designs Suitable for moisture-sensitive, oxidation-sensitive samples or preparations requiring reduced sample dispersal.

Convenient Maintenance Glass surfaces make residue easy to inspect, supporting repeated sample changes between experimental batches.

APPLICATIONS

Applications

Powder Phase Analysis For minerals, ceramics, metal powders, catalysts and inorganic materials.

Energy Materials Characterization of cathode and anode materials, electrolytes, precursors and functional powders.

Environment-Sensitive Samples Sealed designs for measurements requiring reduced contact with air or moisture.

Materials Research Formulation screening, comparison before and after heat treatment, and crystal form studies.

Quality Control Routine laboratory analysis of raw materials, process samples and finished products.

Teaching & Research For universities, research institutes and third-party testing laboratories.

HOW TO USE

How to Use

Check Compatibility

Verify the instrument, holder orientation, recess dimensions and sealing requirements.

Clean & Inspect

Remove residue and inspect the support surface and sealing components.

Load Evenly

Fill gradually, gently compact the sample and level the measurement surface.

Mount & Measure

Place the holder carefully in the sample position. Confirm positioning before starting the measurement.

SELECTION GUIDE

Selection Guide

Measurement Requirement	Suggested Design	Key Checks
Routine powder measurements	PANalytical square recess	Opening dimensions and holder orientation
Environment-sensitive samples	PANalytical sealed square recess	Sealing method and material compatibility
Small sample quantities	5 × 5 or 10 × 10 mm square recess	Sample quantity and effective illuminated area
Larger sample loading area	15 × 15 or 20 × 20 mm square recess	Sample quantity and surface flatness

CARE & STORAGE

Cleaning & Maintenance

Gentle Cleaning Remove powder using a soft brush, air blower bulb or lint-free wipes. Avoid scratching with hard objects.

Protect Sealing Surfaces Keep sealing contact areas clean so trapped particles do not interfere with closure.

Organized Storage Clean and dry holders before storing them by recess dimensions and design. Protect against impacts and cross-contamination.

FAQ

Frequently Asked Questions

Are 45 × 35 mm and 35 × 45 mm holders directly interchangeable?

Do not judge compatibility from the numerical dimensions alone. Check the sample position's mounting orientation, locating edges and actual placement arrangement.

When should I choose a sealed square recess?

Consider a sealed design for samples that readily absorb moisture, oxidize or disperse, or when reduced exposure to the external environment is required.

How should I choose the square recess size?

Select according to sample quantity, the X-ray illuminated area and your established measurement method. Ensure the sample covers the effective measurement area.

Is a 0.5 mm recess depth suitable for every sample?

Not necessarily. Suitability depends on absorption characteristics, particle condition, sample quantity and measurement requirements.

Type / Specification	Dimensions	Price (USD)
PANalytical Sealed Square Recess	Square recess: 10 × 10 × 0.5 mm ' Overall: 45 × 35 × 2 mm	USD 32
Square recess: 15 × 15 × 0.5 mm ' Overall: 45 × 35 × 2 mm	USD 34
Square recess: 20 × 20 × 0.5 mm ' Overall: 45 × 35 × 2 mm	USD 34
PANalytical Square Recess	Square recess: 5 × 5 × 0.5 mm ' Overall: 35 × 45 × 2 mm	USD 18
Square recess: 10 × 10 × 0.5 mm ' Overall: 35 × 45 × 2 mm	USD 20
Square recess: 15 × 15 × 0.5 mm ' Overall: 35 × 45 × 2 mm	USD 22
Square recess: 20 × 20 × 0.5 mm ' Overall: 35 × 45 × 2 mm	USD 22

Type / Specification

Dimensions

Price (USD)

PANalytical Sealed Square Recess

Square recess: 10 × 10 × 0.5 mm ' Overall: 45 × 35 × 2 mm

USD 32

Square recess: 15 × 15 × 0.5 mm ' Overall: 45 × 35 × 2 mm

USD 34

Square recess: 20 × 20 × 0.5 mm ' Overall: 45 × 35 × 2 mm

USD 34

PANalytical Square Recess

Square recess: 5 × 5 × 0.5 mm ' Overall: 35 × 45 × 2 mm

USD 18

Square recess: 10 × 10 × 0.5 mm ' Overall: 35 × 45 × 2 mm

USD 20

Square recess: 15 × 15 × 0.5 mm ' Overall: 35 × 45 × 2 mm

USD 22

Square recess: 20 × 20 × 0.5 mm ' Overall: 35 × 45 × 2 mm

USD 22

Where to Buy

Select your holder type and dimensions, then confirm the PANalytical instrument model, sample position orientation and sealing requirements before ordering.

Choose Type → Check Specifications → Confirm Compatibility → Place Order
