Ceramic Substrate XRD Sample Holder

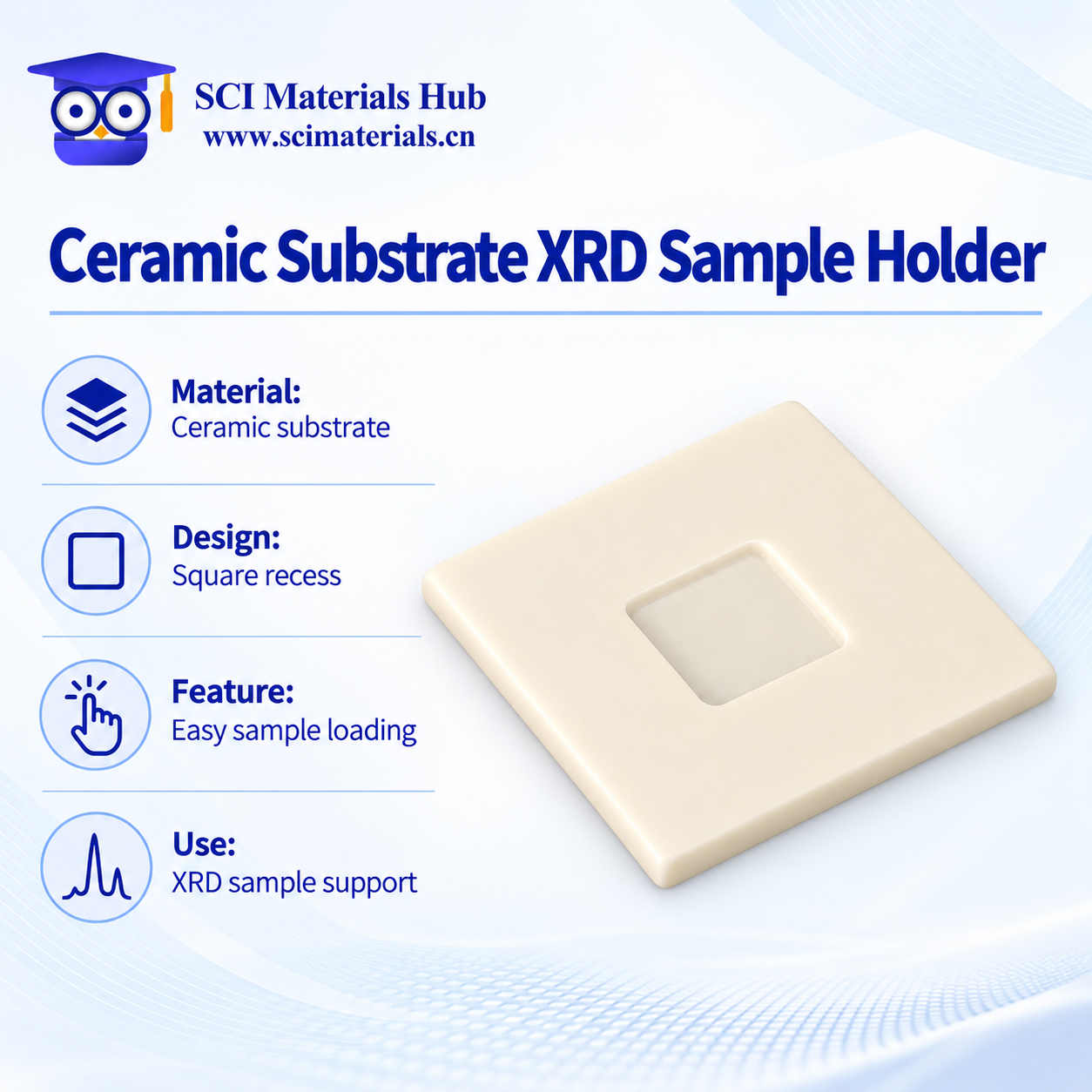

A ceramic substrate with a square sample recess for mounting powders, granules and small quantities of solid samples during X-ray diffraction measurements. Designed to support structural stability, a defined loading area and repeatable positioning.

Ceramic Substrate 17 × 17 mm Square Recess 1 mm Recess Depth 50 × 50 mm Overall Format Consistent Sample Loading

PRODUCT OVERVIEW

Product Overview

This ceramic substrate XRD sample holder supports powder or granular samples while helping maintain a consistent loading area, surface height and mounting position during measurement. The 17 × 17 mm square recess provides a regular sample area and facilitates surface leveling.

The 50 × 50 × 3 mm overall format is intended for corresponding sample positions or clamping arrangements. A 1 mm recess depth provides loading space for routine powder measurements.

Before Ordering
Confirm the instrument's sample position, the 50 × 50 × 3 mm overall dimensions, the 17 × 17 × 1 mm square recess, mounting orientation and clamping method. Do not judge compatibility from the recess opening alone.

MATERIAL & STRUCTURE

Materials & Construction

Ceramic Substrate Good structural stability and wear resistance support laboratory sample mounting and repeated use.

Square Sample Recess Defined recess geometry limits the loading area and helps control sample surface height.

Integrated Design A simple combination of square substrate and internal recess facilitates loading, cleaning and organized storage.

SPECIFICATION

Technical Specifications

Item	Specification	Description
Product Type	Ceramic substrate XRD sample holder	Square substrate design
Recess Shape	Square	Defined sample loading area
Recess Dimensions	17 × 17 × 1 mm	Length × width × recess depth
Overall Dimensions	50 × 50 × 3 mm	Length × width × total thickness
Main Use	XRD sample support	Powders, granules and small quantities of solid samples

KEY FEATURES

Product Features

Defined Loading Area The 17 × 17 mm square recess provides a measurement area with clear boundaries.

Practical Recess Depth A 1 mm depth accommodates sample loading while allowing convenient surface leveling.

Structural Stability The ceramic substrate helps maintain sample position and measurement surface height.

Clearly Defined Overall Dimensions The 50 × 50 × 3 mm format makes it easier to check the fit against the instrument's sample position.

Straightforward Loading The square recess facilitates filling, gentle compaction, leveling and inspection of the sample surface.

Convenient Maintenance Inspect for residue after use, then clean, dry and store the holder separately.

APPLICATIONS

Applications

Powder Phase Analysis For minerals, ceramics, metal powders and inorganic materials.

Ceramic Materials Research Analysis of ceramic powders, sintering raw materials and crystalline phase composition.

Energy Materials Characterization of electrode materials, electrolytes, precursors and functional powders.

Materials Research Formulation screening, process comparisons and analysis before and after heat treatment.

Quality Control Routine laboratory testing of raw materials, process samples and finished products.

Teaching & Research For universities, research institutes and third-party testing laboratories.

HOW TO USE

How to Use

Check Compatibility

Verify the sample position, overall dimensions, thickness and mounting orientation.

Clean & Inspect

Remove residue from the square recess and inspect the substrate for damage.

Load Evenly

Fill gradually, gently compact the sample and level the measurement surface.

Mount & Measure

Place the holder carefully in the sample position. Confirm positioning before starting the measurement.

SELECTION CHECK

Selection Checks

Item to Confirm	Current Specification	Key Checks
Recess	17 × 17 × 1 mm square recess	Beam footprint and sample quantity
Overall Format	50 × 50 × 3 mm	Sample position dimensions and clamping method
Sample Condition	Powder or granules	Surface flatness and loading thickness
Cleaning Method	Soft brush or lint-free wipes	Avoid hard tools and mechanical impacts

CARE & STORAGE

Cleaning & Maintenance

Avoid Impacts Protect the ceramic holder from drops, collisions at edges and corners, and localized mechanical impacts.

Gentle Cleaning Remove residue with a soft brush, air blower bulb or lint-free wipes. Do not scrape the recess with hard tools.

Dry Storage Dry thoroughly after cleaning and store separately to reduce contamination and surface damage.

FAQ

Frequently Asked Questions

Is this holder compatible with every XRD instrument?

Universal compatibility should not be assumed. Check the instrument's sample position, the 50 × 50 × 3 mm overall dimensions, mounting orientation and clamping method.

What does the 1 mm dimension in 17 × 17 × 1 mm mean?

It indicates the square recess depth. Control the loading condition according to sample quantity, absorption characteristics and measurement method.

Does the square recess need to be completely filled?

Ensure adequate coverage of the effective measurement area and maintain a flat surface. Whether the recess should be completely filled depends on sample quantity and the experimental method.

How can I reduce cross-contamination?

Clean the recess promptly after each use and store it separately once completely dry. Dedicated holders can be used for different material systems.

Type / Specification	Dimensions	Price (USD)
Ceramic Substrate XRD Sample Holder	Square recess: 17 × 17 × 1 mm Overall dimensions: 50 × 50 × 3 mm	USD 76

Type / Specification

Dimensions

Price (USD)

Ceramic Substrate XRD Sample Holder

Square recess: 17 × 17 × 1 mm
Overall dimensions: 50 × 50 × 3 mm

USD 76
