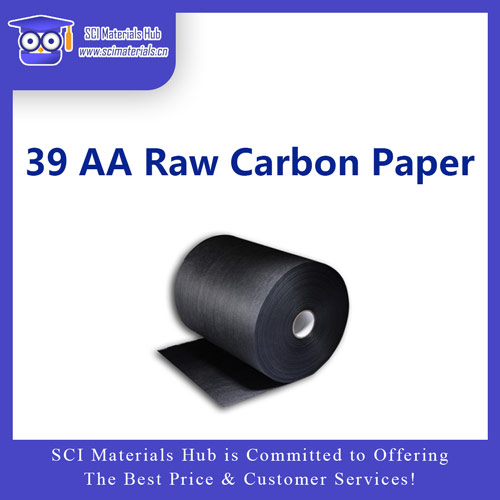

Sigracet 39 AA

  • Product Code:213900
  • Description:Sigracet 39 AA
  • Brand:SGL Carbon
  • Lead time:1 day
  • Views:
  • Telephone:+86 153-5789-9751
  • Keywords:Sigracet 39 AA, SCI Materials Hub
65.7K

1. Introduction

Sigracet 39 AA is a non-woven carbon paper gas diffusion media that has no PTFE treatment. It has a total thickness of 280 um (microns). SGL AA is a great low-cost alternative to conventional woven carbon paper Gas Diffusion Layer (GDL) and Gas Diffusion Media materials.


2. Features

The Sigracet Carbon Fiber Paper 39 Series is intended to combine the required production robustness and the excellent performance properties.

Stack developers and assemblers are benefiting from the following greatly improved characteristics:

- Greatly improved homogeneity inter-lot and intra-lot.

- The overall variability has been shown to be better than +/- 10% (2 sigma)

- Greatly improved surface flatness

- Greatly reduced occurrence of faulty spots on a roll

- Best performance under various operating conditions


Sigracet 39AA is the successor type to Sigracet 35AA. The thickness, areal weight and in-plane permeability (IPP) of 39AA are designed to be comparable to 35AA. However the surface defect rate of Sigracet 39AA is significantly reduced.


3. Welcome to cite our materials in your papers

Gas diffusion layer Sigracet 39 AA was obtained from SCI Materials Hub.

Download

Sigracet 20 and 30 Series Carbon Paper Property Sheet.pdf

Sigracet AB, BA, BC+ Series GDL MSDS.pdf

Sigracet Carbon Fiber GDL White Paper.pdf

Sigracet GDL Handling Instructions.pdf

Sigracet GDS 2D Recommended Applications.pdf


Gas Diffusion Layer Properties
Material TypeCarbon Fiber Paper
Thickness280 microns +/- 30 microns
Basic Weight (g/m2)50 +/- 10 g/m2
Porosity (%)80%
Compressibilityca. 38% (at 1 MPa)
Electrical Resistivity (through plane)< 5 mΩcm2 (milliohms cm2)
IP Pressure Drop0.2 bar (at 1 MPa)
PTFE TreatmentNo PTFE Treatment Applied
Microporous LayerNo Microporous Layer Applied


SGL Carbon develops and commercializes carbon-based products for Polymer-Electrolyte-Membrane Fuel Cells (PEFC):

- Gas Diffusion Layers (GDL)

- Foils used as separator plates for fuel cells and redox-flow batteries (Expanded Graphite)


GDLs are typically designed as a bilayer structure consisting of a macro-porous backing material (carbon fiber paper support) and a micro-porous, carbon-based layer (MPL). The fibrous backing material governs the mechanical properties of the GDL (behavior upon compression, bending and shear strength, etc.) while the MPL ensures intimate contact to the catalyst layers, protects the delicate proton exchange membrane against perforation and plays an active role with respect to the water management in the cell during operation. There is consensus that this heterogeneous porosity brought about by this structure (hydrophilic/hydrophobic and various pore sizes) is advantageous for the performance.

Structure of SGL Carbon gas diffusion layer

Sketch of the bilayer structure of Gas Diffusion Layers


Hydrophobic properties in the backing and the MPL are maintained by adding defined amounts of polytetrafluoroethylene (PTFE) to both sublayers. Various types of carbon particles (carbon blacks, graphite) can be used in the MPL in order to produce different levels of hydrophobicity. Furthermore, the MPL can be used as substrate to deposit catalyst particles for the manufacture of gas diffusion electrodes (GDEs).

SGL Carbon has been producing fully-treated SIGRACET gas diffusion layers by reel-to-reel processes since 1999. Carbon paper-type (prepared by wet-laying of chopped PAN-based carbon fibers) gas diffusion layers are the preferred solution since they can be manufactured at high volumes (scalability) and low thickness. The following figures show the whole value chain of GDL manufacturing. All commercially available GDL materials to date are based on carbon fibers derived from polyacrylonitrile (PAN). PAN (co)polymers are processed into precursor fibers by wet-spinning. Subsequent stabilization and pyrolysis yields high tensile (HT) carbon fibers which are sized and chopped to enable suitable processing by means of papermaking technologies.


Carbon Fiber Production

SGL Carbon's carbon fiber production process

Manufacturing of SIGRAFIL chopped carbon fibers


A primary carbon fiber web is laid by a papermaking technology and subsequent thermobonding. Thereafter, the obtained raw paper is impregnated with carbonisable thermoset resins (with optional addition of carbon fillers), cured and re-carbonized/graphitized. This serves to enhance the mechanical stability and conductivity as well as to adjust the desired porosity level.


Carbon Paper Substrate

Carbon fiber substratum SGL Carbon

Manufacturing route of SIGRACET (carbon paper-based) gas diffusion layer backings


Finishing of GDL comprises hydrophobic treatment of the substrate with PTFE and coating with a microporous layer (MPL).


Finishing Treatment

Finishing treatment of SGL Carbon's carbon fiber paper for fuel cell applications

Finishing treatments of SIGRACET (carbon paper-based) gas diffusion layers


A loading of the substrate with 5% (w/w) PTFE has proven to be sufficient for obtaining a pronounced hydrophobicity. MPLs typically contain 20 to 25% PTFE. This MPL composition has been identified as the optimum ratio for PEMFC performance across a broad range of operating conditions. Mean pore diameters of SIGRACET GDLs are typically in a range from 0.1 to 0.3 μm (Hg-Porosimetry) or 1.5 to 3 μm (calculated from capillary flow porometry). The hydrophobic treatment produces water repellent properties for the substrate and for the MPL (water contact angles by sessile drop method > 130°).

For international orders, please ask us for quotes via

Email: contact@scimaterials.cn

Tel: +86 130-0303-8751 / +86 156-0553-2352

Wechat: SCI-Materials-Hub


Clik here to put quick orders on our Alibaba shop

Sigracet 39 AA

Product Code

Description

Retail Price (USD$)Lead Time & Availability
213900

Sigracet 39 AA

$37 (5cm*5cm,Item#:213900-0505)

$74 (10cm*10cm,Item#:213900-1010)

$200 (20cm*20cm,Item#:213900-2020)


Other Dimensions

7.5cm*10cm, $70

7.5cm*20cm, $100

4.7cm*20cm, $80

5cm*8.6cm, $60

6.5cm*9.5cm, $64

5cm*30cm, $100

6cm*20cm, $90

6cm*23cm, $96

1 day & In Stock
SCI Materials Hub Is Committed to Offering The Best Price & Customer Services!


Worldwide shipping via DHL, SF-Express & other requested carriers.

Payments via Bank Transfer, Paypal, Credit card (via Alibaba), Alipay, Wechat-pay are accepted.

Partial references citing our materials (from Google Scholar)
