Research Grade 25 cm2 Hardware For Carbon Dioxide Electrolysis
Components:
Individual 25 cm2 Titanium Flowfield for Anode with Serpentine Channel
Individual 25 cm2 904 L Stainless Steel Flowfield for Cathode with Serpentine Channel
Nut, bolt, O-ring & insulator kit for 25 cm2 electrolyzer
Description
Research grade hardware needed to build your own Carbon Dioxide Electrolyzer. Water and carbon dioxide electrolyzers are poised for wide scale deployment as a way of storing renewable energy and as a way of mitigating climate change.
The DM’ development of an alkaline stable Sustainion membrane enabled the development of zero-gap design CO2 electrolyzers that can improve current density by two orders of magnitude at the same or lower cell voltage as compared to the current diaphragm-based alkaline water electrolyzers.
We sell individual components so you can build your own CO2 electrolyzers. Or, you can also order fully assembled “plug and play” CO2 electrolyzers that are shipped in less than 5 business days. The choice is yours.
The development of the DM’ CO2 electrolyzer technology in efficiently producing CO at high selectivities is based on four technological developments. These are:
Development of a GDE cathode structure comprising an imidazole-based ionomer as a co-catalyst with nanoparticle Ag, reducing the potential at the cathode for the CO2 reduction reaction
Development of a high conductivity and alkaline stable anion membrane (Sustainion? membrane) that can conduct OH– and bicarbonate/carbonate ions and imidazole-based ionomer
Development and utilization of the Sustainion imidazole ionomer, that when incorporated with the selected catalyst in the cathode GDE construction, reduces the cathode reaction potential in CO2 reduction
Development of a GDE anode structure comprising a nanoparticle IrO2 catalyst
These developments have helped create an electrochemical CO2 technology that can operate at high current densities, high CO selectivity, and low cell potentials.
| Accessories | ||||
| AEM | PiperION A13 / PiperION A17 / PiperION A20 / PiperION A25 / PiperION A35 | |||
| Ionomer | Fumion FAA-3 5wt% in ethanol | |||
| GDL | CP-A210R raw carbon paper CP-A330R raw carbon paper CP-A400R raw carbon paper CP-H450R raw carbon paper CP-H850R raw carbon paper | Wet Proofed Carbon Paper (1-60wt% PTFE) CP-A210T/CP-A330T/CP-F200T/CP-F380T/CP-A400T/CP-H450T/CP-H850T | Wet proofed carbon paper with MPL CP-D220M/CP-B300M | 福优塞尔® Ti fiber paper 福优塞尔® Platinized Ti fiber paper |
| Anode GDE | DM IrO2-carbon paper 福优塞尔® E300 IrO2-carbon paper 福优塞尔® E300T IrO2-carbon paper with hydrophobic interface 福优塞尔® E300H IrO2-carbon paper with hydrophilic interface | 福优塞尔® E304T IrO2-Ti fiber paper with hydrophobic interface 福优塞尔® E304H IrO2-Ti fiber paper with hydrophilic interface 福优塞尔® E305T IrO2-Platinized Ti fiber paper with hydrophobic interface 福优塞尔® E305H IrO2-Platinized Ti fiber paper with hydrophilic interfac | 福优塞尔® E309 IrO2/Ti fiber paper 福优塞尔® E310 IrO2/Platinized Ti fiber paper 福优塞尔® E311 Pt-IrO2/Platinized Ti fiber paper | 福优塞尔® E314 IrO2/Ti screen 福优塞尔® E315 IrO2/Platinized Ti screen 福优塞尔® E316 Pt-IrO2/Platinized Ti screen |
福优塞尔® E320 IrO2/Ti foam 福优塞尔® E321 IrO2/Platinized Ti foam 福优塞尔® E322 Pt-IrO2/Platinized Ti foam | 福优塞尔® E330 Ir-carbon paper 福优塞尔® E330T Ir-carbon paper with hydrophobic interface 福优塞尔® E330H Ir-carbon paper with hydrophilic interface | 福优塞尔® E340T Ir-Ti fiber paper with hydrophobic interface 福优塞尔® E340H Ir-Ti fiber paper with hydrophilic interface 福优塞尔® E341T Ir-Platinized Ti fiber paper with hydrophobic interface 福优塞尔® E341H Ir-Platinized Ti fiber paper with hydrophilic interface | 福优塞尔® E343 Ir/Ti screen 福优塞尔® E344 Ir/Platinized Ti screen 福优塞尔® E345 Pt-Ir/Platinized Ti screen | |
福优塞尔® E347 Ir/Ti fiber paper 福优塞尔® E348 Ir/Platinized Ti fiber paper 福优塞尔® E349 Pt-Ir/Platinized Ti fiber paper | 福优塞尔® E351 Ir/Ti foam 福优塞尔® E352 Ir/Platinized Ti foam 福优塞尔® E353 Pt-Ir/Platinized Ti foam | |||
Cathode GDE | DM Ag-carbon paper 福优塞尔® E400 Ag-carbon paper | DM Cathode electrode for FA electrolyzer 福优塞尔® E410 Cathode electrode for FA electrolyzer | ||
| Gasket |
PTFE anode gasket (100/200/250/300/400/500/1000μm) USD$35/each |
PTFE cathode gasket (100/200/250/300/400/500/1000μm) USD$35/each |
FKM anode gasket (100/200/250/300/400/500/1000μm) USD$35/each |
FKM cathode gasket (100/200/250/300/400/500/1000μm) USD$35/each |
| Tube |
PE tube (ID1/16" OD1/8") (USD$2/m) |
Silicone tube (ID1.6mm/OD4.8mm) (USD$2/m) |
Teflon tube (ID1/16" OD1/8") (USD$10/m) |
tube (ID1.6mm/OD4.8mm) (USD$50/m) |
| Connectors |
ABS bolts (ID1/8"), $10/set |
PTFE bolts (ID1/8"), $15/set |
PTFE bolts (ID1/8"), $20/set |
Nickel bolts (ID1/8"), $20/set |
| Others |  SS nuts, $3/set |
SS spacers, $3/set |
SS springs, $3/set |
Torque wrench with sleeve (1-25 Nm), $100/set |
SS bolts, $3/set |
Spacers, $3/set |
Insulators (T0.5mm), $3/set |
Insulators (T1mm), $3/set | |
25A High current DC electrical lead pair - Alligator Clip $10/pair/0.5m; $15/pair/1m $20/pair/1.5m; $25/pair/2m |
25A High current DC electrical lead pair - Banana plug to Alligator Clip $10/pair/0.5m; $15/pair/1m $20/pair/1.5m; $25/pair/2m |
35A High current DC electrical lead pair - Banana plug to Alligator Clip $15/pair/0.5m; 20/pair/1m $25/pair/1.5m; $30/pair/2m |
40A High current DC electrical lead pair - Ring to Ring $20/pair/0.5m; 25/pair/1m $30/pair/1.5m; $35/pair/2m | |
Temperature controller, $699 (Accuracy: 0.1°C) |
Heating pads ($97/pair) Heating pad binder, $50/25ml |
O rings, $2/set |
Wrench kit, $10/set | |
VHP01 vacuum heater |
Cu conductors, $1/set | Small peristaltic pump, $300/pc Standard peristaltic pump, $400/pc Standard peristaltic pump with two channels, $700/pc Gear pump, $700/pc | DC power supply with data recording, storage, and export functions, $3500/pc | |

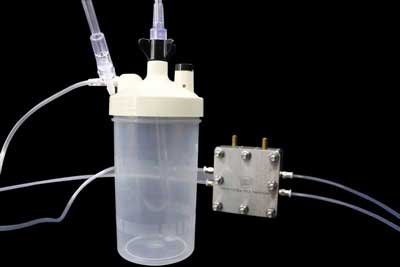

Humidifier Kit, USD$24 |

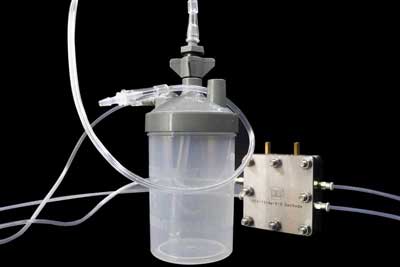

Humidifier with 6 PSI safety valve, USD$69 | * Mass flow controller with reader (CO2, 500sccm), USD$1500 ** Mass flow controller with Modbus RS485 Communication (CO2, 500sccm), USD$2000 | ||
For international orders, please ask us for quotes via
Email: contact@scimaterials.cn
Tel: +86 130-0303-8751 / +86 156-0553-2352
Wechat: SCI-Materials-Hub
DM Research Grade 25 cm2 Hardware For Carbon Dioxide Electrolysis | |
Product Code | 13001005 |
| Description | DM Research Grade 25 cm2 Hardware for Carbon Dioxide Electrolysis |
| Retail Price | Ask for quote |
Lead Time | 2-3 weeks |
We Are Committed to Provide the Best Price & Customer Services! | |
Worldwide shipping via DHL, SF-Express & other requested carriers.
Payments via Bank Transfer, Paypal, Credit card (via Taobao), Alipay, Wechat-pay are accepted.
