A complete alkaline anion exchange membrane water electrolyzer. The unit includes corrosion resistant 25 cm2 anode and cathode flow fields, an MEA with base metal catalysts, metal gas diffusion layers, o-ring seals, and Teflon gasketing. No heaters or cabling included.

The electrolyzer is designed to be run with 1 M KOH flowing on the anode and cathode as described in Zengcai Liu et al. “The effect of membrane on an alkaline water electrolyzer” https://doi.org/10.1016/j.ijhydene.2017.10.050

Components:

Cathode gasket for 25 cm2 electrolyzer with varied thickness

Anode gasket for 25 cm2 electrolyzer with varied thickness

Individual 25 cm2 Nickel Flowfield for Anode with Serpentine Channel

Individual 25 cm2 Nickel Flowfield for Cathode with Serpentine Channel

o-ring for 25 cm2 Electrolyzer

Nut, bolt, O-ring & insulator kit for 25 cm2 electrolyzer

Description

This alkaline water electrolyzer shows record performance because it contains Sustainion anion exchange membranes

It operates at high currents: 1 A/cm2 at about 1.9 V at 60 °C in flowing 1 M KOH.

There is no need for precious metals.
The electrolyzer can be rapidly turned on and turned off.
The electrolyzer design allows one to replace PEM electrolyzers with alkaline water electrolyzers and get similar performance.

INSTRUCTIONS FOR USE

Initial set up for DM Alkaline Water Electrolyzer Cell

System set up (recommended)

Typically, the system setup uses a peristaltic pump to meter a 1M KOH solution that is split evenly to both the anode and cathode from a common solution reservoir with two separate gas disengagements (Figure 1). The total pump flowrate is about 50 mL/min. The suggested tubing used is a 1/4” OD, 1/8” ID PTFE tubing. The length of tubing after the split into the two flow streams into the two electrode compartments should be at least 8 inches (20 cm) on each side in order to reduce the amount of current leakage (or shunt current) between the anode and cathode. The exit liquid streams with gases from the two electrode compartments are separately routed to the gas disengager which allows the liquid to drop into the separate sections, so the two product gases are not mixed together. Meanwhile gas disengager also acts as a current break.

Fluid Connections
The fluid inlet and outlet ports are located in the center of the cell (Figure 2). Connect the PTFE tubing (1/4” OD) from the pump to the compression fitting located at the bottom; connect another PTFE tubing (1/4” OD) from the gas disengage to the compression fitting at the top; and tighten the nut with fingers. Repeat this for the other side of the cell.

Power Connections
Locate the threaded hole for wire connection on top of the cell (smaller through-hole 8-32 thread). Then connect the ring terminal with the Phillips round head screw. Use this same procedure for both anode and cathode.

Figure 1. The electrolyzer setup

Figure 2. Diagram of the 25 cm2 cell

Cell Testing and Operation

Begin pumping a 1M KOH solution from bottom connection of the solution reservoir and gas disengager at a rate of 50 mL/min which is split into two flow streams, one going to inlet of the anode chamber and the other to the cathode chamber. Then begin heating the cell by turning on the temperature controller and setting the temperature to 60°C (heaters sold separately) and holding the temperature at 60°C for at least 30 min before applying current. Connect the anode electrical lead (red) and cathode lead (black) to the positive and negative connections, respectively, on the power supply with electric wires/cables (not included). Set the power supply voltage at 2.2V and slowly begin increasing the current to a setting of 25 A (1A/cm2). The cell current will reach the desired 25A in a few min or hours depending on the cell membrane and electrode conditioning. Testing can also be done with potentiostat, but the connections depend on the testing protocol

Accessories
AEM	Sustainion X37-50 Grade RT Sustainion X37-50 Grade 60 Sustainion X37-50 Grade T	PiperION A40 PiperION A60 PiperION A80
Ionomer	PiperION-A TP-85 Anion Exchange Resin Powder PiperION A5 Anion Exchange Dispersion	Nafion D520 Nafion D521 Nafion D2020 Nafion D2021	Fumion FAA-3-SOLUT-10 Fumion FAA-3 5wt% in ethanol
GDL	DM Ni fiber paper 福优塞尔® Ni fiber paper	DM SS fiber paper 福优塞尔®SSFP-A62L SS fiber paper	CP-A210R raw carbon paper CP-A330R raw carbon paper CP-A400R raw carbon paper CP-H450R raw carbon paper CP-H850R raw carbon paper	福优塞尔® Ti fiber paper 福优塞尔® Ti screen 福优塞尔® Platinized Ti fiber paper 福优塞尔® Platinized Ti screen
Anode GDE	DM NiFeOx-SS fiber paper 福优塞尔® E100H NiFeOx-SS fiber paper with hydrophilic interface 福优塞尔® E100T NiFeOx-SS fiber paper with hydrophobic interface	福优塞尔® E110H CoFeOx-SS fiber paper with hydrophilic interface 福优塞尔® E110T CoFeOx-SS fiber paper with hydrophobic interface	DM IrO2-carbon paper 福优塞尔® E300 IrO2-carbon paper 福优塞尔® E300T IrO2-carbon paper with hydrophobic interface 福优塞尔® E300H IrO2-carbon paper with hydrophilic interface	福优塞尔® E304T IrO2-Ti fiber paper with hydrophobic interface 福优塞尔® E304H IrO2-Ti fiber paper with hydrophilic interface 福优塞尔® E305T IrO2-Platinized Ti fiber paper with hydrophobic interface 福优塞尔® E305H IrO2-Platinized Ti fiber paper with hydrophilic interface
	福优塞尔® E309 IrO2/Ti fiber paper 福优塞尔® E310 IrO2/Platinized Ti fiber paper 福优塞尔® E311 Pt-IrO2/Platinized Ti fiber paper	福优塞尔® E314 IrO2/Ti screen 福优塞尔® E315 IrO2/Platinized Ti screen 福优塞尔® E316 Pt-IrO2/Platinized Ti screen	福优塞尔® E320 IrO2/Ti foam 福优塞尔® E321 IrO2/Platinized Ti foam 福优塞尔® E322 Pt-IrO2/Platinized Ti foam	福优塞尔® E330 Ir-carbon paper 福优塞尔® E330T Ir-carbon paper with hydrophobic interface 福优塞尔® E330H Ir-carbon paper with hydrophilic interface
	福优塞尔® E340T Ir-Ti fiber paper with hydrophobic interface 福优塞尔® E340H Ir-Ti fiber paper with hydrophilic interface 福优塞尔® E341T Ir-Platinized Ti fiber paper with hydrophobic interface 福优塞尔® E341H Ir-Platinized Ti fiber paper with hydrophilic interface	福优塞尔® E343 Ir/Ti screen 福优塞尔® E344 Ir/Platinized Ti screen 福优塞尔® E345 Pt-Ir/Platinized Ti screen	福优塞尔® E347 Ir/Ti fiber paper 福优塞尔® E348 Ir/Platinized Ti fiber paper 福优塞尔® E349 Pt-Ir/Platinized Ti fiber paper	福优塞尔® E351 Ir/Ti foam 福优塞尔® E352 Ir/Platinized Ti foam 福优塞尔® E353 Pt-Ir/Platinized Ti foam
Cathode GDE	DM Raney Ni-Ni fiber paper 福优塞尔® E120 FeCoNi-Ni fiber paper E121 FeCoNi-carbon paper	福优塞尔® E130 Raney Ni-Ni screen	福优塞尔® E200 Pt/C-carbon paper 福优塞尔® E210 Pt/C-Ti fiber paper 福优塞尔® E211 Pt/C-Platinized Ti fiber paper 福优塞尔® E214 Pt/C-Ti foam 福优塞尔® E215 Pt/C-Platinized Ti foam	福优塞尔® E220 Pt black-carbon pape 福优塞尔® E230 Pt black-Ti fiber paper 福优塞尔® E233 Pt black-Platinized Ti fiber paper 福优塞尔® E235 Pt black-Ti foam 福优塞尔® E237 Pt black-Platinized Ti foam
Gasket	PTFE anode gasket (100/200/250/300/400/500/1000μm)	PTFE cathode gasket (100/200/250/300/400/500/1000μm)	FKM anode gasket (100/200/250/300/400/500/1000μm)	FKM cathode gasket (100/200/250/300/400/500/1000μm)
Tube	PE tube (ID1/16" OD1/8") (USD$2/m)	Silicone tube (ID1.6mm/OD4.8mm) (USD$2/m)	Teflon tube (ID1/16" OD1/8") (USD$10/m)	tube (ID1.6mm/OD4.8mm) (USD$50/m)
Connectors	ABS bolts (ID1/8"), $10/set	PTFE bolts (ID1/8"), $15/set	PTFE bolts (ID1/8"), $20/set	Nickel bolts (ID1/8"), $20/set

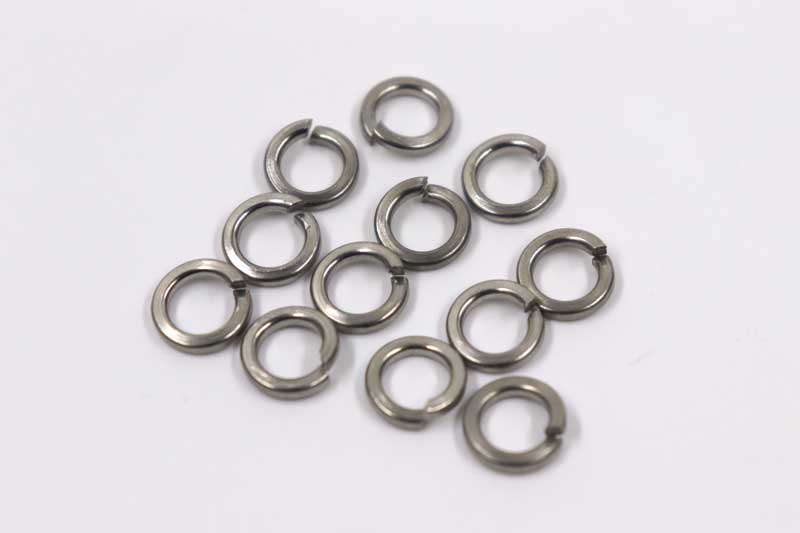

Others	SS nuts, $3/set	SS spacers, $3/set	SS springs, $3/set	Torque wrench with sleeve (1-25 Nm), $100/set

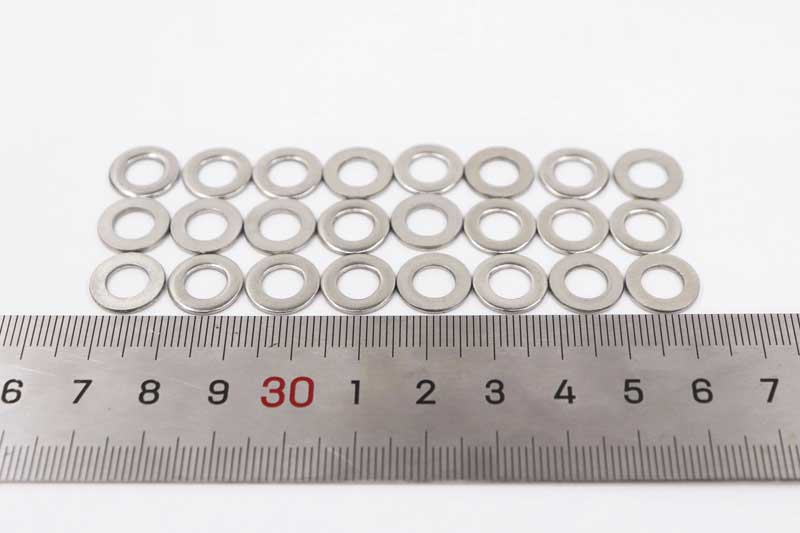

	SS bolts, $3/set	Spacers, $3/set	Insulators (T0.5mm), $3/set	Insulators (T1mm), $3/set
	25A High current DC electrical lead pair - Alligator Clip $10/pair/0.5m; $15/pair/1m $20/pair/1.5m; $25/pair/2m	25A High current DC electrical lead pair -Banana plug to Alligator Clip $10/pair/0.5m; $15/pair/1m $20/pair/1.5m; $25/pair/2m	35A High current DC electrical lead pair -Banana plug to Alligator Clip $15/pair/0.5m; 20/pair/1m $25/pair/1.5m; $30/pair/2m	40A High current DC electrical lead pair - Ring to Ring $20/pair/0.5m; 25/pair/1m $30/pair/1.5m; $35/pair/2m
	Temperature controller, $799 (Accuracy: 0.1°C)	Heating pads ($250/pair) Heating pad binder, $50/25ml	O rings, $2/set	Wrench kit, $10/set
	VHP01 vacuum heater	A simple system for electrolyte circulation and gas-liquid separation, $500	Small peristaltic pump, $300/pc Standard peristaltic pump, $400/pc Standard peristaltic pump with two channels, $700/pc Gear pump, $700/pc	DC power supply with data recording, storage, and export functions, $1500/pc
	Cu conductors, $1/set	PP isodiametric barbed hose connector Hose IDΦ1-Φ1.6mm, USD$2/pc Hose IDΦ1.6-Φ2.4mm,USD$2/pc Hose IDΦ2.4-Φ3.2mm,USD$2/pc Hose IDΦ3.2-Φ4mm, USD$2/pc Hose IDΦ4-Φ4.8mm, USD$2/pc	PP barbed connector for variable diameter hoses Hose IDΦ1.6mm↔Φ2.4mm, USD$2/pc Hose IDΦ1.6mm↔Φ3.2mm,USD$2/pc Hose IDΦ2.4mm↔Φ3.2mm, USD$2/pc Hose IDΦ2.4mm↔Φ4mm,USD$2/pc Hose IDΦ3.2mm↔Φ4mm, USD$2/pc	PE isodiametric quick connector Tube ODΦ3-Φ3mm, USD$2/pc Tube ODΦ3.2-Φ3.2mm,USD$2/pc Tube ODΦ4-Φ4mm, USD$2/pc
	PE quick connector for variable diameter tubes Tube ODΦ3-Φ3.2mm, USD$2/pc Tube ODΦ3-Φ4mm, USD$2/pc Tube ODΦ3-Φ5mm, USD$2/pc Tube ODΦ3-Φ6mm, USD$2/pc Tube ODΦ3.2-Φ4mm, USD$2/pc Tube ODΦ3.2-Φ6mm, USD$2/pc	PTFE corrosion-resistant hose/tube adapter Tube ODΦ3.2mm↔hose IDΦ1.6mm, USD$10/pc Tube ODΦ3.2mm↔hose IDΦ2.4mm, USD$10/pc Tube ODΦ3.2mm↔hose IDΦ3.2mm, USD$10/pc Tube ODΦ3.2mm↔hose IDΦ4mm, USD$10/pc	PTFE corrosion-resistant isodiametric tube connector Φ3mm↔Φ3mm, USD$10/pc Φ3.2mm↔Φ3.2mm, USD$10/pc Φ4mm↔Φ4mm, USD$10/pc Φ6mm↔Φ6mm, USD$15/pc Φ8mm↔Φ8mm, USD$15/pc	PTFE corrosion-resistant connector for variable diameter tubes Φ3mm↔Φ3.2mm, USD$15/pc Φ3mm↔Φ4mm, USD$15/pc Φ3mm↔Φ6mm, USD$15/pc Φ3.2mm↔Φ4mm, USD$15/pc Φ4mm↔Φ6mm, USD$15/pc
