| 显微镜参数 | ||||
| Model | XWJ74-A | XWJ74-B | XWJ74-C | XWJ74-D |
| eyepiece | Large field of view WF10X (field of view Φ22mm) | |||
| objective | PLL5X/0.12 working distance 26.1mm | |||
| PLL10X/0.25 working distance 20.2mm | ||||
| PLL20X/0.40 working distance 8.80mm | ||||
| PLL50X/0.70 working distance 3.68mm | ||||
| Magnification | Optical 500 times magnification, electronic 5000 times magnification | |||
| Eyepiece tube | The trinocular is tilted at 30° for 100% clear photography | |||
| Lighting systems | L100 6v30W halogen lamp, The epijection illumination system supports brightness adjustment | |||
| Built-in field of view light bar, aperture light bar, (yellow, blue, green, frosted glass) filter conversion device, push-pull polarizer and polarizer. | ||||
| Focusing mechanism | Coarse and micro-rotating coaxial focus, with coarse handwheel elasticity adjustment device, micro-movement grid value: 2.0um. | |||
| converter | Five-hole (inward-facing ball internal positioning) | |||
| workbench | Base dimensions: 300mm×240mm Mechanical stage dimensions: 185mm×140mm Moving range: landscape 35mm, longitudinal: 30mm | Base dimensions: 300mm×250mm Mechanical stage dimensions: 160mm×140mm Moving range: landscape 35mm, longitudinal: 30mm | ||
| DIC plugboard | Suitable for LMPlan10X/LMPlan20 DIC objectives | -- | ||

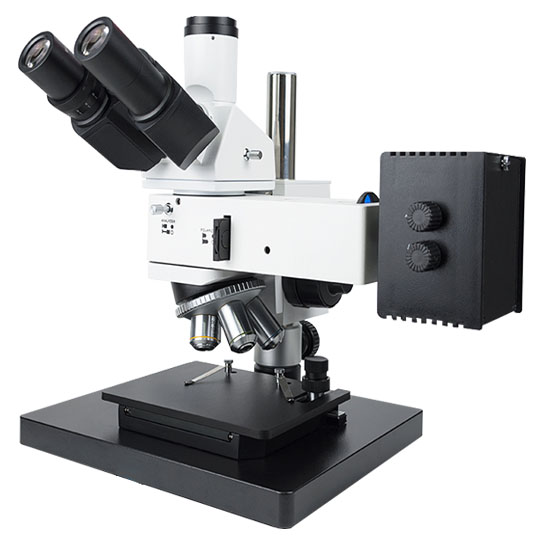

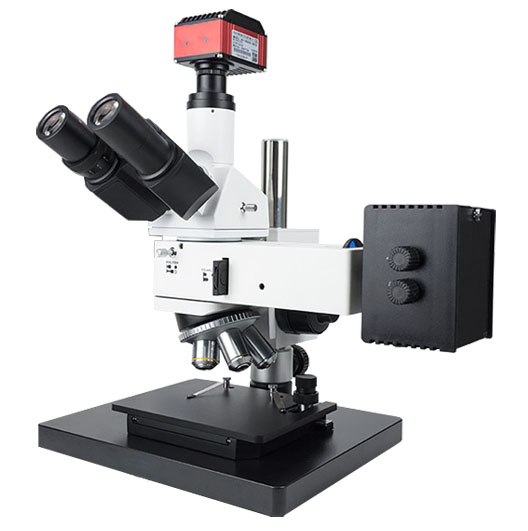

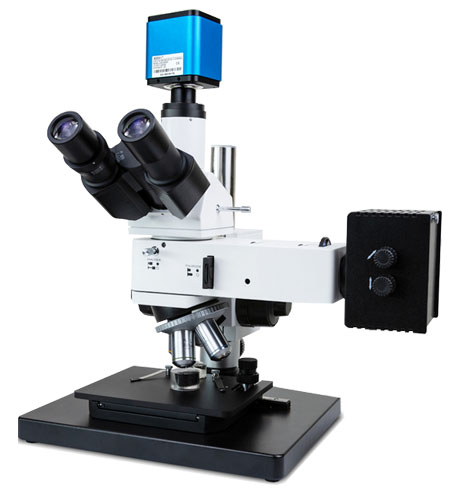

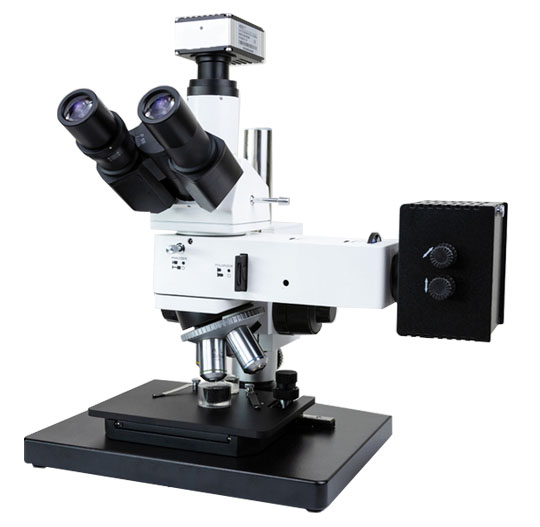

| Product images |  |  |  |  |
| Camera parameters | ||||
| Camera pixels | -- | Two million pixels uncompressed | Five million pixels | 8.3 million pixels |
| resolution | -- | 1920*1080 | 3840×2160 | |
| Cell size | -- | 3.75UM*3.75UM | -- | 1/1.7 |
| Confocal displacement | -- | -- | Coaxial confocal, center is not offset | -- |
| Number of data bits | -- | 1/2 | -- | -- |
| chip | -- | -- | -- | Sony CCD movement |
| Chip size | -- | -- | 1/2 | -- |
| Exposure method | -- | row-by-row exposure | -- | -- |
| Output color | -- | Color/black and white | -- | -- |
| Output Interface | -- | -- | Interface: HDMI/WIFI output | -- |
| Output frame rate | -- | 60FPS/s | 4K HD 60FPS/s | |
| Storage method | -- | U disk | SD card storage | U disk (support mobile hard disk) |
| Camera memory | -- | -- | -- | 3GB DDR3 |
| processor | -- | ARM Cortex A7 dual-core @Max1.35HZ processor | -- | -- |
| operating system | -- | V3.0 measuring system | -- | -- |
| Power connector | -- | DC12V | DC12VA、DC5VA | -- |
| Peripheral interface | -- | HDMI、USB2.0*2 | -- | -- |
| Support features | -- | 2K HD image taking/measuring/recording/echoing/saving, exporting data, template presets, CAD template import | Image photography/measurement/autofocus | Measurement, taking pictures and videos, video playback, image comparison, cross guides, custom templates, image transmission scanning code gun scanning code naming, gigabit line transmission of pictures to the designated folder of the computer, etc |

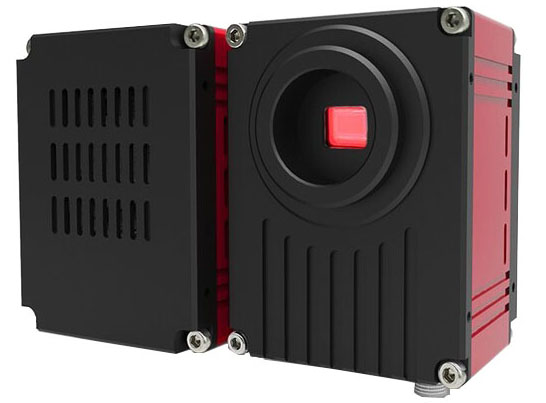

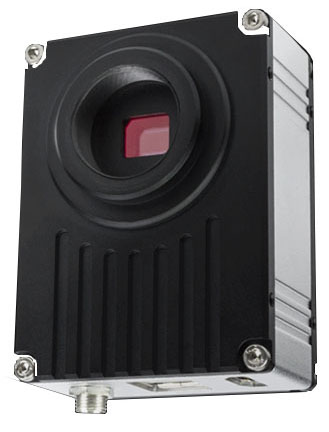

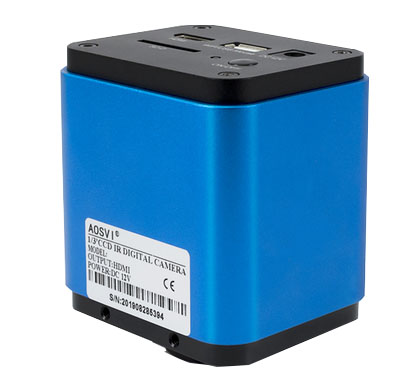

| Camera picture |  |  |  | |
For international orders, please ask us for quotes via
Email: contact@scimaterials.cn
Tel: +86 15375698751
Wechat: SCI-Materials-Hub
Clik here to put quick orders on our Alibaba shop
XWJ74 Fivehundred Multiple Metallographic Microscope | |||
Product code | Description | Price (US$) | Lead Time & Availability |
| 29030013 | XWJ74-A Optical High Power Industrial Metallographic Microscope | Ask for quote | Ask for quote |
| 29030014 | XWJ74-B High working distance and high magnification metallographic microscope | Ask for quote | Ask for quote |
| 29030015 | XWJ74-C HD high magnification metallographic microscope | Ask for quote | Ask for quote |
| 29030016 | XWJ74-D Industrial 4K Trinocular Metallurgical Microscope | Ask for quote | Ask for quote |
SCI Materials Hub Is Committed to Offering The Best Price & Customer Services! | |||
Worldwide shipping via DHL, SF-Express & other requested carriers.
Payments via Bank Transfer, Paypal, Credit card (via Alibaba), Alipay, Wechat-pay are accepted.
