In the sample processing of QMC2-0.4L, the uniformity of the sample results is an important indicator, and the deposition of the sample during the grinding process is one of the more common phenomena. The advantage of the ball mill is that it can solve the sample deposition phenomenon to a certain extent and improve the uniformity of the sample results. The product is equipped with 4 ball mill jars with a volume of 100ml or less.
QMC2-2L uses a unique Y-axis planetary motion trajectory, and uses the effects of collision, friction and gravity between the sample and the grinding ball, and has a certain anti-sinking ability, which can obtain better grinding or mixing effect and further improve the sample output. Uniformity and precision, the product can be used with four ball mill jars with a volume of 500ml or less.
QMC2-4L uses a unique Y-axis planetary motion trajectory, and uses the effects of collision, friction and gravity between the sample and the grinding ball, and has a certain anti-sinking ability, which can obtain better grinding or mixing effect and further improve the sample output. Uniformity and precision, the product can be used with 4 ball mill jars with a volume of 1000ml or less.
| Specification parameters | |||
Model | QMC2-0.4L | QMC2-2L | QMC2-4L |
Processing principle | Impact force, friction | ||
Apply sample characteristics | Fine, low to medium hardness, brittle, dry or low viscosity | ||
The processing type | Crush, grind, mix | ||
Maximum injection size | < 2 mm | < 10 mm | |
Sample size range | 0.1-20 um | ||
Maximum processing volume | 400 ml | 2000 ml | 4000 ml |
Ball mill tank maximum speed | 900 r/min | 800 r/min | |
Transmission mode | European standard | ||
The way the planetary disk moves in space | Y-axis planetary motion | ||
function | Continuous and intermittent operation, emergency stop, timing, power failure memory, overload and dangerous operation protection | ||
Additional features | Cooling | LED lighting, anti-vibration sound absorption, heat dissipation | |
Ball mill can material | , carbide, zirconia, agate, stainless steel, MC nylon and more are available | ||
Number of ball milling tanks | 4 pcs | ||
Ball mill tank volume | 100 ml | 500 ml | 1000 ml |
Grinding ball material | carbide, zirconia, stainless steel, etc. are optional | ||
Grinding method | Dry , wet grinding | ||
Electrical description | 100-120V/200-240V AC, 50-60Hz, 250W | 100-120V/200-240V AC, 50-60Hz, 750W | |
Power port | National standard, European standard, American standard, British standard, etc | ||
net weight | 35 kg | 106 kg | 115 kg |
Dimensions (L/W/H.)) | 320×410×510 mm | 720×560×510 mm | 720×560×510 mm |
Protection class | IP65 | ||
standard | CE | ||

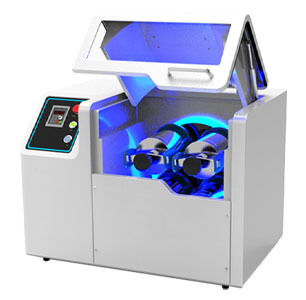

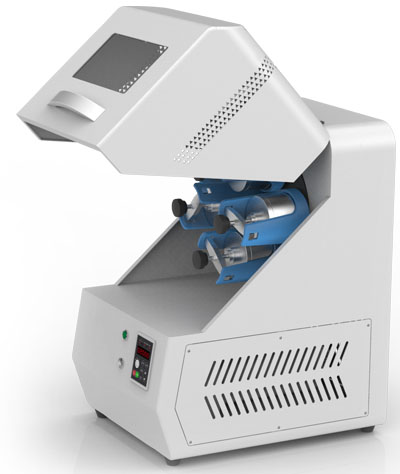

Product images |  |  | |
For international orders, please ask us for quotes via
Email: contact@scimaterials.cn
Tel: +86 153-5789-9751
Clik here to put quick orders on our Alibaba shop
QMC2 Horizontal Square Planetary Ball Mill Machine (Series C) | |||
Product code | Product description | Price | Delivery date |
| 30040009-1 | QMC2-0.4L | Ask for quote | Ask for quote |
| 30040009-2 | QMC2-2L | Ask for quote | Ask for quote |
| 30040009-3 | QMC2-4L | Ask for quote | Ask for quote |
| SCI Materials Hub is Committed to Offering The Best Price & Customer Services! | |||
- The price listed above is in U.S. dollars
Worldwide shipping via DHL, SF-Express, FedEx, TNT & other requested carriers.
Payments via Bank Transfer, Paypal, Credit card (via Alibaba), Alipay, Wechat-pay are accepted.
Please contact us for larger quantities or becoming our distributors.
