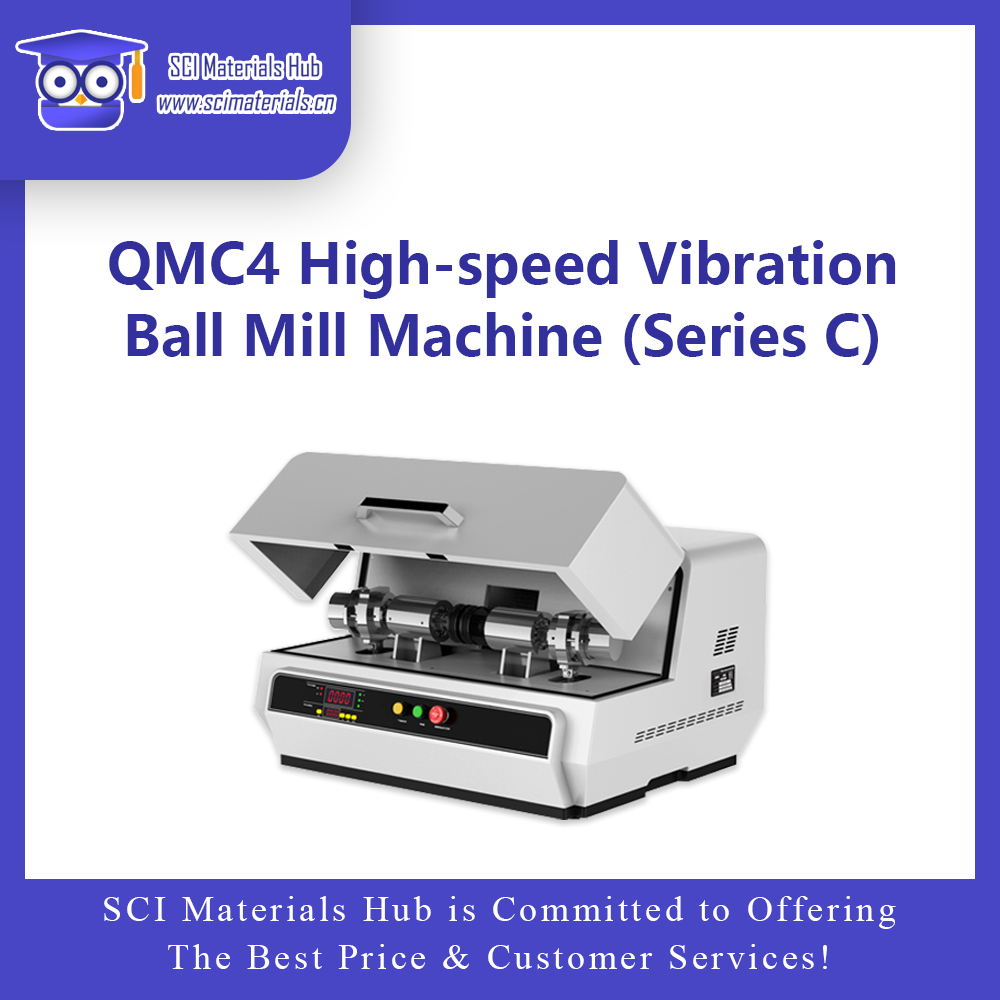

The high-energy vibration ball mill is a small desktop laboratory grinding instrument. It uses 1700r/min high-frequency three-dimensional vibration to achieve the result of grinding or mixing the sample. It is placed in a ball mill with a volume of 50ml or 80ml. The minimum processing capacity is 1g, used to test the treatment of small or trace samples, the processing efficiency of QMC4-80ml high-energy vibration ball mill is 3-5 times that of planetary ball mill, and it can be ball milled by dry and wet methods or mixed with different particle sizes and materials. Various solids, suspensions and pastes, and can also be equipped with a vacuum ball mill to achieve vacuum or inert gas protection grinding.
The high-energy vibration ball mill is a small desktop laboratory grinding instrument. It uses 1700r/min high-frequency three-dimensional vibration to achieve the result of grinding or mixing the sample. It is placed in two ball mills with a volume of 50ml or 80ml. The minimum processing capacity is 1g, try to test the treatment of small or trace samples, the processing efficiency of QMC4-160ml high-energy vibration ball mill is 3-5 times that of planetary ball mill, and it can be ball milled by dry and wet methods or mixed with different particle sizes and materials. Various solids, suspensions and pastes, and can also be equipped with a vacuum ball mill to achieve vacuum or inert gas protection grinding;
QMC4-100ml is used for rapid grinding or mixing of small amounts of dry, wet and frozen samples in the laboratory. It can be configured with two 50ml ball mill jars. It can also be configured with a variety of cell wall breaking adapters for biological cell wall breaking and DNA. / RNA and protein extraction, its structure design is compact, the appearance is simple, desktop operation, small size, the use of variable frequency LCD screen control interface to achieve timing, speed regulation, intermittent grinding and other functions, and the setting is simple and fast, the display is intuitive, a The key is activated to complete the sample processing in a few minutes, which is safe and stable, and can be widely used in hard, medium and low hardness, brittle, dry, viscous, fibrous, soft, and elastic samples;
QMC4-250ml is a high-energy oscillating impact multi-functional laboratory ball mill. The desktop type is simple to operate, small in size, comfortable and safe. It provides three kinds of ball mills of tungsten carbide, zirconia and stainless steel with a maximum volume of 125ml. It can provide users with good crushing and grinding effects in a very short time of several minutes or even tens of seconds. It can be dry, wet, vacuum, and frozen. The unique and extremely powerful impact energy makes this product suitable for scientific research, mechanical The field of chemical and mechanical alloys has a very large application space, and strong and fast are the main features of this product;
| Specifications | ||||
| Model | QMC4-80ml | QMC4-160ml | QMC4-100ml | QMC4-250ml |
| Processing principle | Impact force, friction | |||
Apply sample characteristics | Fine, low to medium hardness, brittle, dry or low viscosity | |||
| The processing type | Grind, mix | Pulverize, Mix, Homogenize, Cell Disruption, Freeze Grinding | mechanochemistry, mechanical alloying, pulverization, mixing, homogenization | |
Max injection size | < 1 mm | < 8 mm | < 10 mm | |
Sample size range | 0.1-20 um | 0.1-5 um | 0.1um | |
Max processing volume | 80 ml | 160 ml | 100ml | 250ml |
Ball mill tank maximum speed | 1700 r/min | 180-1800 r/min | ||
| Ball grinding tank movement mode | High-frequency three-dimensional motion | -- | ||
| Planetary disk space movement mode | -- | Y plane arc high frequency reciprocating motion | ||
| Function | Combination lock, continuous and intermittent operation, emergency stop, intermittent timing, running timing, memory, overload protection | Continuous operation, intermittent operation, timing, speed regulation, data storage, power-off memory, overload protection | ||
| Additional features | cooling, windows | quick fastening, sound absorbing layer, stainless steel work table | ||
| control method | -- | LCD display | ||
| crushing time | -- | 10-60s | ||
| Ball mill jar material | Tungsten carbide, zirconia, stainless steel optional | Tungsten Carbide, Zirconia, Stainless Steel, MC Nylon, Teflon etc. | Tungsten Carbide, Zirconia, Stainless Steel | |
| Ball mill jar quantity | 1个 | 2个 | ||
| Ball mill tank volume | 25ml / 50ml / 80ml | 50ml / 30ml | 125ml | |
| Grinding Ball Material | Tungsten carbide, zirconia, stainless steel optional | |||
| Grinding method | dry grinding, wet film, vacuum grinding | dry grinding, wet grinding, cryogenic grinding | dry grinding, wet film, vacuum grinding | |
| Electrical description | 220V AC,50-60Hz,250W | 100-120V/200-240V AC, 50-60Hz, 150W | 100-120V, 200-240V AC, 50-60Hz, 750W | |
| Power port | National standard, European standard, American standard, British standard, etc | |||
| Weight | 35 kg | 68 kg | 35 kg | 126 kg |
Size (length, width and height) | 430×318×268mm | 620×320×268mm | 470×360×250mm | 680×540×320mm |
| Protection class | IP65 | |||
| Standard | CE | |||

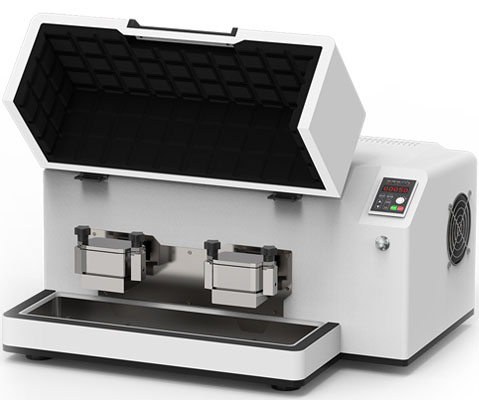

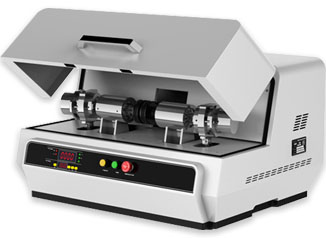

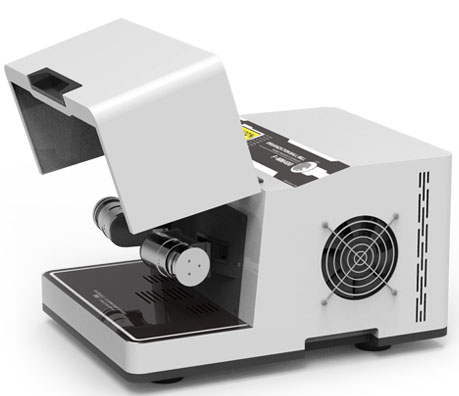

| Product Image |  |  |  |  |
| Specifications | |
Model | QMC4-150ml |
| Processing principle | Impact force |
| Apply sample characteristics | Low to medium hardness, brittle, elastic, fibrous, soft |
| The processing type | Grinding, sieving |
| Maximum injection size | < 5 mm |
| Sample size range | 20 um |
| Grinding amount | 1g-20g |
| Vibration frequency | 3000-3600 r/min |
| Vibration amplitude | 3mm |
| Vibration method | 2D |
| Liquid nitrogen freezing method | Invasive |
| Grinding temperature | -196°C -- 40°C |
| Ball mill jar material | Stainless Steel, Tungsten Carbide, Zirconia |
| Number of ball mills | 1 |
| Ball mill tank volume | 150ml |
| Grinding Ball Material | Stainless Steel, Tungsten Carbide, Zirconia |
| Grinding ball diameter | 40-60mm |
| Grinding method | dry grinding, wet grinding, low temperature grinding |
| Screening method | dry sieve, wet sieve |
| Screen diameter | 100mm ' 150mm |
| Dry screening range | 20um - 63mm |
| Wet screening range | 20um - 10mm |
| Maximum screening weight | 3kg |
| Number of screen layers | 2-5层 |
| Key features | Continuous operation, intermittent operation, timing start, timing, one-key repeat, power-off memory, temperature monitoring |
| Additional features | Quick-lock platen with viewing window, funnel for pouring liquid nitrogen, grinding chamber exhaust |
| Drive mode | Mechanical drive |
| Electrical description | 100-120V/200-240V AC, 50-60Hz, 150W |
| Power port | National standard, European standard, American standard, British standard, etc. |
| Weight | 35 kg |
| Size (length, width and height) | 400×300×200mm |
| Protection class | IP65 |
| Standard | CE |
| Add-ons | Wet-type screening with nozzles for locking platens and sieve , low temperature grinding PC guards |

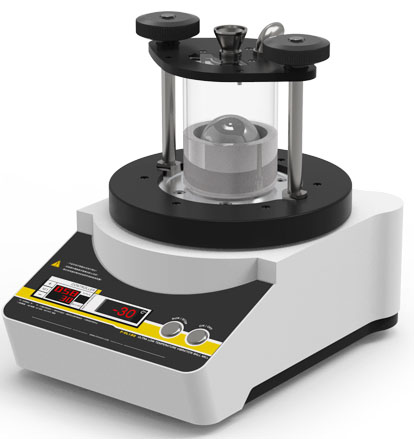

| Product Image |  |
For international orders, please ask us for quotes via
Email: contact@scimaterials.cn
Tel: +86 153-5789-9751
Clik here to put quick orders on our Alibaba shop
QMC4 High-speed Vibration Ball Mill Machine (Series C) | |||
Product code | Product description | Price | Delivery date |
| 30040015-1 | QMC4-80ml | Ask for quote | Ask for quote |
| 30040015-2 | QMC4-100ml | Ask for quote | Ask for quote |
| 30040015-3 | QMC4-150ml | Ask for quote | Ask for quote |
| 30040015-4 | QMC4-160ml | Ask for quote | Ask for quote |
| 30040015-5 | QMC4-250ml | Ask for quote | Ask for quote |
| SCI Materials Hub is Committed to Offering The Best Price & Customer Services! | |||
- The price listed above is in U.S. dollars
Worldwide shipping via DHL, SF-Express, FedEx, TNT & other requested carriers.
Payments via Bank Transfer, Paypal, Credit card (via Alibaba), Alipay, Wechat-pay are accepted.
Please contact us for larger quantities or becoming our distributors.
